Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Description
The Model CS-1546 is a triaxial three-lug shorting plug that shorts the center conductor to the outer shield.
The CS-1546 shorting plug is part of the Model 4210-MMPC-S High-Performance Triaxial Cable Kit.
Characteristics
Maximum current: 2.0 A
Mates with models: Mates with any female triaxial connector
Maximum torque: 15 in.-lb.
Dimensions and shielding
The center conductor and outer shield of the Model CS-1546 are shorted; the inner shield is unterminated.

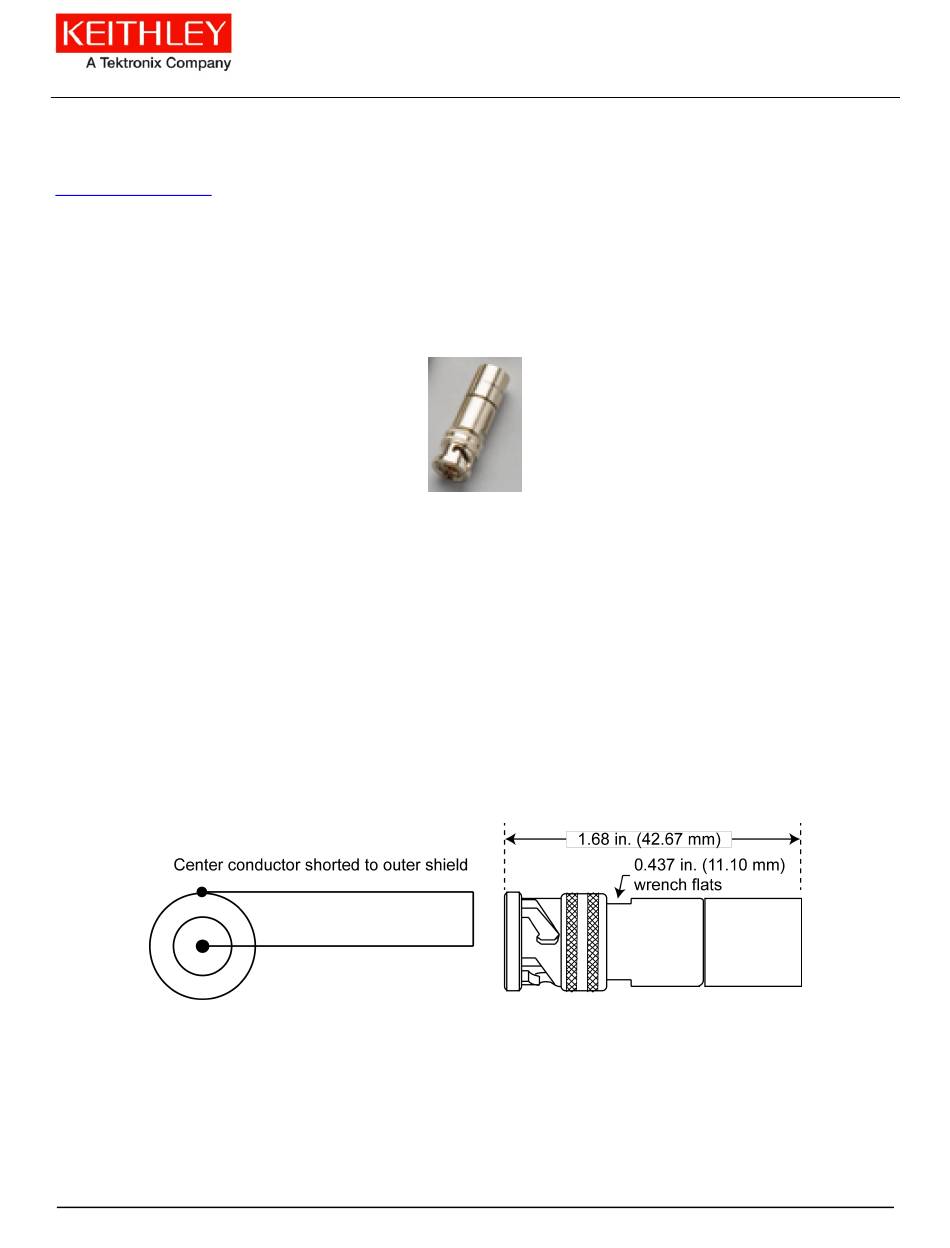

Figure 2: Model CS-1546 dimensions and shield and conductor connections
077081000 Rev. A / June 2013
Triaxial Three-Lug Shorting Plug
Figure 1: Model CS-1546
*P077081000*
Model CS-1546
1
