Summary of Contents for BraunAbility Standard Lockable

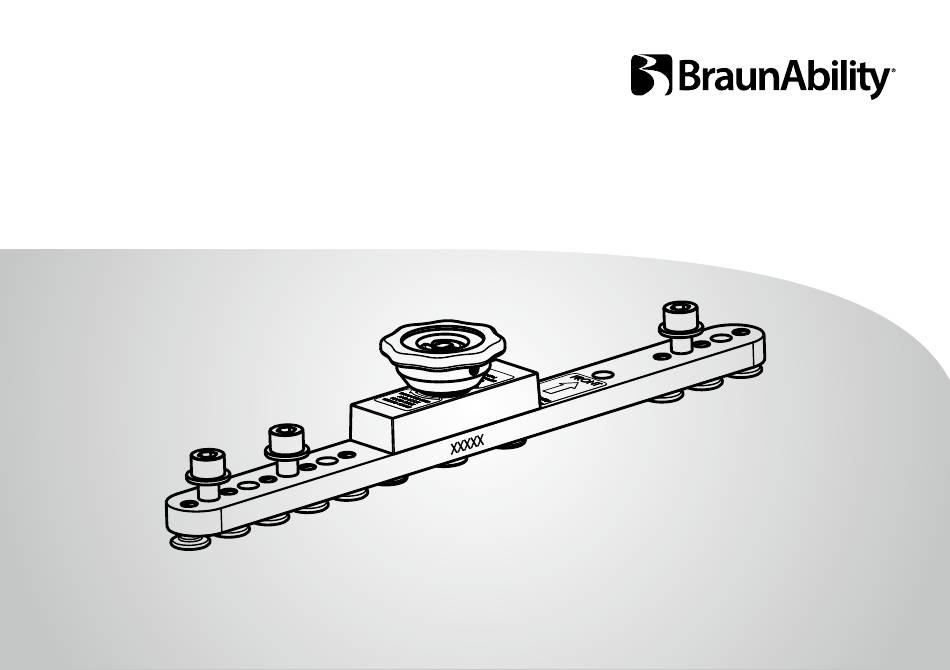

- Page 1 Standard Lockable A lightweight, secure, and easy-to-operate seat fixture Installation and user manual...
- Page 4 If you have any questions about your adaptation, please contact your installation engineer. If you want to know more about us and our range of car adaptation solutions visit www.braunability.eu. Once again, thank you for placing your confidence in our products!
- Page 5 Standard Lockable Safety Standard Lockable Installation Fitting the Standard Lockables to the seat legs Operation Fixing the seats into the rails Removing the seat from the rails Care instructions...

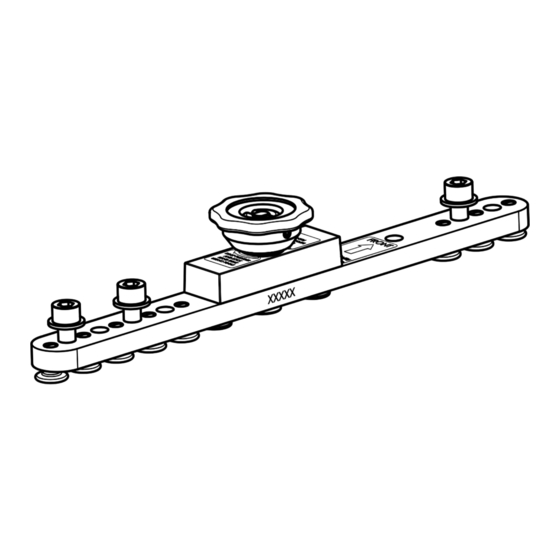

- Page 6 Standard Lockable Safety Standard Lockable (SL) M10 washers Handle M10 cap head bolts (20 mm) Location Plunger Feet...
- Page 7 Fitting Standard Lockables to seat legs Remove the bolts and Place the seat legs on the Mount the seat legs as far washers from each Standard Lockable. The forward as possible. Use Standard Lockable. arrow marked FRONT has at least two fixing holes of...
- Page 8 The fixing bolts must A tightening torque protude beyond the base of 25-30 Nm (18-22lbft) of the Standard Lockable, is recommended. without making contact with the top of the feet.
- Page 9 Standard Lockable Operation Fixing the seat into the rails Turn the black handles anti- Fit the Standard Lockables Turn the black handle clockwise until a positive into the rail and turn the clockwise to apply the stop is reached. Lift the black handles so they drop “anti-rattle”...
- Page 10 Standard Lockable Operation Removing the seat from the rails Care instructions Regularly inspect the Standard Lockables for damage, wear or malfunction. If any problems are identified replace immediately. Turn the black handle Lift seat out of the rail with a...
- Page 11 ECE R14, ECE R17 and ECE R145. and ISO 14001:2015 Illustrations, descriptions and specifications in the user manual are based on current product information. BraunAbility Europe AB reserves the right to make alterations without previous notice. © 2025 BraunAbility Europe AB...
- Page 12 BraunAbility Europe AB Åkerivägen 7 Phone: +46 302 254 00 443 61 Stenkullen E-mail: info@braunability.eu Sweden www.braunability.eu...
