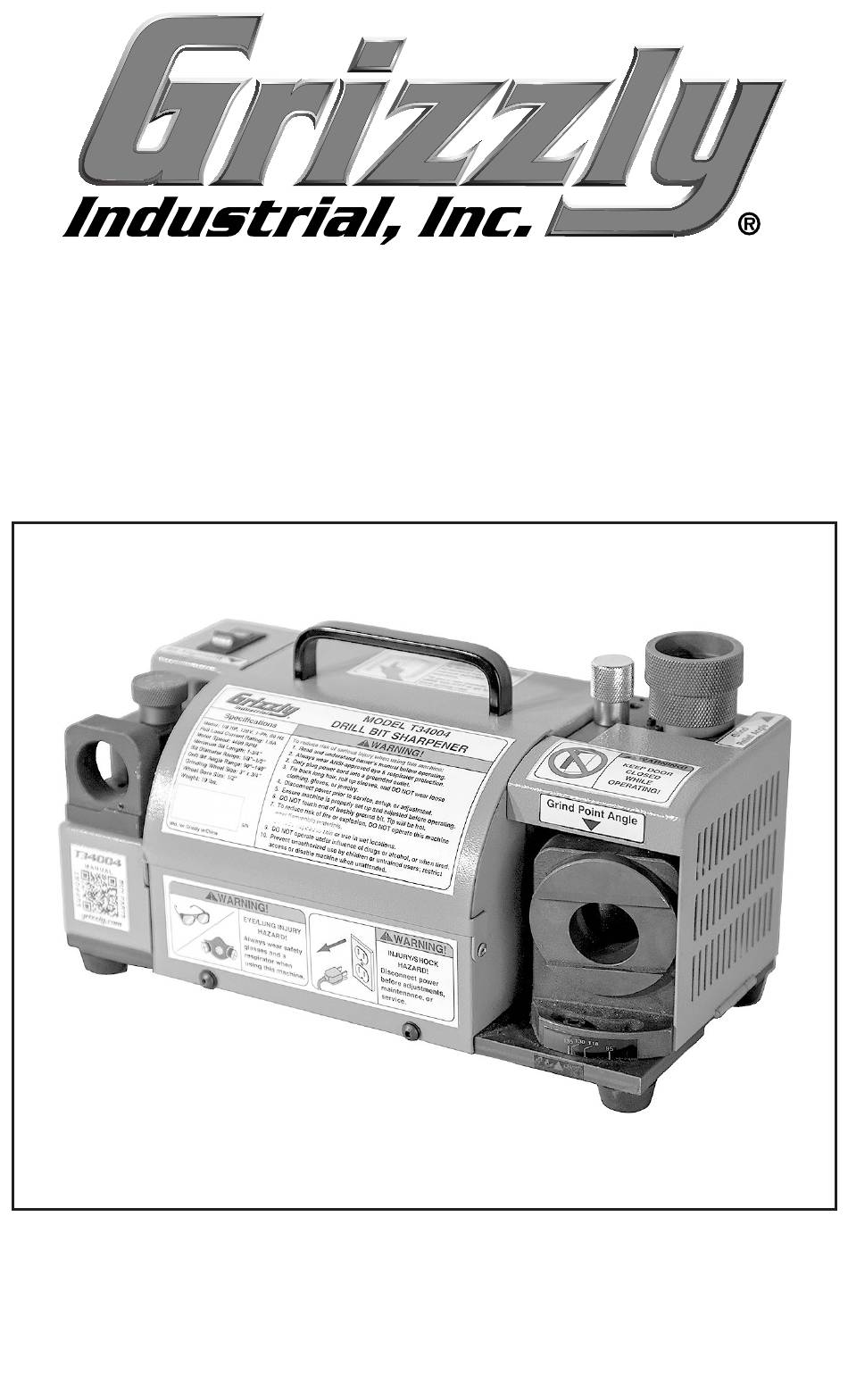

MODEL T34004
DRILL BIT SHARPENER
OWNER'S MANUAL
(For models manufactured since 09/23)

Advertisement

loading
Need help?

Need help?

Do you have a question about the T34004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly T34004

Summary of Contents for Grizzly T34004

  • Page 1 MODEL T34004 DRILL BIT SHARPENER OWNER'S MANUAL (For models manufactured since 09/23)
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
  • Page 3 Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL T34004 DRILL BIT SHARPENER Product Dimensions: Weight ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 19 lbs� Width (side-to-side) x Depth (front-to-back) x Height �������������������������������������������������������������������������������������� 11 x 6 x 6-1/2 in�...
  • Page 4 ER-20 Collet Chuck (11) ER-20 Collets 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2" Storage Compartment for Collets Grinds Standard and Split Point Bits Accessories: Hex Wrench 4mm Page 2 of 2 Model T34004 Model T34004 (Mfd. Since 09/23)
  • Page 5 Use a ground fault circuit interrupter if tools. Never operate under the influence of drugs operation is unavoidable in damp locations. Avoid or alcohol, when tired, or when distracted. touching grounded surfaces when operating tool. Model T34004 (Mfd. Since 09/23)
  • Page 6 FORCING TOOLS.. Use right tool for job, forming the intended operation, stop and do not force it. It will do job safer and using the machine! Contact our Technical better at rate for which it was designed. Support at (570) 546-9663. Model T34004 (Mfd. Since 09/23)
  • Page 7 Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment or poor work results. Model T34004 (Mfd. Since 09/23)
  • Page 8 Model T34004 (Mfd. Since 09/23)
  • Page 9 Minimum Gauge Size ....16 AWG verified ground. Maximum Length ......50 ft. Model T34004 (Mfd. Since 09/23)
  • Page 10 Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual. To reduce your risk of serious injury, read this entire manual BEFORE using machine. Model T34004 (Mfd. Since 09/23)
  • Page 11 If you cannot find an item on this list, carefully check around/inside the tool and packaging materials. Often, these items get lost in pack- aging materials while unpacking or they are pre-installed at the factory. Figure 2. T34004 Drill Bit Sharpener inventory. Model T34004 (Mfd. Since 09/23)
  • Page 12 1. Reset the bit alignment scale by turning the dial all the way clockwise, and then turning it counterclockwise to the same number as the drill bit diameter. 2. Insert the chuck into the bit alignment shelf, then turn it fully clockwise. Model T34004 (Mfd. Since 09/23)
  • Page 13 Insert drill bit into grinding shelf until it reaches the grinding wheel. 3. Grind the drill by moving left and right until the grinding sound stops, then turn to the opposite side and repeat. Model T34004 (Mfd. Since 09/23)
  • Page 14 * The drill bit diameter range is 1/8"–1/2" (3mm–13mm） * The point angle range is 95º–135º * While grinding, do not hold the shank of the drill bit; it will affect the accuracy. Model T34004 (Mfd. Since 09/23)
  • Page 15 N N o o t t e e : : DO NOT use caustic cleaners on plastic parts. If dry cleaning is insufficient, a mild detergent on a damp cloth is recommended. Keep water away from tool at all times. Model T34004 (Mfd. Since 09/23)
  • Page 16 3. If the machine has been used recently, wait three minutes for the grinding wheel temperature to cool. 4. While grasping wheel, loosen cap screw and remove. 5. Remove and replace grinding wheel. 6. Center wheel on motor spindle and secure, then close wheel cover. Model T34004 (Mfd. Since 09/23)
  • Page 17 The round shank of each mended for this tool by Grizzly. bit also centers the drill bit in the chuck, ensuring continued accuracy during drill- ing operations.
  • Page 18 4-outlet surge protector with 2 USB ports and room for multiple chargers. Figure 5. T32818 ER20 Spring Collet Set (12-Pc). Figure 6. T33899 30" Power Tool Charging Station. www.grizzly.com 1-800-523-4777 order online at or call Model T34004 (Mfd. Since 09/23)
  • Page 19 CIRCUIT REQUIREMENTS. You MUST are experiencing difficulties understanding follow the requirements at the beginning of the information included in this section, this manual when connecting your machine contact our Technical Support at (570) to a power source. 546-9663. Model T34004 (Mfd. Since 09/23)
  • Page 20 Wiring Diagram Model T34004 (Mfd. Since 09/23)
  • Page 21 PARTS Main 40 41 42 43 45 46 47 48 49 Model T34004 (Mfd. Since 09/23)
  • Page 22 106 PT34004106 POINT ANGLE LABEL PT34004028 KNOB BOLT M8-1.25 X 32, D18, ROUND KD 107 PT34004107 RELIEF ANGLE LABEL PT34004029 DOWEL PIN 3 X 20 108 PT34004108 ELECTRICITY LABEL PT34004030 SET SCREW M8-1.25 X 12 Model T34004 (Mfd. Since 09/23)
  • Page 23 WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
