For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction

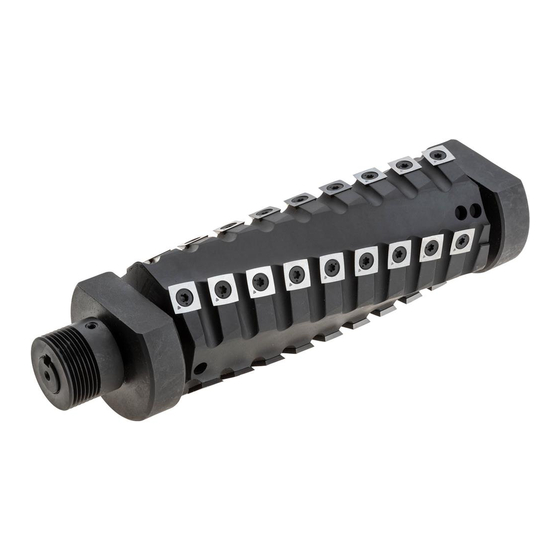

The Model T32057 8" Helical Cutterhead is
designed to replace the straight-knife cutterhead
on the Model G0855 8" x 72" Jointer.
DO NOT modify or alter this cutterhead to
make it fit other makes or models of joint-
ers for which it is not designed. Doing so
could result in property damage or serious
personal injury.
The total installation/setup procedure takes
approximately half an hour. Read these instruc-
tions thoroughly before beginning.
Note: Not all pictures in these instructions will
exactly reflect your machine. Some photos are
provided for representation purposes only to help
you better understand the instructions given.
Specifications
Maximum Width of Cut ...................................... 8"
Cutterhead Diameter ..................................... 3
Number of Indexable Carbide Inserts .............. 36
Indexable Carbide Insert Size ....15 x 15 x 2.5mm
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 04/20) #KS21092 PRINTED IN TAIWAN
MODEL T32057
8" HELICAL CUTTERHEAD
ASSEMBLY FOR G0855
Inventory (Figure 1)
Description
A. Helical Cutterhead Assembly ...................... 1
B. T-Handle Torx Drivers T25 .......................... 2
C. Flat Hd Torx Screws T25 10-32 x
D. Indexable Inserts 15 x 15 x 2.5mm ............. 5
D

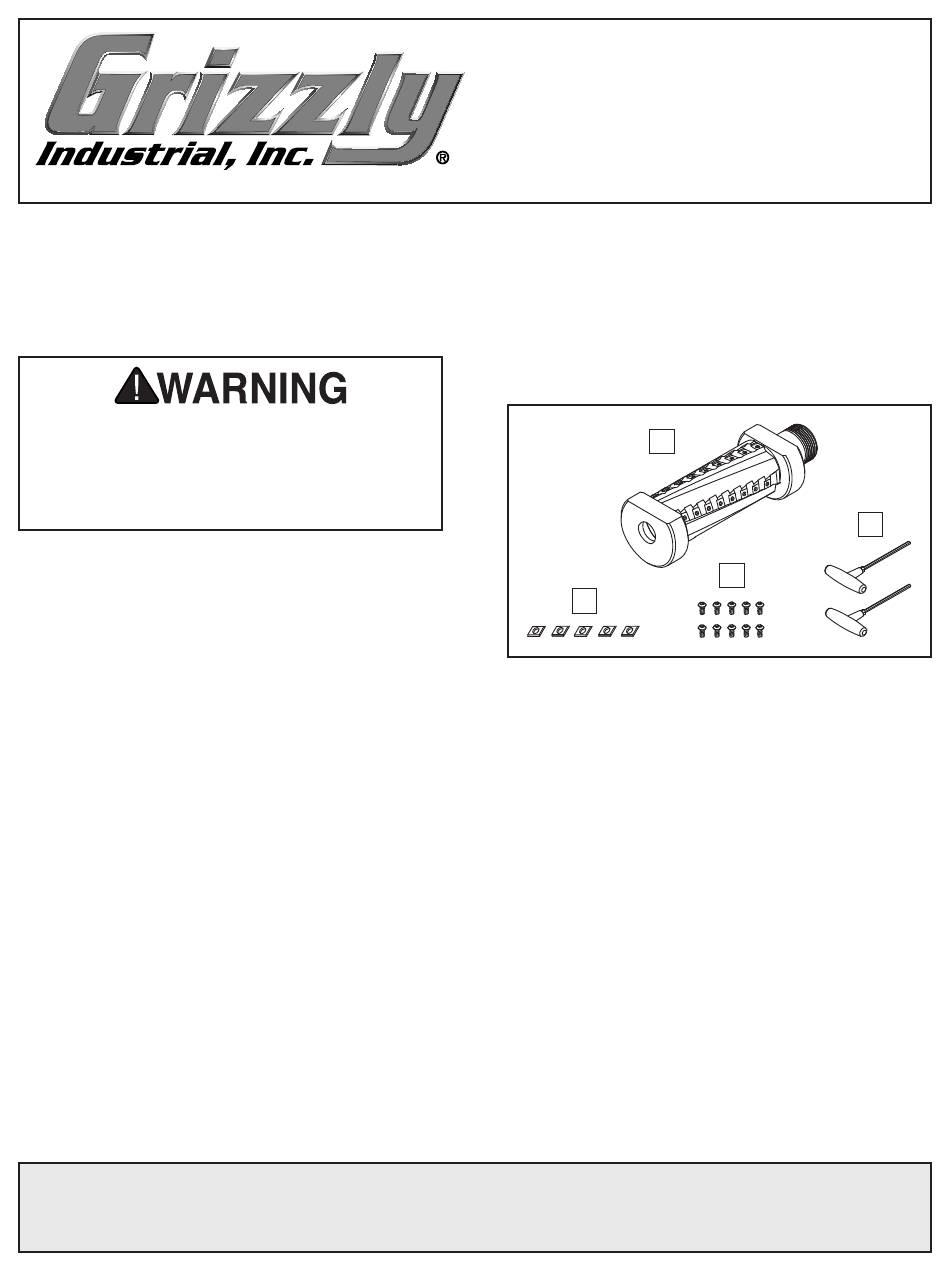

Figure 1. Model T32057 inventory.
•
Pair of Heavy Leather Gloves ..................... 1
•
Safety Glasses (per person) ........................ 1
•
Phillips Head Screwdriver #2 ...................... 1
•
Flat Head Screwdriver ................................. 1
⁄
"
1
16
•
Adjustable Wrench ...................................... 1
•
Precision Straightedge 36" .......................... 1
•
Feeler Gauge Set ........................................ 1
•
Shop Rag .................................... As Needed
•
Degreaser .................................... As Needed
INSTRUCTIONS
A
C
Qty
⁄
" ........ 10
1
2
B
V1.05.20
Advertisement
Table of Contents
Related Manuals for Grizzly T32057
Summary of Contents for Grizzly T32057
- Page 1 MODEL T32057 8" HELICAL CUTTERHEAD ASSEMBLY FOR G0855 INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction Inventory (Figure 1) The Model T32057 8" Helical Cutterhead is Description designed to replace the straight-knife cutterhead A.
- Page 2 Figure 3, and repeat on the other side. Bearing Block Stud Figure 4. Example of cutterhead removed. Remove bearing block studs from bearing blocks. Figure 3. Example of removing hex nut and flat washer on bearing block stud. T32057 8" Helical Cutterhead Assembly...
- Page 3 0.003" on either side, as this may touches straightedge. affect how the bearing block seats in the casting). Repeat Steps 3–5 and adjust as necessary, then tighten hex nuts on bearing block studs. T32057 8" Helical Cutterhead Assembly...
- Page 4 — If insert lifts straightedge off table or if table is below straightedge, adjust outfeed table height with handwheel until straight- edge just touches an insert at its highest point of rotation. T32057 8" Helical Cutterhead Assembly...
- Page 5 Safety Glasses (per person) ......1 • T-Handle Torx Driver T25 ......1 • Torque Wrench 0–50 in.-lb......1 • Shop Rag ........As Needed • Degreaser ........As Needed • Light Machine Oil ......As Needed T32057 8" Helical Cutterhead Assembly...
- Page 6 CFM and up to 9.7" of static pressure —perfect Replacement 15 x 15 x 2.5mm carbide inserts for for handling up to two large machines at once. Model T32057 8" Helical Cutterhead. The 20 gallon collection drum with quick release handle catches large particulate for quick and...
- Page 7 T-HANDLE TORX DRIVER T-25 We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. BUY PARTS ONLINE AT GRIZZLY.COM! T32057 8"...
