Grizzly T1241 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Eye injury hazard! Always
wear safety glasses when
using this machine.
Crushing hazard! Always
keep hands clear when
using this machine.

Identification

A
K
J
D
I

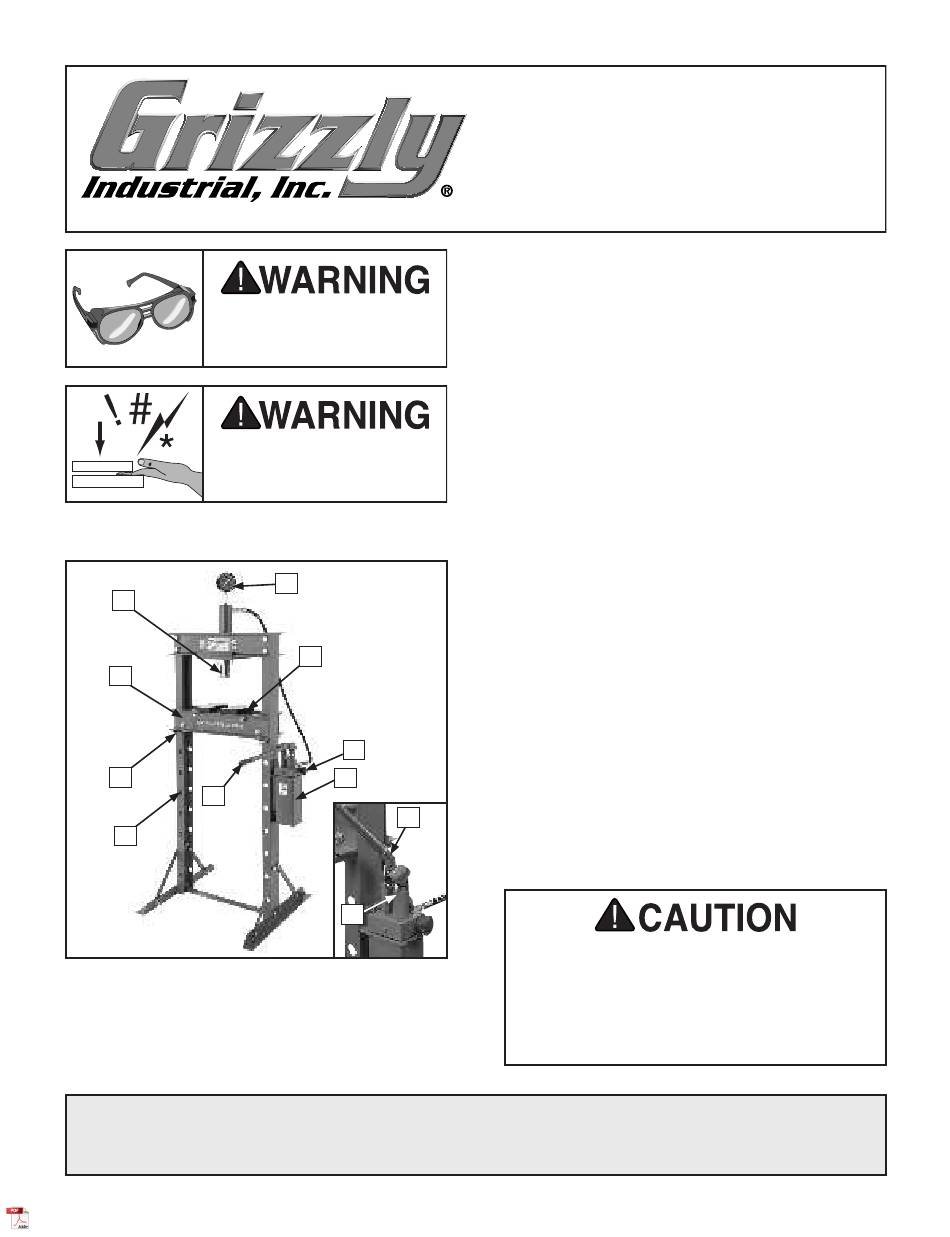

Figure 1. Model T1241 identification.
A. Hydraulic Ram. Applies pressure directly
to workpiece. Hydraulic ram operates using
pressure for downward ram movement.
COPYRIGHT © JANUARY, 2018 BY GRIZZLY INDUSTRIAL, INC., REVISED JULY, 2020 (CS)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
B
C
E
F
G
H
#JH19305 PRINTED IN CHINA

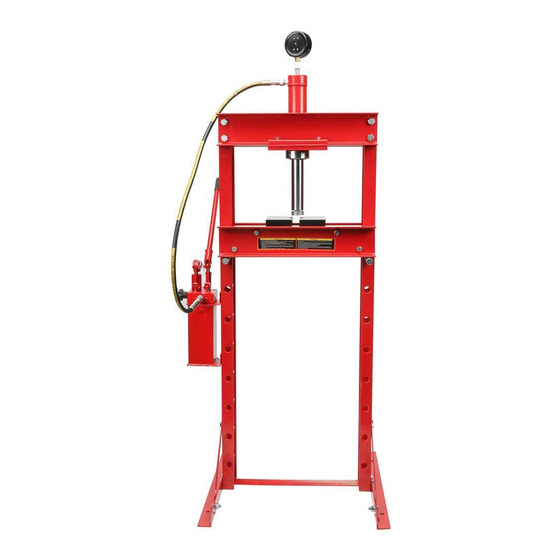

MODEL T1241
20-TON HYDRAULIC PRESS
INSTRUCTIONS
(For Machines Mfd. Since 7/20)
B. Pressure Gauge. Shows pounds of force (in
tons) per inch being applied to workpiece.
C. Table Plates. Support workpiece during
pressing operation.
D. Pump Handle. Generates hydraulic pressure
in ram when pumped up and down. Moves
ram downward.
E. Tank Relief Valve. Releases pressure from
hydraulic ram to release workpiece.
F. Hydraulic Fluid Reservoir. Holds hydraulic
fluid for operation of hydraulic ram.
G. Micro Pump Valve. Increases hydraulic ram
pressure in small increments.
H. Standard Pump Valve. Increases hydraulic
ram pressure in large increments.
I. Bed Adjustment Holes. Holds support rods
to position press bed at desired height.
J. Support Rods. Support press bed using
holes in machine frame.
K. Press Bed. Platform for table plates supports
workpiece during pressing operation.
Always ensure workpiece is positioned
so force is evenly
center workpieces
unexpectedly from force of hydraulic ram,
striking operator or bystanders and causing
injury.
distributed. Off-
can be ejected
