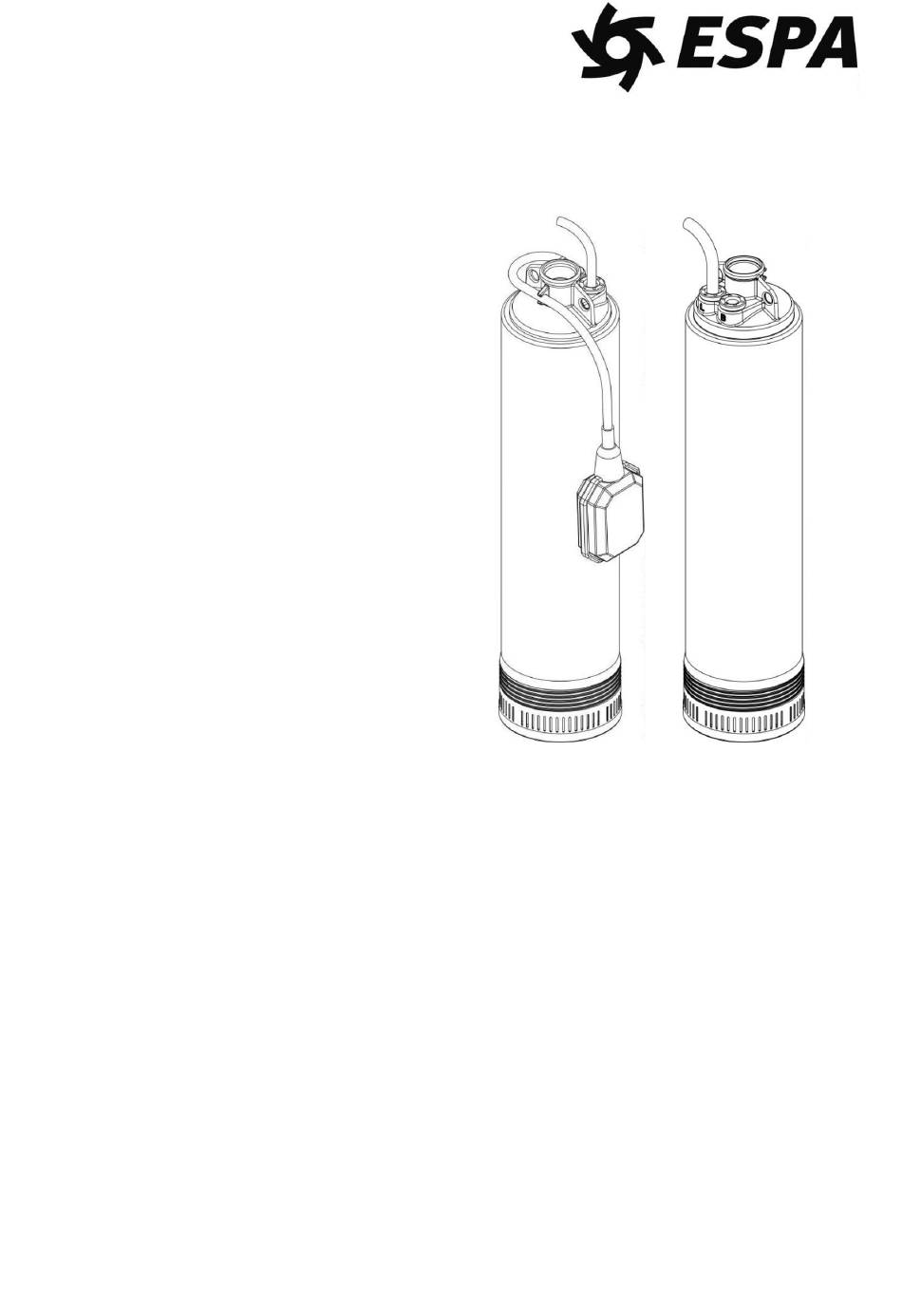

- Page 1 ACUARIA07S/17/27 Instruction manual (Translation from the original Spanish)
- Page 2 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. Standard BS 50581 Banyoles, January 12th 2021 Josep Unyó (Technical Manager) ESPA 2025, SL Ctra. de Mieres, s/n – 17820 Banyoles Girona - Spain...
- Page 3 INSTRUCTION MANUAL (Translation from the original Spanish) Damage prevention and safety instructions (See figure 8) A Warning! Observe limitations of use. B The name plate voltage must be the same as the mains voltage. C Connect the pump to the mains via an omnipolar switch with at least a 3 mm opening between contacts.
- Page 4 Contents The lubricating oil in the motor is non toxic. In the case of accidental discharge, it will not affect the colour or Safety precautions..........10 smell of the water and has no detrimental health effects. 1. General information........11 2.
- Page 5 (in accordance with current installation rules). environmentally sound way, use the waste collection service. If this is not possible, contact the nearest For correct electrical connection, follow the ESPA service workshop. diagrams in fig.4 (internal capacitor), 5 (external capacitor) or 6 (three-phase). PLATE SHOWING CHARACTERISTICS 3.3.
- Page 6 . TROUBLESHOOTING The pump does not start. ) The pump works but does not produce any flow The flow does not match the supplied curve The pump stops automatically. 1 2 3 4 POSSIBLE PROBLEM SOLUTIONS No electricity Check fuses and other protection devices Drop in the well water level Check that the pump is completely submerged Voltage error...
- Page 7 Tapa base Base cover Capuchon de base Basiskappe Tappo di base Cuerpo bomba Pump casing Corps de pompe Pumpengehäuse Corpo della pompa Rodete Impeller Roue Laufrad Girante Difusor Diffuser Diffuseur Leitrad Difusor Retén mecánico Mechanical seal Garniture méchanique Gleintringdichtung Tenuta meccanica Rodamiento Bearing Roulement...
- Page 8 Fig. 1 Fig. 2 Fig. 3 Fig. 7...
- Page 9 Fig. 4 Fig. 5 Fig. 6 1. BLUE 2. BLACK 4. GREY YELLOW/GREEN C1. CAPACITOR 3. BROWN Fig. 8...
- Page 10 Fig. 9 P max = System maximum pressure. (1MPa – 10bar – 100m) Max. immersed depth according to the nameplate characteristics.
