Summary of Contents for GANN HYDROMETTE BL UNI 11

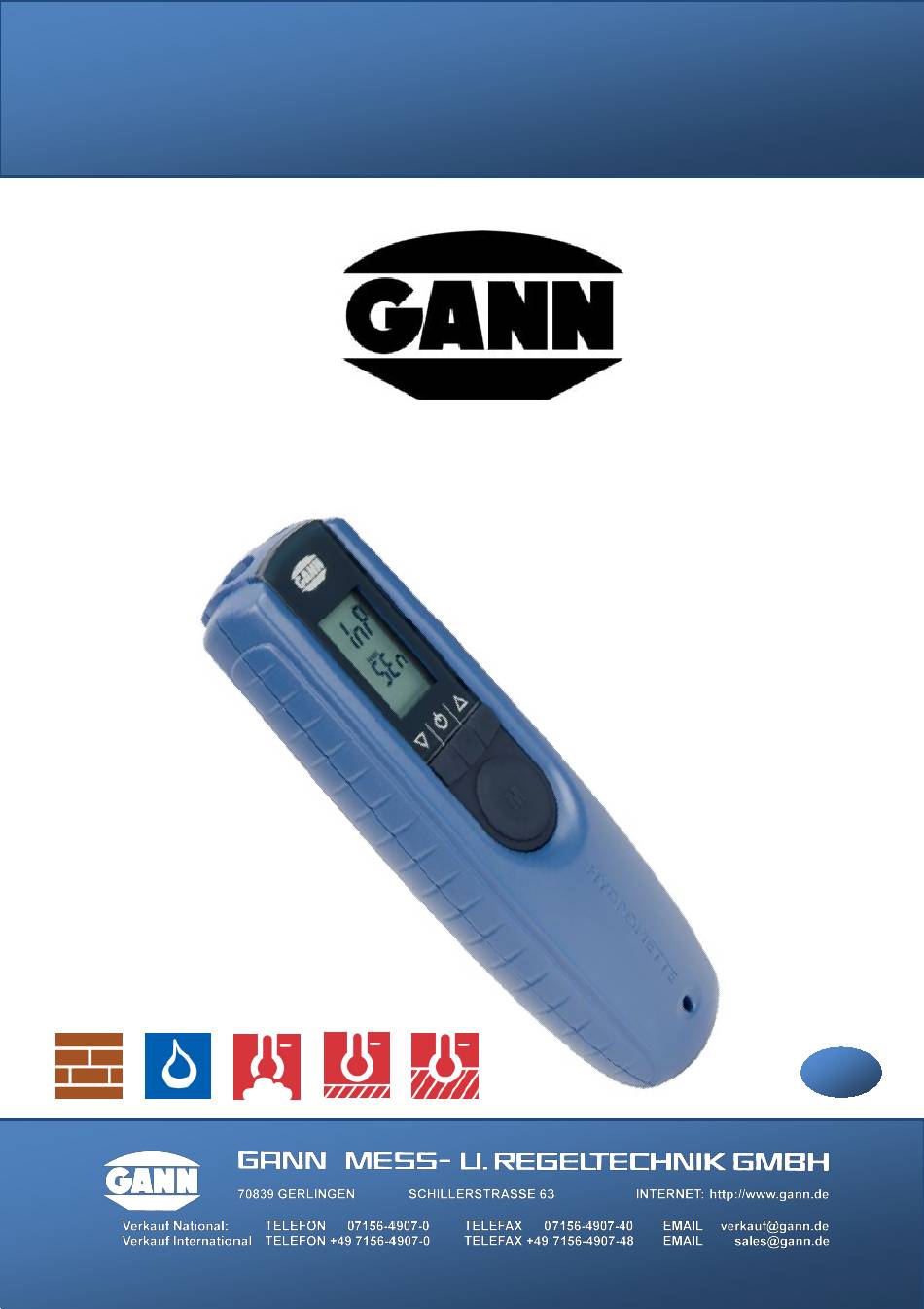

- Page 1 Quick Start Guide Version 1.0 HYDROMETTE BL UNI 11 Hydromette BL Compact TF...
- Page 2 Neither GANN Mess- u. Regeltechnik GmbH nor any of its partner or subsidiary companies can be made responsible or liable in the event of misuse of the information contained in this document.
- Page 3 Table of Contents Foreword ................4 Explanation of the General Warnings ........ 5 Specific Warnings .............. 5 Device Layout and Button Assignment ......6 Switch on Device ............... 7 Setting Menus ..............8 2.2.1 Measuring Menu (Main Menu) ........9 2.2.2 Measuring Mode Selection / Material Setting ..
- Page 4 1 Foreword This quick start guide contains an overview of the most important functions of the Hydromette BL UNI 11. It only contains parts of the legal and safety-relevant information and has been abridged for better readability. A complete digital version of the operating instructions is available on our homepage in the download area (in English: pdf.
- Page 5 1.1 Explanation of the General Warnings The following danger levels are used in this quick start guide to indicate potentially dangerous situations and important safety instructions : Danger Level Description Danger / Indicates a hazardous situation which, if not avoided, will result in death or serious irreversible injuries.
- Page 6 3.5 mm – jack receptacle LCD segment display Up button On / Off button Down button Measure button ("M"-button) Mini-USB port Figure 2-1: Front view of the Hydromette BL UNI 11 ® Version 1.0 Hydromette BL UNI 11...
- Page 7 TF stick is not correctly plugged into the jack receptacle or if there is a malfunction. No settings are possible with this display. The Hydromette BL UNI 11 features auto- sensor technology. automatically...
- Page 8 2.2 Setting Menus The following menu items can be selected one after the other by repeatedly pressing the "Down" button. 1. Measuring menu (Main menu): The measuring process can be performed here 2. Measuring mode selection: The different measuring modes can be set here. (for TF-IR BL / RH-T 37 BL) 3.
- Page 9 2.2.1 Measuring Menu (Main Menu) After switching on, the device is in the measuring menu (main menu). The other menus can be accessed from here by pressing the "Up" or "Down" buttons. In the measuring menu, the last measured values are displayed according to the measuring mode selection made with the associated units and the note "Hold".
- Page 10 2.2.2 Measuring Mode Selection / Material Setting The measurement mode selection can be made in this menu. Various setting modes are available (see measuring mode table). The selected mode changes the display of the measuring menu. Depending on the mode, the appropriate physical dimension is also displayed.
- Page 11 3.1 Connecting the B 55 BL Active-Electrode For non-destructive building moisture measurement. By default, the Hydromette BL UNI 11 in conjunction with the active electrode B 55 BL is supplied with the material code "0" (scan mode) as the factory setting The Hydromette and the B 55 BL active electrode must be connected to each other via the 3.5 mm jack receptacle.
- Page 12 For climate measurement (air humidity and air temperature) and infrared surface temperature measurements. The Hydromette BL UNI 11 and the combination electrode TF-IR BL must be connected to each other via the 3.5 mm jack receptacle. Ensure that the octagonal plug is correctly seated.
- Page 13 3.3 Connection of Special Probes from the RH-T-37 Family and TF sticks For humidity and air temperature measurement. The Hydromette BL UNI 11 and the special probes from the RH-T-37 family (RH-T 165, 320, RH-T flex 250, 350) must be connected to each other via the 3.5 mm jack receptacle.
- Page 14 3.4 Connection of the Pt100 Temperature Sensor The Pt100 temperature sensors ET 10 BL, OT 100 BL and TT 40 BL must be connected to the measuring instrument via the 3.5 mm jack receptacle. Ensure that the octagonal plug is firmly seated. The measuring instrument now automatically recognises the connected accessories.
- Page 15 Cement screed in weight-% Anhydrite screed in weight-% Cement mortar in weight-% Lime mortar in weight-% Gypsum plaster in weight-% Cement screed in CM % Lime sand brick in weight-% Styrofoam in weight-% Anhydrite screed in CM % Gas concrete (Hebel) in weight-% Gypsum screed in weight-% Gypsum screed in CM % Gypsum plaster in CM %...
- Page 16 4.2 Measuring Mode Table Measuring mode Display for Active- Electrodes "Surface temperature IR" (rh / t / ir) TF-IR BL "Dew point IR" (rh / ir / Dp) TF-IR BL "Relative humidity" (rh / t / rh) TF-IR BL / RH-T 37 BL "Air temperature"...
