Summary of Contents for Dyson v12 origin

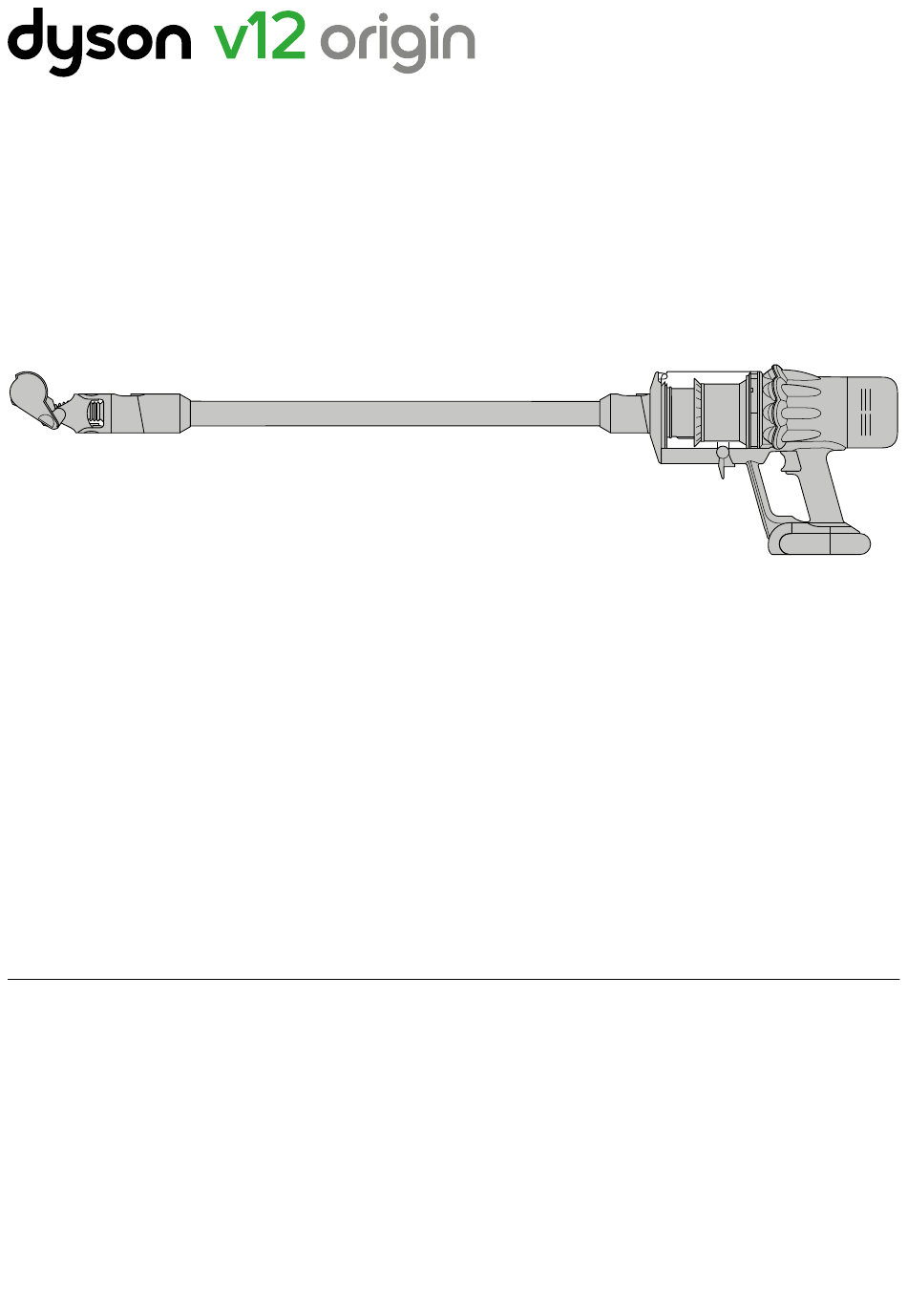

- Page 1 User manual Contents In the box Clearing blockages from your Getting started Hair screw tool The LCD screen Washing your filter Caring for your floors Washing your brush bar Charging your machine Scratch-free dusting brush Changing your click-in battery Awkward gap tool Emptying your bin Cleaning your tools Cleaning your bin...
- Page 2 Not all models are supplied with an additional click-in battery. You can buy additional batteries at the Dyson website. Some tools may not be included. You can buy additional tools at the Dyson website. Combination tool Crevice tool Extension hose Low-reach adaptor...
- Page 3 Getting started Power modes Your machine has three power modes for different tasks. Change power modes quickly using a single button. Eco mode Maximum run time for longer cleans all around your home. Med mode The optimum balance of power and run time. Boost mode Designed for intensive spot cleaning of ground–in dirt.
- Page 4 The LCD screen The LCD screen shows current performance, including selected cleaning mode, remaining run time, filter maintenance and blockage reports. Settings menu Control the settings on your machine using the button. To enter the settings menu, press and hold the button until the menu screen appears.
- Page 5 Run time countdown When the battery needs charging, your machine will pulse three times and a low run time icon will appear on the screen. When your battery is empty, a red warning icon will appear on the screen. 4:50 Battery health To get the best performance and life from your battery, use Eco or Med mode.
- Page 6 Caring for your floors Check that the underside of the cleaner head or tool is clean and free from any objects that may cause damage. Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s recommended cleaning instructions. The brush bar on your machine can damage certain carpet types and floors. Some carpets will fuzz if a rotating brush bar is used when vacuuming.
- Page 7 Emptying your bin Empty as soon as the dirt reaches the MAX level – don’t overfill. Using your machine when the dirt is above the MAX line may affect the performance and require more frequent filter washing. Remove your wand Press the red wand release button, on the top of the wand, and pull the wand away from the bin.
- Page 8 Clearing blockages Disconnect your machine from the charger before looking for blockages. Leave your machine to cool down before looking for blockages. Don’t use your machine when looking for blockages as this could cause injury. If your machine detects a blockage, the motor will pulse and you won’t be able to use your machine until the blockage has been cleared.
- Page 9 Clearing blockages from your Hair screw tool Your Hair screw tool doesn’t have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions. Remove the cover and brush bar Remove the Hair screw tool from the wand or machine. Push the base plate open.
- Page 10 Wash your filter at least once a month to maintain optimum suction power. For more information and support videos for your machine go online to the Dyson website. Twist off your filter Twist your filter anti-clockwise and pull it away from your machine.
- Page 11 Washing your brush bar To maintain optimum performance, check and wash your brush bar regularly. Make sure your machine is disconnected from the charger. Remove your brush bar Don’t put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.
- Page 12 Scratch-free dusting brush Compatible with Dyson V15 Detect™, Dyson V12 Detect Slim™, Dyson V12 Origin, Dyson Outsize™, Dyson V11™, Dyson Cyclone V10™, Dyson V8™, Dyson V7™ and Dyson Digital Slim™ cordless vacuums. Step 1 Attach the Scratch-free dusting brush directly to your vacuum or to the extension hose for delicate cleaning.
- Page 13 Awkward gap tool Compatible with Dyson V15 Detect™, Dyson V12 Detect Slim™, Dyson V12 Origin, Dyson Outsize™, Dyson V11™, Dyson Cyclone V10™, Dyson V8™, Dyson V7™ and Dyson Digital Slim™ cordless vacuums. Step 1 Attach the Awkward gap tool directly to your vacuum.
- Page 14 Cleaning your tools Don’t put any part of your machine in a dishwasher or use detergents, polishes or air fresheners. Wipe with a damp, lint-free cloth, without touching the connector end. Make sure your tools are completely dry before using. Combination tool Crevice tool Extension hose...
- Page 15 The serial number is printed on the back of the battery pack at the base of the handle. Remove the battery to reveal the serial number inside the machine’s handle. For more information and support videos for your machine go online to the Dyson website.
