Before Your Begin

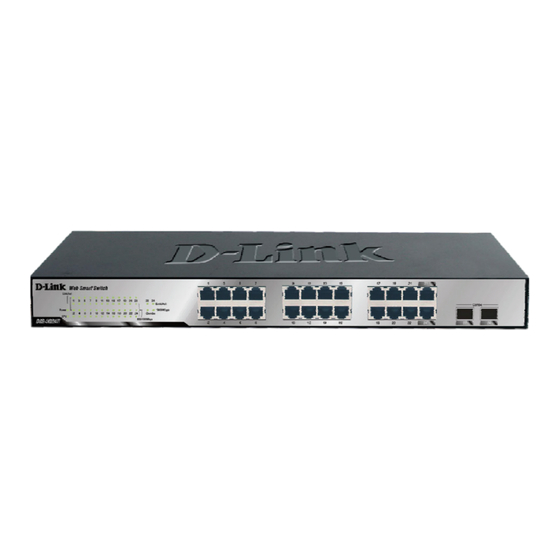

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link
DIS5024T Gigabit Smart Switch. The model you have purchased may appear slightly
different from those shown in the illustrations. For more detailed information about the
switch, its components, making network connections and technical specifications,
please refer to the User's Manual on master CD included with your switch.
Check Your Package Contents
These are the items included with your DIS-5024T purchase:
If any of the above items are missing, please contact your reseller.
©2006 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice.
• DIS-5024T
D-Link 24-Port 10/100/1000Mbps + 2 Combo
Mini GBIC Gigabit Smart Switch
• CD-ROM (containing Manual and Utility
Installation)
• 100–240VAC 50/60Hz
Power Adapter
DIS-5024T
D-Link 24-Port
10/100/1000Mbps + 2 Combo
Mini GBIC Gigabit
Smart Switch
Using a power
supply with a
different voltage rating
will damage and void
the warranty for this
product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for D-Link DIS-5024T
Summary of Contents for D-Link DIS-5024T
- Page 1 If any of the above items are missing, please contact your reseller. ©2006 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice.
- Page 2 Setup The DIS-5024T Gigabit Smart Switch The setup of the Switch can be performed using the following steps: Install the DIS-5024T in a fairly cool and dry place. See Technical Specification for the acceptable operation temperature and humidity ranges. Install the DIS-5024T in a site free from strong electromagnetic field generators (such as motors), vibration, dust, and direct exposure to sunlight.
- Page 3 AC Power The DIS-5024T can be used with AC power supply 100~240V AC, 50~60Hz. The power switch is located at the rear of the unit adjacent to the AC power connector and the system fan. The switch’s power supply will adjust to the local power source automatically and may be turned on without having any or all LAN segment cables connected.
- Page 4 1000BASE-T Twisted Pair Ports (Port 1~24) The DIS-5024T is equipped with 24 Gigabit twisted pair ports that are auto negotiable 10/100/1000Mbps and also support auto MDI/MDIX crossover detection. These two ports can operate in half- and full- duplex modes. Mini GBIC Ports (Option Port 23~24) The Switch is equipped with two Mini GBIC ports, supported optional 1000BASE-SX/LX Mini GBIC module.
- Page 5 Ports 1 & 24 Status LEDs Link/Act When the Link/Act LED lights on, the respective port is successfully connected to an Ethernet network. Blinking When the Link/Act LED is blinking, the port is transmitting or receiving data on the Ethernet network.
- Page 6 Figure 1. SmartConsole Utility Configuring the Switch The DIS-5024T has a Web GUI interface for smart switch configuration. The Switch can be configured through the Web Browser. A network administrator can manage, control and monitor the switch from the local LAN.
- Page 7 Enter IP address http://192.168.0.1 (the factory-default IP address setting) to the address location. (Figure 2.) Figure 2. Or through the SmartConsole Utility, you do not need to remember the IP Address, select the device shown in the Monitor List of the SmartConsole Utility to settle the device on the Web Browser.
- Page 8 Setup Menu When the main page appears, find the Setup menu in the left side of the screen (Figure 5). Click on the setup item that you want to configure. There are following options: System Setting, Trap Setting, Port Setting, SNMP Setting, Password Access Control, Jumbo Frame, 802.1Q VLAN, Trunking, IGMP Snooping, 802.1D Spanning Tree, Port Mirroring, 802.1p Default Priority, Safeguard Engine, Broadcast Storm Control, 802.1X...
- Page 9 Tool You also find the Tool in main page. Click on and scroll down as shown in Figure 6, there are four options: Reset, Config Backup & Restore, Firmware Backup & Upload, System Reboot. Figure 6...
- Page 10 技术支持 办公地址：北京市朝阳区建国路 71 号惠通时代广场 C1 座 202 室 邮编: 100025 技术支持中心电话：8008296688/(028) 66052968 技术支持中心传真：(028)85176948 维修中心地址：北京市朝阳区建国路 71 号惠通时代广场 C1 座 202 室 邮编: 100025 维修中心电话：(010) 58635800 维修中心传真：(010) 58635799 网址：http://www.dlink.com.cn 办公时间：周一到周五，早09:00到晚18:00 Ver 1.00(N) 2007/03/07 2907DS5024T6000...
