Quick Installation Guide
Industrial Ethernet Switch
This document will guide you through the
basic installation process for your new D-Link
Industrial Ethernet Switch.
DIS-200G Series
Quick Installation Guide
Documentation is also available
on the D-Link website
Advertisement
Related Manuals for D-Link DIS-200G Series
Summary of Contents for D-Link DIS-200G Series

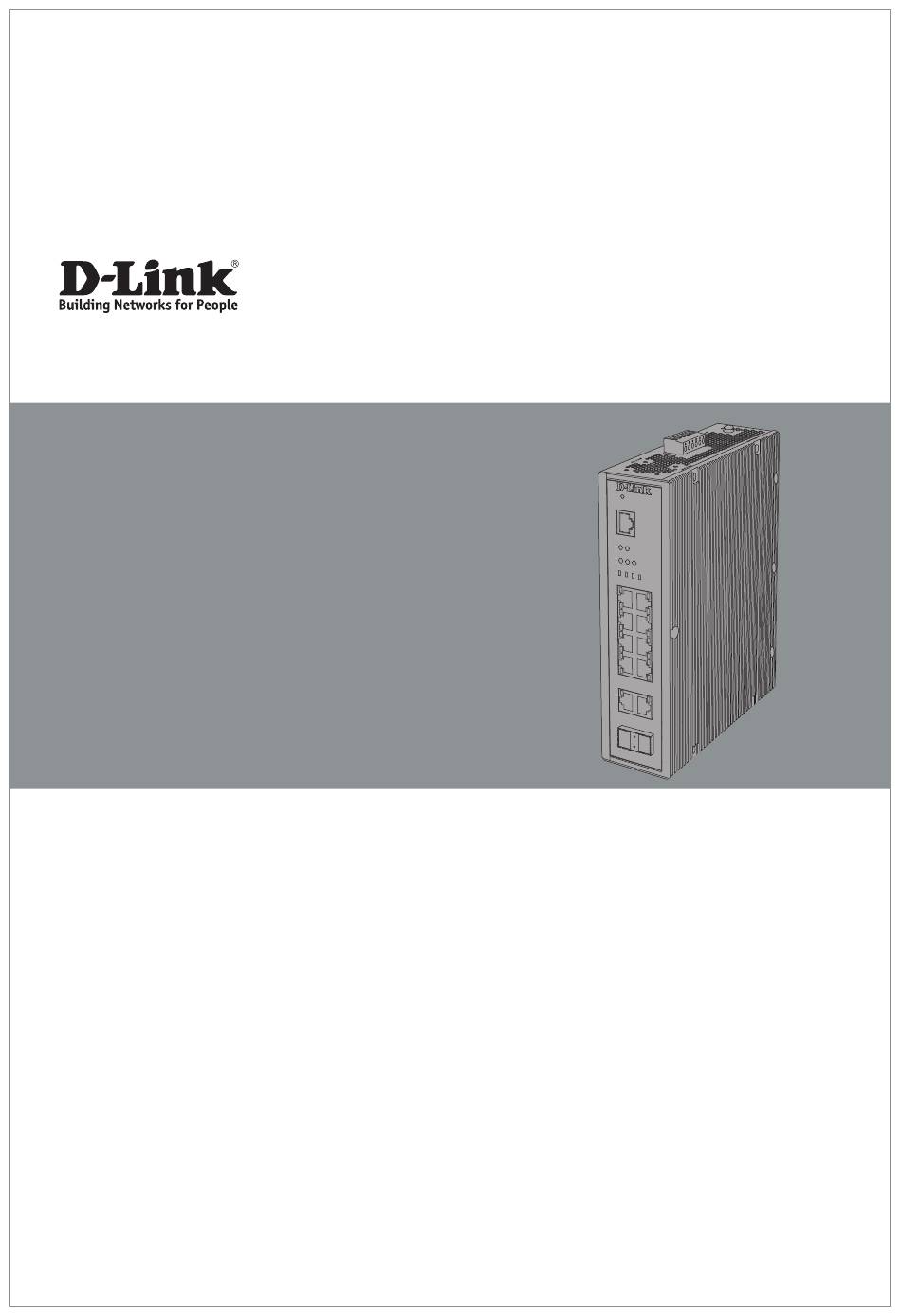

- Page 1 Quick Installation Guide Industrial Ethernet Switch This document will guide you through the basic installation process for your new D-Link Industrial Ethernet Switch. DIS-200G Series Quick Installation Guide Documentation is also available on the D-Link website...
- Page 3 Status Description This Quick Installation Guide gives you step-by- Solid The DIS-200G is on and accepting web/CLI step instructions for setting up the DIS-200G Series green connections. Layer 2 Gigabit Industrial Smart Managed Switch. Blinking A firmware update is in progress.
- Page 4 Figure 2 Status Description Solid Port is connected at 1 Gbps. Status Description green The power budget is 100% and no PoE is Left: Blinking The port is undergoing cable diagnostics. Solid Budget being used. Ports 1 - 8 green green Solid Port is connected at 10/100 Mbps.
- Page 5 Rear Panel Connectors requirements are investigated before mounting the DIS-200G, as access to the switch may be restricted once it has been installed. For safety caution details, please refer the HW installation guide which can be acquired from CD in the package. Caution! Hot surface! Do not touch! PRUDENCE! Surface chaude! Ne pas toucher! Figure 5...
- Page 6 3. Place the switch with the mounting brackets installed on the location where you want to mount it, and use the mounting brackets as a guide to mark where to drill the screw holes. 4. Drill holes on the marks and insert wall anchors appropriate for the material of the wall.
- Page 7 Grounding the Switch To use the DIS-200G safely, it needs to be grounded. Please complete these steps before powering-on the switch. Note: The grounding screw of the chassis must be properly connected to the protective earthing of building in compliance with local regulatory guidelines by using a green-and-yellow grounding cable with the minimum wire gauge 0.75 mm2.
- Page 8 Management Protocol (SNMP) management interfaces. 1. Go to http://tools.dlink.com/intro/dna/ If you wish to manage a single D-Link switch, the 2. Select “Free Download” button to open DNA Web UI may be the best option. Each switch must download page for download be assigned its own IP address, which is used for communication with the management PC.
- Page 9 Gland, Cable, etc.) for purchase and installation. SNMP You can manage the switch with D-Link D-View, or any other SNMP-compatible program. The SNMP function is disabled by default and must be enabled on the switch first by using either the Web UI, DNA,...
- Page 10 Regulatory Statements Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75. Federal Communication Commission Peut être installé dans des salles de matériel de traitement de Interference Statement l’information conformément à l’article 645 du National Electrical Code et à...
- Page 11 Notes...
- Page 12 Notes...
- Page 13 Notes...
- Page 14 Notes...
- Page 16 Ver. 1.04(WW)_130x183 2020/03/19...
