Ÿ The housing, the lenses must be replaced if they are visibly damaged.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Installation
The unit should be mounted via its metal hole on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a 10 times
weight of the unit.
2. Technical Specification
Ÿ
DMX 512 control channels: 4/7/8/11/16/19 channels switchable
Individual control of each LED cluster
Ÿ
Ÿ
Great built-in programs under Master/Slave mode triggered by music
Ÿ
Dimmer and Strobe adjustable
Ÿ
High efficiency optical system
Ÿ
Available in 15 degree and 25 degree
Ÿ
LCD display for easy addressing and setting
Ÿ
Voltage: AC 100-240V~50/60Hz
Power consumption: 56.6W
Ÿ
Ÿ
Light Source: total:48pcs, red: 12pcs, green: 12pcs, blue:12pcs, white/amber:12pcs
Ÿ
Fuse: T 6.3A
Ÿ

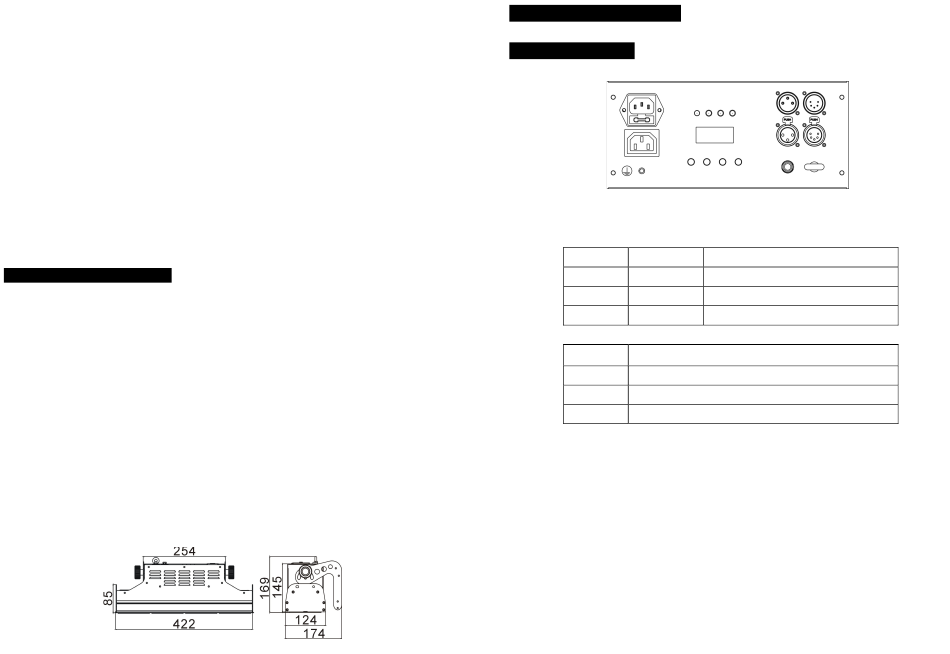

Dimension: 422 x 169 x 174 mm
Ÿ
Weight: 4.9 kgs
4D
3. How To Set The Unit
3.1 Control Panel
Display
To show the various menus and the selected functions
LED
DMX
On
MASTER
On
SLAVE
On
SOUND
Flashing
Button
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To confirm the selected functions
Mains input
Connect to supply mains power.
Mains output
Connect to supply mains power for other units.
DMX input/output
For DMX512 link, use 3/5-pin XLR plug cable to link the unit together.
Only for remote control
By connect to the 1/4'' microphone jack to control the unit for Stand by, Function and Mode
function.
Safety Ring
Keep the installation safe.
DMX input present
Master Mode
Slave Mode
Sound activation
5D
