Dimplex Quantum
night storage
heaters
Dimplex Quantum storage heaters work in the same
way as standard night storage heaters, by charging
up overnight using the cheaper rate of electricity
available on Economy 7. But what makes Quantum
heaters di erent is that they have thermostats and
a digital programmer which makes them much more
responsive to your needs.
For example, you can choose a room temperature
and the times of day when you want the heater to
come on, and based on your choices the heater will
automatically work out how much electricity to store
overnight. And an internal thermostat will ensure that
when the room reaches the required temperature, the
heater turns o and retains the rest of the heat it has
stored for later.
Quantum heaters are better insulated than older
types of night storage heater, meaning that less heat
escapes when it isn't needed. They also respond to
seasonal temperature changes and 'learn' how much
heat to store. Thanks to these improvements, the
running costs of quantum heaters are around 27%
lower than standard night storage heaters.
Getting started
Firstly, make sure that both switches on the wall are
turned on and ensure they are left on all the time,
including overnight. This will not mean the heater keeps
heating 24 hours a day, it will just keep the low powered
programmer active. You can turn o
the summer, but it's best to avoid turning the heater o
and on at the wall during the colder months as this can
hinder the intelligent charging function.

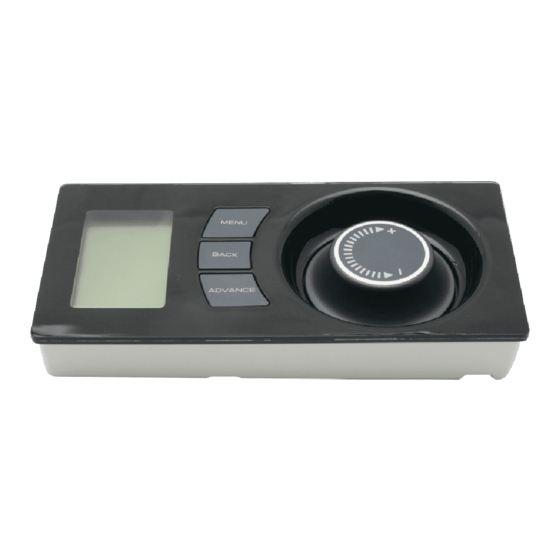

The controls are on the top right of the heater under a
flap. There is a
selector dial
pressed (1), a
display screen
(2), (3) and
menu back advance
www.cse.org.uk/advice
the wall switches in
which can be rotated and
(5) and three buttons:
(4).
5
2
3
4
Press down the , and the display screen shows you
dial
the thermostat target temperature and timer mode.
Turn on the child lock by pressing and holding both back
and the dial for five seconds. Do the same to unlock. You
can also set a four-digit PIN code lock by going into the
settings menu.
When the heater is active, "Heating on" shows at the
bottom of the screen. "Heating o
heater is not currently providing heat, as set by the
programmer.
Step 1:
Set the time
Your Quantum heater may already have the correct time
set, but if not: Press
menu
when "Date/Time" is highlighted; rotate the
dial
the correct day, and press the
process for the date, month, year and time. (The latest
Quantum models know when the clocks go forward to
back, so you don't need to change the time.)
Step 2:
Set the temperature
Rotating the changes the target temperature.
dial
Rotating left lowers the temperature, rotating right
raises it. When the room reaches the temperature set,
the heater will turn o . The recommended temperature
range is 18-21°C. If you change the temperature during
the day, remember to set it back to your preferred
temperature before midnight so the heater knows how
much heat to store overnight.
1
" shows that the
; rotate and then press the
dial
to select. Repeat this
dial
to
