Summary of Contents for SunSynk W10.6

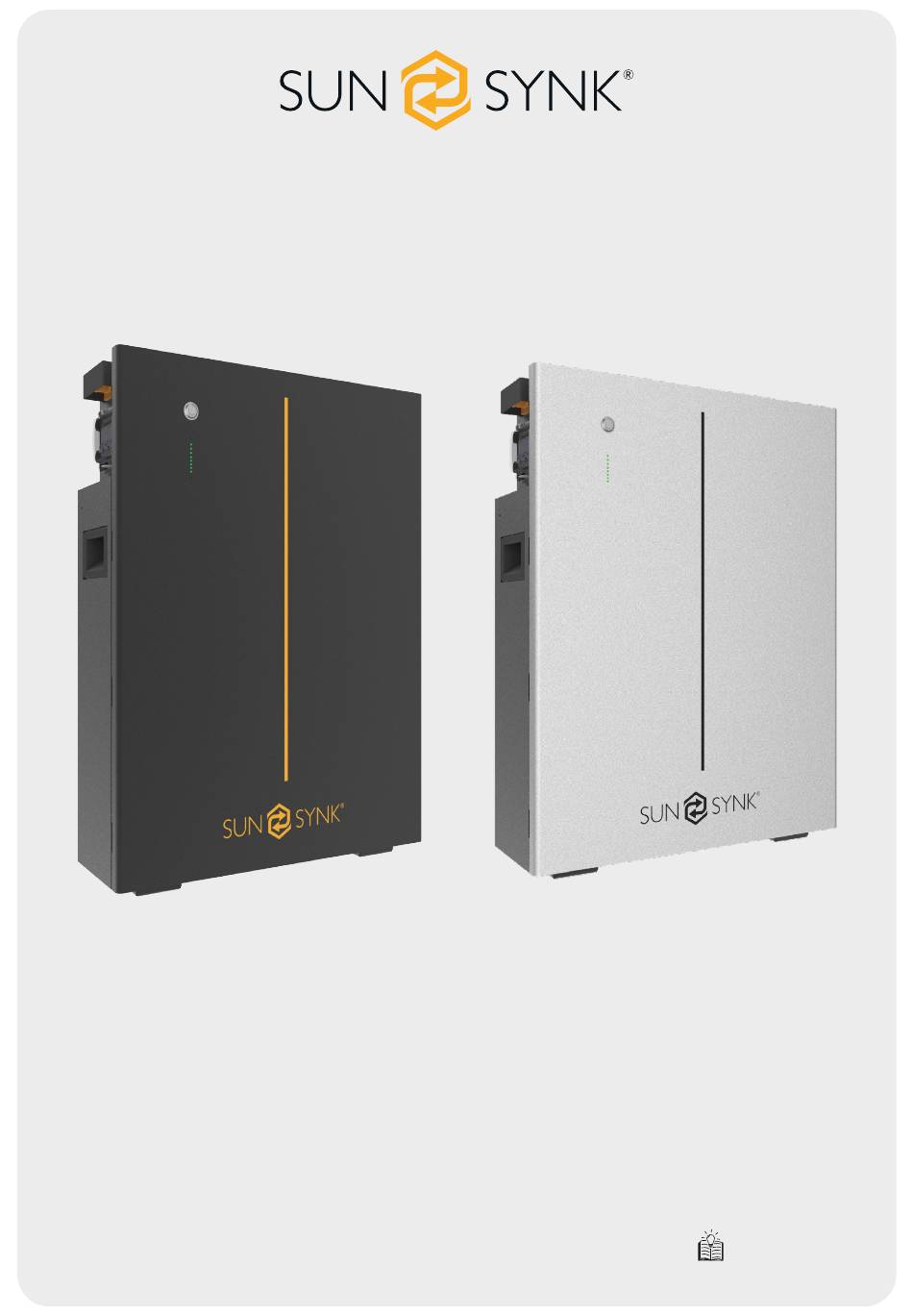

- Page 1 SUNSYNK-W10.6 USER MANUAL www.sunsynk.com sales@sunsynk.com customerservices@sunsynk.com PLEASE RETAIN FOR v.1 (26/07/24) FUTURE REFERENCE...
- Page 2 SPECIFICATIONS AND FUNCTIONS Dimensions and Weight Basic System Architecture TECHNICAL DATA EQUIPMENT INTERFACE INSTRUCTION INSTALLATION Parts List Installation Precaution Selecting the Mounting Area Tools and Safety Gears Necessary Mounting the Battery Wall-Mounted Method Floor-Mounted Method Batteries in Parallel Parallel Mode 1 (Inverter Power ≤15kW) Parallel Mode 2 (Inverter Power >15kW) Electrical Schematic Diagram Battery Connected to Inverter Connection Inspection Starting the SUNSYNK-W10.6 Battery Wiring Diagram Symbol Explanation MONITORING INSPECTION, CLEANING AND MAINTENANCE General Information Inspection Cleaning Maintenance Storage TROUBLESHOOTING BATTERY RECOVERY Recovery Process and Steps of Cathode Materials Recovery of Anode Materials Recovery of Diaphragm List of Recycling Equipment TRANSPORTATION REQUIREMENTS SUNSYNK-W10.6 | User Manual...
- Page 3 ƒ charge (DOD) and comes with a standard 10-year warranty. Battery Management System (BMS) includes protection functions against over-discharge, over-charge, ƒ over-current, and high & low temperatures. Built-in Intelligent BMS provides comprehensive protection. Features natural cooling, IP65 rating, and ƒ operates within a wide temperature range from -20ºC to 55ºC. Modular design facilitates easy expansion, supporting up to 32 units in parallel with a maximum capacity ƒ of 320kWh. Ideal for residential and commercial applications to enhance self-consumption ratios. Battery module auto-networking (No DIP switch code) enables easy maintenance and supports remote ƒ monitoring and upgrades via SUNSYNK platform. Compatible with SUNSYNK inverters for a stack all-in- one system. Uses environmentally friendly materials, ensuring the entire module is non-toxic and pollution-free. ƒ Flat design allows for wall mounting with a wall bracket or floor installation with a removable base, opti- mizing installation space. BATTERY EXPANSION AND USE The production date of the original batteries and newly added batteries should be as close as possible, ƒ within one year is best. If the time differences of production are too long, the battery capacity deviation will be large, and the batteries' energy cannot be fully utilised. Before expansion, please fully charge the original batteries to 100% (keep SOC 100%), and then charge ƒ the batteries that need to be added to SOC 100%. Next, assemble to achieve the purpose of expansion. The original batteries can be charged using an inverter; The newly added batteries need to be charged separately with the battery charger. Please consult relevant technical personnel before expansion. The individual will bear all consequences ƒ caused by personal misoperation, not covered by the Sunsynk warranty. Sunsynk lithium battery is prohibited to work in Lead-acid Mode. Any failure caused by using a Lead-acid ƒ model is not covered by the Sunsynk warranty. SUNSYNK-W10.6 | User Manual...
- Page 4 Do not expose the battery to flammable or harsh chemicals or vapours. ƒ Do not paint any part of the battery, including any internal or external components. ƒ Do not connect the battery with PV solar panel wiring directly. ƒ The warranty claims are excluded for direct or indirect damage due to the items above. ƒ Any foreign object is prohibited from inserting into any part of the battery. ƒ Symbols/Safety Signs This symbol indicates information that if This product's batteries contain an ex- ignored, could result in personal injury, plosive, self-reactive material that could physical damage or even death due to blow up when heated. incorrect handling. Electrical Hazard. Read the manual. Danger. Indicates that this product is recyclable. Do not place near open fire or incin- The Battery is heavy and can cause inju- erate. Do not use near heaters or hot ry if not handled safely. temperature sources. Do not disassemble or alter the battery Do not submerge the battery in water or in any way. Do not strike or puncture expose it to moisture or liquid. the battery. Do not drop, deform, or impact the Do not step or put any objects onto the battery. battery. SUNSYNK-W10.6 | User Manual...
- Page 5 After unpacking, please, first check the product and packing list. Please, get in touch with the local retail- ƒ er if some product is damaged or lacks parts. Before installation, cut off the grid power and ensure the battery is in the turned-off mode. ƒ Wiring must be correct, do not mistake the positive and negative cables, and ensure there is no short ƒ circuit with the external device. It is prohibited to connect the battery and AC power directly. ƒ The battery system must be well grounded, and the resistance must be less than 1Ω. ƒ Please ensure the electrical parameters of the battery system are compatible with related equipment. ƒ Keep the battery away from water and fire. ƒ Safety Precautions While Using Cut off the power and completely shut down the battery before moving or repairing the battery. ƒ Connecting the SUNSYNK-W10.6 battery with a different type of battery is prohibited. ƒ It is forbidden to put the batteries working with faulty or incompatible inverters. ƒ It is not permitted to disassemble the battery. ƒ Arc damage level 1, energy 3car/cm². ƒ When the battery is too warm, the LED will flash red, and the buzzer will sound with the light. The buzzer ƒ sounds for 1s and then stops for 1s. Liquid fire extinguishers are forbidden. In case of fire, only dry fire extinguishers can be used. ƒ Please do not open, repair, or disassemble the battery except staff from SUNSYNK or authorized by ƒ SUNSYNK. We do not undertake any consequences or related responsibility because of violation of safe- ty operation or violation of design, production, and equipment safety standards. SUNSYNK-W10.6 | User Manual...
- Page 6 Handling The battery should only be used as instructed. ƒ DO NOT use the battery if it seems broken or damaged. ƒ The battery is non-user-serviceable and should not be opened for repair. ƒ Handle the battery with care when installing or transporting it. ƒ Chemicals should not be used to clean the battery. ƒ Damaged Battery A damaged battery should not be used and should be returned to Sunsynk or properly discarded via a recy- cling facility. Leaking electrolytes can cause skin irruption and chemical burns, so contact should be avoided. Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelids. Get medical aid. Remove contaminated clothes and rinse skin with plenty of water or shower for 15 Skin minutes. Get medical aid. Inhalation Remove from exposure and move to fresh air immediately. Use oxygen if available. Give at least two glasses of milk or water. Induce vomiting unless the patient is Ingestion unconscious. Call a physician. SPECIFICATIONS AND FUNCTIONS Dimensions and Weight SUNSYNK-W10.6 dimensions are presented below: SUNSYNK-W10.6 Depth 200mm Width 610mm Height 760mm Weight 101kg SUNSYNK-W10.6 | User Manual...
- Page 7 Basic System Architecture The following illustration shows basic application of this battery. It also includes following devices to have a complete running system. Generator or Utility ƒ PV modules ƒ Hybrid Inverters (Charge & Discharge) ƒ Contact our customer service or an accredited seller for precise information about application cases of the SUNSYNK-W10.6 battery. SUNSYNK-W10.6 | User Manual...
- Page 8 Discharge: 300 Other Parameter Recommend Depth of Discharge 610 x 760 x 200 (doesn't include terminals, Dimension (W x H x Dmm) circuit breaker, hanging boards and pedestal) Weight (kg) 5 LED (SOC 20%~100%) Master LED Indicator 2 LED (working, protecting) IP Rating of Enclosure IP65 Charge: -10°C ~ +55°C Working Temperature Discharge: -20°C ~ +55°C Storage Temperature 0°C ~ +35°C Humidity 5% ~ 95% Altitude ≤2000m Cycle Life ≥6000 (25±2°C,90%DOD,0.5C/1C,70%EOL) Installation Wall-Mounted (supports 19-inch standard cabinet) Communication Port CAN2.0, RS485 Life Cycle Power During Warranty Period 32MWh@70%EOL Certification IEC62619, CE, UK, CEC, UN38.3 DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25° C. System usable energy may vary due to system configuration parameters. The current is affected by temperature and SOC. The warranty is due whichever reached first of warranty period or energy throughout. SUNSYNK-W10.6 | User Manual...
- Page 9 EQUIPMENT INTERFACE INSTRUCTION This section details the front and side panel of the interface functions. Following, you will find the SUN- SYNK-W10.6 front side illustration. 1. Inverter CAN/RS485 Port PCS 5. Parallel Communication Port OUT 2. Parallel Communication Port IN 6. RS232 Communication Module 3. Micro Circuit Breaker 7. Battery Indicators and Buzzer 4. Handle Interface Symbol Description and Instructions Power Switch to turn ON/OFF the whole battery BMS standby, no power Power Switch out- put. Inverter communication terminal: (RJ45 port) follow the CAN protocol (baud rate: 500K), used to output battery information to the inverter. Parallel Communication Terminal: (RJ45 port) Connect “out”. The terminal of the Previous battery for communication between multiple parallel batteries. Parallel Communication Terminal: (RJ45 port) Connect “in”. The terminal of the Next battery for communication between multiple parallel batteries. DC 4P 125A Control total positive and negative circuit off and on. Circuit Breaker Grounding Bolt Used for the battery connecting to the PE. The module can directly communicate with the cloud platform by inserting Communication a Wi-Fi stick into a single pool. Module SUNSYNK-W10.6 | User Manual...
- Page 10 IN Port Definition OUT Port Definition 485-B CANL CANL 485-A CANH CANH CANH CANH 485-A CANH CANH 485-B CANL CANL Protection and Alarm Management and Monitor Charge/Discharge End Intelligent Protect Mode Charge Over Voltage Intelligent Charge Mode Discharge Under Voltage Protect, Charge Current Limit Charge/Discharge Over Current Intelligent Protect Mode High/Low Temperature(cell/BMS) Intelligent Protect Mode Short Circuit Protect SUNSYNK-W10.6 | User Manual...
- Page 11 INSTALLATION Parts List Check if you received all the items listed below. Ensure that nothing is damaged in the package. 2m Ground Wires x1 Battery Pack x1 Communication Line x2 Fixed Supports x2 0.6m Ground Wires x1 Stainless Steel Anti-Colli- Hanging Board Mounting sion Bolt M6x100 Retractable Rack x2 User Manual x1 Screws M6*10 x10 SUNSYNK-W10.6 PCable SUNSYNK-W10.6 BCable Simple Wall Bracket x1 Simple Back Bracket x2 SUNSYNK-W10.6 | User Manual...
- Page 12 If the ambient temperature is outside the operating range, the battery pack stops operating to pro- tect itself. The optimal temperature range for the battery pack is between 15°C and 35°C. Frequent exposure to harsh temperatures may deteriorate the performance and life of the battery SUNSYNK-W10.6 | User Manual pack.
- Page 13 Use adequately insulated tools to prevent accidents tale electric shocks or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape. We recommend wearing the following safety gear when dealing with the battery pack installation or mainte- nance. Safety Gloves Safety Goggles Safety Shoes SUNSYNK-W10.6 | User Manual...
- Page 14 Remember that this storage system is heavy (101kg), so users must carefully handle the unit during installation, especially when mounting or removing it from the wall. Wall-Mounted Method 1. Maintain a distance of at least 400mm from the ground. After securely fixing the wall bracket, affix a sticker on the right side (between 90 and 95mm) and another on top (between 120 and 130mm). Mark the drill hole locations accurately as shown in the diagram below, ensuring the installation location meets the specified size requirements. 90 (+10) 2. Select the recommended drill bit (as shown in Figure) to drill four holes in the wall, each 100mm-110mm deep. Use a suitable hammer to secure the mounting plate to the wall, inserting the M6*100 expansion bolts into the holes as depicted in Figure below. SUNSYNK-W10.6 | User Manual...
- Page 15 3. Use the 10 screws of M6*10 to fix the backplane to the back of the battery as shown in Figure 5-2. Figure 5-2 4. Then lifting the SUNSYNK-W10.6 along the position of the sticker, push it on the wall bracket. SUNSYNK-W10.6 | User Manual...
- Page 16 5. Tighten the screw heads of the expansion bolts to complete the mounting process. 6. Lift the battery and secure it by attaching it to the plate after fixing the mounting plate to the wall. Ensure the upper and lower positions of the battery backplane hook accurately engage with the mounting plate, as illustrated in Figure 5-3. Figure 5-3 Floor-Mounted Method Figure 5-4 SUNSYNK-W10.6 | User Manual...
- Page 17 1. Stand the battery on the side of the wall, mark the location of the fixing hole. 2. Choose the recommended drill head (as shown in the figure below) to drill two holes in the wall, 100 to 110 mm deep, as shown in Figure 5-2 and Figure 5-5. Figure 5-5 3. Use a proper hammer to fixing the battery to the wall, fit the expansion bolt into the holes, as shown in Figure 5-2. 4. Adjust the left and right screws to the appropriate position to ensure that the battery is perpendicular to the ground, as shown in Figure 5-6. 5. The installation results are as Figure 5-7. Figure 5-6 Figure 5-7 SUNSYNK-W10.6 | User Manual...
- Page 18 The maximum current for each battery is 250A. Exceeding this limit can lead to overheating of con- nectors and cables, potentially causing fire accidents. If the inverter power exceeds 15kW, it must operate in parallel mode 2. Schematic diagram of parallel connection of low-power system batteries: SUNSYNK-W10.6 | User Manual...
- Page 19 Parallel Mode 2 (Inverter Power >15kW) Schematic diagram of parallel connection of high-power system batteries: SUNSYNK-W10.6 | User Manual...
- Page 20 Electrical Schematic Diagram This diagram is for each battery module Battery Connected to Inverter For the Australian market, it is mandatory to install an overcurrent protection and isolation device that simul- taneously isolates both positive and negative conductors between the battery system and inverter. Remem- ber to remove the cover using a screwdriver before connecting the cables. SUNSYNK-W10.6 | User Manual...
- Page 21 Single Battery Connected to Inverter Two Batteries Connected to Inverter SUNSYNK-W10.6 | User Manual...
- Page 22 Three Batteries Connected to Inverter Connection Inspection After installing and connecting the battery, check the following points: Usage of positive and negative cables. ƒ Connection of the positive and negative terminals. ƒ All the bolts are tightened. ƒ Cables fixation and appearance. ƒ The setting of the dialling address. ƒ The installation of the protecting cover. ƒ After cables are connected, use a screwdriver to secure the cover. ƒ SUNSYNK-W10.6 | User Manual...
- Page 23 Starting the SUNSYNK-W10.6 Battery After completing installation, wiring, configuration, and checking all the connections, you can start the bat- tery. Startup Procedure for SUNSYNK-W10.6 Lithium Battery: 1. Safety Check: Ensure all personnel are clear from the vicinity of the battery installation area. ƒ Confirm that all necessary safety equipment is readily available. ƒ 2. External DC Isolator Check: Verify that the external DC isolator between the battery and inverter is in the OFF position. ƒ Check that the isolator between parallel batteries is also in the OFF position. ƒ 3. Battery Connection: Connect the SUNSYNK-W10.6 Lithium battery to the inverter using the appropriate DC cables. ƒ Ensure the connections are tight and secure. ƒ 4. Inverter Initialization: Turn on the inverter according to the manufacturer's instructions. ƒ Allow the inverter to complete its startup sequence. ƒ 5. External DC Isolator Activation: Switch ON the external DC isolator between the battery and inverter. ƒ Verify that the isolator is securely engaged in the ON position. ƒ 6. System Check: Monitor the inverter's display panel or software interface to confirm the successful detection of the ƒ...
- Page 24 Shutdown Procedure for SUNSYNK-W10.6 Lithium Battery: 1. Load Reduction: Gradually reduce the load on the system by turning off non-essential appliances or equipment. ƒ 2. External DC Isolator Deactivation: Switch OFF the external DC isolator between the battery and inverter. ƒ Ensure that the isolator is securely in the OFF position. ƒ 3. Inverter Shutdown: Turn OFF the inverter following the manufacturer's instructions. ƒ Allow the inverter to complete its shutdown sequence. ƒ 4. Battery Disconnection: Disconnect the SUNSYNK-W10.6 Lithium battery from the inverter by removing the DC cables. ƒ Ensure the connections are handled safely and with appropriate precautions. ƒ 5. Safety Check: Verify that all connections are secure and that there are no signs of damage or overheating. ƒ 6. External DC Isolator Check: Confirm that the external DC isolator between the battery and inverter is in the OFF position. ƒ Check that the isolator between parallel batteries is also in the OFF position. ƒ 7. Final Inspection: Conduct a visual inspection of the system to ensure all components are in good condition.
- Page 25 Wiring Diagram SUNSYNK-W10.6 | User Manual...
- Page 26 Battery Pack ②AC Breaker ③AC Breaker CT1 CT2 Grid ④AC Breaker Home Load Backup Load ① DC Breaker for battery ② AC Breaker for backup load ③ AC Breaker for grid ④AC Breaker for home load SUNSYNK-W10.6 | User Manual...
- Page 27 ⑩ AC Breaker for home load Battery Pack ⑥ Inverter No.1 (master) Ground ③ ⑨ Battery Pack ⑧ CT1 CT2 Grid L1L2L3 ⑩ Arrow pointing to inverter Home Load Backup Load Master inverter Slave Inverter Slave Inverter SUNSYNK-W10.6 | User Manual...
- Page 28 Symbol Explanation Many symbols are present with the battery product and used materials to install it. Next, a list of symbols and their meanings is presented. SUNSYNK-W10.6 | User Manual...
- Page 29 MONITORING Battery monitoring is conveniently accessible through the Sunsynk Connect App. Sunsynk inverter systems are equipped with the capability to monitor connected lithium batteries using the CANBUS protocol, ensur- ing continuous communication with the batteries. Users can easily access this monitoring data through the Sunsynk data logger via the Sunsynk Connect app. External monitoring is also supported for added conveni- ence. The accompanying images highlight the monitoring features of Sunsynk inverter and app systems, with a specific focus on the battery. The screens showcase the Li-BMS interface on the inverter, providing detailed insights into battery performance. The Sunsynk battery, known for its IP65 model, offers superior monitor- ing capabilities compared to other battery types, ensuring seamless integration with Sunsynk inverters and delivering comprehensive performance information. The summary data screen offers a comprehensive snapshot of the battery's current status, consolidating vital information for quick understanding at a glance. On the other hand, the detailed data screen provides in-depth insights into the battery's specifics, including temperature readings and high/low cell voltages. This detailed view allows for a clearer understanding of the battery's internal condition and performance. This simple Li-BMS screen offers a basic overview of the details. This screen is visible only when communi- cation is active. For older versions of software on the battery's LCD, this screen will also show up. The newer Li-BMS display screen is available starting from LCD software E426. SUNSYNK-W10.6 | User Manual...
- Page 30 The power tab in the battery section shows the amount of power going into and out of the battery during the chosen time period. This helps you understand how much power the battery is using. The SOC tab displays the battery's state of charge. SUNSYNK-W10.6 | User Manual...
- Page 31 The voltage tab indicates the state of the voltage of the battery. The current tab shows the current through the battery at any given time. SUNSYNK-W10.6 | User Manual...
- Page 32 The temperature tab indicates the internal battery temperature of the battery according to the BMS. If you select the custom tab, you'll find a graph that provides detailed insights into the inverter's operations, including those related to the battery. The parameter tab grants access to all available data for the battery. SUNSYNK-W10.6 | User Manual...
- Page 33 The graph displays the selected options you've chosen, with a maximum of ten selections at a time. You can select and view different battery parameters for the required operational period. Hovering your cursor over the graph allows you to inspect and get more details. SUNSYNK-W10.6 | User Manual...
- Page 34 Before cleaning or performing maintenance tasks, disconnect the SUNSYNK-W10.6 Li-Ion battery from ƒ all loads and charging devices. Use the enclosed protective caps on terminals during these activities to avoid terminal contact risks. Inspection Inspect the wiring and contacts for looseness or damage, including cracks, deformations, leaks, or any other type of damage. If any damage is found, replace the battery immediately. Do not attempt to charge or use damaged batteries under any circumstances. ƒ IMPORTANT: Avoid contact with liquid from a ruptured battery. Regularly monitor the battery's state of charge. Lithium Iron Phosphate batteries gradually discharge when not in use or during storage. Consider replacing the battery if you notice either of the following conditions: 1. The battery's run time decreases below 70% of the original run time. 2. The battery's charge time significantly increases. Cleaning If cleaning is required, use a soft, dry cloth to clean the Li-Ion battery. Avoid using liquids, solvents, or abra- sives for cleaning purposes. Maintenance The Li-Ion battery is maintenance-free. Charge the battery to approximately over 80% of its capacity at least once every year to maintain its capacity. Storage The battery product should be stored in a dry and cool environment. Typically, the maximum storage period at room temperature is six months. If storing the battery for over six months, it's recommended to check the battery voltage. If the voltage exceeds 51.2V, you can continue storing the battery. However, it's important to check the voltage at least once a month until it drops below 51.2V. Once the voltage is lower than 51.2V, charge the battery according to the following strategy: 1. Discharge the battery to the cut-off voltage using a 0.2C (40A) current. 2. Charge the battery with a 0.2C (40A) current for approximately 3 hours. 3. Maintain the State of Charge (SOC) of the battery at 40%-60% during storage. When storing the battery, ensure it's kept away from explosive and flammable areas, and keep ignition sources and high temperatures distant from the battery. SUNSYNK-W10.6 | User Manual...
- Page 35 Contact local engineers to rectify the fault if the Charge The minimum cell The battery ambient temperature battery cannot be low-temperature temperature is less than is too low. recovered due to protection protection against abnormality. Contact local engineers to rectify the fault if the Discharge The minimum cell The battery ambient temperature battery cannot be low-temperature temperature is less than is too low. recovered due to protection protection against abnormality. After checking the above data, please send it to our personnel service. Thus, we will evaluate your problem and reply with the best solution. SUNSYNK-W10.6 | User Manual...
- Page 36 80%. Here are the steps involved in the process: Recovery Process and Steps of Cathode Materials Aluminium foil, being an amphoteric metal, is dissolved in a NaOH alkali solution to form NaAlO , which enters the solution. After filtration, the filtrate is neutralized with sulphuric acid and precipitated to obtain Al(OH) . When the pH is above 9.0, most of the aluminium precipitates, and the obtained Al(OH) achieves chemical purity after analysis. The filter residue is dissolved with sulphuric acid and hydrogen peroxide. This process allows lithium iron phosphate to enter the solution in the form of Fe and Li , separating it from carbon black and carbon coating on the lithium iron phosphate surface. After filtration and separation, the pH of the filtrate is adjusted with NaOH and ammonia water. Iron is first precipitated with Fe(OH) , and then the remaining solution is precipitated with saturated Na solution at 90ºC. Since FePO is slightly soluble in nitric acid, the filter residue is dissolved with nitric acid and hydrogen perox- ide. This process directly precipitates FePO and separates impurities like carbon black from the acid solu- tion. It also leaches Fe(OH) from the filter residue and precipitates Li with saturated Na solution at 90ºC. Recovery of Anode Materials The recovery process for anode materials is relatively straightforward. Following the separation of the anode plates, the purity of copper can exceed 99%. This high-purity copper can then undergo further refining to produce electrolytic copper. Recovery of Diaphragm The diaphragm material is mainly harmless and has no recycling value. List of Recycling Equipment Automatic dismantling machine, pulverize, wet gold pool, etc. SUNSYNK-W10.6 | User Manual...
- Page 37 TRANSPORTATION REQUIREMENTS Transport battery products immediately after packaging using cars, trains, or ships. During transportation, avoid exposing the packaging to severe vibration, impact, or compression, as well as direct sunlight or rain. Always ensure compliance with local, national, and international regulations before transporting Lithium Iron Phosphate batteries. Note that the transport of end-of-life, damaged, or recalled batteries may be restricted or prohibited in some cases. The transport of Li-Ion batteries is classified under hazard class UN3480, class 9, falling into packaging group PI965 Section I for transport by water, air, or land. For transportation of lithium-ion batteries assigned to Class 9, use Class 9 Miscellaneous Dangerous Goods and UN Identification labels. Refer to relevant transportation documents for further guidance. SUNSYNK-W10.6 | User Manual...
- Page 38 Room 702-704, 7/F Texwood Plaza, 6 How Ming Street, Kwun Tong, Kowloon, Hong Kong. UK Address: Sunsynk UK Ltd, 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN. SA Address: Globaltech Sunsynk South Africa (Pty) Ltd, Unit 2 Highview Boulevard, Ferndale 2194.
