Sunsynk and Red Pole Vital Battery Range - Install Guide
General information about the Red Pole Energy Vital battery range can be found in Red
Pole Energy's supplied documentation.
This manual is intended to be used in conjunction with the product manual supplied
by Red Pole Energy. It provides additional and specific information regarding
integration with Sunsynk inverters.

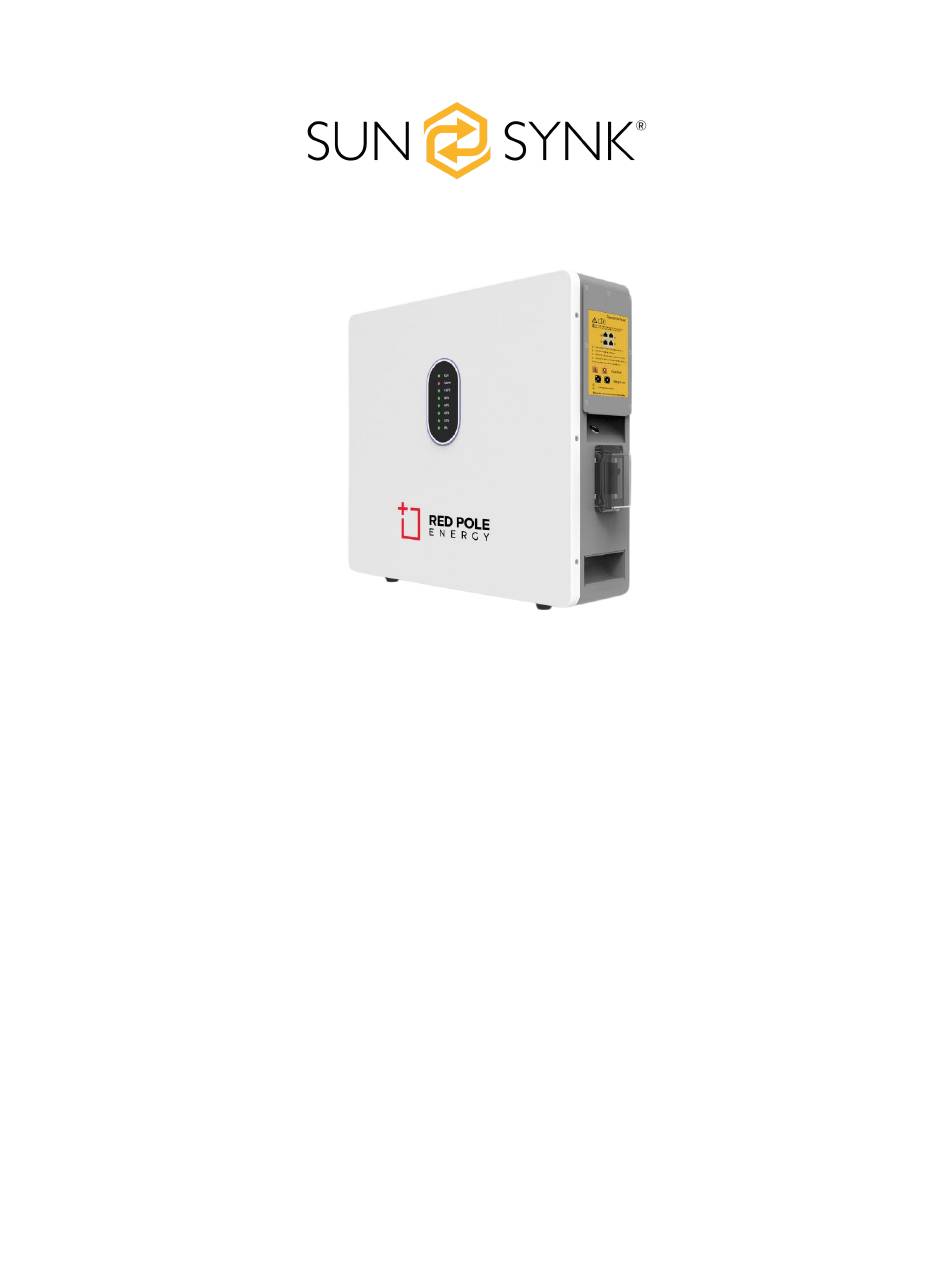

Red Pole Energy Vital 5 Lithium batteries are fully compatible with Sunsynk. The Red
Pole batteries' include a Battery Management System (BMS) with each battery module
which interfaces directly with Sunsynk inverters to set up charging parameters and
communicate the battery's state of charge.
The following field guide will assist with the correct battery settings and cable
connections you should use. Please also ensure that you have read the installation
manual of the Vital 5 battery.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SunSynk Red Pole Energy
Summary of Contents for SunSynk Red Pole Energy
- Page 1 Sunsynk and Red Pole Vital Battery Range - Install Guide General information about the Red Pole Energy Vital battery range can be found in Red Pole Energy's supplied documentation. This manual is intended to be used in conjunction with the product manual supplied by Red Pole Energy.
- Page 2 The cable supplied is a straight cable, that means the two ends of the cable are identical. The Sunsynk inverter requires pin 4 to be CANH, and ping 5 to be CANL. Our RP-Vital5 battery requires pin 4 to be CANH, and ping 5 to be CANL.
- Page 3 2. Change the Battery Settings On the Sunsynk inverter, navigate to the Battery Setting screen. The settings as seen on the Sunsynk display below are the recommended settings to use for the Red Pole Energy Vital 5 Lithium battery. Example of the Battery Setup screens Screen1 : Batt Type Set the battery type to “Lithium”, check that “Activate”...
- Page 4 Screen3 : Shutdown / Low Battery Settings These settings determine how the inverter should act once the battery is at a low state of charge. Shutdown : The state of charge % that the inverter should switch off at. Low Battery : The state of charge % that the inverter should trigger a low battery alarm to indicate that the inverter is close to switching off.
