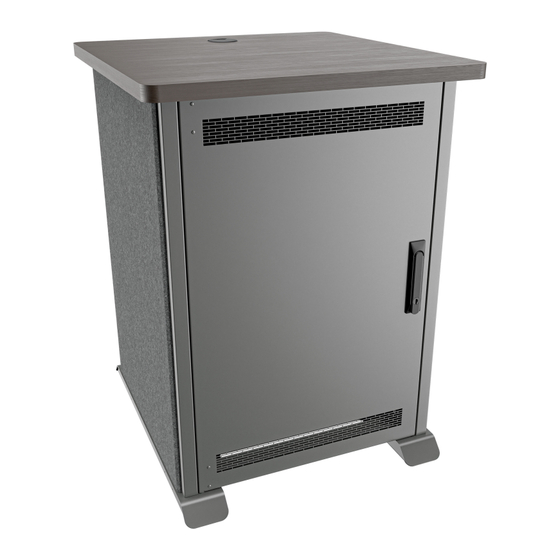

LEGRAND MIDDLE ATLANTIC FORUM FMR-1227A3GC Instruction Manual

LEGRAND MIDDLE ATLANTIC FORUM FMR-1227A3GC Instruction Manual

Rack option

Advertisement

Quick Links

Rack Option
Instruction Sheet
100-00114 Rev B
22
PAP

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIDDLE ATLANTIC FORUM FMR-1227A3GC and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND MIDDLE ATLANTIC FORUM FMR-1227A3GC

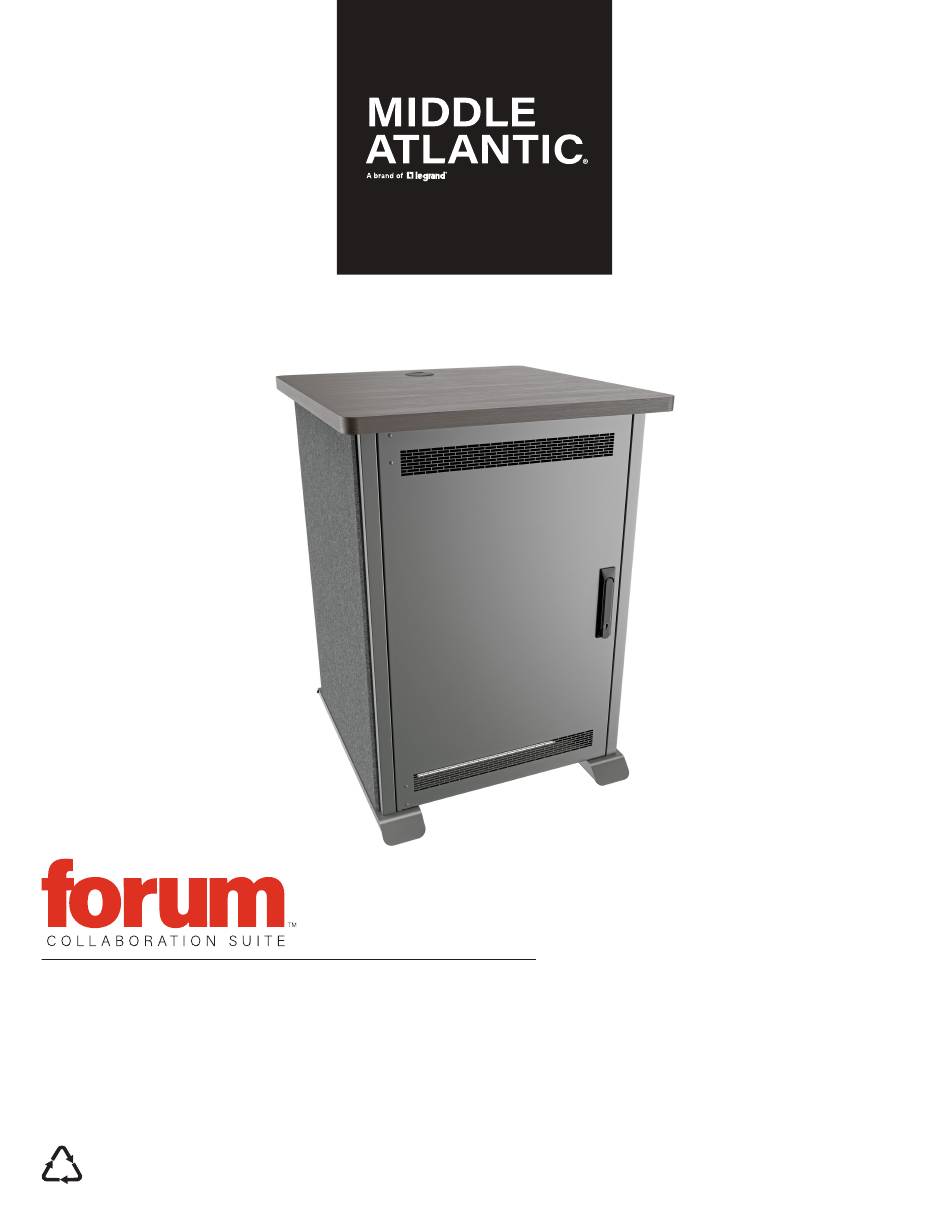

  • Page 1 Rack Option Instruction Sheet 100-00114 Rev B...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS - EN • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. UNDERSTANDING SAFETY SYMBOLS WARNING: A warning alerts you to a situation that could result in serious personal injury or death. CAUTION: A caution alerts you to a situation that may result in minor personal injury or damage to the product and/or property.
  • Page 3 INSTRUCCIONES DE SEGURIDAD IMPORTANTES - ES • Lea estas instrucciones. • Preste atención a todas las advertencias. • Limpie solamente con un paño seco. • Guarda estas • Siga todas las instrucciones instrucciones. • Utilice únicamente accesorios especificados por el fabricane COMPRENDER LOS SIMBOLOS DE SEGURIDAD ADVERTENCIA: Una advertencia lo alerta sobre una situación que podría ocasionar lesiones personales graves o la muerte.
  • Page 4 INSTRUCTIONS DE SÉCURITÉ IMPORTANTES - FR • Respectez tous les avertissements. • Nettoyer uniquement avec un chiffon sec. • Lire ces instructions. • Suivez toutes les instructions • N'utilisez que des accessoires spécifiés par le fabricant. • Conservez ces instructions. COMPRENDRE LES SYMBOLES DE SÉCURITÉ...
  • Page 5 TABLE OF CONTENTS Important Safety Instructions......................2 - 4 Weight Ratings ..........................6 Supplied Components and Hardware ..................6 - 7 Required Tools........................... 8 Introduction............................8 Assembling the Rack ......................... 9 - 10 Attaching Connector Bracket Option (If Applicable) ..............10 - 11 Attaching Lever Lock .......................
  • Page 6 Le poids total de l'équipement ne doit pas dépasser les quantités indiquées dans le tableau précédent. SUPPLIED COMPONENTS AND HARDWARE If any pieces are missing or damaged, please report it immediately to Technical Support at av.support@legrand.com or (866) 977-3901. Bottom (12x)
  • Page 7 Flange Nut Hex Head Screw disconnect on 17” of 12 gauge wire.) NOTE: • To order more hardware, contact support at av.support@legrand.com or (866) 977-3901. • Additional hardware is included that may not be required for your installation. Page 7...
  • Page 8 REQUIRED TOOLS • Protective Eyewear WARNING: Use tools with caution and • Electric Drill follow all necessary safety protocols. • #2 Philips Screwdriver ADVERTENCIA: Utilice las • #2 Philips Bit herramientas con precaución y siga • Socket Wrench todos los protocolos de seguridad •...
  • Page 9 ASSEMBLING THE RACK NOTE: Door keylock should be facing audience side when NOTE: assembling rack Numbers on front 1. Identify front (numbered) and rear (no numbers) rackrails. rackrail shown in (FIGURE A) black for clarity. 2. Align studs on bottom of rackrails (C and D) with holes on rack bottom (B) and insert, as shown.
  • Page 10 ASSEMBLING THE RACK (CONTINUED) 6. Loosely hand tighten (4x) 10-32 x ¾” screws (E) into top and bottom corners on each side to loosely secure top and bottom, as shown. (FIGURE D) NOTE: Adjust torque on electric drill to lightest setting and only increase as necessary.
  • Page 11 ATTACHING CONNECTOR BRACKET OPTION (IF APPLICABLE, CONTINUED) 3. Attach (2x) connector brackets (L) to rack and align inner holes on rack foot with holes on the outer flanges of the bracket. (FIGURE F) NOTE: Adjust torque on electric drill to lightest setting and only increase as necessary. 4.
  • Page 12 ATTACHING LEVER LOCK, CONTINUED TIP: If necessary, you can remove the securing rivet by pushing its tip end out of the hole with a small screwdriver, and then pulling by hand at the rivet’s head. (FIGURE J) Clip Side without clip Side with clip FIGURE J ATTACHING SIDE PANELS...
  • Page 13 ATTACHING WOODTOP NOTE: Grommet hole should be facing the audience side. 1. Insert (2x) #10 x ⅝” wood screws (G) halfway into the front underside of the woodtop (J), away from grommet hole. (FIGURE L) 2. Insert screws into keyholes and push woodtop fully foward.
  • Page 14 ATTACHING PRESENTER-FACING DOOR NOTE: Figure P shows a door with the hinges inserted into holes on the left (facing the presenter side) and the catch located on the right. Later steps show how to reverse the door, if desired. 1. Install bottom hinge of presenter-facing door (N) into bottom hole located on rack bottom to secure the lower end of the door.
  • Page 15 BONDING (IF APPLICABLE) NOTE: • Bonding studs are located near the bottom of side panels, bottom of rack, on the hinge side of the presenter-facing door, and on the bottom ends of the audience-facing panel, as shown. (FIGURE S) • Additional bonding hardware is provided with optional components. FIGURE S LEVELING YOUR RACK NOTE: The following topic provides information on how to re-adjust the leveling...
  • Page 16 CONNECTING RACK TO LECTERN (IF APPLICABLE) NOTE: Use side previously selected in “Attaching Connector Bracket Option” on page 7, to attach rack to lectern. 1. Push felt outwards to remove knockout on side of lectern for cable pass through from lectern to rack, if desired. (FIGURE V). 2.
  • Page 17 CONNECTING RACK TO LECTERN (CONTINUED, IF APPLICABLE) 6. Loosely tighten (2x) 10-32 x ⅜” screws (R) on each end of connector bracket (L). (FIGURE Y) NOTE: Lectern and rack hidden for clarity. 7. Attach cover (K) to bracket and let keyhole slots on each side fall on top of the screw.
  • Page 18 ATTACHING MONITOR MOUNT (IF APPLICABLE, CONTINUED) FOR POLE MOUNTING: NOTE: Corresponding Dynamic Monitor Mount Series product and parts sold separately. 1. Insert arm assembly into pole base and tighten screws to secure the pole base and arm assembly. (FIGURE AA) 2.
  • Page 19 B.V. Franklinstraat 14 6003 Unit C, Island Rd. Eden Prairie, MN, 55344, USA DK, Weert, Netherlands Reading RG2, 0RP- UK At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company.
