General Information and Specifications—TR 502

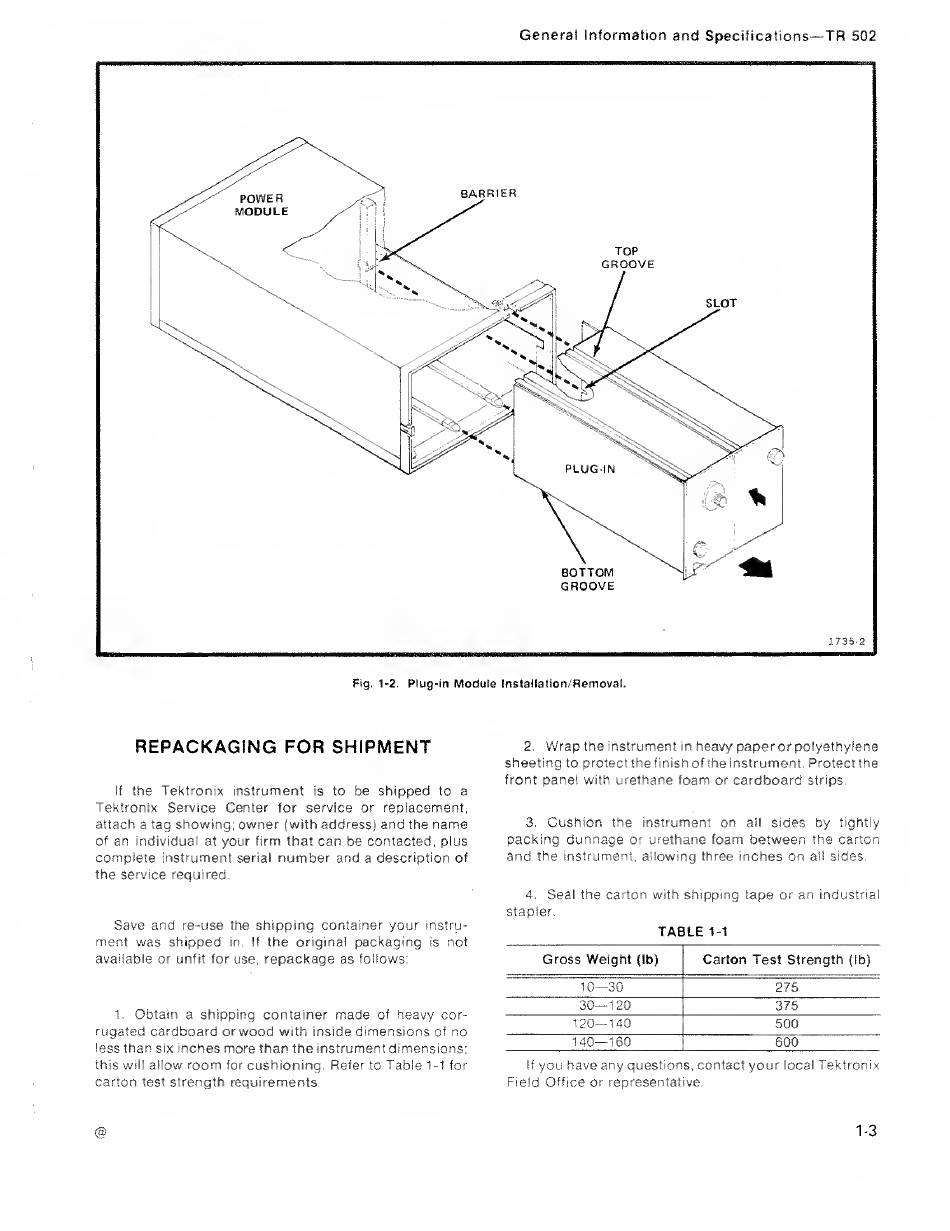

Fig. 1-2. Plug-in Module Instaliation/Removal.
REPACKAGING FOR SHIPMENT
If the Tektronix instrument is to be shipped to a
Tektronix Service Center for service or replacement,
attach a tag showing: owner (with address) and the name
of an individual at your firm that can be contacted, plus
complete instrument serial number and a description of
the service required.
Save and re-use the shipping container your instru¬
ment was shipped in. If the original packaging is not
available or unfit for use, repackage as follows:
1. Obtain a shipping container made of heavy cor¬
rugated cardboard or wood with inside dimensions of no
less than six inches more than the instrument dimensions:
this will allow room for cushioning. Refer to Table 1-1 for
carton test strength requirements.
2. Wrap the instrument in heavy paper or polyethylene
sheeting to protect the finish of the instrument. Protect the
front panel with urethane foam or cardboard strips,
3. Cushion the instrument on ail sides by tightly
packing dunnage or urethane foam between the carton
and the instrument, allowing three inches on all sides.
4. Seal the carton with shipping tape or an industrial
stapler.
TABLE 1-1
Gross Weight (lb) Carton Test Strength (lb)
10-30 275
30—120
375
120-140 500
140—160 600
if you have any questions, contact your local Tektronix
Field Office or representative.
