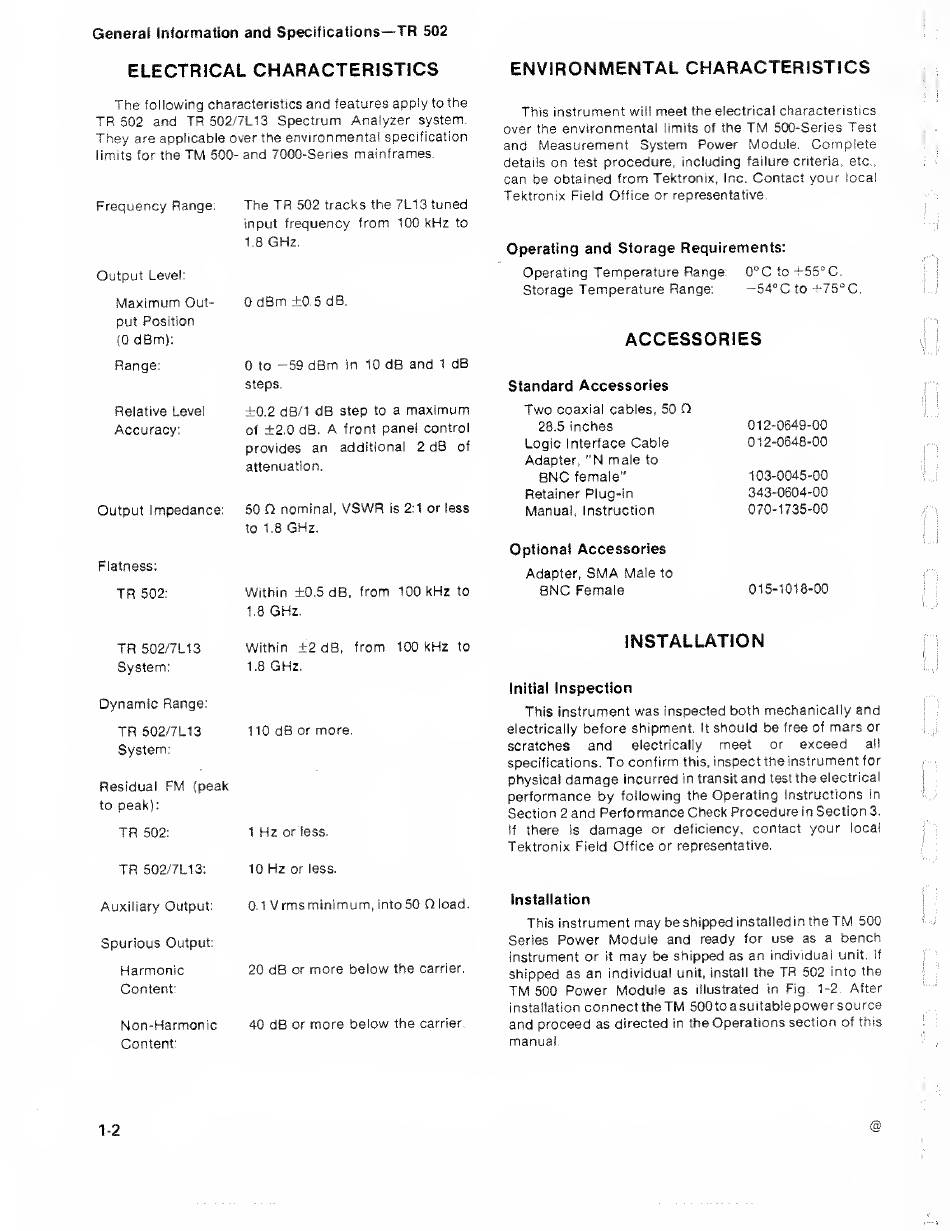

General Information and Specifications—TR 502
ELECTRICAL CHARACTERISTICS
The following characteristics and features apply to the
TR 502 and TR 502/7L13 Spectrum Analyzer system.
They are applicable over the environmental specification
limits for the TM 500- and 7000-Series mainframes.
Frequency Range: The TR 502 tracks the 7L13 tuned
input frequency from 100 kHz to
1.8 GHz.
Output Level;
Maximum Out- 0 dBm ±0.5 dB.
put Position
(0 dBm):
Range; 0 to —59 dBm in 10 dB and 1 dB
steps.
Relative Level ±0.2 dB/1 dB step to a maximum
Accuracy: of ±2.0 dB, A front panel control
provides an additional 2 dB of
attenuation.
Output Impedance: 50 Q nominal, VSWR is 2:1 or less
to 1-8 GHz.
Flatness:
TR 502: Within ±0.5 dB, from 100 kHz to
1.8 GHz.
TR 502/7L13 Within ±2dB, from 100 kHz to
System: 1,8 GHz.
Dynamic Range:
TR 502/7L13 110 dB or more.
System:
Residual FM (peak
to peak):
TR 502: 1 Hz or less.
TR 502/7L13: 10 Hz or less.
Auxiliary Output: 0.1 Vrmsminimum, intoSO Qload.
Spurious Output:
Harmonic 20 dB or more below the carrier.
Content:
Non-Harmonic 40 dB or more below the carrier.
Content:
ENVIRONMENTAL CHARACTERISTICS
This instrument will meet the electrical characteristics
over the environmental limits of the TM 500-Series Test
and Measurement System Power Module, Complete
details on test procedure, including failure criteria, etc.,
can be obtained from Tektronix. Inc. Contact your local
Tektronix Field Office or representative.
Operating and Storage Requirements:
Operating Temperature Range: 0°C to -t-55°C,
Storage Temperature Range: —54''C to +75°C.
ACCESSORIES
Standard Accessories
Two coaxial cables, 50 D
28.5 inches 012-0649-00
Logic Interface Cable 012-0648-00
Adapter, "N male to
BNC female" 103-0045-00
Retainer Plug-in 343-0604-00
Manual, instruction 070-1735-00
Optional Accessories
Adapter, SMA Male to
BNC Female 015-1018-00
INSTALLATION
Initial Inspection
This instrument was inspected both mechanically and
electrically before shipment. It should be free of mars or
scratches and electrically meet or exceed all
specifications. To confirm this, inspect the instrument for
physical damage incurred in transit and test the electrical
performance by following the Operating Instructions in
Section 2 and Performance Check Procedure in Section 3,
If there is damage or deficiency, contact your local
Tektronix Field Office or representative.
Installation
This instrument may be shipped installed in the TM 500
Series Power Module and ready for use as a bench
instrument or it may be shipped as an individual unit. If
shipped as an individual unit, install the TR 502 into the
TM 500 Power Module as illustrated in Fig. 1-2. After
installation connect the TM SOOtoasuitablepowersource
and proceed as directed in the Operations section of this
manual.
