Summary of Contents for Kicker MWF10

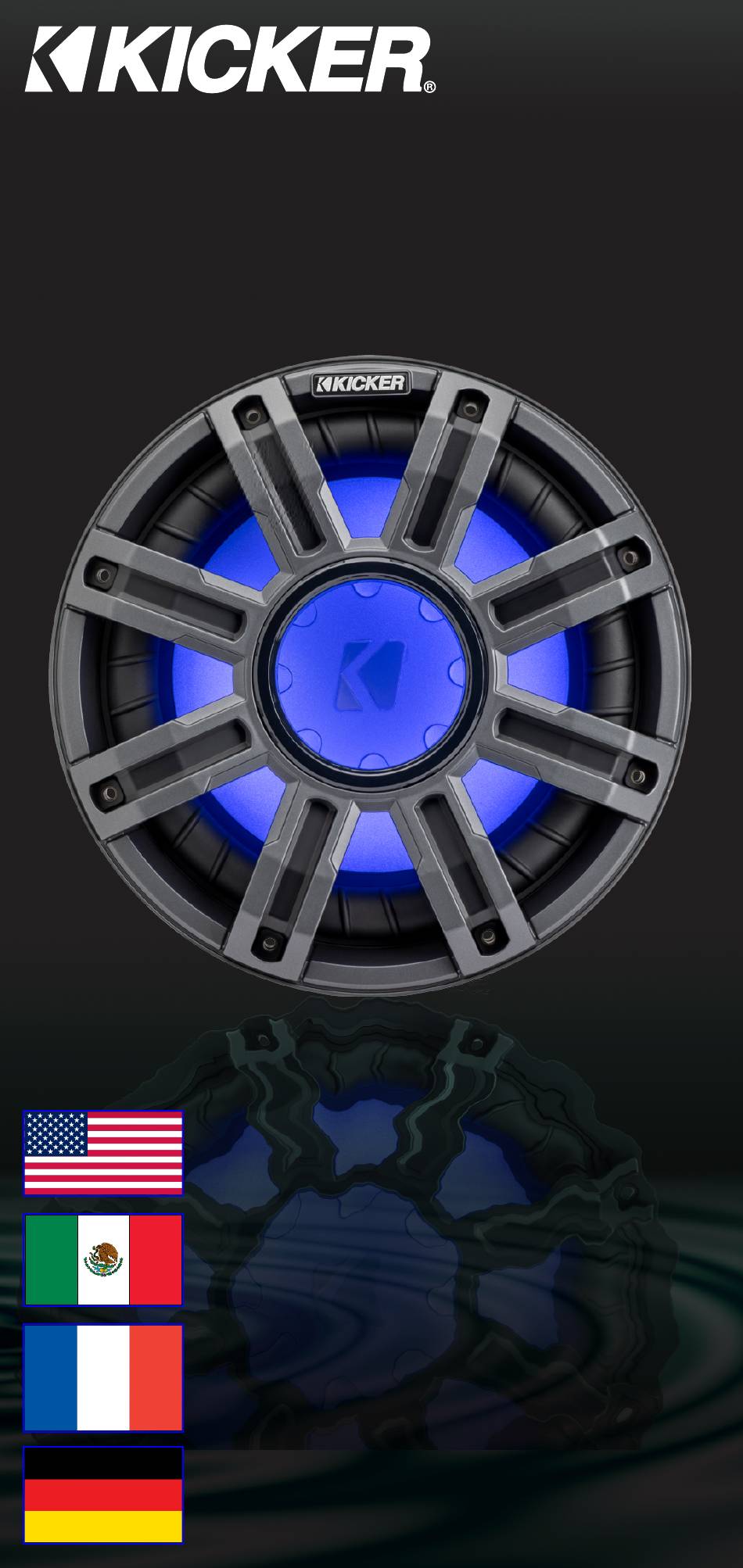

- Page 1 Owner’s Manual Manual del Propietario Manuel d’utilisatio Benutzerhandbuch select language MW Subwoofers seleccione Subwoofers MW el idioma choisir la Caissons de basses MW langue sprache MW Subwoofer auswählen...
- Page 2 Contents Overview ......3 Specifications ......4 Installation ......5 Wiring Configuration ....5 LED Wiring Configuration .... 7 Grille Installation ......8 Free-Air & Infinite Baffle Mounting . 9 Enclosure Mounting ....11 Warranty ......14 Garantía | Garantie ....English 51mw-b...
- Page 3 VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1 INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE SAME VOLUME LEVEL.
- Page 4 Note: All specifications and performance figures are subject to change. Please visit www.kicker.com for the most current information. To get the best performance from your new KICKER speakers, we recommend using genuine KICKER accessories and wiring. Please allow two weeks of break-in time for the speakers to reach optimum performance.
- Page 5 Be careful not to drill into other wiring or existing mechanisms. Any time a wire is run through a hole, it is necessary to insert a rubber or plastic grommet to protect the wire and boat from damage. Pro Tip: You’re a KICKER KXM amplifier a few cables...
- Page 6 1. Connect the MW audio leads to the subwoofer output terminals of your amplifier. a. CLEAR BLUE WIRE - POSITIVE (+) b. CLEAR BLACK WIRE - NEGATIVE (-) 2. Connect the MSS audio & LED plugs to the MSS. to amplifier LED Wiring English...
- Page 7 LED Wiring Configuration When wiring the LED lighting, the black lead is +12V and the blue, red, green and white leads are ground. 1. Connect the black LED wire to the positive terminal of the battery. a. Place a 2-amp fuse (not included) no further than 7”...
- Page 8 Grille Installation Place the grille on the woofer with the KICKER badge in the desired location. Press in the center of the grille to fully seat the rubber grille damper. English...
- Page 9 Mounting without grille Mounting with grille English...
- Page 10 Free-Air & Infinite Baffle Mounting The Free-Air subwoofers (MWF10, MWF12) do not require an enclosure, however, it is important to isolate the sound coming off the front of the driver from the sound radiating from the back of the driver.
- Page 11 Use masking tape to help prevent damage to the paint in the locations to be cut or drilled. If the subwoofer cut-out locations require you to cut metal, avoid structural metal and braces. Make sure the mounting hardware will not puncture the fuel cell, wiring, or interfere with any mechanical parts on the underside of the mounting surface.
- Page 12 Use 3/4” (1.9cm) or thicker Marine Grade Plywood and seal the joints with silicone. Use the “template” inside your MWE subwoofer’s shipping carton to mark the mounting hole, then cut directly on the line. These designs need internal bracing. Add triangular bracing between each of the larger unsupported panels.
- Page 13 For more advice on box building, refer to your Authorized Kicker Dealer, or click on the Support tab on the Kicker homepage, www.kicker.com. Please e-mail support@kicker.com or call Technical Support at (405) 624-8583 for specific or unanswered questions.
- Page 14 Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes.
- Page 15 Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one-week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
- Page 16 (“a todo volumen”) en todo sentido. La línea de altavoces y amplificadores KICKER es la mejor del mercado de audio de automóviles y por lo tanto representa el “combustible” para vivir a todo volumen en el área de “estéreos de automóvil” de la vida de nuestros clientes.
