INSTRUCTION MANUAL

130 mm

B·IRON TWEEZERS

Battery-Powered Rework Station

Need help?

Do you have a question about the B-IRON TWEEZER BIP-5A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for jbc B-IRON TWEEZER BIP-5A Series

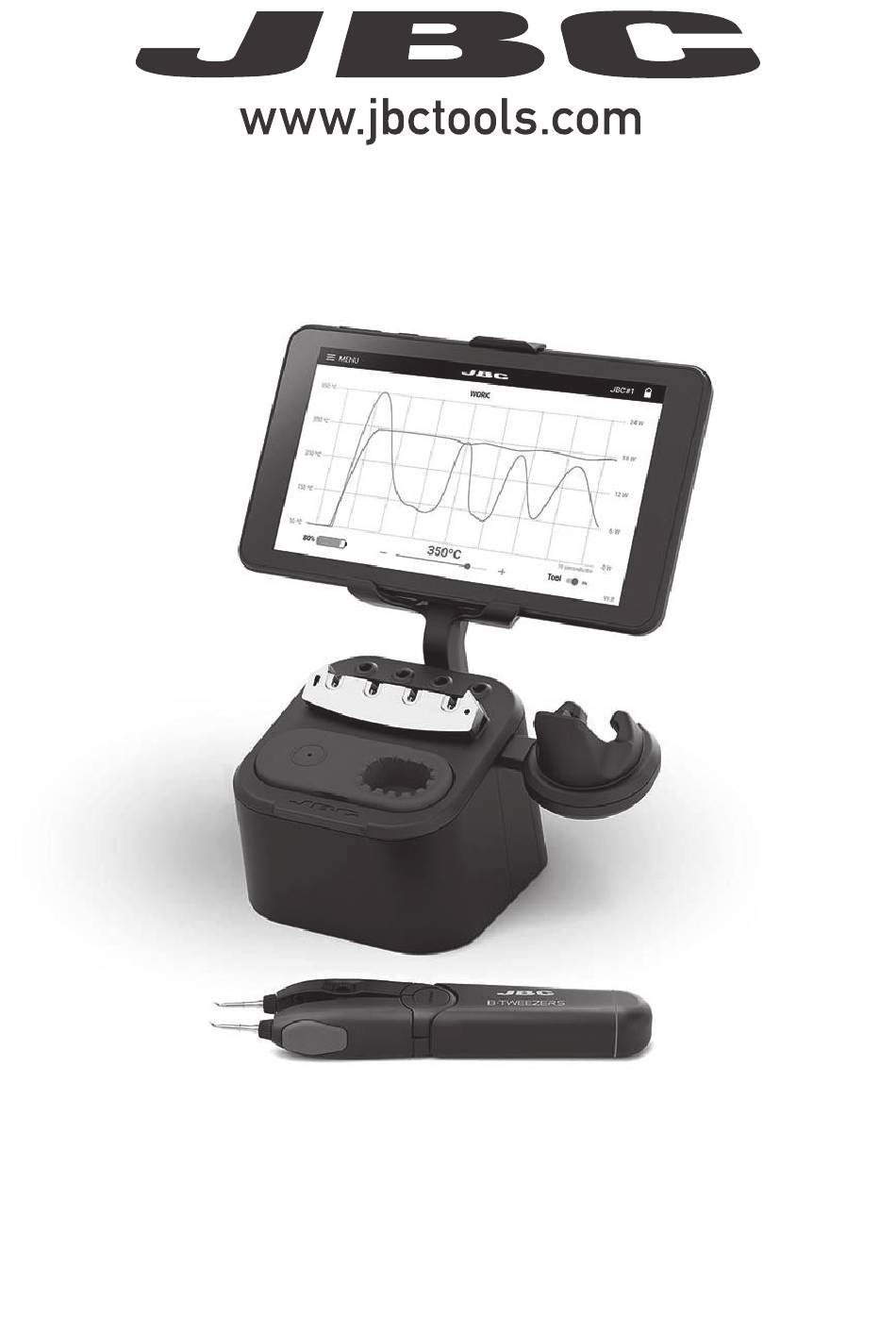

Page 1 INSTRUCTION MANUAL 130 mm B·IRON TWEEZERS Battery-Powered Rework Station...
Page 2 This manual corresponds to the following references: BIP-5A* - with Portable Display * Depending on customer requirements, various power BIP-5QA* - without Portable Display cords are available, suitable for: 120V - N. America / Taiwan 230V - India / Europe / United Kingdom Packing List The following items are included: C115 Cartridge ....
Page 3 para manuales - color gris 200 mm Important 130 mm 130 mm Please read this manual and its safety guidelines thoroughly before using the product. Note: Even if the display is turned off and the charging base is disconnected from the mains, the tool 100 mm remains operational as long as the batteries are charged, even with no cartridge on.
Page 4 Features and Connections PDS * Portable Display 7” for B·IRON B·IRON Display Holder 5” to 7” Ref. 0030723 B·TWEEZERS Display Support Nano Tweezers for B·IRON Safety Cap Holder C115 USB Connector Cartridge Range Power Socket * Not included in ref. BIP-5QA...
Page 5 para manuales - color gris 200 mm Station Setup 130 mm 130 mm Display Holder Assembling Display Holder Setting 100 mm 80 mm Display Display 60 mm Holder Holder Insert the thin end of the display holder into the Insert the fi xing knob (1) and tighten it just enough upper area of the rear rail of the charging base so that it stays in place but the display holder can 50 mm...
Page 6 Station Set Up (continuation) Cartridge Exchanger The exchanger is suitable for C115 and C210 cartridges. C115 Cartridges Retention The holding area of C115 Cartridges is delimited by the two Clamps rings at the cartridge shaft (x). C115 Cartridge C210 Cartridges The holding area of C210 Cartridges goes from the collar of The cartridge exchanger allows the tip until the cartridge begins to widen (x).
Page 7 para manuales - color gris 200 mm Inserting C210 Cartridges C210 Cartridge Holder Push the cartridges inside the handle until The cartridge holder (4x slots) is used to the reference mark is aligned with the edge store cartridges. It allows having different 130 mm 130 mm of the handle.
Page 8 Tool with cap on Cools down to room temperature. Hibernation Remains at room temperature (tool is shut off). Shut off Sleep & Charging Sleep Mode can be activated/deactivated (2). JBC#1 JBC#1 JBC#1 MENU MENU Return to Work JBC#1 If it is activated and the tool is placed in the...
Page 9 para manuales - color gris 200 mm Tool Status and Tip Temperature (continuation) 130 mm 130 mm after 5’ HIBERNATION SLEEP & charging & charging 100 mm 80 mm tool in tool to charger WORK CHARGER 60 mm 50 mm tool laid after 5’...
Page 10 0 W 100% 50 ºC 50 ºC 350ºC 350ºC 10 seconds/div 10 seconds/div Tool Tool V1.2 V1.2 Tool Status and Tip Temperature MENU JBC#1 Work MENU (continuation) MENU Work Devices JBC#1 MENU 450 ºC 450 ºC Settings Documents Tool ID...
Page 11 Tool one from the right-hand column (10). Then tap on “connect” (7). V1.2 Status Lightband 130 mm 130 mm JBC#1 MENU Return to Work The status lightband on the tool indicates its Color Tool Status status (see table on the right).
Page 12 It allows modifying the tool working temperature, checking the battery status and turning the tool 350ºC 10 seconds/div 10 seconds/div Tool Tool in use on and off. V1.2 V1.2 Temperature and Power Graph JBC#1 MENU CHARGE Updat 24 W 450 ºC Tool I 348ºC 18 W 350 ºC 12 W 250 ºC...
Page 13 10 seconds/div 10 seconds/div Tool Workscreen Tool (continuation) 130 mm 130 mm V1.2 V1.2 Connected Tool and Tool Selector JBC#1 MENU 100 mm CHARGE Updat 24 W 450 ºC Tool ID 348ºC 80 mm 18 W 350 ºC 12 W 250 ºC...
Page 14 12 W 100% Documents: Work CHARGE 24 W 100% 450 ºC User manuals related to the station or to the tools can be consulted in this section or on JBC’s Settings 6 W 100% 6 W 100% website: www.jbctools.com Counters 348ºC...
Page 15 para manuales - color gris 200 mm Settings 130 mm 130 mm Parameter Description Tool ID Allows modifying the tool identifier. 100 mm Lock parameters Allows locking the parameters of the station using a four-digit code. The default code is 0105, but a new code can be set by simply entering some other four digits of choice when locking the parameters.
Page 16 It leaves a small layer of solder on the tip, preventing Note: If the tip is very dirty, JBC recommends cleaning it first with oxidation between cleaning the wiper to remove excess solder and then with the brass wool.
Page 17 200 mm JBC Software 130 mm 130 mm No installation or initial download are required for newly purchased JBC products. Both JBC display and tools come with its current software/firmware installed and updated, and are ready to use. 100 mm Note: App: If a third-party display (tablet or smartphone) is used, the B·IRON app must be downloaded from...
Page 18 Go to the internal folder and unzip the downloaded file. Display without internet connection: Download the firmware update file to another device with an internet connection from JBC’s website: https://www.jbctools.com/jbcsoftware.html and unzip the downloaded file. Then do as described in the table.
Page 19 40 mm or required. Accessories B·IRON Display Holder 10” to 13” Ref. 0031246 Mount on charging base In addition to the display holder supplied with the B·IRON station, JBC offers a holder for tablet sizes between 10” and 13”. Display Holder...
Page 20 Accessories (continuation) Soldering Tools for B·IRON Stations B·NANO* Nano Handle for B·IRON Ergonomic and lightweight soldering handle. Designed for use in labs and high-precision soldering in hard-to-reach areas. Works with C115 Cartridges. B·TWEEZERS* Nano Tweezers for B·IRON Powerful and efficient soldering tweezers. Designed for use in labs and soldering rework job.
Page 21 para manuales - color gris 200 mm Accessories (continuation) 130 mm 130 mm Tool Expansion Kits for B·IRON Stations Charging 100 mm Nano Handle B·NANO K* Holder Nano Handle Expansion Kit This kit allows to extend B·IRON stations with B·NANO Handle. 80 mm Adapters for C115 Cartridges...
Page 22 - Do not use liquids such as alcohol, thinner or correctly. benzene to clean the portable display. - Repairs should only be performed by a JBC authorized technical service. Safety - Battery It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion.
Page 23 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
Page 24 Notes...
Page 25 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
Page 26 Notes...
Page 27 para manuales - color gris 200 mm Specifications 130 mm 130 mm B·IRON TWEEZERS Battery-Powered Rework Station Ref. BIP-5A - with Portable Display 100 mm Ref. BIP-5QA - without Portable Display Charging Base - Input: 100 V - 240 V 50/60 Hz - Nominal Power: 40 W 80 mm...
Page 28 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. If you register, you will receive e-mail notifications about new software updates for your registered product.
