jbc B iRON 115T Instruction Manual

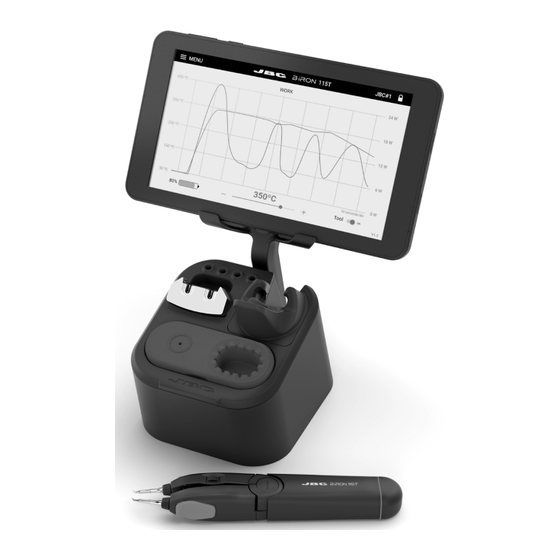

High-precision battery rework station
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
B·iRON 115T
High-Precision
Battery Rework Station

Advertisement

loading
Need help?

Need help?

Do you have a question about the B iRON 115T and is the answer not in the manual?

Questions and answers

Related Manuals for jbc B iRON 115T

Summary of Contents for jbc B iRON 115T

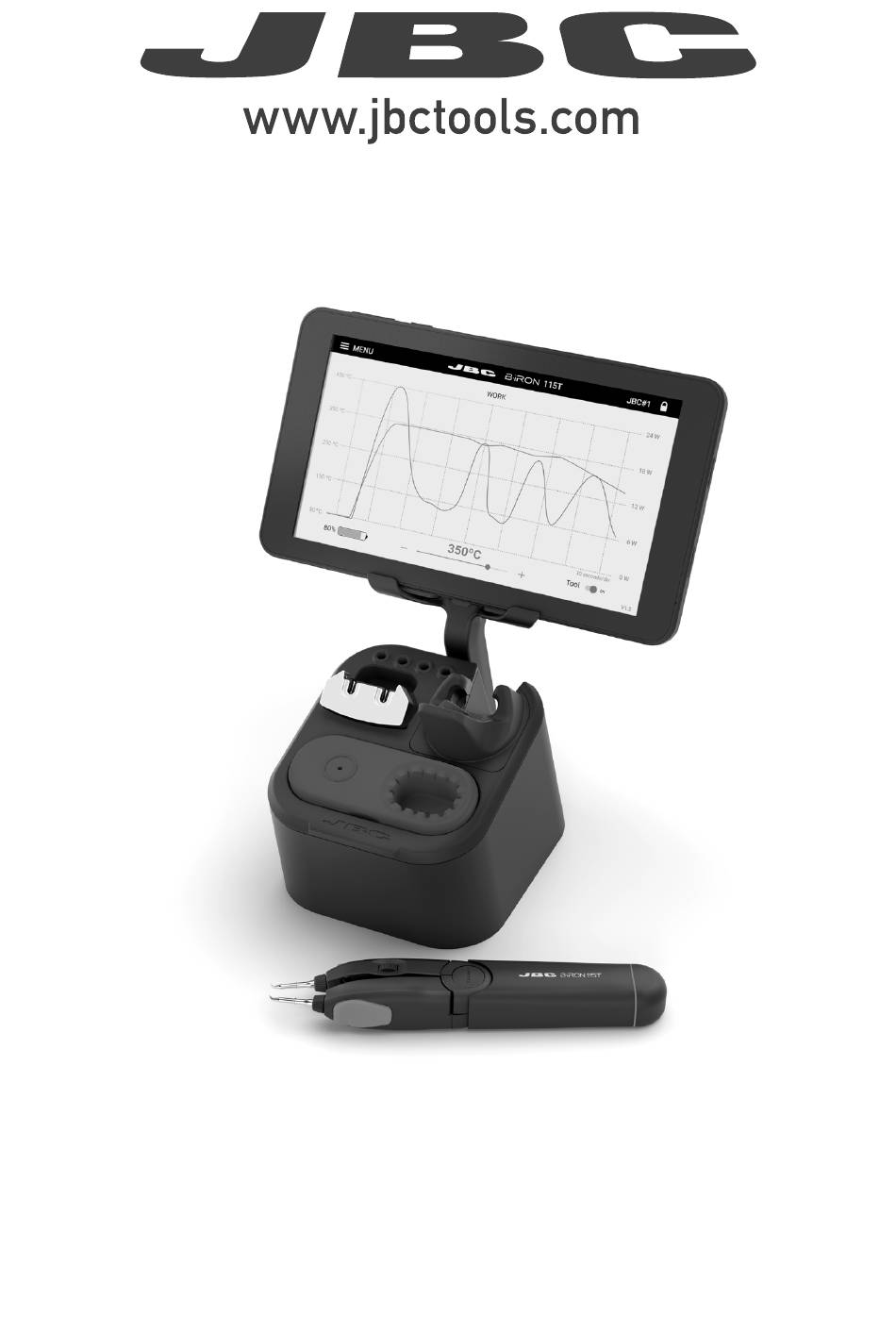

  • Page 1 INSTRUCTION MANUAL B·iRON 115T High-Precision Battery Rework Station...

  • Page 2: Table Of Contents

    This manual corresponds to the following references: Console included*: Console not included*: BI115TUA BI115TUQA 120 V - N. America, Taiwan 120 V - N. America, Taiwan BI115TIA BI115TIQA 230 V - India 230 V - India BI115TA BI115TQA 230 V - Europe 230 V - Europe BI115TKA BI115TKQA...

  • Page 3: Stand For B115T High-Precision B·iron Tool

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Stand for B115T High-Precision B·iRON Tool Console Support 100 mm Cartridge Storage 80 mm Tool Holder and Charger Cartridge Exchanger Brass Wool (inside) Antisplash Membrane 60 mm Wiper 50 mm 40 mm...
  • Page 4 Quick Start 1. Connection Connect the stand to the mains (100 - 240 V). 2. Cartridge Insertion and Charging Insert a cartridge into the tool (1) and place it into the charger on the stand (2). Note: Charge the tool completely (30 min) before using it for the first time.
  • Page 5 The work screen shows the graph of the current tip temperature and the power supplied to the tip by moving the graph permantely to the left. Application Menu Tool Status Connected Tool Temperature and Power Grafi cs JBC#1 MENU MENU JBC#1 MENU WORK WORK 24 W 100% 450 ºC...
  • Page 6 Operation The JBC Most Efficient Soldering System JBC#1 MENU MENU JBC#1 This revolutionary technology is capable of recovering tip temperature extremely quickly. It allows WORK WORK the user to work at a lower temperature. 24 W 100% 450 ºC 24 W 100% 450 ºC...
  • Page 7 - color gris 200 mm JBC#1 MENU MENU JBC#1 MENU WORK WORK 450 ºC 24 W 100% 24 W 100% 450 ºC 450 ºC 18 W 100% 350 ºC 18 W 100% 350 ºC 350 ºC Graphics 130 mm...

  • Page 8: Brass Wool

    Includes a temperature-resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder and then with Wiper the brass wool.
  • Page 9 para manuales - color gris 200 mm Replacing Brass Wool 130 mm 130 mm 1. Lifting 2. Replacing Space 100 mm 80 mm 60 mm Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make sure that the brass wool is on the far left and that 50 mm there is space for the wiper on the right.
  • Page 10 Cartridge Exchanger Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing Reference Ring Place the tweezers with the Place the tweezers on top of Place the tweezers with the cartridge in the extractor slot the new cartridge and gently cartridge in the slot, so that its and pull to remove it.
  • Page 11 para manuales - color gris 200 mm Cartridge Tip Alignment 130 mm 130 mm B115T offers an intuitive cartridge tip alignment function. Cartridge tips can be rotationally and vertically aligned. 100 mm 80 mm Wheel for vertically Bushings for rotationally tip aligntment tip alignment 60 mm...

  • Page 12: Manual

    Menu Settings 450 ºC The B·iRON Console offers an intuitive user interface, which provides quick access to station 350 ºC parameters. 250 ºC 150 ºC JBC#1 JBC#1 MENU Return to Work 50 ºC 24 W 100% Tool ID Lock Parameters...
  • Page 13 12 W 100 mm - On the console/device notification bar at the top, open “USB Connection Settings” and select “MTP”. - On the PC copy the downloaded file to “IT706/internal share storage/JBC”. 80 mm 350ºC - Once copying is finished, disconnect the console/device from the PC.
  • Page 14 - Maintain the tip surface clean and tinned before storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Do not use liquid such as alcohol, thinner or benzene to clean the console. - Repairs should only be performed by a JBC authorized technical service. Clean periodically...
  • Page 15 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
  • Page 16 Notes...
  • Page 17 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 18 Notes...
  • Page 19 para manuales - color gris 200 mm Specifications 130 mm 130 mm B·iRON 115T High-Precision Battery Rework Station 100 mm With Console: Without Console: Ref. BI115TUA BI115TUQA 120 V - N. America, Taiwan 120 V - N. America, Taiwan Ref. BI115TIA BI115TIQA 230 V - India 230 V - India...
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
