- Page 1 A99-6/A99-10 Shenzhen Absen Optoelectronic Co.,Ltd. Service hotline : 400-700-3278...
- Page 2 series user manual Contents Product introduction ................................. - 3 - 1.1 product description ..............................- 3 - 1.2 Product specification ..............................- 3 - 1.3 Product transport rack .............................. - 4 - 1.4 Panel size ..................................- 4 - 1.5 Product structure ................................. - 4 - 1.6 Product accessory introduction ..........................
- Page 3 series user manual Security Information Warning! Before installing, supplying power, running, and commissioning this product, please be sure to read the safety measures in this section The following marks are used in this product and manual to mark important safety signals. warning! Dangerous voltage! warning! Security Risk! May cause warning! Read the manual...
- Page 4 series user manual • If you encounter other questions, please consult a professional. Beware of fire! • To avoid fire caused by overload of power cables, use circuit breakers or fuses for protection. • Keep good ventilation around the screen, controller, power supply and other products, at least 0.1 meters away from other items space.

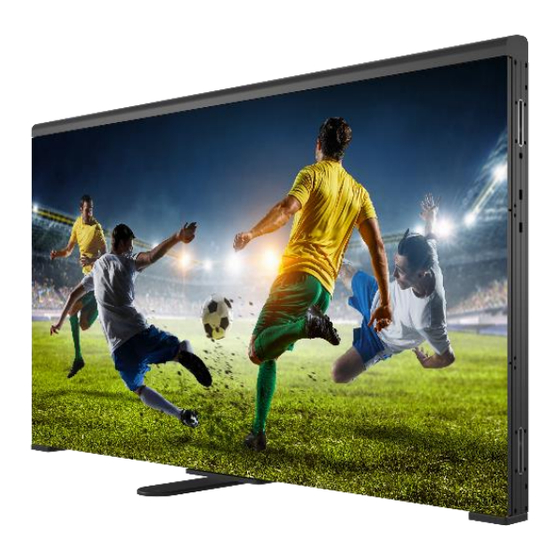

- Page 5 series user manual 1 Product introduction 1.1 product description A99 is an outdoor stadium LED display with excellent super clear display effect. The module supports front and rear maintenance, and the remaining devices support rear maintenance. This product is suitable for football, basketball, ice hockey, baseball and other indoor and outdoor stadiums.
- Page 6 series user manual 1.3 Product transport rack 1.4 Panel size 1.5 Product structure Protection cushion Indicator light &Test button Power box Module handle Module Panel locker Panel supporting leg - 4 -...
- Page 7 series user manual 1.6 Product accessory introduction ◆ Left and right panel signal cable, 0.65/2.5m length： ◆ Sending box to fiber converter/ panel signal cable, 50/75m length： ◆ Left and right panel power cable, 0.65m length： ◆ Distribution power box to panel power cable, 3/5/7/9/11/13m（or 10/20/30m）...
- Page 8 series user manual 2 Product installation 2.1 Installation tools and accessories Tool type Function Picture Tighten or loosen the latch Hexagon between the panels wrench Installation tools Lifting For lifting the panel handle 2.2 Installation scene A99 is usually installed around the stadium. - 6 -...
- Page 9 series user manual 2.3 Installation steps 2.3.1 Panel installation Transport the panel to a suitable position by the handle. Transport the panel to a suitable position, and then rotate the panel so that the supporting feet and the panel is at 90 degrees. - 7 -...
- Page 10 series user manual Rotate the eccentric hook of the panel with a hexagon wrench, and lock the two panels with the eccentric hook. Follow the above steps, and install the other LED panels. - 8 -...
- Page 11 2.4 Product connection Before connecting the cables, please make sure the operators have been trained by Absen /supplier company and got certificate, who know very well about these products. 2.4.1 Power cables connection Please select the distribution box according to the maximum power consumption of maximum power consumption 650W/㎡.
- Page 12 series user manual 2.4.2 Signal cables connection: The signal CAT5 cables are connected from left to right (or right to left). Calculate the resolution before connecting, and connect the signal cable within the load range of the sending box. The load pixel range of each cable does not exceed 650,000 pixels.
- Page 13 series user manual After the screen is powered on, set the playback window and play high-definition materials, such as videos, pictures, text, etc. In principle, the resolution of the HD playback material should be the same as the actual resolution of the display screen, otherwise it will cause compression of the HD playback material and affect the playback effect.
- Page 14 series user manual 3 Product maintenance 3.1 Maintenance tools list Tool type Function Picture 2mm Hexagon Front Maintain the LED wrench modules Maintenance tools Maintain the receiving card, PH2 Screwdriver adapter board, and power supply 3.2 Module maintenance The module support front and rear maintenance. Use a tool to remove 6 screws, take out the module, and replace the spare module at the same time.
- Page 15 series user manual machine M4*13 mm with waterproof rubber ring, and the other four screws are cylinder head machine M4x8mm. When installing spare modules, the screws that fix the modules cannot be installed in the wrong position. 3.3 Control box maintenance The panel has two control boxes.
- Page 16 series user manual Receiving card maintenance Instruction Illustration After opening the control box of the panel, use a screwdriver to remove the 2 screws that fix the receiving card to remove and replace. Adapter board maintenance Instruction Illustration Upper and lower adapter board: First remove the connected cable and power cord, then use...
- Page 17 Make sure that all wiring is in a normal state, and in this case only connect the power to operate the device. When you are unable to determine the cause of the fault or do not understand the method of replacing the faulty part, please contact Absen Customer Service Center 400-700-3278! - 15 -...
- Page 18 series user manual 4 Safety passageway A99 is equipped with a safety passageway device (need to be purchased separately), push the box forward to quickly open the passage, and crowds can quickly enter the venue to avoid danger. （Reference picture，On-site LED stadium screen security channel） Safety passageway installation 5 Common faults and troubleshooting...
- Page 19 series user manual 8. Send rcfg file; 1. Check whether the screen power is on; 2. Check whether the DVI cable or HDMI cable is loose; 3. Check whether the main data cable is inserted tightly; 4. Check whether the sending card is powered on and whether the running indicator is flashing;...
- Page 20 ©2020 Shenzhen Absen Optoelectronics Co., Ltd. All rights reserved. Without the written permission of the company, any unit or individual shall not extract or copy part or all of the content of this document without authorization, and shall not disseminate it in any form.
