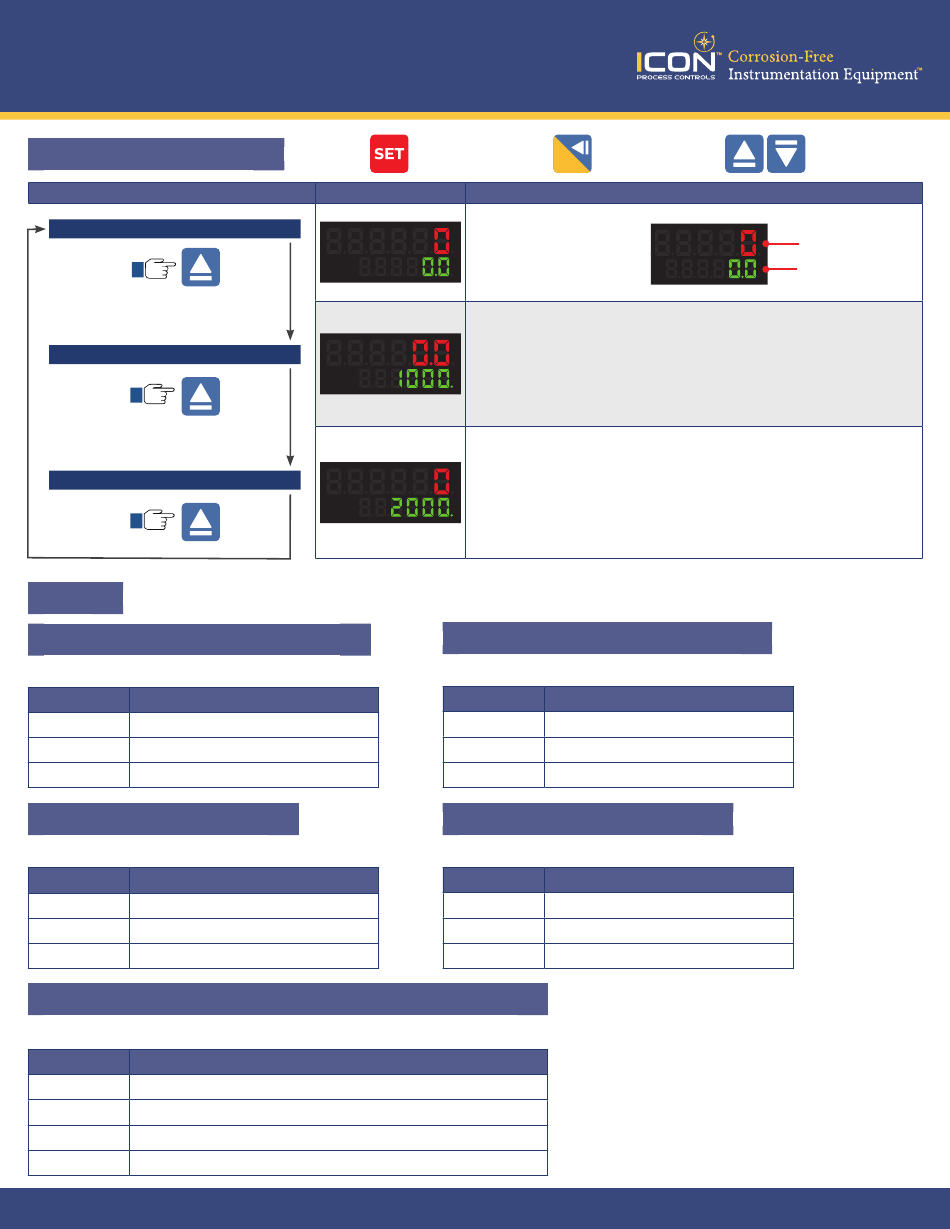

Icon Process Controls truflo TKP Series Quick Start Manual page 7

Truflo — TKP | TK3P Series (V1)
®
In-Line Paddle Wheel Flow Meter Sensor
Setting Output Limits
STEPS
Home Screen
1
Flow Rate Pulse Relay Output
2
Totalizer Pulse Relay Output
3
Wiring
Flow Rate Pulse Relay Output
Set "Con F/E/r/c" in Pulse Output
Wire Color
Brown
White Flow Rate Pulse Output (OP1)
Blue
Output to Flow Display
Set "Con F" in Pulse Output
Wire Color
Brown
Black
Blue
One Pulse/Gal + Flow Rate Pulse Relay Output
Set "Con E" in Pulse Output Control*
Wire Color
Brown
Black
White
Blue
24-0597 © Icon Process Controls Ltd.
DISPLAY
▶
▶
▶
Control*
Description
+ 10~30VDC
-VDC
Control*
Description
+ 10~30VDC
Paddle Pulse
-VDC
Description
+ 10~30VDC
Pulse Output (1 Pulse/Gal)
SSR (Flow Rate)
-VDC
Select/Save/Continue
F
Home Screen
Flow Rate Pulse Relay Output (OP1) Limit
CV : Current Flow Rate Value
SV : Flow Rate Pulse Relay Output Set Value
Note: Refer Relay Mode Selection (Pg 6)
Totalizer Pulse Relay Output (OP2) Limit
CV : Current Totalizer Value
SV : Totalizer Pulse Relay Output Set Value
Note: Refer Pulse Output Control Settings (Pg 8)
Totalizer Pulse Relay Output
Set "Con n" in Pulse Output
Wire Color
Brown
Black Totalizer Pulse Output (OP2)
Blue
One Pulse/Gallon Output
Set "Con E" in Pulse Output
Wire Color
Brown
Black
Blue
* Refer Pulse Control Programmming, Page 8
Note: Refer to 'Relay Mode Selection' on Page 8 to
configure the relay output as needed.
