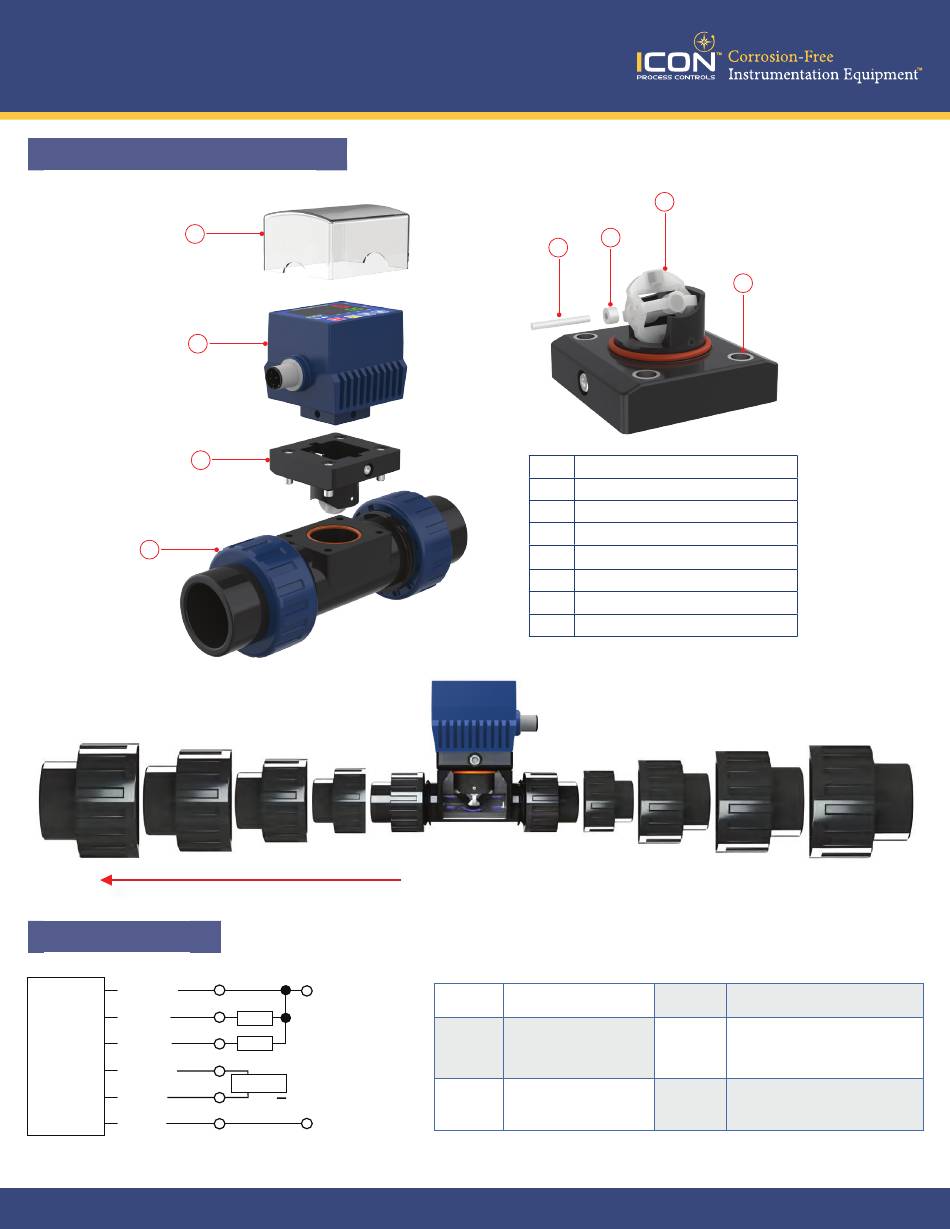

Icon Process Controls truflo TKP Series Quick Start Manual page 5

Truflo — TKP | TK3P Series (V1)
®
In-Line Paddle Wheel Flow Meter Sensor
Exploded View – TKP Series
1
2
4
2"
Wiring Diagram
Brown
Black
TKP
Flow
White
Meter
Yellow
Output
Grey
Circuit
Blue
24-0597 © Icon Process Controls Ltd.
3
+VDC
Pulse (NPN)
Load
Pulse (NPN)
Load
+
RS-485 Special Option
0V
5
1
2
3
4
5
6
7
8
Same Controller | Rotor Assembly for All Sizes
1/2"
+10 - 30 VDC
Brown
-VDC
Blue
Pulse Output
White
NPN
7
6
8
PC Cover
TKP Controller
Rotor Assembly
Body - PVC | PP | PVDF
Rotor Pin
Rotor Bushing
ShearPro Paddle Wheel
®
Reinforced Inserts
RS485A
Yellow
RS485B
Grey
Pulse Output NPN
Black
5
