2. LED FUNCTIONS OF CHARGER
LED INDICATOR
HI/LO TEMP.
(SEE MANUAL)
DEFECTIVE
BATTERY
BATTERY
CHARGING
BATTERY
FULL

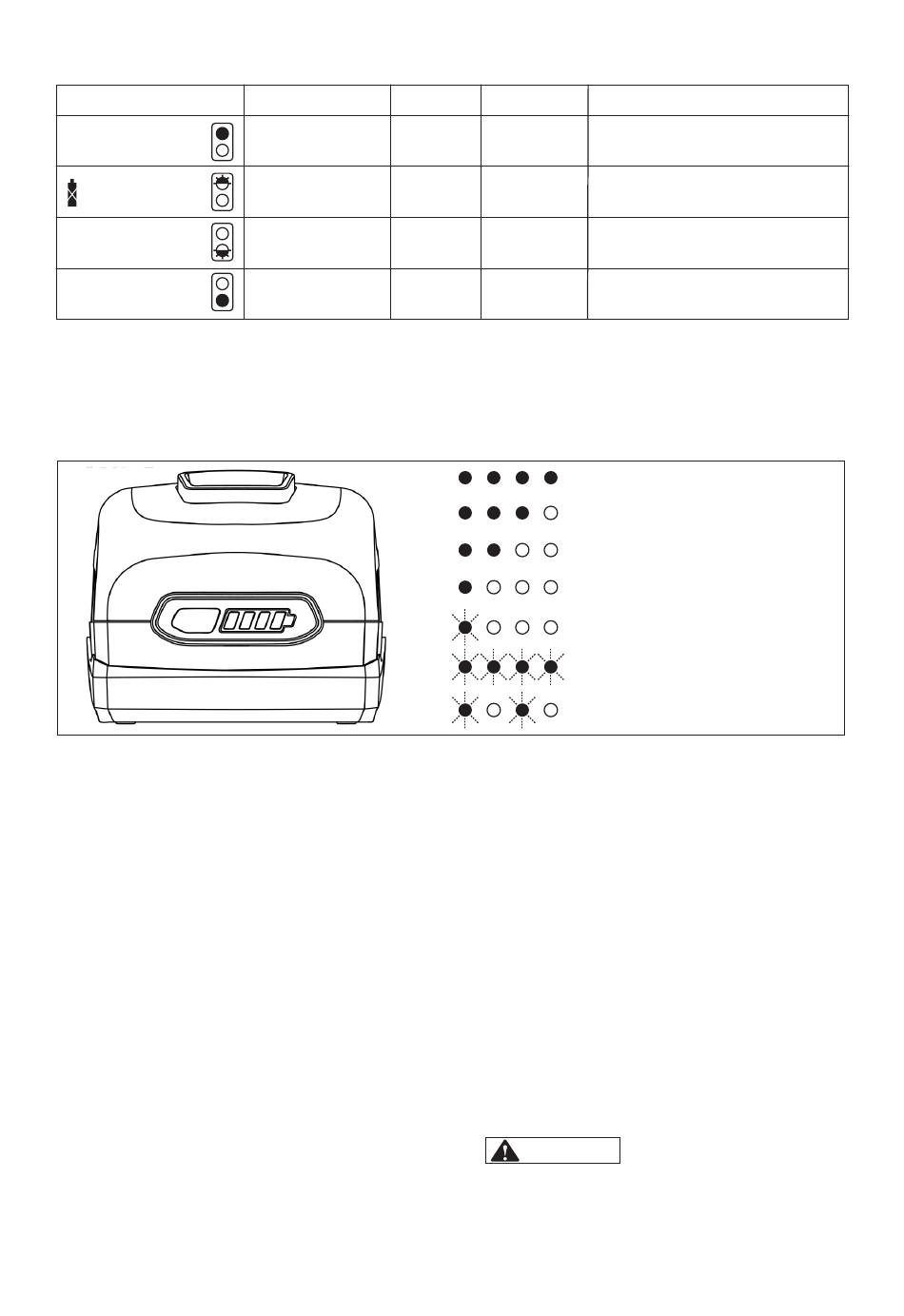

3. POWER BAR
This Lithium-Ion battery pack is equipped with a POWER BAR, which is used to display the
battery pack's remaining run time. Press the POWER BAR button to display the LED lights.
The LED lights will stay lit for approximately 4 seconds.
NOTE: The POWER BAR can be used whether the battery is attached or removed from tool.
4. LOW-BATTERY CAPACITY INDICATOR
• If LED worklights on the POWER BAR begins to
rapidly and continuously flash when the trigger
switch on the wrench is depressed, the battery
pack's power has run out, and the battery pack
should be recharged.
• Unlike other battery pack types, Lithium-Ion
battery packs deliver fade-free power for their
entire run time. The tool will not experience a
slow, gradual loss of power as you work. To signal
that the battery pack is at the end of its run time
and needs to be charged, the power to the tool
will drop quickly. The POWER BAR will begin to
display four flashing LED lights when the battery
is completely discharged. When this happens,
remove the tool from the workpiece, and charge
the battery pack as needed.
NOTE: The POWER BAR may also display four
flashing LED lights due to an overload or high
temperature situation.
5. WHEN TO CHARGE THE BATTERY PACK
10
BATTERY PACK RED LED GREEN LED
Hot/Cold battery
Defective Flashing
Charging
Fully charged
Charging will begin when battery
On Off
Off
Off Flashing
Off On
The Lithium-Ion battery can be charged at any
time and will not develop a "memory" when
charged after only a partial discharge. It is not
necessary to run down the battery pack charge
before recharging. Remove the battery pack from
the tool when convenient for you and your job.
• Use the POWER BAR to determine when you
need to recharge the battery pack.
• You can "top-off" your battery pack's charge
before starting a big job or long period of use.
4. STORAGE RECOMMENDATIONS
• The best storage place is one that is cool and dry,
away from direct sunlight and excess heat or cold,
Do not exceed 40°C (104 °F).
• For long storage, it is recommended to store a fully
charged battery pack in a cool dry place out of the
charger for optimal results.
CAUTION
The battery pack will need to be recharged
before use.
ACTION
returns to 0°C-40°C
Battery pack or Charger is
defective
Charging
Charging is complete
Maintenance charging
80-100% Charge
60-79% Charge
40-59% Charge
20-39% Charge
Under 20% Charge
Completely Discharged
High/Low Temperature
