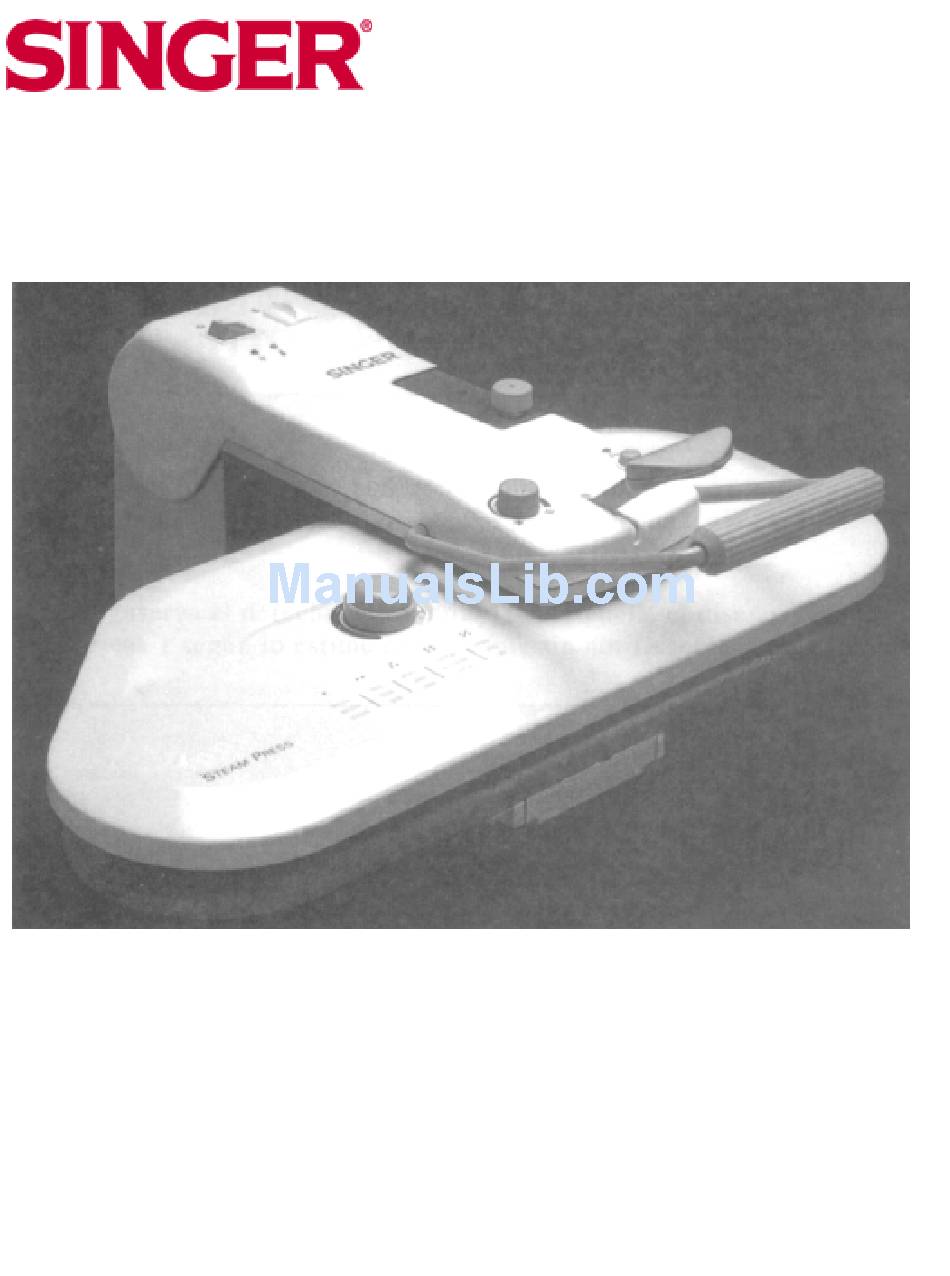

- Page 1 MODEL CSP1 COMPACT STEAM PRESS™1 MODEL CSP1 Instruction Manual...
- Page 2 MODEL CSP1 TABLE OF CONTENTS Important Safeguards Cleaning the Compact Steam Press Special Instruction Pressing Selections Getting to Know the Compact Steam press Fabric Tips How to Operate the Compact Steam Press Buttons, Zippers, Etc. Before Plugging into Outlet Additional Steam Pressing Methods Filling the Water Tank Using the Pressing Cushion Turning on the Press...
- Page 3 Singer Sewing Company All rights reserved throughout the world. The scope of this manual covers the installation and operation of Singer's COMPACT STEAM PRESS The manufacturer reserves the right to change the CSPI. For the best performance of this piece of...
- Page 4 Compact Steam Press 1; take it to an perfumed products or products containing alcohol, authorized Singer Service Center for examination and they will deteriorate your press. Do not use defrosted repair. Incorrect reassembly can cause risk of electric water from the refrigerator.
- Page 5 MODEL CSP1 GETTING TO KNOW THE COMPACT STEAM PRESS I. PRESSING HANDLE. Use for raising and lowering the pressing plate. For Automatic Maximum Pressure: with the Pressing Plate against the Ironing Board, continue lowering the handle until it reaches its lowest position.
- Page 6 MODEL CSP1 11. STEAM CONTROL. Turn dial to set steam amount - no steam through maximum. 12. TEMPERATURE CONTROL DIAL. Turn to set the Press' temperature for your fabric. 13. ON/OFF SWITCH. Push to turn the power ON (1) or OFF (0). 14.
- Page 7 MODEL CSP1 HOW TO OPERATE THE COMPACT STEAM PRESS 1. Before Plugging into Outlet Check the voltage printed on the bottom of the Press to be sure it is the same as your line voltage. Place Compact Steam Press 1 on a firm level surface.
- Page 8 MODEL CSP1 3. Turning on the Press Check the voltage printed on the bottom of the Press to be sure it is same as your power outlet. Check to make sure the ON/OFF Switch 'A' is in the OFF position by pressing the side of the switch labeled '0'.
- Page 9 MODEL CSP1 4. Temperature Selection Turn the Temperature Control Dial 'A' until the arrow points to the number of dots which correspond to your fabric. (Compare garment label to Fabric Chart 'B'. If your are unsure of the fiber content of your fabric, try a low setting first and gradually increase until the desired results are obtained.) After several minutes the Ready Light 'C' will come on.
- Page 10 MODEL CSP1 5. Steam Control For steam pressing, turn Steam Control 'A' clockwise. The farther the dial is moved in this direction, the more steam will be produced. Your Temperature Control Dial must be in the Steam zone (4 dots or above) to produce steam. NOTE: If this is the first time you are using the Press after filling with water or after a long period of storage, lift the Pressing Plate to the raised position and pump...
- Page 11 MODEL CSP1 6. Pressing Carefully spread the area to be pressed on the Ironing Board removing all unwanted folds. Grasp the Pressing Plate Handle 'A' and lower the Pressing Plate 'B' on to the Ironing Board 'C'. If steam has been selected, it will be pumped into and absorbed by the fabric.
- Page 12 MODEL CSP1 7. Orientation Change of Pressing Plate and Ironing Board For pressing wide and long clothing, press the Orientation Change Button 'A' and turn the Pressing Plate 'C' through 90 degrees. Push down the Orientation Change Lever 'B' and turn the Ironing Board 'D' through 90 degrees.
- Page 13 MODEL CSP1 8. When Pressing is Finished Push ON/OFF Switch to OFF (0) position. The red light will go out. Disconnect plug from outlet. CAUTION: Let the Compact Steam Press I cool completely (at least 30 minutes) before continuing. Drain the Water Tank if the Press will be stored: * When the Press is cooled, remove the Water Tank Cap and hold * Water Container below Tank Drain 'A'.
- Page 14 MODEL CSP1 CLEANING THE COMPACT STEAM PRESS Your Compact Steam Press 1 is virtually maintenance free. However the following steps will extend the life of the Press if performed occasionally. 1. To clean the Pressing Plate vents: * Center the Pressing Cushion on the Ironing Board as shown.
- Page 15 MODEL CSP1 PRESSING SUGGESTIONS Fabric Tips 1. Always begin with the fabric requiring the lowest temperature setting. In this way you will avoid waiting for the unit to cool down. 2. You may find it desirable to place a press cloth between your fabric and Pressing Plate.
- Page 16 MODEL CSP1 Additional Steam Pressing Methods Some fabrics benefit from the use of moisture during pressing. If you choose to set your Steam Control for no steam, you have two other choices for steam pressing: 1. Using the Spray Bottle, lightly spray entire garment before placing on the Ironing Board or spray the area to be pressed after it is positioned for pressing.
-
Page 17: Using Pressing Cushion
MODEL CSP1 Using the Pressing Cushion Certain garment construction details such as darts, curved seams, and shoulder caps are not intended to be pressed flat. A Pressing Cushion has been supplied with your Press for use on these areas. Use the Cushion whenever pressing areas where no creases are desired and to shape tailored garments. - Page 18 MODEL CSP1 APPLICATIONS The following pages will show you how to obtain the best pressing results for a variety of common applications. When pressing large pieces of fabric, place entire piece in the storage area behind the Ironing Board. The area you want to press first should be on top. Place this area on the Board and press.
- Page 19 MODEL CSP1 Shirts and Blouses continued... D. Place shirt into storage area and press the side front including the placket. Pull the shirt towards you and position the next area. Continue until the entire body of the shirt has been pressed. E.
- Page 20 MODEL CSP1 Pants A. Place Pressing Cushion under waistband and press. Reposition waistband and continue until entire waistband is pressed. B. To press in-seam, place the Cushion under the area to be pressed as shown. Press entire in-seam. Repeat for other leg. C.
- Page 21 MODEL CSP1 Pleated Skirts A. Place Pressing Cushion under waistband and press. Reposition waistband and continue until entire waistband is pressed. B. Place pleated area on Ironing Board. Fold pleats carefully and press. Continue with next pleated area until all pleats are pressed.
- Page 22 MODEL CSP1 Curtains Rotate the Pressing Plate and Ironing Board through 90 degrees. Place curtain on Ironing Board as shown and press. Continue until the entire body of the curtain has been pressed. Other applications These techniques can be used for a multitude of items! Here are just a few suggestions for use of your Compact Steam Press 1: * Household Linens...
- Page 23 MODEL CSP1 TROUBLESHOOTING Problem Cause Remedy 1. Press cannot be Locking Knob is in locked Turn Locking Knob to open opened using Pressing position. position. Handle. 2. Pressing Plate Orientation Change Button in Press the Orientation Change cannot be rotated. locked position.
