Summary of Contents for Eurovema EUROFLEX EXL

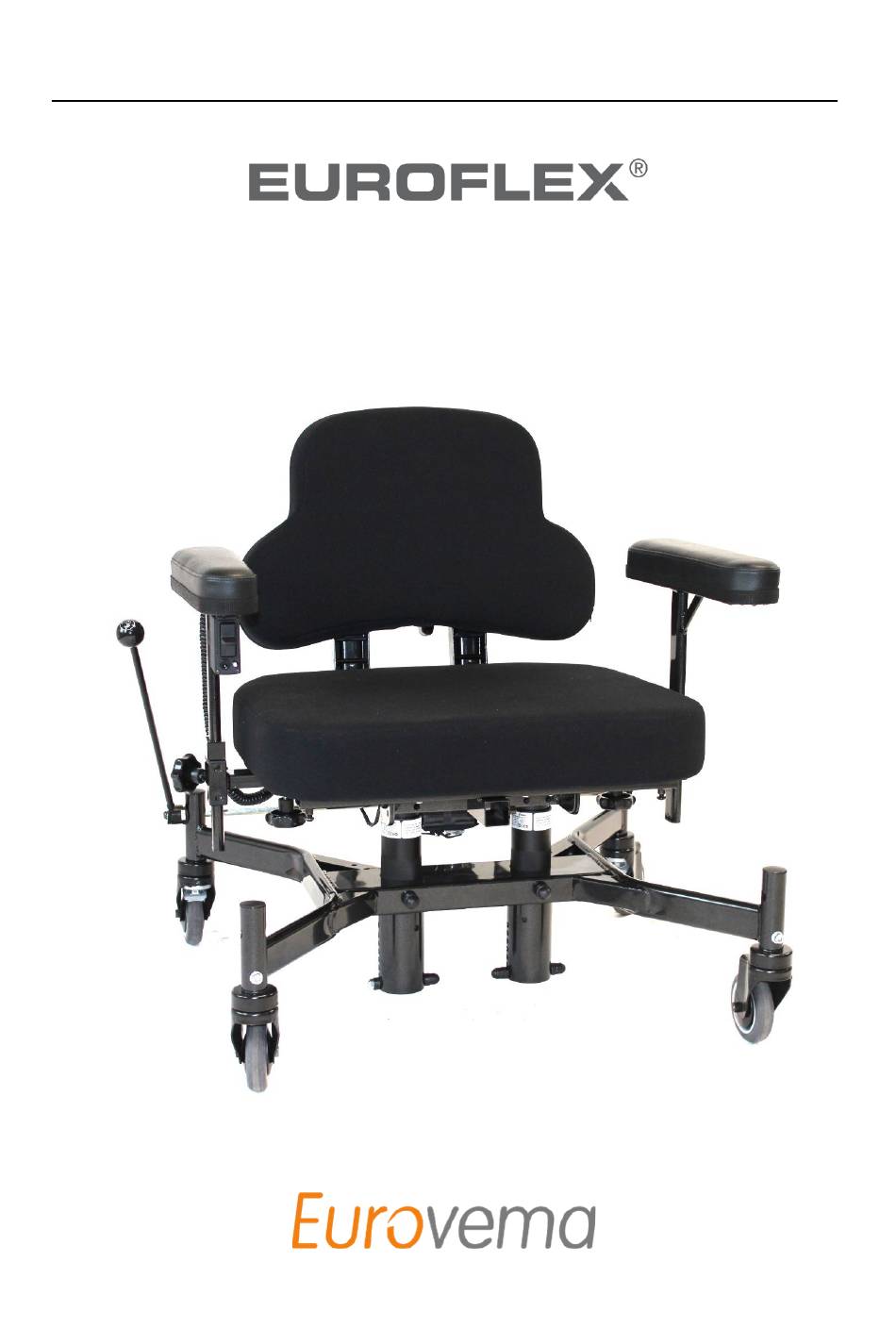

- Page 1 User Manual, English Work Chair EXL Rev: 04.10.2024...
- Page 2 LEVER BRAKE ............................24 CHARGING - GENERAL ........................... 25 CHARGER ............................... 25 BATTERY LOCATION ..........................26 EUROVEMA ELECTRONICS ........................27 TECHNICAL DATA - ELECTRONICS ......................27 TECHNICAL DATA - BATTERY ......................... 27 REPLACING THE BATTERY ........................27 CHARGER - SIGNALS AND FAULT CODES ....................28...
- Page 3 TECHNICAL DATA - EXL .......................... 29 ENVIRONMENT ............................30 TECHNICAL DATA - CHASSIS ........................30 ACCESSORIES LIST ..........................31 DESTRUCTION ............................32...
- Page 4 Read the User Manual carefully so you can make use of all the options afforded by your chair. Eurovema reserves the right to make changes to this manual and its contents.
- Page 5 Pay attention to screws or parts that become loose or fit loosely as they may impact safety. Contact the service organisation immediately. Service and maintenance must only be carried out by a Eurovema authorised technician. • Only original parts from Eurovema may be used.
- Page 6 SYMBOL KEY Warning Read User Manual Warning, risk of crushing Seat tilt Do not iron Adjustable back tilt Do not use dry cleaning solvents stronger than tetrachloroethylene Back height Do not use bleach Seat depth Do not tumble dry Armrest height Operation button, Machine wash 60°...
- Page 7 A product that exhibits impaired or changed performance must be taken out of use immediately. Contact the service organisation (Technical Aid Centre) or Eurovema AB immediately. The product may not be used again until it has been inspected by an authorised technician.
- Page 8 The awarding of a CE mark shows that the product has undergone a series of risk analyses and tests. Steps have been taken to minimise any risks identified as far as possible. If, despite everything, accidents or incidents occur, such events must be reported to Eurovema Mobility AB and the relevant national authority.
- Page 9 MAIN LABEL The label on the product contains important information. 1) Product name 2) Part number 3) Serial number UDI-PI 4) Barcode 5) Max. user weight 6) Medical device 7) CE marking 8) Read the manual before use 9) Manufacturing date 10) Manufacturer's name SECONDARY LABEL 1) Applied part type B...
- Page 10 PRODUCT MARKING Crush risks are reported in connection with instructions for each function that may constitute a risk of crushing. Marking appears on the chair where there is a risk of crushing.
- Page 11 OVERVIEW, EXL CHAIR 1. Back 2. Armrests 3. Seat 4. Gas piston or electric lifting pillar 5. Foot ring 6. Brake lever 7. Rear wheel 8. Front wheel...
- Page 12 BACK HEIGHT The height of the back support can be adjusted using a lever and an adjustment screw. Both pillars must be adjusted at the same time. 1. Loosen the lever a 1/2 turn by turning it anticlockwise. 2. Set the back support to the desired height. 3.
- Page 13 BACK SUPPORT - SETTING THE BACK ANGLE The multi-back allows angle of the back cushion can be adjusted and set in two ways. 1) Undo the safety screw and lever to tilt and push the entire back mechanism either forwards or backwards. 2) Set the desired back angle.
- Page 14 BACK SUPPORT - SEAT DEPTH Seat depth is adjusted using the back support. Set the desired seat depth by moving the back support backwards or forwards. Fine tuning of the seat depth can also be done using the back tilt. Both pillars must be adjusted at the same time.
- Page 15 SEAT TILT It is possible to manually adjust the tilt of the seat using tools. Contact an authorised technician to adjust the seat tilt. The seat can be tilted 3º forwards or 3º backwards, which is done by undoing 4 bolts located on the underside of the seat. 1) To tilt the seat forwards, loosen the bolts on the left and right side of the bracket located under the rear section of the seat, see figure (1).
- Page 16 ARMREST– SETTINGS HEIGHT ADJUSTMENT, ARMREST 1) Loosen the wheel (1) a few turns. 2) Then move the safety lock (2) by pulling in knob straight out to the desired position in the pre-drilled holes in order to obtain the desired height. 3) Tighten the wheel/screw.
- Page 17 The seat height of the Euroflex EXL is adjusted using electronic lift actuators or manually using a gas piston. Electronic lift actuators are operated using a control box mounted on the front edge of one of the armrests.
- Page 18 MANUAL SEAT LIFT To lower or raise the chair seat, move the lever located on the side of the seat backwards/upwards in order to release the gas pistons.
- Page 19 FOOTPLATE Footplate settings 1) Leg angle 2) Height 3) Foot plate angle Do not stand on the footplate, the chair will tip forwards...
- Page 20 (3) FOOTPLATE ANGLE The footplate can be adjusted horizontally. To tilt it downwards, screw the screws anticlockwise using Allen key no. 5 until the desired angle is reached. Lock the screws using nuts. To tilt upwards, undo the nuts and screw the screws in clockwise, Do not stand on the footplate, the chair will tip forwards...
- Page 21 BIFURCATED FOOTREST 1) Completely loosen safety screw (1) and undo screw (2) a few turns so that the footplate can be raised or lowered. 2) Once the desired height has been reached, tighten screws (1) and (2). Do not stand on the footplate, the chair will tip forwards...
- Page 22 BIFURCATED FOOTPLATE - FOOT TILT The angle of the footplate can be adjusted to enable the user to find a comfortable position. To do this, loosen the screw a few turns using Allen key no. 5 and adjust the angle of the footplate (1).
- Page 23 FOOT RING The foot ring is fitted in the top edge of the front part of the chassis. The foot ring can be folded up to facilitate transportation and when getting in and out. Fold the foot ring away before getting out of the chair in order to reduce the likelihood of a fall.
- Page 24 LEVER BRAKE Lever brake Apply the chair brake by moving the brake lever forwards. Release the brake by moving the lever backwards. Always apply the brake before getting in or out of the chair.
- Page 25 CHARGING - GENERAL To ensure full battery performance for as long as possible, it is important that the battery is charged on a regular basis. Usually, it is sufficient to charge the battery 1– 2 times a week, preferably during the daytime when the chair is not in use. Do not interrupt the charging process until it has completed.
- Page 26 BATTERY LOCATION...
- Page 27 To replace the battery, the entire battery box must be replaced. For instructions on how to do this, see the installation procedure outlined in Replacing the Battery. Repairs and other procedures on the battery may only be carried out with the approval of Eurovema. Only Eurovema-approved batteries may be used in the product.
- Page 28 CHARGER - SIGNALS AND FAULT CODES Status Charging at maximum current Solid yellow Top charging, constant voltage Flashes yellow Charge complete, maintenance charging Solid green Battery not connected Flashes green Fault codes Battery connected but wrong polarity 2 red flashes Charger output short circuited 3 red flashes Battery voltage too low...
- Page 29 TECHNICAL DATA - EXL Class Work Chair - ISO 180903 Weight, electric 51kg Weight, manual 50kg Weight Safe Working Load (user weight + 285kg (electric), 285kg (manual) accessories) Maximum user weight 270kg Seat height, electric Seat height, electric 160mm 360-520mm Seat height, electric 240mm 440-680mm *Seat height can be adjusted upwards in 1cm...
- Page 30 ENVIRONMENT Condition Temperature Humidity Atmospheric pressure Normal use 5°C - 40°C 10% - 93% RH 50kPa – 106kpa Storage and transport -5°C - 40°C 10% - 93% RH 50kPa – 106kPa TECHNICAL DATA - CHASSIS Data Facts Chassis width 85cm with lever brake (70cm without) Chassis length 71cm with lever brake (60cm without) Chassis weight...
- Page 31 1. Brake, available as manual brake and electronic brake. 2. Lifting pillar, available in 2 different heights. 3. Gas pistons, available in 2 sizes with 400N and 500N Contact Eurovema for a complete list of parts that can be repaired/replaced - authorised service personnel only.
- Page 32 Instructions section. Detailed diagrams can also be found on the website in the Exploded Diagrams www.eurovema.se section. Point your browser to Private individuals should contact Eurovema for more information. Eurovema will then assume responsibility for destruction. Disassembled components are to be sorted in accordance with the table below.
