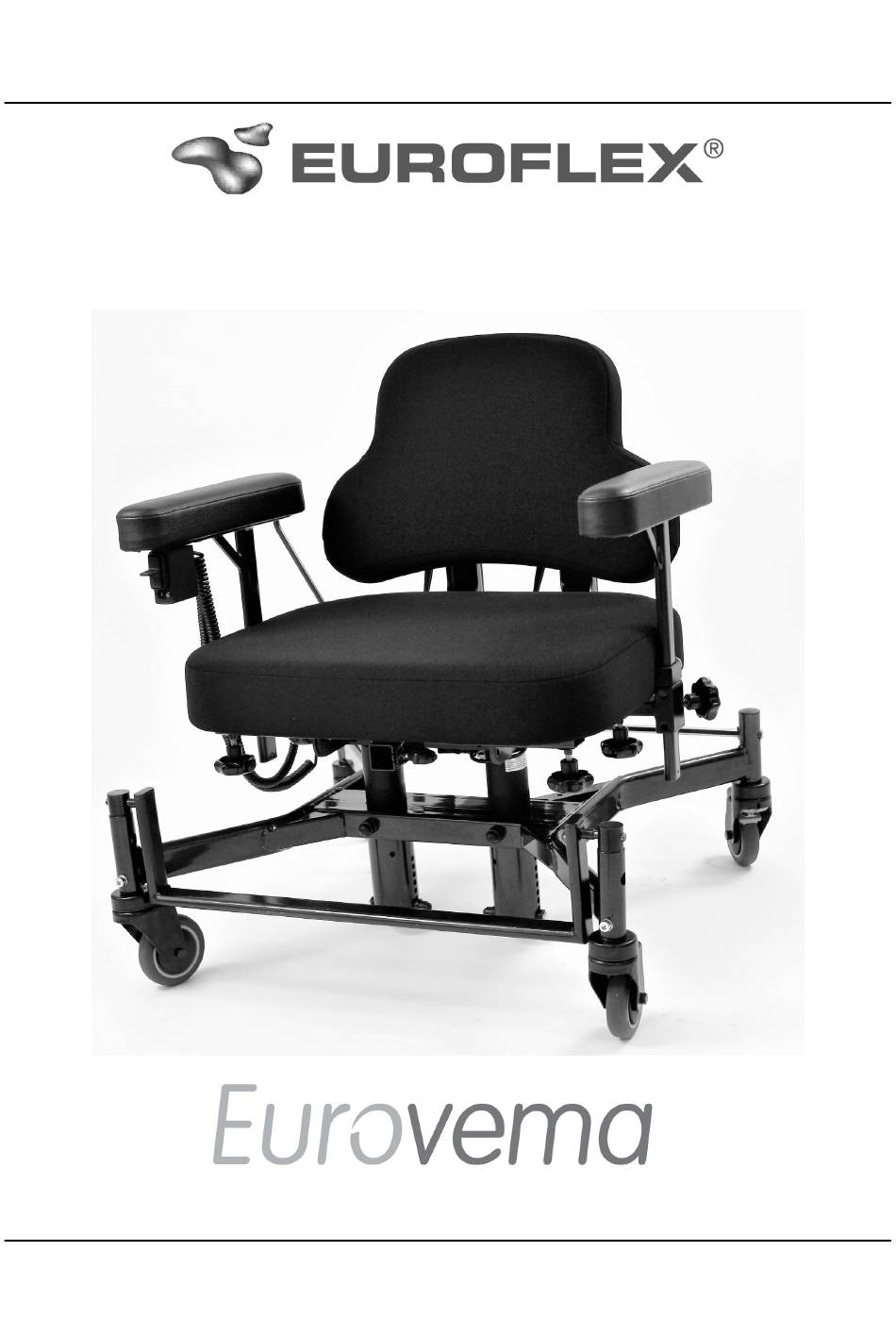

- Page 1 User Manual, English Work Chair EXL item no. BRU-80-300. Rev: 20220224...
-
Page 2: Table Of Contents
Charging batteries ........... 17 Technical information .........18-19 If you have any questions or if you need help with your product, please contact your local supplier first (Technical Aid Centre). Eurovema Mobility AB Baldersvägen 38 SE-332 35 Gislaved Sverige/Sweden/Schweden Tel./Phone: +46371390100 www.eurovema.se... -
Page 3: Introduction
Congratulations on choosing an EXL work chair! We hope you will be pleased with this Euroflex product from Eurovema, which has been designed and built in Gislaved, Sweden. The work chair is designed to accommodate users weighing up to 260 kg, without compromising posture or comfort. The chair is adjustable, meaning that it can be adapted to meet every need. -
Page 4: Service/Guarantee
Should the product develop faults or requiring servicing, please contact an authorised workshop or Eurovema. Eurovema reserves the right to make changes. CLEANING Wipe the surface of the work chair with a damp cloth and a mild detergent such as washing-up liquid. Place the chair on a level surface to dry. -
Page 5: Marking
LABEL All the important technical information can be found on the work chair's label. 1. Product name 2. Part number 3. Serial number/UDI-PI 4. Barcode 5. Max. user weight 6. Medical device 7. CE marking 8. Read the manual before use 9. -
Page 6: Overview
OVERVIEW 1) Back support 2) Armrest 3) Seat 4) Height adjustment, seat, Electrical 5) Width adjustment, armrest 6) Height adjustment, armrest 7) Front wheel 8) Rear wheel (Braked) 9) Foot ring 10) Parking, brake lever 11) Chassis, EXL 12) Height adjustment, back support 13) Back angle 14) Angle, back cushion 15) Electric actuator... - Page 7 OVERVIEW 1) Back support 2) Armrest 3) Seat 4) Height adjustment, seat, Electrical 5) Width adjustment, armrest 6) Height adjustment, armrest 7) Front wheel 8) Rear wheel (Braked) 9) Foot ring 10) Parking, brake lever 11) Chassis, EXL 12) Height adjustment, back support 13) Back angle 14) Angle, back cushion 15) Electric actuator...
-
Page 8: Seat Tilt
SEAT TILT It is possible to manually adjust the tilt of the seat using tools. Contact an authorised technician to adjust the seat tilt. The seat tilt can be adjusted 3º forwards or 3º backwards. This is done by undoing the 4 bolts located under the seat. -
Page 9: Back Support - Height
BACK SUPPORT – HEIGHT MULTI-BACK On the multi-back, you can adjust the height of the back support using both a lever and an adjustment screw to give you the best level of comfort. Both pillars must be adjusted at the same time. 1) Loosen the lever by turning it anticlockwise a ½... -
Page 10: Back Support - Angle
BACK SUPPORT - ANGLE/MULTI-BACK On the multi-back, you can adjust the angle of the seat cushion in two different ways in order to achieve the best level of comfort. 1) Loosen safety screw and lever to angle the whole back mechanism forwards or backwards. 2) Set the desired back angle on the back support. -
Page 11: Back Support - Seat Depth
BACK SUPPORT - SEAT DEPTH The seat depth is adjusted using the back support. Set the desired seat depth by moving the back support backwards or forwards. Fine tuning of the seat depth can also be done with the help of the adjustable back angle. -
Page 12: Arm Rest
ARMREST - SETTINGS HEIGHT ADJUSTMENT, ARMREST Loosen the wheel (1). Then move the safety lock (2), by pulling in knob straight out to the desired position in the pre-drilled holes in order to obtain the desired height. Tighten the wheel/screw. WIDTH ADJUSTMENT, ARMREST Turn the wheel (3) and set the desired width. -
Page 13: Chassis - Parking/Brake
PARKING/BRAKE The brakes on Euroflex EXL can be supplied in a manual or electric version. The chair comes with rear brakes as standard, however all four wheels can be equipped with brakes. 1) Lever brake: Braking: Move the brake lever forwards. The rear wheels lock. -
Page 14: Seat Height
SEAT HEIGHT The seat height of the Euroflex EXL is adjusted using electronic lift actuators or manually using a gas piston. Electronic lift actuators are operated using a control box mounted on the front edge of one of the armrests. As standard, seat height is 36-52 cm (short) or 44-68 cm (long) (or 240 cm lifting effect). In order to increase seat height to 75 cm, the position of the electric seat lift can be adjusted in 7 steps;... -
Page 15: Rotation
FOOTREST There are two versions of footrest: whole (13) and split (14). Available as an accessory. Settings: Settings: 15) leg angle 18) height 16) height 19) foot angle 17) foot plate angle 20) fold up... -
Page 16: Foot Ring
FOOT RING The foot ring is fitted in the top edge of the front part of the chassis. The foot ring can also be folded up to make the chair easier to move. SEAT - ACCESSORIES COVER Our covers for both seat and back are easy to remove and put on. The seat cover is provided with incontinence protection. - Page 17 CHARGING BATTERY To ensure full battery performance for as long as possible, it is important to charge it regularly. Usually, it is sufficient to charge the battery 1-2 times a week, preferable during daytime when the chair is not in use.
-
Page 18: Technical Information
TECHNICAL INFORMATION Work chair Data Facts Class Work Chair - ISO 180903 Weight, electrical 51 kg Maximum user weight, Electric height adjustment 260 kg Maximum user weight, Gas-controlled height 170 kg (2x400N lifting force), 260 kg (2x500N adjustment lifting force) Battery ENVIRONMENTAL CONDITIONS Work Chair... - Page 19 TECHNICAL INFORMATION Seat Data Facts Seat (width x depth) 60x45, 60x50, 70x50, 70x55 cm Seat width (between the armrests) 55-89 cm 45-55 cm Seat depth 36-52, 44-68 cm* Seat height, Electrical (height to underneath the seat)* Seat height, Gas (height to underneath the seat)* 40-55, 46-66 cm* Seat tilt -3º...
- Page 20 item no. BRU-80-300. Rev: 20220224...
