- Page 1 User Manual, English Work chair part no. BRU-80-120. Rev: 202200124...
-
Page 2: Table Of Contents
Charging the battery ......... 17 Technical information ........18 If you have any questions or if you need help with your product, please contact your local supplier first (Technical Aid Centre). Eurovema Mobility AB Baldersvägen 38 SE-332 35 Gislaved Sverige/Sweden/Schweden Tel/Phone: +46,371,390,100 www.eurovema.se... -
Page 3: Introduction

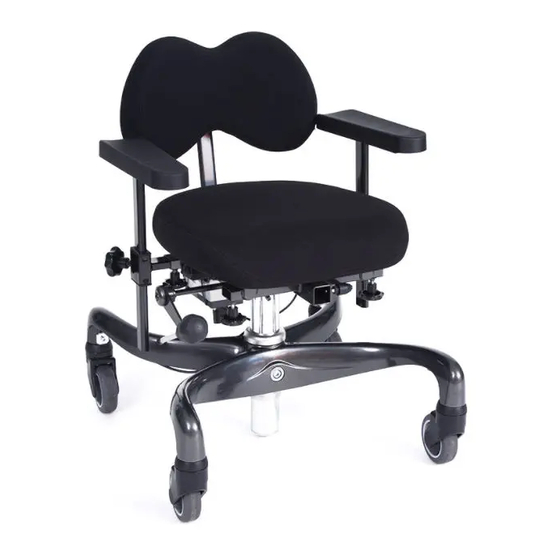

INTRODUCTION We congratulate you on your choice of work chair! We hope you will be pleased with this Euroflex product from Eurovema, designed and built in Gislaved, Sweden. The work chair is designed to satisfy very high demands for ergonomics, sitting comfort and function. The chair has many options for adjustment enabling it to be adapted to every need. -
Page 4: Service/Guarantee
We recommend our customers to use the product in accordance with the user manual. In the event of faults or servicing of the product, please contact an authorised workshop or Eurovema. Eurovema reserves the right to make changes. -
Page 5: Label
LABEL All the important technical information can be found on the work chair's label. 1) Product name 2) Part number 3) Serial number (UDI-PI 4) Barcode 5) Max. user weight 6) Medical device 7) CE marking 8) Read the manual before use 9) Manufacturing date 10) Manufacturer’s name CE MARKING... -
Page 6: Overview
OVERVIEW 1) Back support 2) Armrests 3) Seat 4) Height adjustment, seat, Electrical 5) Height adjustment, seat, Gas a) Under seat b) Under armrest 6) Width adjustment, armrest 7) Height adjustment, armrest 8) Height adjustment, back support 9) Adjustment of back angle 10) Adjustment of seat depth... -
Page 7: Overview
OVERVIEW 1) Front wheel 2) Foot ring 3) Parking, brake lever 4) Parking, foot brake 5) Chassis, flexbase 6) Parking Wire flexbase 7) Back wheel, braked 8) Brake bar 9) Clamping sleeve for actuator 10) Actuator gas/electrical... -
Page 8: Seat Tilt
SEAT TILT The tilt can be adjusted if you have electronic tilt (1), crank (2), gas adjustment (3), or turnbuckle (4). 1) Electronic tilt is controlled via a rocker switch. 2) On chairs with a crank tilt, the seat tilt is adjusted by turning the knob. 3) Gas-controlled tilt. -
Page 9: Back Support - Height Multi-Back
BACK SUPPORT – HEIGHT MULTI-BACK On the multi-back, you can adjust the height of the back support using both a lever and an adjustment screw in order to achieve the best level of comfort. 1) Loosen the lever by turning it anticlockwise a ½ turn. 2) Set the desired height on the back support. -
Page 10: Back Support - Angle/Multi-Back
BACK SUPPORT – ANGLE/MULTI-BACK On the multi-back, you can adjust the back tilt and the back cushion individually in order to achieve the best level of comfort. Adjustable back angle 1) Loosen safety screw and lever to angle the whole back mechanism forwards or backwards. 2) Set the desired back angle on the back support. -
Page 11: Back Support - Seat Depth
BACK SUPPORT – SEAT DEPTH The seat depth is adjusted using the back support. Set the desired seat depth by moving the back support backwards or forwards. Fine tuning of the seat depth can also be done with the help of the adjustable back angle. -
Page 12: Armrest - Settings
ARMREST – SETTINGS HEIGHT ADJUSTMENT Loosen the knob (7) or screw (8) and set the height wanted. Tighten the knob/screw. FOLDING ARMREST Pull the lever up, then angle the armrest backwards. WIDTH ADJUSTMENT, ARMREST Turn the wheel and set the desired width. Tighten the wheel. -
Page 13: Parking/Brake
PARKING/BRAKE 1) Lever brake: Braking: Move the brake lever forwards until you hear a click. The rear wheels are now locked. Releasing the brake: Move the brake lever backwards until you hear a click. The rear wheels are now unlocked. The brake lever can be easily moved from the right to left side with tools. -
Page 14: Footrest
FOOTREST There are two versions of footrest: whole (13) and split (14). Available as accessory. Settings: Settings: 15) leg angle 18) height 16) height 19) foot angle 17) angle on foot plate up 20) fold up... -
Page 15: Foot Ring
FOOT RING The foot ring can be folded up, making the chair easier to move. ROTATION During rotation, the chair's brakes must be on. Move the locking lever down (4) to brake the chair. Move the locking lever (4) upwards to release the brake. Push the rotation lever (5) upwards, the seat can now be rotated 180 degrees. -
Page 16: Seat - Accessories
SEAT – ACCESSORIES COVER Our covers for both seat and back are easy to remove and put on. The seat cover is provided with incontinence protection. Wash according to the washing instruction on the inside of the cover. COXITSITS Raising and lowering Coxitsits is done individually using adjustment knobs. -
Page 17: Charging The Battery
CHARGING THE BATTERY To obtain the battery's full performance for as long as possible, it is important to charge it regularly. Usually, it is sufficient to charge the battery 1-2 times a week, preferable during daytime when the chair is not in use. Do not interrupt the charging process before it is finished. -
Page 18: Technical Information
TECHNICAL INFORMATION Work Chair Work Chair SitRite/Forma/Junior Data Facts Class Work Chair – ISO 180903 Weight, electrical 31 kg Weight, gas 23 kg User weight 80-140 kg depending on seat system Battery ENVIRONMENTAL CONDITIONS Work Chair Conditions Temperature Humidity Atmospheric pressure Normal use 10ºC - 40ºC 10% - 90% RH... - Page 19 TECHNICAL INFORMATION Seat Forma SitRite Data Facts Facts Seat (width x depth) 40x40, 40x45, 40x40, 40x45, 45x45 45x45, 50x50 cm 45x50, 50x50 cm Seat width (between the armrests) 38-56 cm 38-56 cm Seat depth 40-59cm 40-59cm Seat height, Gas (height to underneath the 37-52, 43-63 cm 37-52, 43-63 cm seat)*...
- Page 20 part. no. BRU-80-100. Rev: 201701|8...
