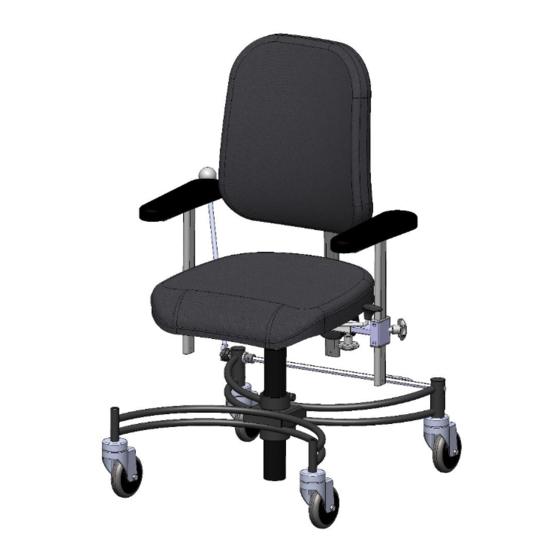

Summary of Contents for Eurovema EUROFLEX Work chair Basic

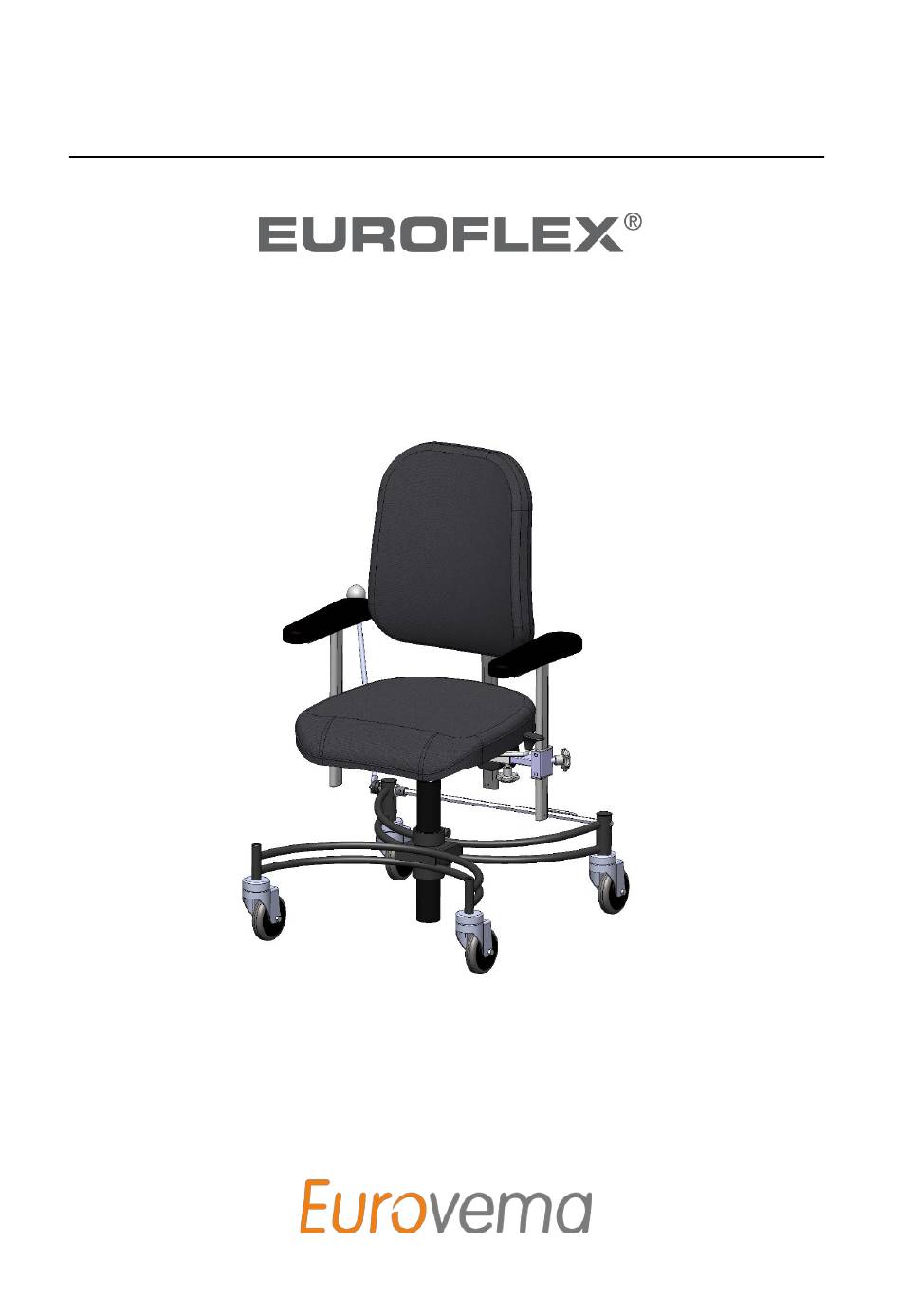

- Page 1 Instructions for use English Work chair Basic Rev: 2023-11-14...
-
Page 2: Table Of Contents
LEVER BRAKE ............................18 CHARGING IN GENERAL ......................... 19 CHARGER INDICATIONS ......................... 20 TECHNICAL INFORMATION CHARGER ....................20 EUROVEMA ELEKTRONICS ........................21 TECHNICAL INFORMATION ELECTRONICS ..................... 21 TECHNICAL DATA BATTERY ........................21 BATTERY REPLACEMENT ........................21 TECHNICAL DATA SEATING SYSTEM ...................... 22 TECHNICAL INFORMATION CHASSIS ..................... -
Page 3: Introduction
Read the manual carefully to be able to take advantage of all the possibilities of the chair. Eurovema reserves the right to make changes to this manual and its contents. -
Page 4: Assembly On Delivery
Pay attention to any loose or loose screws or parts, as this may affect safety. Contact the service provider immediately. • Service and maintenance may only be carried out by Eurovema authorized personnel. • Only original Eurovema parts may be used. -
Page 5: List Of Symbols
LIST OF SYMBOLS Read the user manual Warning Warning Risk of crushing Seat angle Do not iron Back rest angle Does not tolerate chemical liquids that are stronger than perkloreten Back rest height Chlorine bleach must not be used Seat depth Armrest height Do not tumble dry Machine Wash 60°... -
Page 6: Warning
Modifications to the product must only be carried out by an authorized technician in agreement with the prescriber. If individual adaptation is needed, contact the Assistive Technology Center or Eurovema Mobility AB. If the product is modified, the CE marking no longer applies and Eurovema no longer takes responsibility for the product. Modifica- tions carried out by an authorized technician in agreement with Eurovema may result in retained CE marking. -
Page 7: Reporting Of Accidents Or Incidents
CE marking has been preceded by risk analyses and tests, and measures have been taken to minimize the risks found as far as possible. If, despite this, accidents and incidents occur, this must be reported to Eurovema Mobility AB and the national competent authority. CLEANING Wipe the surfaces of the work chair with a slightly damp cloth and a mild detergent, such as dishwashing liquid. -
Page 8: Label
ETIQUETTE The label on the product contains important information. 1) Product Name 2) Article 3) UDI-PI Serial Number 4) Stretch code 5) Maximum user weight 6) Medical technology product 7) CE marking 8) Read manual before use 9) Manufacture date 10) Manufacturer's name SECONDARY LABEL 1) Applied part typ B... -
Page 9: Overview Labeling
OVERVIEW LABELING Covers are machine washable. Crushing hazards are reported in connection with the instructions for each function if they may pose a risk of crushing. Markings are placed on the chair where there is a risk of pinching. -
Page 10: Summary
SUMMARY 1) Seat 2) Backrest 3) Armrests 4) Chassi 5) Seat lift Alternative seating systems and leg supports are available. -
Page 11: Chassis Overview
CHASSIS OVERVIEW 1) Front wheel 2) Braked wheel 3) Parking brake lever 4) Chassi Basic 5) Brake rod... -
Page 12: Backrest Height
BACKREST HEIGHT The backrest is adjustable in height with a lever. 1) Loosen the lever (1) 1/2 turn by turning it counterclockwise. 2) Set the desired height. 3) Lock the back by turning it clockwise 1/2 turn... -
Page 13: Backrest Angle Manual
BACKREST ANGLE MANUAL The back angle and back cushion are individually adjustable. Back angle 1) Release the locking knob for (1) forward or aft tilting of the entire back mechanism. 2) Set the desired back angle. 3) Lock the knob. Bak cushion 4) Loosen the lever (2) by turning it counterclockwise 1/2 turn. -
Page 14: Seat Depth Backrest
SEAT DEPTH BACKREST The seat depth is adjustable with the help of the backrest. Adjust the desired seat depth by tilting the backrest mechanism forwards or backwards. Fine adjustment is done by angling the back cushion. 1) Loosen the locking lever (1) a few turns counterclockwise. 2) Angle the back mechanism backwards for increased seat depth. -
Page 15: Armrest Settings
ARMREST SETTINGS 1) For height adjustment, loosen the knob (1) a few turns counterclockwise and set the de- sired height. 2) Tighten the knob. 3) Widening loosen the knob (2) 1/2 turn counterclockwise adjust to the desired width. 4) Tighten the knob. - Page 16 SEAT TILT 1) Releasing the locking knob (1) a few turns counterclockwise. 2) Tilt the seat to the desired position. 3) Tighten the locking knob.
-
Page 17: Seat Height
SEAT HEIGHT 1) Raising or lowering the seat height is done by pressing the lever (1) upwards, to lower the seat is weighed down with the weight of the body while holding the lever in the raised posi- tion. 2) When the desired height is reached, release the lever back. Observe caution when lowering the seat so that no one gets squeezed. -
Page 18: Lever Brake
BRAKE LEVER Lever brake, brake the seat by moving the brake lever forward, release the brake by moving the lever backwards again. Always brake the chair before sitting down or getting out of the chair. -
Page 19: Charging In General
CHARGING GENERAL To obtain the full performance of the battery for as long as possible, it is important that it is charged regularly. With an average use, every other day is a benchmark. If possible, charge during the daytime. The chair's functions cannot be used while charging. For long-term stor- age, the battery should be charged once every four weeks so as not to drop to the critical level when the charger does not start charging. -
Page 20: Charger Indications
CHARGER INDICATIONS TECHNICAL INFORMATION CHARGER MASCOT 3743 Data Facts Input voltage 100-240VAC 50-60Hz Input current Max 0.5A Output current 0.56A Output Voltage 29.4V DC max Operating temperature -25- +40°C Protection class Class 2 Protective enclosure IP 41... -
Page 21: Eurovema Elektronics
When the battery needs to be replaced, the entire battery pack is replaced. See installation instructions for battery replacement. Repairs and other measures on the battery may only be carried out with the approval of Eurovema. The battery pack should not be opened. Only batteries approved by Eurovema may be used... -
Page 22: Technical Data Seating System
TECHNICAL DATA SITSSYSTEM Data Facts Seat (width*depth)* 40*40, 40*43, 40*46, 43*43, 46*46, 49*51cm Seat width between armrests 40-59cm Seat depth 40-49cm Seat height gas (height to the underside of 40-55, 46-66cm the seat) Seat height or (height to the underside of 40-56, 45-70cm the seat) Sitsvinkling... -
Page 23: Destruction
Exploded views on the website www.eurovema.se Private individuals should contact Eurovema for further information. In this case, Eurovema will take responsibility for the destruction. Disassembled components are sorted according to the table below.
