ResMed ClimateLineAir, ClimateLineAir Oxy Manual

About your ClimateLineAir

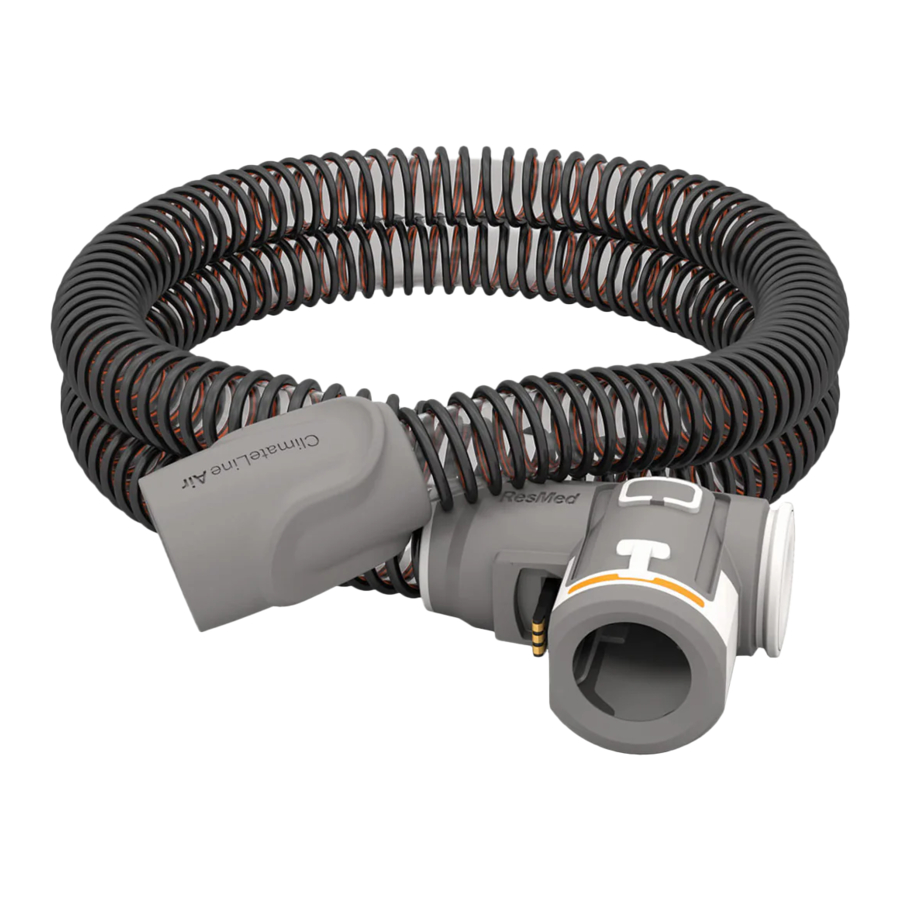

The ClimateLineAir^™ is heated air tubing that delivers the desired temperature at your mask. ClimateLineAir Oxy is a variant of the ClimateLineAir that has a built-in oxygen connector to attach a supplemental oxygen supply.
When used with the HumidAir^™ humidifier, ClimateLineAir heated air tubing allows you to use Climate Control. Climate Control is designed to make therapy more comfortable by enabling constant temperature and maintaining humidity.

Intended use

The ClimateLineAir heated air tubing is designed for use with AirSense 10/AirCurve 10 and Lumis^™ devices.
Read this entire user guide together with your device user guide before using your ClimateLineAir heated air tubing.
Notes:

• Not all types of air tubing are available in all regions.
• Lumis does not include S9^™ Lumis Tx.

Setup

1. Make sure the device is connected and turned on.

2. Hold the cuff of the air tubing and line up the air tubing connector with the connector port.

3. Push the cuff until the connector clicks into place. ClimateLineAir connected will briefly display on the device screen.

4. Connect the assembled mask to the free end of the air tubing.


Make sure that you arrange the air tubing so that it will not twist around the head or neck.

Setup with supplemental oxygen

To set up the ClimateLineAir Oxy with supplemental oxygen, perform the steps outlined in the setup section and the following additional steps.

1. Remove the cap from the oxygen connector.

2. Connect the oxygen supply tubing to the oxygen connector. Make sure it is firmly attached.


Supplemental oxygen must not be used while smoking or in the presence of an open flame.
Notes:

• Before adding oxygen, familiarize yourself with the specific warnings relating to the use of supplemental oxygen. These can be found at the end of your device User Guide.
• If you use the ClimateLineAir Oxy without supplemental oxygen, make sure the cap of the oxygen connector is firmly attached.

Climate Control

Climate Control is an intelligent system that controls the humidifier and the ClimateLineAir heated air tubing to deliver constant, comfortable temperature and humidity levels during therapy.
Designed to prevent dryness of the nose and mouth, it maintains the set temperature and relative humidity while you sleep. Climate Control can be set to either Auto or Manual and is only available when both the ClimateLineAir and the HumidAir humidifier are attached.

Climate Control Auto

Climate Control Auto is the recommended and default setting. Climate Control Auto is designed to make therapy as easy as possible, so there is no need to change the temperature or humidity settings.
The Tube Temperature is set to Auto (27°C) and Climate Control adjusts the humidifier output to maintain a constant, comfortable humidity level of 85% relative humidity while protecting against rainout (water droplets in the air tubing and mask).

Tube Temperature

In Climate Control Auto there is no need to change any settings, but if the air in the mask feels too warm or cold you can adjust the tube temperature to find what is most comfortable for you. You can set the Tube Temperature to anywhere between 16–30°C, or turn it off completely.

To adjust the Tube Temperature:

1. In My Options, turn the dial to highlight Tube Temp. and then press the dial.

2. Turn the dial to adjust the temperature and press the dial to save the change.


Climate Control Manual

Designed to offer you more flexibility and control over your settings, Climate Control Manual lets you adjust the temperature and humidity to the setting which is most comfortable for you.
In Climate Control Manual, the tube temperature and the humidity level can be set independently however, rainout protection is not guaranteed. If rainout does occur, first try increasing the tube temperature. If the air temperature becomes too warm and rainout continues, try decreasing the humidity.

To change to Climate Control Manual:

1. In My Options, turn the dial to highlight Climate Ctrl and then press the dial.

2. Turn the dial to select Manual and press the dial to save the change.


Humidity Level

The humidifier moistens the air and is designed to make therapy more comfortable. If you are getting a dry nose or mouth, turn up the humidity. If you are getting any moisture in your mask, turn down the humidity.
You can set the Humidity Level to Off or between 1 and 8, where 1 is the lowest humidity setting and 8 is the highest humidity setting.

To adjust the Humidity Level:

1. In My Options, turn the dial to highlight Humidity Level and then press the dial.

2. Turn the dial to adjust the humidity level and press the dial to save the change.


If you have been using Climate Control Manual and want to return to Climate Control Auto, follow the instructions below.

To change to Climate Control Auto:

1. In My Options, turn the dial to highlight Climate Ctrl and then press the dial.

2. Turn the dial to select Auto and then press the dial to save the change.


Caring for your ClimateLineAir

It is important that you regularly clean your air tubing to make sure you receive optimal therapy. The following sections will help you with disconnecting, cleaning, checking and reconnecting your air tubing.

Disconnecting

1. Hold the cuff of the air tubing, apply gentle pressure to the release buttons and pull it away from the device.

2. Hold both the cuff of the air tubing and the swivel of the mask, then gently pull apart.


Note: Only hold and pull the cuff of the air tubing. Do not hold or pull the tubing itself as it may cause damage.

Cleaning

You should clean the air tubing weekly as described.

1. Wash the air tubing in warm water using mild detergent. Do not wash in a dishwasher or washing machine.
2. Rinse the air tubing thoroughly and allow to dry, out of direct sunlight and/or heat.

Checking

You should regularly check the air tubing for any damage. If there are any holes, tears or cracks you should replace it.

Reconnecting the air tubing

When the air tubing is dry, you can reconnect it to the device.

1. Connect the air tubing firmly to the air outlet located on the rear of the device.
2. Connect the free end of the air tubing firmly onto the assembled mask.

Troubleshooting

If you have any problems, refer to the troubleshooting section of your device user guide or www.resmed.com.
For any serious incidents that occur in relation to this device, these should be reported to ResMed and the competent authority in your country.

Technical specifications

Symbols

The following symbols may appear on the product or packaging.

	Manufacturer.
	European Authorized Representative.
	Catalog number.
	Batch code.
	Prescription only (In the US, Federal law restricts these devices to sale by or on the order of a physician).
	Humidity limitation.
	Temperature limitation.
	Atmospheric pressure limitation.
	China pollution control logo 1.
	China pollution control logo 2.
	Importer.
	Medical device.
