Summary of Contents for Thor Kitchen RF3621CTD00

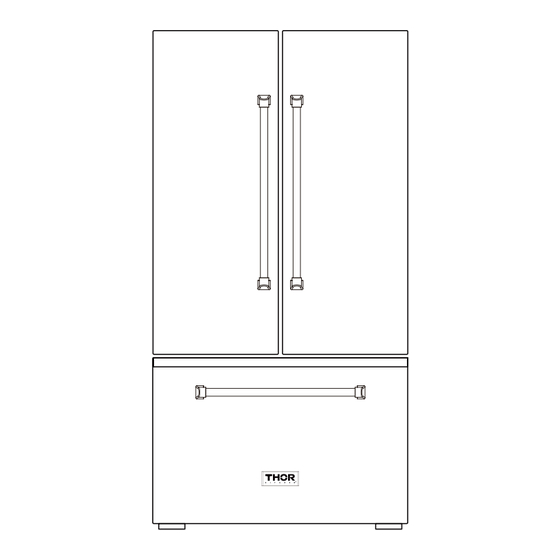

- Page 1 USE & CARE MANUAL RF3621CTD99 / RF3621CTD00...
- Page 3 Warning Warnings------------------------------------------------------ Safety and Warning Information Basic safety symbol---------------------------------------- Appliance connection ------------------------------------- Safety and warning information------------------------- Product features--------------------------------------------- Product components--------------------------------------- Installation dimension-------------------------------------- Transportation----------------------------------------------- Where to install your unit--------------------------------- Adjustable plastic feet------------------------------------- Before use --------------------------------------------------- 13 Water supply connection -------------------------------- 13 Starting ------------------------------------------------------- 13 Control panel ------------------------------------------------ 14 Freezer temperature controls---------------------------- 15...
- Page 4 WARNINGS The refrigerant isobutene(R600a) is contained within the refrigerant circuit of the appliance,a natural gas with a high level of environmental compatibility,which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the componentsof the refrigerant circuit becomes damaged.
- Page 5 WARNINGS 7.WARNING: This unit is using R600a as the Refrigerant and cyclopentance as Foaming agent,both of this two kind of materiral is easy to be burnt, so the abandoned unit should be away from the fire, and can not be treated with fire.
- Page 6 WARNINGS ●Before performing any type of installation or cleaning, disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the temperature controls to the desired setting. ●If the led light is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 7 Safety and warning information Basic safety symbol This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol.It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product.All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER,WARNING,or CAUTION.These words mean:...
- Page 8 Safety and warning information Safety and warning information Do not damage the refrigerant circuit. Refrigerant will cause serious injury when it splashing into the WARNING eyes.If it happened please go to hospital immediately. Keep ventilation openings,in the appliance enclosure or in the built-in structure,clear of obstruction.
- Page 9 Safety and warning information Safety and warning information The dedicated outlet should be used . Using several devices at one outlet may cause fire . Install the appliance in a dry , well ventilated room . The appliance should be place close to socket , it is easy to cut off the power supply at the time of the accident .
- Page 10 Safety and warning information Safety and warning information Wait for 5 minutes or longer when reconnecting the plug. It may cause the operation of the freezer to fail. After Do not use the fridge for non-domestic perpose(storing 5 minutes medicine or testing material,blood,using at the ship,etc.) It may cause an unexpected risk such as fire,electric shock,deterioration of stored material or chemical reaction.
- Page 11 Product Introduction Product features Energy saving and noise reduction It contains super freeze,energy saving,noise reduction, optimal refrigeration system to achieve. Precise temperature control Microcomputer control system separate to set,control and display the R-temperature and F-temperature,more precise control. Automatic defrosting Special program to reduce the temperature fluctuation of the fridge,it's for keeping food fresh.
- Page 12 (1)Full width Vegetable Crispers...
- Page 13 Product Introduction Installation dimension Select a good location to place your appliance where it is flat and easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture. 373mm 14.7in 373mm 14.7in 1655mm 65.2in The figure above is schematic for installation only, not representing the actual product.
- Page 14 Installation Transport Do not carry the refrigerator horizontally or reversely. Do not carry the refrigerator by holding the door or handle; the refrigerator shall be carried by lifting the bottom. Where to install your unit The refrigerator must be placed on a hard, flat ground; if cushioning is needed, stable, hard, nonflammable cushion blocks shall be used, rather than the foam backing of refrigerator.
- Page 15 Operation Before Using Remove all packages, including the foam backing at the bottom of refrigerator and the tapes fixing accessories in the box. Place the refrigerator to a proper position, and adjust the feet to level. It is better to clean the refrigerator before use. Remove the film: There is a layer of transparent film on the panel of our product, which can protect products from being scratched in the process of production and transportation, and you can choose to...
- Page 16 Operation Control panel Quick Cool Smart icon icon FRIDGE FREEZER MODE QUICK QUICK SMART COOL FREEZE Quick Freeze Mode control icon Default is Fahrenheit when power is on. Press "MODE" button 5 seconds, to switch between °C °F Other buttons use the same method to switch between two modes. Set temperature range: Celsius degree mode Fridge temperature range: 2~8°C...
- Page 17 Operation QUICK FREEZE MODE This mode will quickly drop in temperature when storing large amounts of warm or room-temperature foods in the freezer. The unit will remain in QUICK FREEZE mode for 24 hours or until the temperature reaches -18ºF(-28°C) and will then return to the original setting, or until the function is turned off at the control panel.
- Page 18 Operation NOTE: • IF THE UNIT IS UNPLUGGED, HAS LOST POWER, OR IT IS TURNED OFF. YOU MUST WAIT 3 TO 5 MINUTES BEFORE RESTARTING THE UNIT. IF YOU ATTEMPT TO RESTART BEFORE THIS TIME DELAY, THE REFRIGERATOR-FREEZER WILL NOT START. NOTE: WE DO NOT RECOMMEND INSTALLING THE REFRIGERATOR WHERE THE TEMPERATURE WILL DROP BELOW 32ºF (0ºC) OR RISE ABOVE 110ºF (43ºC).
- Page 19 Operation Refrigerator chamber The refrigerator chamber is mainly used to store foods that are preserved for a short time. The refrigerator chamber is suitable for storing fruits,vegetables,drinks and other foods that will be eaten recently. It is suggested to seal foods and then put them into the refrigerator.
- Page 20 Freezing chamber Ice maker.
- Page 21 Operation Storage of foods Instructions for storing foods When storing freezing foods, put them to the inside of freezing chamber, other than the bottle rack. Do not put bottled or canned foods into the freezing chamber to CAUTION prevent frost cracking. Before putting hot foods into the refrigerator, cool them to room temperature first;...
- Page 22 Maintenance Defrosting This production has automatic defrosting function, without manual operation. Cleaning Precautions for internal and external cleaning of refrigerator: Before cleaning, always turn off the power switch, disconnect the ■ power plug. During cleaning, make sure that no water will enter the switch, ■...
- Page 23 Maintenance Normal phenomena Button failure Please check the control board whether the fridge under lock mode.When under lock mode,all buttons can't work. Low voltage,the compressor can't start You should purchase pressurizer of more than 1000W when the area of the appliance installation,that's better to protect your fridge.
- Page 24 Maintenance Trouble shooting The mains plug of the appliance Check whether the power is on. is not in the socket properly.
- Page 25 Warranty And Service Warranty and Service This product has been manufactured by Thor International, 4651 E Airport Drive, California 91761 . For Customer Service, please call (877) 288 - 8099 For the most up to date warranty and service policy, please refer to our website WWW.THORKITCHEN.COM/WARRANTY-REGISTRATION For in-warranty service requests, please visit our website at WWW.THORKITCHEN.COM/SERVICE...
- Page 26 WELCOME TO THE THOR KITCHEN X GORDON RAMSAY COLLECTION THOR Kitchen x Gordon Ramsay Collection is backed by a solid two-year warranty on both parts and labor. It’s our commitment to quality and your peace of mind. Registering your appliance ensures top-notch service and personalized support.
