Contents Safety and warning information…..2 Helpful hints and tips……………… 15 Installing your new appliance………..8 Cleaning and care……………………16 Description of the appliance…..….11 Troubleshooting………………………17 Display controls…………………...…..12 Disposal of the appliance……………18 Using your appliance……………..14 For your safety and correct usage before installing and first using the appliance, read this user manual carefully, including its hints and warnings.
Page 3
Keep all packaging away from children as there is risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
Page 4
WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Page 5
It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a shortcircuit, fire, and/or electric shock. Electrical safety 1.The power cord must not be lengthened. 2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
Page 6
Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to.Refer to relrelevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the...
Page 7
Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
Installing your new appliance Before using the appliance for the first ● Stand your appliance in a dry place to time, you should be informed of the avoid high moisture. following tips. ● Keep the appliance out of direct sunlight, rain or frost. Stand the Ventilation of appliance appliance away from heat sources In order to improve efficiency...
Page 9
1.First ,shut off the main water supply. Water filters are not included on your new appliance, to help promote better health, you may need to purchase a water purifying system to do that. In order for the ice maker to operate properly, a water pressure should be 2.Using the power drill and a 1/4’’...
Page 10
Ensure that water line does not get pinched or bent when installing. This can result in improper water flow through the line and will affect the functionality of the fridge. 6.Turn the water on and check for leakage. Use only the new tubings supplied with the refrigerator.

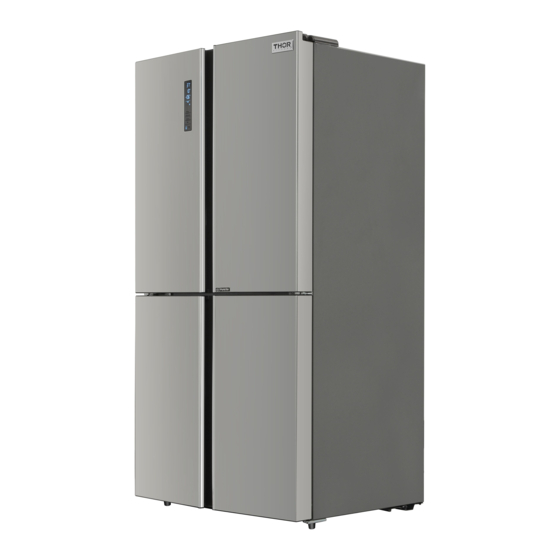

Soft Freeze Left fridge big rack Right fridge big rack Right fridge small rack Left fridge small rack Soft Freeze LED light Automatic ice-maker Ice storage box Due to design changes...
pressed and the doors are closed, the backlighting will turn off after about 60s. Soft Freeze temperature display area energy saver Ice-maker °C/°F exchange key Hold 3 sec for Soft Freeze temperature setting key Soft Freeze Ice-maker toggle key Hold 3 sec for Ice On/Off 3 sec Press "soft freeze"...
Page 13
Press the "Fridge" botton for 3 seconds to exchange "Fahrenheit degree" to "Centigrade" or reverse. will display -13°F. If the door of the appliance is open off after several hours. Press "Mode" button to activate the energy saver function. The energy saver light will be illuminated and the temperature of the fridge is automatically switched to 43°F and the freezer to 1°F.
When you remove the ice-box, keep the box tilted about 15 degrees to the ground. If there is any obstacle, it maybe the ice-check pole is working, wait 5 seconds to operate again.
Helpful hints and tips Energy saving tips film wrap. We recommend that you follow the tips Milk bottles: ● Should have a lid and be stored in the below to save energy. ● Try to avoid keeping the door open door racks.
Cleaning and care For hygienic reasons the appliance Although this appliance automatically (including exterior and interior defrosts, a layer of frost may occur on accessories) should be cleaned the freezer compartment's interior walls regularly at least every two months. if the freezer door is opened frequently Caution! The appliance must not be or kept open too long.
Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.
You may have left the doors open too long or too frequently; or T emperature inside is the doors are kept open by some obstacle; or the appliance is too warm located with insufficient clearance at the sides, back and top T emperature inside is Increase the temperature by following the "Display controls”...
Page 19
Warranty This product has been manufactured by Thor Group, 13831 Oaks Ave, Chino, California 91710. Thor Group disclaims all express warranties except for the following: This warranty applies to products purchased and located in the United States. Products purchased or located outside this area are excluded.
Page 20
7. The removal and reinstallation of your fridge if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. Repairs to parts or systems resulting from unauthorized modifications made to the appliance. Expenses for travel and transportation for product service if your fridge is located in a remote area where service by an authorized Thor Group servicer is not available.
Page 21
Please rest assured that under no conditions will Thor Kitchen sell your name or any of the information your provide to us. We are very grateful that you have chosen THOR Kitchen products for your home.
