Summary of Contents for Thor Kitchen TRF3601FD

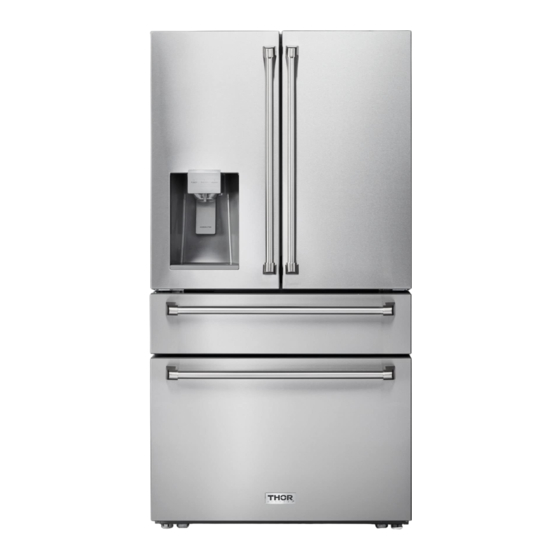

- Page 2 REFRIGERATOR WITH ICE AND WATER DISPENSER TRF3601FD...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Safety warnings 1.1 Warning 1.2 Meanings of safety warning symbols 1.3 Electricity related warnings 1.4 Warnings for using 1.5 Warnings for placement 1.6 Warnings for energy 1.7 Warnings for disposal 2 Proper use of the refrigerator 2.1 Placement 2.2 Levelling feet 2.3 Levelling door... -
Page 4: Safety Warnings
SAFETY WARNINGS WARNING RISK OF FIRE / FLAMMABLE MATERIALS This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;... - Page 5 SAFETY WARNINGS Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qual- ification other than be disposed by combustion, so as to prevent damage to the environ- ment or any other harm.
-
Page 6: Meanings Of Safety Warning Symbols
SAFETY WARNINGS 1.2 Meaning of safety warning symbols This manual contains lots of important safety information which shall be observed by the users. 1.3 ELECTRICITY RELATED WARNINGS • Do not pull the power cord when pulling the power plug of the refrigerator. -
Page 7: Warnings For Using
SAFETY WARNINGS • Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. • Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. •... -
Page 8: Warnings For Energy
SAFETY WARNINGS • Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise the bot- tles or enclosed containers may crack due to freezing to cause damages. 1.6 WARNINGS FOR ENERGY Warning for energy 1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or... -
Page 9: Placement
PROPER USE OF REFRIGERATORS 2.1 PLACEMENT • Keep the refrigerator upright to avoid being extruded or vibrated during transportation. Avoid over 45 degrees during tilt angle handling. Avoid excessive stress on the door or top cover when the refrigerator is moved;... -
Page 10: Levelling Feet
PROPER USE OF REFRIGERATORS 2.2 LEVELING FEET (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator; b. Turn the feet counterclockwise to lower the refrigerator; c. -
Page 11: Levelling Door
PROPER USE OF REFRIGERATORS 2.3 LEVELLING DOOR (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) 1) Raise the lower door up to the level of the higher door. 2) Insert the supplied fastener-ring by using plier in the gap between the hinge-grommet and the lower hinge.The number of fasten-rings you will need to insert depends on the gap. -
Page 12: Door Handles
PROPER USE OF REFRIGERATORS 2.4 DOOR HANDLES Assembly Instructions of Cold Storage Door Handle: 1. Take the handle set bolts out from the refrigerator, use cross recessed screwdriver to set the bolt on the door. Fix it tight with all the screw thread twisted through the hole, as shown in the figure;... -
Page 13: Adjustment Of Cantilever Rack
PROPER USE OF REFRIGERATORS 2.5 ADJUSTMENT OF CANTILEVER RACK Adjustment of cantilever rack The cantilever rack could be adjusted to the proper height as required by food. Please adjust the cantilever rack by following the arrows as shown in the diagram. Raise it upward first and then take it out by tilting it upward. -
Page 14: Installing Filter
PROPER USE OF REFRIGERATORS 2.6 INSTALLING FILTER 1.When the refrigerator is used for the first time, press down the marks on both sides of the filter cover by hand and open the filter cover downward; 2.Then rotate the dustproof plug anticlockwise and remove the dustproof plug; 3.Remove the exterior package of the filter, rotate the filter clockwise and press the filter element, and install the filter element at the joint position of the refrigerator filter until the filter element can not rotate;... -
Page 15: Installing The Water Line
PROPER USE OF REFRIGERATORS 2.7 INSTALLING THE WATER LINE Connecting the water line Most homes are equipped with water line installation parts. If yours is not or needs replacing, water line installation kits are available to purchase from BSH part number 00646836 or from a hardware store/dealer. -
Page 16: Changing The Light
PROPER USE OF REFRIGERATORS 2.8 CHANGING THE LIGHT Any replacement or maintenance of the LED lamps is intended to be made by the man- ufacturer, its service agent or similar qualified person. 2. 9 STARTING TO USE • Before initial start, keep the refrigerator still for two hours before connecting it to power supply. -
Page 17: Structure And Functions
STRUCTURE AND FUNCTION 3.1 KEY COMPONENTS (Refrigerating chamber) (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) - Page 18 STRUCTURE AND FUNCTION Display Screen (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Refrigerating chamber • The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
-
Page 19: Functions
STRUCTURE AND FUNCTION 3.2 FUNCTIONS The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor Display screen 1. Temperature zone display 2. Temperature shift gear Operation key A. Temperature downward B. Temperature upward C. Refrigerating chamber button D. - Page 20 STRUCTURE AND FUNCTION Temperature setting of flex drawer Press the flex drawer key to select temperature shift zone, and press the temperature shift key again to adjust the temperature of flex drawer. The temperature shift key is pressed once, the temperature will be increased by 1 gear, When the temperature is increased to WINE (4th gear), press the temperature shift key again, the temperature will return to MEAT(1st gear).
- Page 21 STRUCTURE AND FUNCTION ECO mode Press ENERGY SAVING key to enter the ECO mode, and the backlight will be on; the quick-freezing mode is cancelled at the same time. The quick freezing is controlled at - 14°C/7°F and refrigerating at 7°C/45°F.
-
Page 22: Fetching Water And Ice
STRUCTURE AND FUNCTION 3.3 FETCHING WATER AND ICE • The ice/water dispenser is located on the outside of refrigerating chamber door. It offers a choice of cubed or crushed ice, or cold water. The dispenser only works when the refrigerating chamber door is closed. 1) Fetching cold water a. -
Page 23: Disassembly Of Refrigerator Door
STRUCTURE AND FUNCTION 3.4 DISASSEMBLY OF REFRIGERATOR DOOR 1. Use the screwdriver to remove the 2 pcs screws, and then remove the upper hinge cover of the left door. (See Figure 1) 2. Use the screwdriver to loosend the 3 screws and 1 earth screw fixing the upper hinge, then remove the plug terminal and then remove the left door body. -
Page 24: Maintenance And Care Of The Refrigerator
MAINTENANCE AND CARE OF THE REFRIGERATORS 4.1 OVERALL CLEANING • Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. -
Page 25: Cleaning Of Drawers
MAINTENANCE AND CARE OF THE REFRIGERATORS 4.3 CLEANING OF DRAWERS Drawing and stretching variable temperature drawer Open the variable temperature door to the maximum stroke, hold the left and right sides of the variable temperature drawer with both hands, lift the tail, exert a little force to pull the whole drawer back for about 15mm until the support claw of the slide rail is separated from the drawer, then lift the front end of the drawer at a certain angle, hold the drawer and move horizontally to the inside of the chamber, and then rotate it back and up to remove the drawer. -
Page 26: Cleaning Of Ice Storage Box
MAINTENANCE AND CARE OF THE REFRIGERATORS 4.4 CLEANING OF ICE STORAGE BOX When you need to use a lot of ice, or take ice abnormally, or need to clean the ice storage box, you can take out the ice storage box, but please put it back in time. 1. -
Page 27: Defrosting
MAINTENANCE AND CARE OF THE REFRIGERATORS 4.5 DEFROSTING • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually re moved by disconnection of the appliance from power supply or by wiping with a dry towel. 4.6 OUT OF OPERATION •... -
Page 28: Trouble Shooting
TROUBLE SHOOTING You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. - Page 29 TROUBLE SHOOTING...
-
Page 30: Warranty
WARRANTY... - Page 31 WELCOME TO THE CLUB You chose THOR Kitchen to enhance your culinary journey and we’re stoked to have you in the club. Think of it as a secret society of really savvy people, such as yourself, choosing professional power and performance at an affordable price.
Need help?
Do you have a question about the TRF3601FD and is the answer not in the manual?
Questions and answers

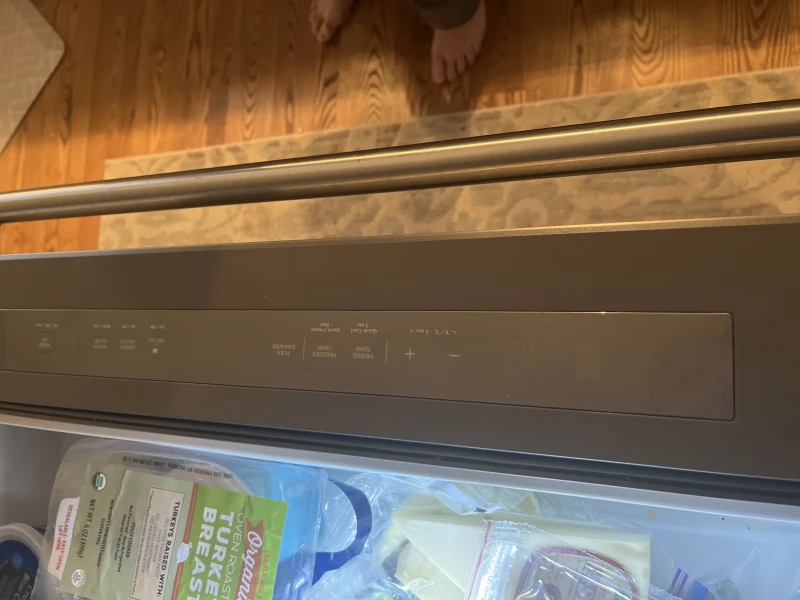

My ice maker isn’t making ice and the panel lights aren’t on
The ice maker in the Thor Kitchen TRF3601FD may not be making ice and the panel lights may not be turning on due to the following reasons:
1. Distributor Switch Disconnected: If the distributor switch is disconnected, the distributor lamp will turn off after a 3-second delay, which may affect the power to the ice maker.
2. Refrigerating Ice Maker Turned Off: If the REF-ICE key was pressed again, it would turn off the backlight and the refrigerating ice maker, and this change takes effect after locking.
3. Power Supply Issue: The refrigerator must be connected to a power source to function, so a power outage or disconnection may cause the panel lights and ice maker to stop working.
4. Water Connection Issue: The ice maker requires a potable water supply with a minimum inlet water pressure of 30 PSIG. If the water supply is not connected or the pressure is too low, the ice maker may not function.
Checking the distributor switch, ensuring the REF-ICE function is activated, verifying the power connection, and confirming a proper water supply may resolve the issue.
This answer is automatically generated
