Summary of Contents for Straumann Anthogyr Xpert UNIT XPE100

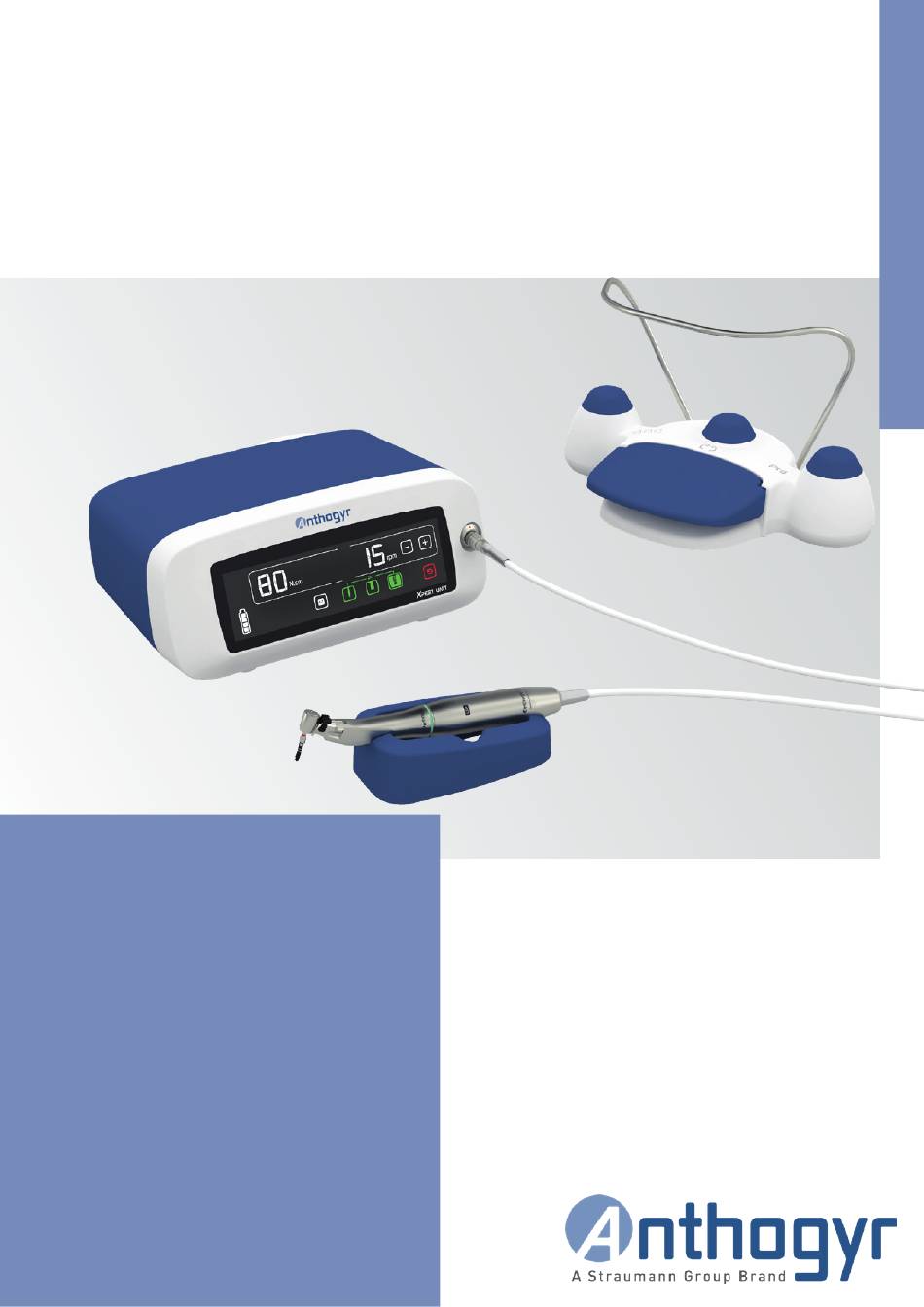

- Page 1 ® en – Instructions for use...
- Page 2 TABLE OF CONTENTS Implantology motor 1. DESCRIPTION OF SYMBOLS 2. INTRODUCTION 3. AREA OF USE 4. INDICATIONS AND CONTRAINDICATIONS 5. SAFETY 6. DESCRIPTION 7. CONNECTIONS AND INSTALLATION 8. INITIALISING THE CONSOLE 9. USE 10. PARAMETER MANAGEMENT 11. CLEANING, DISINFECTING AND STERILISATION 12.
- Page 3 ® – en – Instructions for use 1. DESCRIPTION OF SYMBOLS The following table describes the symbols that may be printed on the packaging label. Please refer to the label on the packaging for the applicable product symbols. Symbol Description of symbol Source of symbol Alternating current NF EN ISO 9687...
- Page 4 2. INTRODUCTION You have just acquired your new dental implantology XPERT UNIT® motor. Anthogyr congratulates you for your choice and thanks you for your confidence in this product. In order to obtain a complete and sustainable benefit from this product, it is recommended that you read this user guide first and perform the recommended inspection and maintenance tasks.
- Page 5 ® – en – Instructions for use 4. INDICATIONS AND CONTRAINDICATIONS 4.1. INDICATIONS XPERT UNIT® motor is indicated for surgical treatment of patients requiring dental surgery or dental implant placement. 4.2. CONTRAINDICATIONS Any other use other than those described in the intended use is prohibited. Patients in whom an oral surgical procedure is contraindicated.
- Page 6 Indicates maximum danger created by a situation that may immediately cause serious/fatal injuries. 5.3. SAFETY INSTRUCTIONS 5.3.1. External interference The equipment is certified to comply with the electromagnetic compatibility standards currently in force. However, the user must ensure that no further risk is created by electromagnetic disturbance. To avoid disturbing the proper functioning of the electromagnetic equipment, it is recommended to adhere to the stipulated distances among devices (see section 19 “Electromagnetic compatibility”).
- Page 7 ® – en – Instructions for use 5.3.5. Storage conditions Recommended conditions: protect from moisture and store at room temperature. Keep away from sunlight, sparks and other sources of ignition. Temperature: from -20 °C to +70 °C. Air humidity level: from 5% to 95%. Incompatible materials: acids and other solvents.
- Page 8 6. DESCRIPTION N° Name N° Name Wireless pedal Bracket Console Clips for irrigation line Adapter Micromotor support Power cord Rear Front N° Name Peristaltic pump ON/OFF Button (I/O) Power socket 220V / 110V Touch screen Connector for micromotor cable...
- Page 9 ® – en – Instructions for use Technical Specifications Dimensions Console (w x d x h) 243 x 222 x 102 mm Pedal (l x d x h) 280 x 170 x 70 mm Weight Console 2.5 kg Pedal 1 kg Electrical Input power supply From 100 to 240 V (50-60 Hz)
- Page 10 To disconnect, pull the mobile part of the connection in the direction of the arrow. Do not try to disconnect the micromotor cable by pulling on the cable. XPERT UNIT® is not compatible with LED contra-angles. 7.3. POSITIONING OF THE BRACKET AND THE BAG Insert the bracket in the rear of the console.
- Page 11 ® – en – Instructions for use Do not operate the pump if the irrigation line is blocked or closed by a clamp. Always place the fluid to be pumped above the pump in order to ensure optimal operation of the latter. Always keep the pump head rollers and all moving parts clean and free of contamination and debris.
- Page 12 8.2.3. How to pair the pedal with the console 1 - Press on the pedal lever. 2 - Press the three green buttons on the screen at the same time. 3 - The symbol flashes until pairing is complete (time to achieve pairing = about 30 sec) 4 - Press the two end buttons on the pedal.
- Page 13 ® – en – Instructions for use 9.2. PARAMETERS OF PROGRAMS (FACTORY SETTING) To select a program on the screen, press on the symbol of the desired program. For navigation to the pedal between the implantology sequence programs, see section 9.5 “Use of the pedal”. In normal mode In reverse mode 20:1 Drilling...
- Page 14 When the motor is rotating, the torque displayed on the screen is the instantaneous torque (image B). When the motor stops, the last torque remains displayed for 30 seconds before the display returns to the maximum torque programmed (image A). * To re-display the last torque, long press on the torque shown on the setpoint screen (image A).
- Page 15 ® – en – Instructions for use 9.5. USE OF THE PEDAL Description of pressing different buttons and lever. Pressing lever (D) Variation in the rotation speed of the micromotor Pushing lever (D) Illumination of the light for 3 seconds Short pressing on the left button (A) Irrigation ON/OFF (the flow rate set on the screen is preserved) Long pressing on the left button (A)
- Page 16 9.8. STOPPING THE XPERT UNIT® MOTOR At the end of the dental procedure: Set the switch to position 0. Æ Remove the tool fixed to the contra-angle. Æ Remove the bottle or the bag of physiological liquid from the bracket. Æ...
- Page 17 ® – en – Instructions for use 12. CONDITIONS OF USE AND STORAGE Conditions of use and operation Temperature +10 °C to +35 °C (50 °F to 95 °F) Relative humidity 15 to 80% Atmospheric pressure 70 to 106 kPa Conditions of use and storage Temperature -20 °C to +70 °C (-4 °F to 158 °F)
- Page 18 15. WASTE TREATMENT As electrical and electronic equipment, disposal of the product must be carried out as per a specialised collection, removal, and recycling or destruction chain (particularly in the European market, with reference to the directive no. 2012/19/EU. When the product reaches its end of life, we recommend that you contact ECOSYSTEM (www.ecosystem.eco) for EU only or your dental equipment reseller to find out how to proceed.
- Page 19 ® – en – Instructions for use 16.2. MALFUNCTION Malfunction Probable causes Possible solutions • The micromotor is not connected to the • Ascertain that the cable is connected to the console console The micromotor does not rotate • The micromotor is jammed •...
- Page 20 17. TROUBLE SHOOTING OPERATIONS BY THE USER Inspecting and replacing fuses. Switch off the console with the ON/OFF button (I/O). Æ Unplug the power cord from the wall socket. Æ Unplug the power cord from the console. Æ Remove the fuse box located between the (I/O) switch and the power socket with a flat screwdriver. Æ...
- Page 21 ® – en – Instructions for use Directives and declaration of the manufacturer - Electromagnetic radiations The XPERT UNIT® motor is intended to be used in the environment specified below. It is advisable for customer or user of the XPERT UNIT® motor to ensure that it is used properly in such an environment. Radiation test References of the standards Compliance...
- Page 22 - 8A/m 30KHz CW Immunity to - 65A/m to 134.2KHz /modulation Pulse 2.1KHz proximity magnetic IEC 61000-4-39 - 7,5A/m to 13.56MHz / Modulation Pulse fields 50 KHz - 9V/m: 710MHz, 745MHz, 780MHZ, 5240MHz, Proximity fields 5550MHz, 5785MHz From RF wireless IEC 60601-1-2 - 27V/m: 385MHz communications...
- Page 23 Anthogyr products are part of a complete range and must be used in combination with the corresponding original components and instruments distributed by Anthogyr, its parent company and any affiliates or subsidiaries of the parent company (“Straumann”), unless otherwise specified in these instructions for use. The use of third-party products not distributed by Anthogyr voids any warranty or other obligation, express or implied, of Anthogyr.
- Page 24 0459 Anthogyr 2237, Avenue André Lasquin 74700 Sallanches - France Tel. +33 (0)4 50 58 02 37 www.anthogyr.com Email: contact@anthogyr.com Validity Date: 2024-09 REF: XPERT-UNIT_NOT SAP code: 707538 Index: C Anthogyr – All rights reserved – Products may differ from images Medical devices intended for use by dental professionals –...
