Technical Information

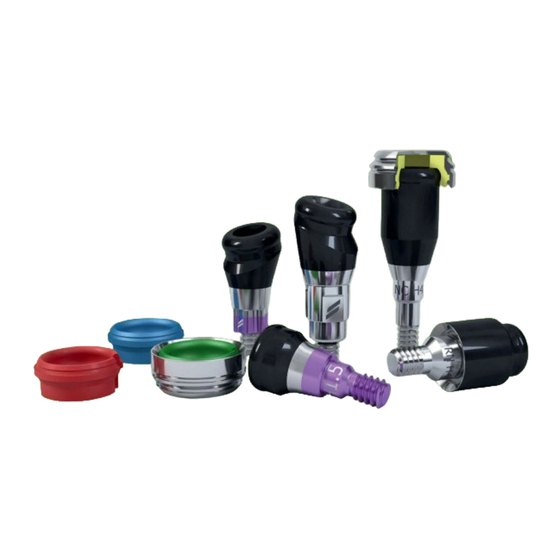

Straumann® Novaloc® Retentive System for Hybrid Dentures
Basic Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novaloc and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Straumann Novaloc

Summary of Contents for Straumann Novaloc

  • Page 1 Technical Information Straumann® Novaloc® Retentive System for Hybrid Dentures Basic Information...

  • Page 2: Table Of Contents

    2.3 Procedure in the dental office 3. Using the Novaloc® Tools 3.1 Novaloc® Matrix Housing Extractor 3.2 Novaloc® Demounting Tool for Mounting Inserts and Model Analog Reposition Aid 3.3 Novaloc® Mounting and Demounting Tool for Retention Inserts 4. Special featured Novaloc® Components 5.

  • Page 3: The Novaloc® Retentive System For Hybrid Dentures

    1. The Novaloc® Retentive System for hybrid dentures The Straumann® Novaloc® Retentive System for hybrid dentures offers an innovative car- bon-based abutment coating (ADLC1) with an excellent wear resistance, overcoming up to 60° implant divergence. Both the straight and 15° angled abutments are available in various abut- ment heights, covering a broad range of clinical implant situations.

  • Page 4: Creating A New Overdenture With The Novaloc® Retentive System

    ѹ Torque the abutment to 35 Ncm using the Ratchet, the Torque Control Device and the SCS Screwdriver. Step 3 – Sealing the screw channel of the Novaloc® Angled Abutment ѹ Use Teflon and composite in order to seal the screw channel of the Novaloc®...

  • Page 5: Procedure In The Dental Lab

    2.2.1 Master cast – abutment-level impression Step 1 – Inserting the Novaloc® Model Analog ѹ Insert the Novaloc® Model Analog into the Novaloc® Forming/ Fixing Matrix (see chapter 3 Using the Novaloc® Tools). For straight abutments use the straight, for angled abutments the angled analog.
  • Page 6 2.2.2 Finalizing the new Novaloc® overdenture Step 1 – Placing the Novaloc® Mounting Collar and Matrix Housing ѹ Place white Mounting collars on all Novaloc® Model Analogs. ѹ Place the Matrix Housing incl. preassembled Mounting Insert onto the Novaloc® Abutments.

  • Page 7: Procedure In The Dental Office

    Retention Inserts ѹ Select the appropriate Novaloc® Retention Insert (see chapter 4 Special featured Novaloc® components). ѹ Insert the Novaloc® Retention Inserts to the Matrix Housing using the Mounting and Demounting Tool for Retention Inserts (brown) (see chapter 3 Using the Novaloc®...

  • Page 8: Using The Novaloc® Tools

    Removing the Novaloc® Matrix Housing from an overdenture 1. Heat the Novaloc® Matrix Housing Extractor head (Fig. 2). 2. Apply the hot Novaloc® Matrix Housing Extractor to the Matrix Housing and let the heat transfer for 2 – 3 seconds melting the resin around the Matrix Housing.

  • Page 9: Novaloc® Mounting And Demounting Tool For Retention Inserts

    3.3 Novaloc® Mounting and Demounting Tool for Retention Inserts (Fig. 11) Mounting the Novaloc® Retention Insert 1. Pick up the Novaloc® Retention Insert with the gripper end of the Novaloc® Mounting and Demounting Tool. The Novaloc® Retention Insert will lock on to the tool (Fig. 12).

  • Page 10: Special Featured Novaloc® Components

    4. Special featured Novaloc® Components Novaloc® Retention Inserts The Novaloc® matrix system allows for a prosthetic insertion of up to +/- 20° divergence, meaning 40° between two Novaloc® Abutments. Note: Retention insert color Retention red, extra light approx. 300 g It is recommended to use the light retention force first (white).

  • Page 11: Product Reference List

    5. Product reference list Straumann® Novaloc® Abutment, straight, 0°* Art. No. Description Gingiva height Material 048.812 RN Novaloc® Abutment, 0° 1 mm Titanium Gr 5/ADLC 048.813 RN Novaloc® Abutment, 0° 2 mm Titanium Gr 5/ADLC 048.814 RN Novaloc® Abutment, 0°...
  • Page 12 RB/WB Novaloc® Abutment ∅3.8, 15° 6.5 mm Titanium Gr 5/ADLC 062.4512 RB/WB Novaloc® Abutment ∅3.8, 15° 7.5 mm Titanium Gr 5/ADLC Straumann® Novaloc® Abutment, angled, 15° | Type A* Art. No. Description Gingiva height Material 048.842 NNC Novaloc® Abutment, 15°...
  • Page 13 Straumann® Novaloc® Abutment, angled, 15° | Type B* Art. No. Description Gingiva height Material 048.847 NNC Novaloc® Abutment, 15° 2 mm Titanium Gr 5/ADLC 048.848 NNC Novaloc® Abutment, 15° 3 mm Titanium Gr 5/ADLC 048.849 NNC Novaloc® Abutment, 15° 4 mm Titanium Gr 5/ADLC 048.850...
  • Page 14 Straumann® Novaloc® Plan Abutments, straight, 0° Art. No. Description Compatility to Novaloc® Abtuments 048.280V4* RN Novaloc® Plan Abutment, H 1-6 mm, POM 048.812, 048.813, 048.814, 048.815, 048.816, 048.817 048.852V4* WN Novaloc® Plan Abutment, H 1-6 mm, POM 048.818, 048.819, 048.820, 048.821, 048.822, 048.823 048.951V4*...
  • Page 15 2 pcs Retention Insert, green, strong PEEK Strong, approx. 1650g 2 pcs Mounting Collar, silicone Silicone 2 pcs 2010.710-STM Novaloc® Retention Insert, red PEEK Extra-light, approx. 300g 4 pcs 2010.711-STM Novaloc® Retention Insert, white PEEK Light, approx. 750g 4 pcs 2010.712-STM...
  • Page 16 2010.723-STM Processing Spacer, white 4 pcs 2010.724-STM Mounting Collar Silicone 10 pcs 2010.725-STM Mounting Insert PEEK 4 pcs CE 0481 * Manufacturer * Distributor Valoc AG Institut Straumann AG Theodorshofweg 22, 4310 Rheinfelden Peter Merian-Weg 12, 4002 Basel Switzerland Switzerland...

  • Page 17: Appendix

    6.1 Appendix A 6.1.1 Chair-side modification of an existing lower denture into an overdenture supported by Novaloc® Abutments For an existing well-fitting and well-functioning lower complete denture, the Novaloc® Retentive System can be used in a chair-side procedure. Caution: It is a prerequisite however, that the lower complete denture does not need to be relined by a dental technician.
  • Page 18 Once the resin has cured, remove the lower complete denture from the mouth and discard the white Novaloc® Mounting Collars. Put the lower complete denture in hot, but not boiling, water. Place...

  • Page 19: Appendix B

    If the lower complete denture’s fit is inadequate (poor adaptation to underlying tissue) after surgery and major adjustments are necessary, indirect relining of the mandibular denture is necessary. This means that relining and insertion of Novaloc® Matrix Housings incl. Mounting Inserts are performed by the dental technician immediately after border mold impres- sion-taking.
  • Page 20 Insert the lower complete denture into the patient’s mouth and check the clearance. The Matrix Housings on the abutments should not touch the denture base. Reconfirm space using wash impression silicone. Adjust the denture base to seat passively in occlusion with- out touching the Matrix Housings.
  • Page 21 Once the impression material has cured, remove the lower com- plete denture with the Novaloc® Forming/Fixing Matrices from the mouth. If the Novaloc® Forming/Fixing Matrices did not remain in- side the impression, carefully reseat them into the reline impression. Send the mandibular denture to the dental technician to reline it, in- tegrate the Matrix Housings and convert it into an overdenture.
  • Page 22 Notes...
  • Page 23 Notes...
  • Page 24 Novaloc® is a registered trademark of Valoc AG, Switzerland. © Institut Straumann AG, 2019. All rights reserved. Straumann® and/or other trademarks and logos from Straumann® mentioned herein are the trademarks or registered trademarks of Straumann Holding AG and/or its affiliates. All rights reserved.
