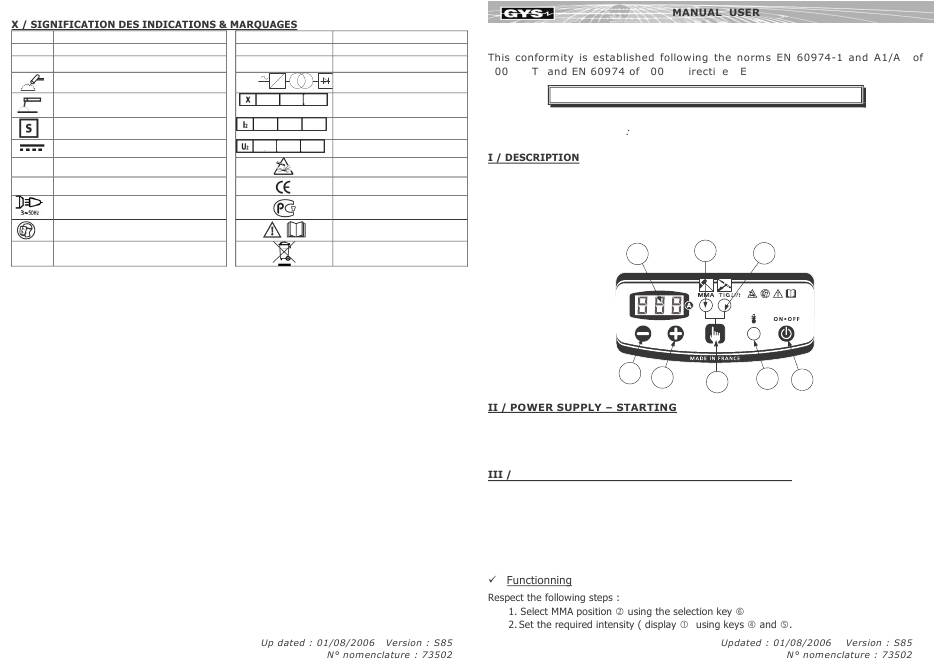

GYS GYSMI 250 Tri Manual User

A Amperes
V Volts
Hz Hertz
Welding with fire-proof electrode (TIG – Tugsten Inert
Gas)
Welding with covered electrode (MMA – Manual
Metal Arc)
Protection against enlarged risks of electric shock.
Welding direct current.
IP23 Protected against rain and against fingers access to
dangerous parts
Uo Rated no-load voltage
Single phase power supply 50 or 60Hz.
The electric arc produces dangerous rays for eyes
and skin (protect yourself !).
I1max Maximum network power supply (effective value)
I1eff Maximum network effective power supply
U1 Network voltage
EN 60 974-1 The device complies with EN60974-1
standard relative to welders.
Single phase inverter, converter-rectifier.
f1
1
f2
X : operating factor at 30%, 60% and
...% ... ...
% %
100%.
I2 : corresponding currents
...A
...A ...A
U2 : conventional voltages
...V ...V V
...
corresponding load
Caution, welding can produce fire or
explosion.
The device complies with European
Directive
Conform to GOST Directive (Russia)
Caution ! Read the user manual
Separate collection required – Do not
throw in a domestic dustbin
Declaration of conformity : the equipment described in the following directions complies with
EEC 83/226 and 73/23 (BT) directives for a professional or experienced use.
! " # $
Thank you for choosing our product ! In order to take the most of your welder, please read the
following instructions carefully
in
The GYSMI 250 TRI is a three phases, Inverter, portable welder of 8.6kg, for stick
electrode and Lift Arc TIG in DC. It allows welding with rutiles, basic, stainless steel
and cast iron electrodes. In TIG, it allows to weld most of metals except aluminium
and it alloys. IP23, this device is made to be used outside. It is protected for a use on
Electric generators (400 V+/- 15%).
1
4
• The GYSMI 250 tri can be plugged to a 400V (50-60Hz) a three phases network.
This device is delivered equipped with a 16A plug.
•
• Starting : "ON/OFF" switch.
WELDING WITH STICK ELECTRODE (MMA mode)
Your equipment is provided with 3 Inverter-specific functionalities : the hot START
provides an over current when starting (adjustable mode, see here below). The arc
force provides an over current avoiding sticking when the electrode enters the bath
(adjustable mode, see here below). The anti-sticking allows you to easily unstick the
electrode without reddening in case of sticking.
! " % & ' ($
GYSMI 250 Tri
2
3
5
7
8
6
