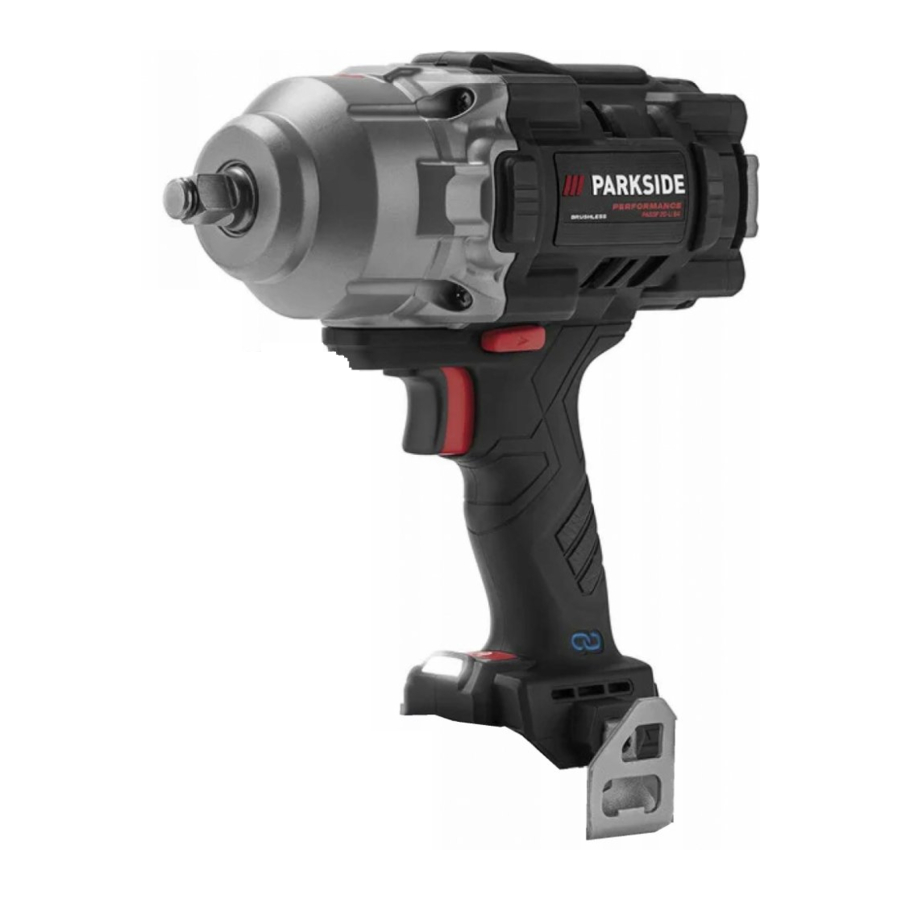

Parkside Performance PASSP 20-Li B4, 453148 2301 Manual

Introduction

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use
This device is only intended for the following use:

• Screwing in and loosening screws
• Tightening and loosening nuts Only operate in dry areas. Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation. The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

Scope of delivery/ accessories
Unpack the device and check that everything is present.
Dispose of the packaging material properly.

• Cordless Impact Wrench
• 3×Socket: 17 mm, 19 mm, 21 mm
• Socket adapter: ½'→ ¾'
• Storage case
• Translation of the original instructions
  The rechargeable battery and charger are not included in delivery.

Overview

1. Tool holder
2. Direction of rotation switch
3. Handle (Insulated gripping surface)
4. "Connected" indicator

5. Battery holder
6. Belt clip
7. Battery(not included)

8. Button (Charge level indicator)
9. Charge level indicator
10. Battery release
11. LED work light
12. Speed button
13. Display (level)
14. On/Off switch
15. Socket adapter
16. Socket
17. Storage case
18. Battery charger (not included)

Description of functions
The cordless impact wrench has clockwise/anticlockwise rotation and a ½' square drive. The rotary impact function of the tool converts the force of the motor into uniform rotary impacts. The striking mechanism switches on when tightening and loosening materials. Please refer to the descriptions below for information on how the operating elements work.

• Charging: 4 – 40°C
• Operation: −20 – 50°C
• Storage: 0 – 45°C

PARKSIDE Performance Smart battery
Smart PAPS 204 A1/Smart PAPS 208 A1

• frequency band: 2400–2483.5 MHz
• transmitted power: ≤ 20 dBm

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity. The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used. Try to keep the exposure to vibrations as low as possible. An example of a measure to reduce vibration exposure is limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

Charging time
The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series. We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3, Smart PAPS 204 A1, Smart PAPS 208 A1
We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C2, PLG 20 C3, PLG 201 A1, PDSLG 20 A1, PDSLG 20 B1, Smart PLGS 2012 A1
Rechargeable battery and charger technical data: See separate manual.
The charging time is influenced by factors such as the temperature of the environment and the battery, as well as the mains voltage applied, and may therefore deviate from the specified values.

Pictograms and symbols
Symbols on the device

The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

	Read the instruction manual
	Smart LED display
	Set levels/speed preselection
	Display (level)
	Hot surface
	Max. Impact rate

Symbol in case

	Recess, Translation of the original instructions
	Recess, Battery
	Recess, Battery charger
	Recess, Cordless Impact Wrench
	Recess, Socket
	Recycling code

1. WORK AREA SAFETY
   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
   1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
   3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
   Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the offposition before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. BATTERY TOOL USE AND CARE

1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. SERVICE

1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety information for impact wrenches

• Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
• Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
• Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
• In case of soft materials such as aluminium or similar, using the impact wrench can damage the thread or screw seat if screwed too tight.

• Only use accessories recommended by PARKSIDE. Unsuitable accessories may cause electric shock or fire.

Residual risks
There will always be residual risks even if you operate this power tool according to the instructions. The following hazards may occur in connection with the type and design of this power tool:

• Hearing damage if suitable ear protection is not worn.
• Health injuries resulting from the effect of hand/arm vibration in the event that the tool is used over a longer period of time or is not used and maintained properly.
• Injuries caused by moving parts or hot surfaces.

Danger due to electromagnetic field generated while the tool is in operation. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the machine.

Preparation

Risk of injury due to unintentional start-up. Only insert the rechargeable battery into the device once the device is fully prepared for use.

Control elements
Familiarise yourself with the operating elements before using the device for the first time.

• Speed button (12)
  • Switch speed level
    1 ≙ lowest speed level
    3 ≙ highest speed level

• Display (level) (13)
  Display of the set speed level
  1 ≙ no-load rotation speed: 0–660 min −1 /impact rate: 0-500 min −1 / torque: 130 Nm
  2 ≙ no-load rotation speed: 0-1250 min −1 /impact rate: 0-1500 min −1 / torque: 400 Nm
  3 ≙ no-load rotation speed: 0-1550 min −1 /impact rate: 0-1900 min −1 / torque: 1356 Nm
  1 2 3 ≙ speed/impact/torque rate is set in the PARKSIDE App (Expert Mode).
• Direction of rotation switch (2)
  NOTICE! Only operate the direction of rotation switch when the tool has stopped! The arrow on the direction switch (2) indicates the working direction.
  • Screw in screw/nut
  • Centre Switch lock
  • Unscrew screw/nut
• On/Off switch (14)
  • After inserting the battery: Connecting to the PARKSIDE app
  • Switching on: Press
  • Infinitely variable speed regulation: The more you press the on/off switch, the higher the speed.
  • Switching off: Release
• "Connected" indicator (4)
  Status of the connection with the PARKSIDE app flashing connection attempt continuous light connection established

Attaching and removing the attachment tool
Notes

• Tool holder: ½' (12,7 mm) Square
• Attachment tool: Socket/Socket adapter (½'→ ¾')

Procedure

1. Slide the desired socket (16) onto the tool holder (1).
2. Only for use with the socket adapter: Slide the socket adapter (15) onto the tool holder (1) to use a ¾' attachment tool.
3.
   Risk of burn injury! Attachment tools can become very hot. Wear protective gloves whenever appropriate. Pull the attachment tool off the tool holder (1).

Checking the battery charge level

1. Press the button (8) next to the charge level indicator button (9) on the battery (7). The LEDs of the charge level indicator show how much charge remains in the battery.
2. Charge the battery (7) when only the red LED on the charge level indicator (9) is illuminated.

Charging the battery
See also the charger instruction manual.

Notes

• If warm, allow the battery to cool before charging.
• Do not expose the battery to direct sunlight for long periods and do not place it on a radiator (max. 50°C).

Charging the battery

1. Remove the battery (7) from the device.
2. Push the battery (7) into the charging slot of the battery charger (18).
3. Connect the battery charger (18) to a power outlet.
4. After charging, disconnect the battery charger (18) from the mains.
5. Pull the battery (7) out of the battery charger (18).

Control LEDs on the charger (18):

Operation

Working instructions
General Information

• The tightening torque depends on the impact duration.
• In order to achieve optimum impact force, do not exert any pressure against the screw/nut.
• Only use the cordless impact wrench for pre-assembly when tightening screws and nuts. The desired target torque of the screw or nut should not be achieved with the cordless impact wrench, but with a torque wrench set to the target torque.
  NOTICE! Always follow the manufacturer's instructions for tightening screws or nuts. Follow the manufacturer's guidelines for the inspection of screws or nuts in accordance with time or performance.

• The tightening torque actually achieved must be checked in all cases with a torque wrench.
  NOTICE! After a wheel change is carried out, reference is regularly made to an inspection of the wheel bolts or nuts. That inspection must be carried out with a torque wrench after 50 to 100 km.

Pre-selecting the rotation speed
The speed button (12) lets you to choose the individual speed levels. You can read the current level on the display (level) (13).

• Infinitely variable speed regulation: The more you press the on/off switch (14), the higher the speed/torque.

Inserting and removing the battery

Risk of injury due to unintentional start-up. Only insert the rechargeable battery into the device once the device is fully prepared for use.
NOTICE! Risk of damage! An incorrect battery can damage the device and battery.

Inserting the battery

1. Push the battery (7) along the guide into the battery holder (5). You will hear the battery click into place.

Removing the battery

1. Press and hold the battery release (10) on the battery (7).
2. Pull the battery out of the battery holder (5).

Switching on and off

Risk of injury due to unintentional continuous operation of the tool. Before inserting the batteries into the unit, check that the on/off switch (14) works properly and returns to the off position when released.

Switching on

1. Insert the rechargeable battery (7) into the tool.
2. Select the direction of rotation with the rotation direction switch (2).
3. Press and hold the On/off switch (14).

Switching off

1. To turn it off, release the on/off switch (14).
2. Wait until the power tool has stopped before placing it down.
3. When taking a break: Set the direction of rotation switch (2) to the centre. These safety measures prevent accidentally starting the power tool. This allows you to hang the tool on a belt using the belt clip (6). With the belt clip you can open bottles with crown caps.
4. Remove the rechargeable battery (7) from the device if you are leaving the device unattended or if you have finished working.

PARKSIDE app

The PARKSIDE app lets you monitor the device and control certain functions. The functions may change with updates to the app and firmware. For more information on the PARKSIDE app, see the instructions for the smart battery.

Requirements
To find the device in the PARKSIDE app, the following requirements must be met:

• The PARKSIDE app is installed on your smartphone and Bluetooth® is activated.
• The following battery is inside the device: PARKSIDE Performance Smart battery PAPS 204 A1 or PAPS 208 A1. This battery is already connected to the PARKSIDE app. The device communicates with the app via the battery.

Connecting the device to the PARKSIDE app

1. Insert the smart battery (7).
2. Press the On/Off switch (14). The "Connected" display (4) flashes three times. When the device is connected, the "Connected" indicator lights up continuously.
3. Open the PARKSIDE app.
4. Devices. The device is displayed in the list. If the device does not appear in the list, add the device manually.

Monitoring and controlling the device

1. Devices.
2. Select the device from the list. The device overview page is displayed.
3. Select the desired setting on the overview page.

Select help if you are unsure. A dialogue box with a description for the relevant setting is displayed.

Transport

Information on transporting the device:

• Switch off the device and remove the battery (7). Make sure that all moving parts have come to a complete stop.
• Remove the attachment tool.
• Always carry the device by the handle (3).

Cleaning, maintenance and storage

Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and remove the battery (7). You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

Electric shock! Never spray down the device with water.
NOTICE! Risk of damage. Chemical substances may attack the plastic parts of the machine. Do not use any cleaning agents or solvents.

• Keep the ventilation slits, motor housing and handles of the machine clean. Use a damp cloth or brush to do this.

Maintenance
The device is maintenance free.

Storage
Always store the device and accessories:

• clean
• dry
• protected against dust
• out of the reach of children The storage temperature for the rechargeable battery and the device is between 0°C and 45°C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected. Remove the rechargeable battery from the device before storing the device (see the separate operating instructions for the battery and charger).

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

• We can only work on devices which are sent in properly packed and with postage paid. Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.
• The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.
• We will dispose of defective devices you ship to us free of charge.

Service Centre
GB Service Great Britain
Tel.: 0800 404 7657
E-mail: grizzly@lidl.co.uk
MT Service Malta
Tel.: 80062230
E-mail: grizzly@lidl.com.mt

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact the Service Centre.

Exploded view

Documents / Resources

References

• http://www.grizzlytools.shop

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Parkside Performance PASSP 20-Li B4, 453148 2301 Manual
