U Series

U30:1M | U60:1M | U120:1M | U240:1M | U120:1 | U240:1

Installation manual

Need help?

Do you have a question about the U Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynacord U Series

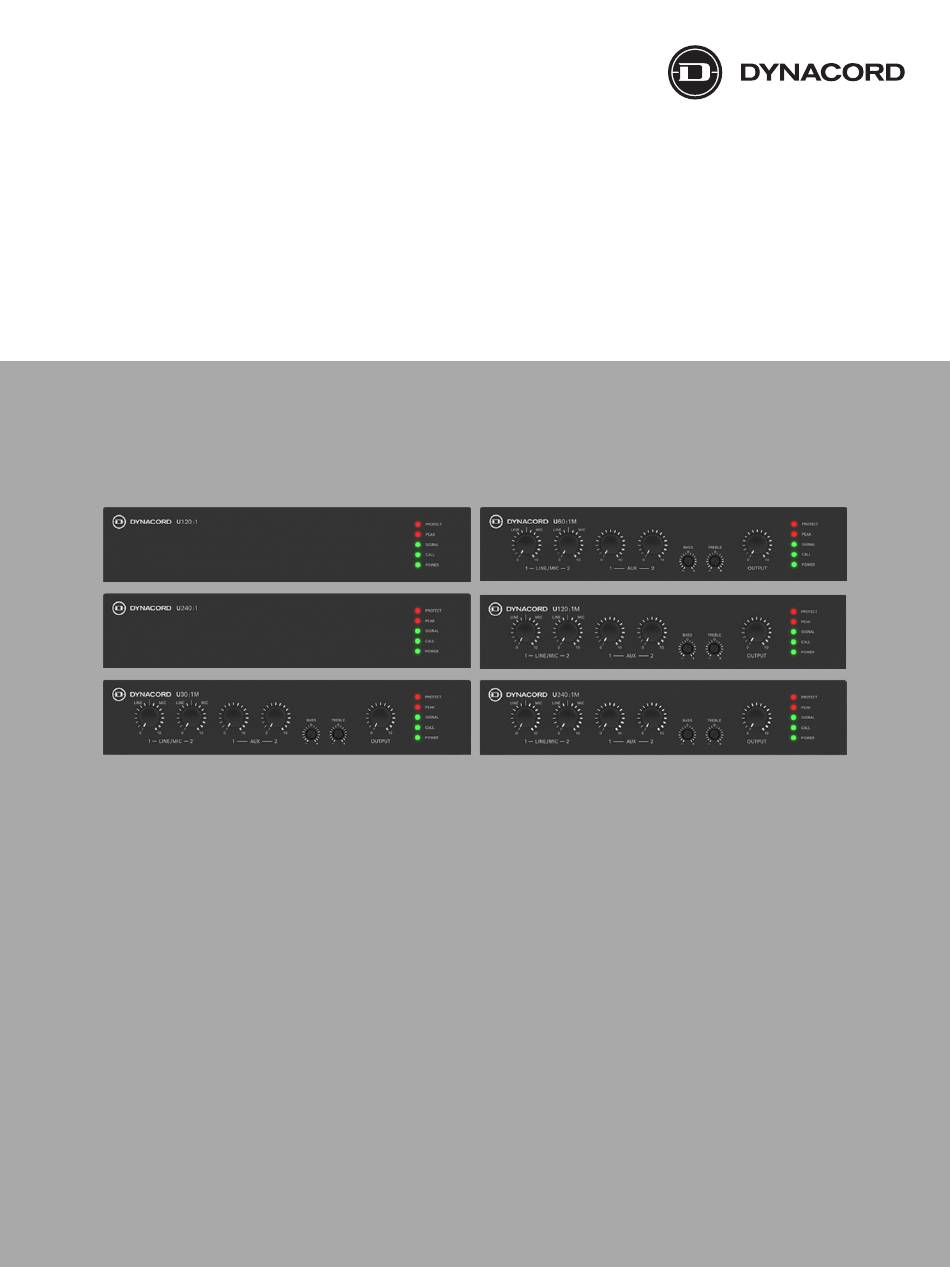

Page 1 U Series U30:1M | U60:1M | U120:1M | U240:1M | U120:1 | U240:1 Installation manual...
Page 3 U Series Table of contents | en Table of contents Important product information Safety information Disposal instructions Class B Notice for FCC and ICES 003 About this manual Digital document Intended audience Copyright notice Trademarks Notice of liability Short information...
Page 4 Safety information Read and keep these safety instructions. Follow all instructions and heed all warnings. Download the latest version of the applicable installation manual from www.dynacord.com for installation instructions. Information Refer to the Installation Manual for instructions. Follow all installation instructions and observe the following alert signs: Notice! Containing additional information.
Page 5 U Series Important product information | en 13. To prevent hearing damage do not listen at high volume levels for long periods. Disposal instructions Old electrical and electronic appliances. Electrical or electronic devices that are no longer serviceable must be collected separately and sent for environmentally compatible recycling (in accordance with the European Waste Electrical and Electronic Equipment Directive).
Page 6 Notice of liability While every effort has been taken to ensure the accuracy of this document, neither Dynacord nor any of its official representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this document.
Page 7 U Series About this manual | en Short information The following table lists products in a family, with CTN (Commercial Type Number) and identifying product name DESCRIPTION. Description U120:1-EU Power amplifier 120 W, 1 channel, EU U240:1-EU Power amplifier 240 W, 1 channel, EU U120:1-US Power amplifier 120 W, 1 channel, US...
Page 8 Introducing the U Series: a range of ultra-compact single-channel mixer amplifiers and power amplifiers tailored for commercial environments. Designed to offer cost-effective yet high-quality amplification, the U Series caters to single- zone setups in smaller commercial spaces like cafes, shops, and offices. With flexible power output options, this U series ensures customized performance to suit specific requirements.
Page 9 U Series Product introduction | en Features and functions Versatile power outputs The product range includes mixer amplifiers offering power outputs of 30 W, 60 W, 120 W, and 240 W, along with power amplifiers available in 120 W and 240 W variants. This comprehensive selection ensures optimal performance across a diverse range of applications and settings, catering to various audio needs with precision.
Page 10 | Product introduction U Series Emergency input Featuring 100 V and Line In emergency inputs with speaker level selection, the amplifier facilitates seamless integration with EVAC (Emergency Voice Alarm Communication) systems. This essential feature ensures reliable emergency communication, enhancing safety and security in commercial spaces.
Page 11 Unpacking The products should be unpacked and handled with care. If an item appears to be damaged, notify the shipper immediately. If any items are missing, notify your Dynacord representative. The original packaging is the safest container in which to transport products and can also be used to return products for service, if necessary.
Page 12 | General installation procedures U Series Dimensions Mixer amplifier 2024-10 | 01 | F.01U.425.742 Dynacord Installation manual...
Page 13 U Series General installation procedures | en Power amplifier Dynacord 2024-10 | 01 | F.01U.425.742 Installation manual...
Page 14 Notice! Before mounting the device, it is recommended to make the required settings. The U Series mixer amplifiers and power amplifiers have four mounting options. Stand-alone mounting in a 19"-rack The mixer amplifiers and power amplifiers can be fitted alone in a standard 19"-rack. Mount one short rack ear to the preferred side of the device using the build-in screws.
Page 15 If you intend to use the full 19"-rack, you can stack two amplifiers in one rack slot. The U Series devices can also be mounted with a V600:2 side-by-side. U Series and V Series have the same side-by-side mounting system. Power amplifiers can be mounted together with mixer amplifiers.
Page 16 | General installation procedures U Series Figure 4.5: Two amplifiers hooked Figure 4.6: Two amplifiers hooked together together with connection plate mounted with connection plate mounted and M3 bolt and M3 bolt to prevent pushback to prevent pushback (U120:1 / U240:1)
Page 17 U Series General installation procedures | en Tabletop use (over and under the table) You can use this device outside a 19”‑rack on a tabletop, mounted over or under the table. For under the table mounting: Stick the supplied rubber feet in the corners of the device top surface for more stability with this type of installation (F).
Page 18 | General installation procedures U Series x2 2 x2 2 Figure 4.11: Tabletop use - over the table Figure 4.12: Tabletop use - over the table (U30:1M / U60:1M / U120:1M / U240:1M) (U120:1 / U240:1) Ventilation (for all models) The airflow direction is side-to-side.
Page 19 U Series General installation procedures | en Figure 4.13: Rack mounting of several U Figure 4.14: Rack mounting of several U series amplifiers. Illustration of the series amplifiers. Illustration of the U120:1 / U30:1M / U60:1M / U120:1M / U240:1M U240:1 models.

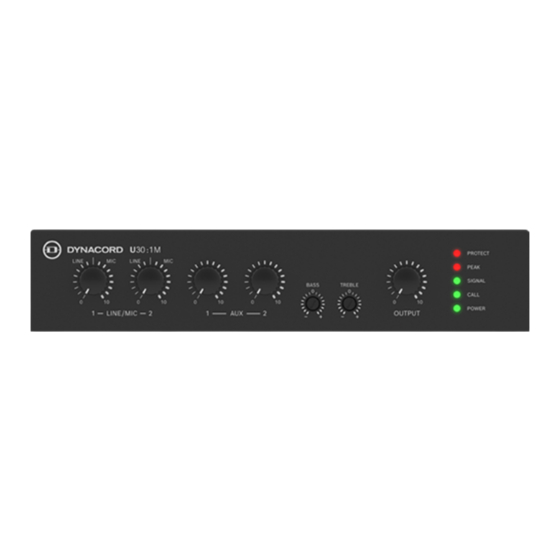

Page 20 | Installation U Series Installation Indicators, controls and settings Front view A B C D Indicator description Color Protect Activated in case of protection or short- circuit Peak Activated at -1 dB before clipping Signal Activated at -45 dB before clipping...
Page 21 U Series Installation | en Rear view Mixer amplifiers (U30:1M | U60:1M | U120:1M | U240:1M) Description AC mains input socket Output connector DIP-switches Remote OFF control input connector Call station/mic 1 input 100 V / line level emergency input connector and EMG level control...
Page 22 | Installation U Series Power amplifier (U120:1 | U240:1) Description AC mains input socket Output connector DIP-switches Remote OFF control input connector 100 V / line level emergency input connector and EMG level control potentiometer Bass, treble and output control...
Page 23 U Series Installation | en Color Description Signal Green (solid) – Amplifier output reaches above -45 dBr (-45 dB referenced to rated power, @VR Master = Max), – EMG channel is unmuted — EMG signal triggered. – Amplifier below -45 dBr, and EMG channel muted.
Page 24 | Installation U Series 5.1.2 Set the mixer amplifier options 100 V 8 Ω 70 V 4 Ω Figure 5.1: Mixer amplifier DIP-switch diagram EMG source You can designate the source for emergency announcements, choosing between HiZ for 100 V operation or EMG for line-level input. This selection ensures seamless integration with emergency communication systems, facilitating clear and effective announcements during critical situations.
Page 25 U Series Installation | en The amplifier mode configuration allows you to fine-tune the amplifier operation to match their specific requirements. In HiZ mode, you can choose between 70 V and 100 V operation, ensuring seamless integration with high-impedance speaker systems. In LoZ mode, you have the flexibility to select between 4 ohm and 8 ohm operation, catering to low-impedance speaker setups.
Page 26 | Installation U Series High-pass filter activation Enabling the high-pass filter (HPF) activates a 120 Hz high-pass filter, effectively filtering out low-frequency signals from the audio output. This feature is particularly useful in applications where clarity and fidelity are paramount, ensuring that only desired frequencies are reproduced while eliminating unwanted noise or rumble.
Page 27 The Line Output on the Mixer amplifier allows for seamless connectivity to another amplifier. This single line output is designed to facilitate a direct connection to another device, such as the U Series Power Amplifier, via RCA connectors. Figure 5.3: Mixer amplifier line output connection to Power amplifier line input 5.1.6...
Page 28 5.1.8 Chime legacy option By default, the amplifier is configured to use the standard Dynacord 2-tone chime. However, a secondary legacy chime is also pre-programmed into the mixer amplifiers and can be activated using the following steps:...
Page 29 U Series Operation after installation | en Operation after installation Input level control Equipped with individual input level control rotary knobs on the front panel, each channel offers precise adjustment of input sensitivity. In this chapter, we explore the technical aspects of input level control, including the adjustment of the amplifier to the source.
Page 30 | Troubleshooting U Series Troubleshooting Problem Possible cause Solution Amplifier does not turn on Power (plug) disconnected Ensure power cord is and power LED is not or the power source is giving securely connected to device illuminated. insufficient power to the and check the power from device.
Page 31 U Series Troubleshooting | en Problem Possible cause Solution Audio sounds very muffled or 1) Maybe the 120 Hz high- 1) Turn off the 120 Hz high- lacks low frequencies. pass filter is activated and pass filter using the DIP- this does not match to the switch.
Page 32 | Maintenance U Series Maintenance This product has been designed to operate without problems for a long period of time, with a minimum of maintenance. In order to guarantee trouble-free operation periodically: – Clean all units with a damp, lint‑free cloth; never use water or chemicals.
Page 33 U Series Technical data | en Technical data U120:1 | U240:1 Electrical Mains power supply U120:1 Voltage 100 VAC - 240 VAC, 50/60 Hz Power consumption – Standby 1.25 W (Remote OFF active) – Idle mode LoZ 9 W / 11 W amp mode (4 Ω / 8 Ω) –...
Page 34 | Technical data U Series Performance U120:1 | U240:1 Frequency response, -3 dB ref. 1 kHz – Any input to output <20 Hz — 20 kHz – EMG input to output <20 Hz — 18 kHz Distortion <0.5% @rated output power, 1 kHz Output stage topology...
Page 35 U Series Technical data | en Inputs Sensitivity 500 mV Impedance 10 kΩ Maximum input level +12 dBu Input 2 Type Unbalanced line Connector RCA (chinch), stereo converted to mono Sensitivity 250 mV (R and L) Impedance 4.7 kΩ Maximum input level +16 dBu (R and L)
Page 36 | Technical data U Series Loudspeaker output U240:1 Max output voltage, 1 kHz, THD=0.5%, no 4 Ω 8 Ω 70 V 100 V load 31 V 45 V 71 V 102 V Mechanical Enclosure U120:1 U240:1 IEC protection class Class I (grounded) Dimensions (HxWxD), without acessories 44.2 mm x 218 mm x 210 mm (1.74 in x 8.6 in x 8.26 in)
Page 37 U Series Technical data | en Mains power supply – Idle mode LoZ 6 W / 6 W amp mode (4 Ω / 8 Ω) – Idle mode HiZ 6 W / 6 W amp mode (70 V / 100 V) – 1/8 rated output 15 W power Remote power (ON/ 2-pin, Eurostyle, contact closure...
Page 38 | Technical data U Series Mains power supply – Idle mode HiZ 14 W / 18 W amp mode (70 V / 100 V) – 1/8 rated output 40 W power Remote power (ON/ 2-pin, Eurostyle, contact closure OFF Stand by) Mains power supply U240:1M Voltage 100 VAC - 240 VAC ±10%, 50/60 Hz...
Page 39 U Series Technical data | en Performance U30:1M | U60:1M – HI-PASS (HPF) switchable, can be f=120 Hz, 12 dB/oct. activated Performance U120:1M | U240:1M Frequency response, -3 dB ref. 1 kHz – Any input to output <20 Hz — 20 kHz – EMG input to output <20 Hz —...
Page 40 | Technical data U Series Inputs Number of inputs 2 mic/line, 2 aux, EMG (priority input) Sensitivity with all level controls in max. position – MIC / Call station -68 dBu (300 µV) – AUX (only L or R) -11.8 dBu (200 mV) –...
Page 41 U Series Technical data | en Inputs Type Line Connector RCA (cinch), stereo converted to mono, unbalanced AUX2 input Type Line Connector RCA (cinch), stereo converted to mono, unbalanced EMG Input Type Line; 100 V Connector 2-pin, balanced Loudspeaker output U30:1M...
Page 42 | Technical data U Series Loudspeaker output U120:1M Max output voltage, 1 kHz, THD=0.5%, no 4 Ω 8 Ω 70 V 100 V load 22 V 32 V 71 V 102 V Loudspeaker output U240:1M Connector 4-pin Eurostyle (2 pin for LoZ, 2 pin for HiZ) Output power according IHF-A-202 240 W...
Page 43 U Series Technical data | en Climatic U30:1M U60:1M U120:1M U240:1M conditions Operating -5°C — 45°C temperature (23°F — 113°F) Storage -40°C — 70°C temperature (-40°F —158°F) Dynacord 2024-10 | 01 | F.01U.425.742 Installation manual...
Page 44 | Mixer amplifier block diagram U Series Mixer amplifier block diagram 2024-10 | 01 | F.01U.425.742 Dynacord Installation manual...
Page 45 U Series Power amplifier block diagram | en Power amplifier block diagram Dynacord 2024-10 | 01 | F.01U.425.742 Installation manual...
Page 46 | Power amplifier block diagram U Series 2024-10 | 01 | F.01U.425.742 Dynacord Installation manual...
Page 48 Bosch Security Systems, LLC 130 Perinton Parkway Fairport, NY 14450 www.dynacord.com © Bosch Security Systems, LLC, 2024 EU importer: Bosch Sicherheitssysteme GmbH Robert-Bosch-Platz 1 70839 Gerlingen Germany © Bosch Sicherheitssysteme GmbH, 2024 202410021144...
