- Page 1 The AIOCAMTOP4K Series All-in-One Camera Help Manual...
- Page 2 7.4.8 Settings>Storage ......................... 20 7.4.9 Settings>Files ........................20 7.4.10 Settings>Time ........................21 7.4.11 Settings>Language ......................21 7.4.12 Setting>Voice Control ......................21 7.4.13 Settings>Miscellaneous ....................... 22 Sample Photos Captured with AIOCAMTOP4K Series All-in-One Camera ............. 23 Contacting Customer Service ........................25...

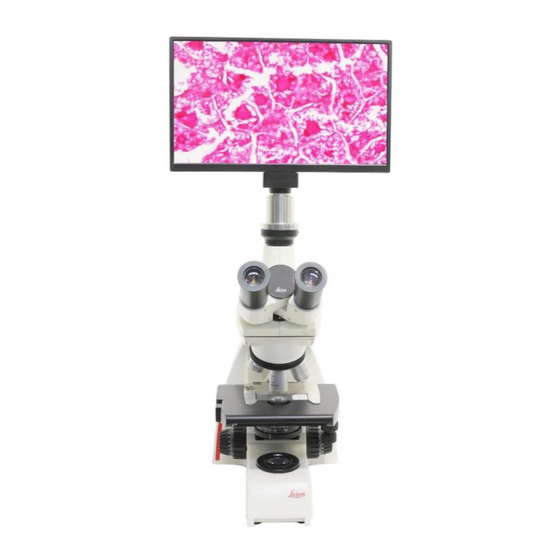

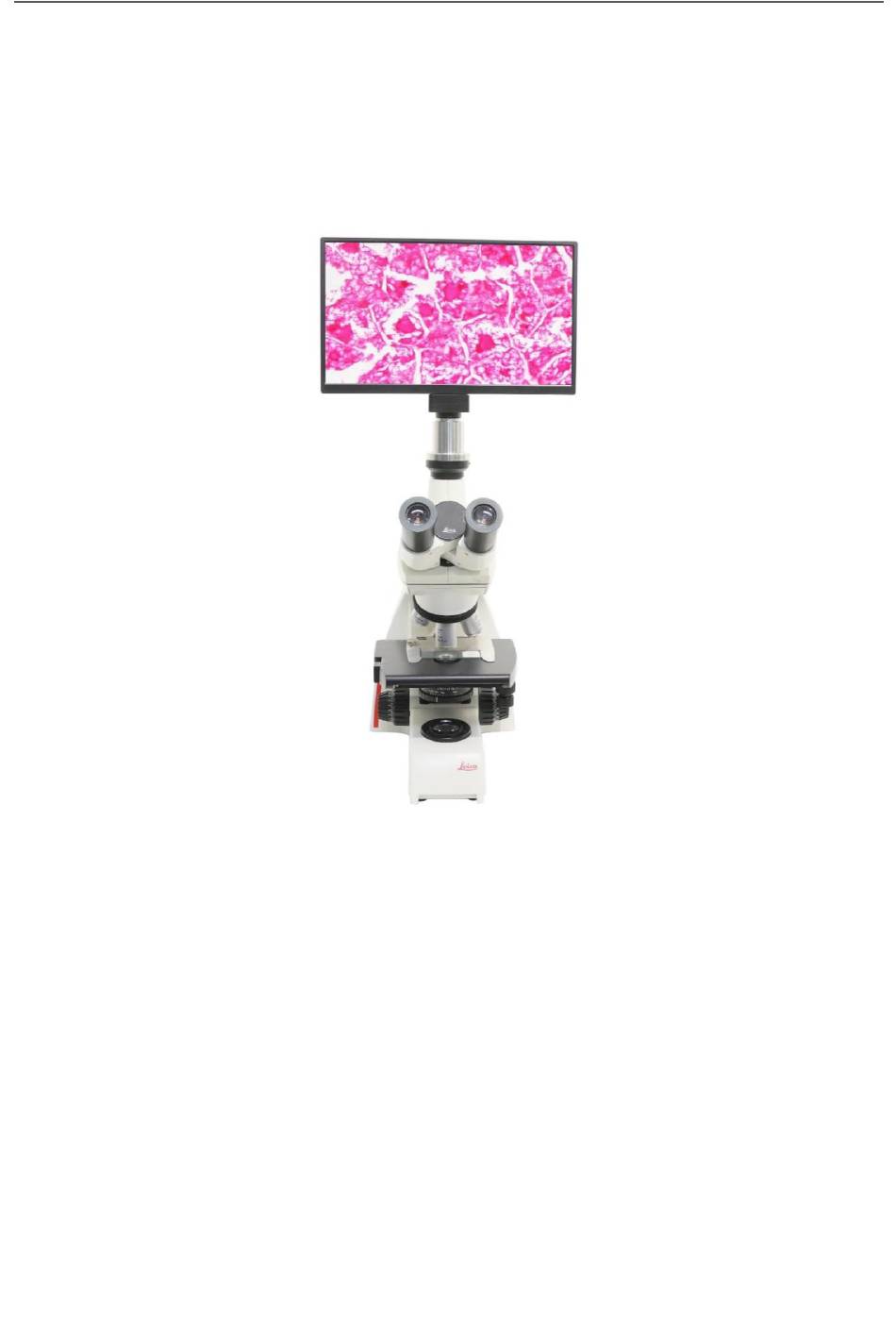

- Page 3 The AIOCAMTOP4K Series All-in-One Camera Help Manual AIOCAMTOP4K Series All-in-One Camera Application Figure 1 The AIOCAMTOP4K Series All-in-One Camera AIOCAMTOP4K is a multifunctional all-in-one camera that integrates a 4K image acquisition and processing system and a 13.3-inch display screen for capturing digital images of stereo microscopes, biological microscopes, or online interactive teaching.
- Page 4 The AIOCAMTOP4K Series All-in-One Camera Help Manual AIOCAMTOP4K Series All-in-One Camera Datasheet and Functions G Sensitivity Pixel(μm) Order Code Sensor & Size(mm) Binning Exposure(ms) FPS/Resolution Dark Signal 30@3840*2160(HDMI) Sony IMX678(C) 1364mv with 1/30s AIOCAMTOP4K8MPC 2.0x2.0 30@3840*2160(WiFi) 0.04~1000 1/1.8"(7.68x4.32) 0.15mv with 1/30s...
- Page 5 The AIOCAMTOP4K Series All-in-One Camera Help Manual Restore Factory Settings Restore camera parameters to its factory status English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian Multiple Language Support / Russian...
- Page 6 The AIOCAMTOP4K Series All-in-One Camera Help Manual Dimension of AIOCAMTOP4K Series All-in-One Camera Figure 3 Dimension of AIOCAMTOP4K Series All-in-One Camera 4 / 27...
- Page 7 The AIOCAMTOP4K Series All-in-One Camera Help Manual AIOCAMTOP4K Series All-in-One Camera Packing Information Figure 4 AIOCAMTOP4K Series All-in-One Camera Packing Information Standard Packing List Gift box: L:35.6cm W:24.9cm H:7.5cm (1pcs, 1.68Kg/ box) AIOCAMTOP4K Series All-in-One Camera Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 2A...
- Page 8 The AIOCAMTOP4K Series All-in-One Camera Help Manual Software and App The software or the APP can be downloaded from the following link： Windows & Linux & macOS: https://www.touptekphotonics.com.cn/download/ iOS: //itunes.apple.com/us/app/toupview/id911644970 Android: https://dl.touptekphotonics.com.cn/software/ToupView.apk 6 / 27...
- Page 9 The steps to start the camera are listed as below: Figure 5 AIOCAMTOP4K Series All-in-One Camera with the HDMI Monitor Insert the supplied USB mouse to the USB 2.0 interface on the right side of the AIOCAMTOP4K series all-in-one camera;...
- Page 10 The AIOCAMTOP4K Series All-in-One Camera Help Manual Short press the power switch on the right side of the AIOCAMTOP4K series all-in-one camera and view the video in the XCamView software. Move the mouse to the left, top or bottom of the...
- Page 11 ToupView/ToupLite, clicking the camera name in the Camera List group to start the live video as shown in Figure 7. Figure 7 ToupView and AIOCAMTOP4K Series All-in-One Camera in USB Mode Camera working in WiFi mode (AP mode) Please make sure your PC is WiFi enabled.
- Page 12 ToupView App and check the configuration. Normally, the active AIOCAMTOP4K series all-in-one cameras will be automatically recognized. The live image of each camera is shown in Error! Reference source not found.. For the display, the Camera List group is used in...
- Page 13 Connecting multi-cameras to the router through the WiFi STA mode for the network application Multi AIOCAMTOP4K series all-in-one cameras are connected to router through the WiFi STA mode, and the user can control the HDMI camera on the computer or mobile device through WiFi.
- Page 14 HDMI graphics interface will display“STA Mode”; F inally, as shown below, 4 AIOCAMTOP4K series all-in-one cameras are connected to the same router with WiFi mode (The number of the cameras are determined by the router performance).
- Page 15 The AIOCAMTOP4K Series All-in-One Camera Help Manual Figure 11 ToupView and AIOCAMTOP4K Series All-in-One Camera in WiFi STA mode 13 / 27...
- Page 16 The AIOCAMTOP4K Series All-in-One Camera Help Manual Brief Introduction of AIOCAMTOP4K UI and Its Functions XCamView UI AIOCAMTOP4K UI shown in Error! Reference source not found. includes a Camera Control Panel on the left of the video window, a Measurement Toolbar...
- Page 17 The AIOCAMTOP4K Series All-in-One Camera Help Manual The Measurement Toolbar on top of the video window Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the...
- Page 18 The AIOCAMTOP4K Series All-in-One Camera Help Manual video window. Only when user left-click the button on to exit from the measurement mode Measurement Toolbar will they be able to doing other operations on Camera Control Panel Synthesis Camera Control Toolbar...
- Page 19 The AIOCAMTOP4K Series All-in-One Camera Help Manual Every machine on a network has a unique identifier. Just as you would address a letter to send in the mail, computers use the unique identifier to send data to specific computers on a network. Most networks today, including all computers on the...
- Page 20 The AIOCAMTOP4K Series All-in-One Camera Help Manual Figure 17 Network Setup Wi-Fi Mode AP/STA mode to select; Channel/SSID Channel for the mode and SSID for the mode. Here, the SSID is the router’s SSID; Password Camera Password for the mode. Router Password for the mode 7.4.4...
- Page 21 The AIOCAMTOP4K Series All-in-One Camera Help Manual Type: Used for defining shape of the endpoints of lines for calibration: Null means no EndPoint, EndPoint rectangle means rectangle type of endpoints. It makes alignment more easily; Point, Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles, Polygon, Curve...
- Page 22 The AIOCAMTOP4K Series All-in-One Camera Help Manual Figure 21 Comprehensive Setting of Video page Video Playback Fast Forward/Reverse internal in second unite for Video Playback Select the Video Encode format. Can be H264 or H265. Compared with H264, H265 has a higher...
- Page 23 The AIOCAMTOP4K Series All-in-One Camera Help Manual Image or Video File Provide Auto Manual naming paradigm for Image Video file; Name Paradigm Auto With specified name as the Prefix XCamView will add digital after the Prefix for the Image Video file;...
- Page 24 The AIOCAMTOP4K Series All-in-One Camera Help Manual Figure 26 Comprehensive Setting of Voice Control Voice Control Select whether to enable or not; Provide Key Words for “snap”; Key Words Provide Key Words for “freeze”, “unfreeze”; Provide Key Words for “record/begin record”, “end/end record”;...
- Page 25 The AIOCAMTOP4K Series All-in-One Camera Help Manual Sample Photos Captured with AIOCAMTOP4K Series All-in-One Camera Figure 28 Cucurbit Stem.L.S.Captured with AIOCAMTOP4K8MPC Figure 29 Two Year Tilia Stem.C.S. Captured with AIOCAMTOP4K8MPC 23 / 27...
- Page 26 The AIOCAMTOP4K Series All-in-One Camera Help Manual Figure 30 Simple Cuboidal Epithelium.Sec.with AIOCAMTOP4K8MPC Figure 31 Circuit Board Captured with AIOCAMTOP4K8MPC 24 / 27...
- Page 27 The AIOCAMTOP4K Series All-in-One Camera Help Manual Contacting Customer Service Please contact your local distributor if you have any questions about the product. 25 / 27...
