Theory of operation
Theory of operation
This chapter describes the electrical operation of the oscilloscope to the module level. The block diagram shows the oscilloscope module
interconnections.

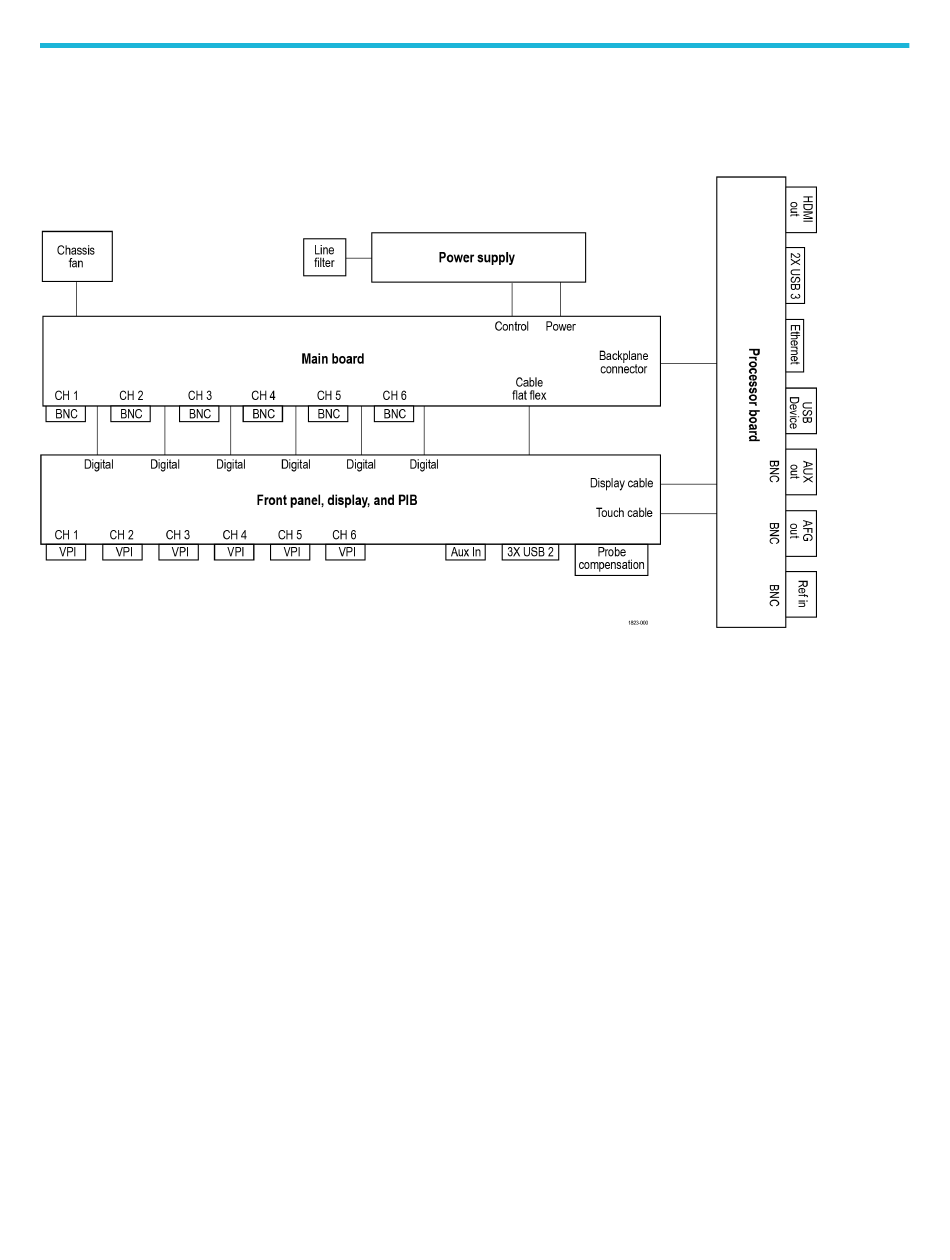

Figure 1: 4 Series B MSO block diagram
Power supply
The Power Supply board converts AC line voltage to +12 V to power for all internal circuits.
Processor board
The processor board contains the following functions:
Processor system
Rear panel I/O ports
Other functions
10
The processor system contains a microprocessor that controls the entire instrument. The processor system
also contains the flash memory for the operating system, system RAM, and interfaces to I/O ports and the
acquisition system.
The processor board contains two USB3 ports, an Ethernet port (LAN), a HDMI Video port, the USB-TMC
port, an AUX OUT BNC connector, an EXT REF IN BNC connector, and the AFG Out generator BNC
connector.
The processor board also houses the AFG generator, USB-TMC controller and USB host hub.
