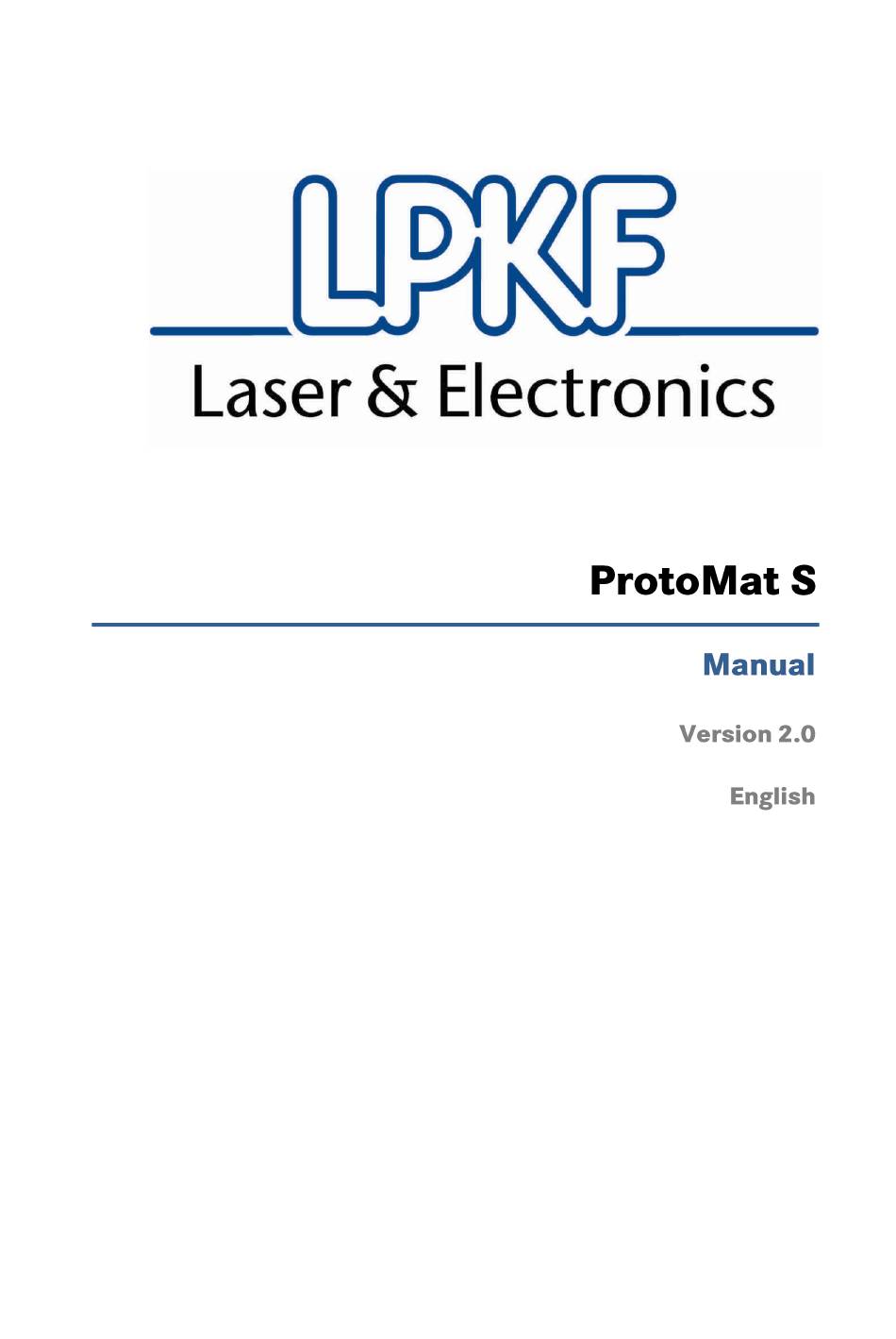

LPKF ProtoMat S Manual

Quick Links

Download this manual

LPKF Laser & Electronics AG

Osteriede 7

D-30827 Garbsen

Germany

Phone

+49-5131-7095-0

Fax

+49-5131-7095-90

info@lpkf.com

Internet

www.lpkf.com

Table of Contents

Need help?

Do you have a question about the ProtoMat S and is the answer not in the manual?

Questions and answers

Summary of Contents for LPKF ProtoMat S

Page 1 LPKF Laser & Electronics AG Osteriede 7 D-30827 Garbsen Germany Phone +49-5131-7095-0 +49-5131-7095-90 Email info@lpkf.com Internet www.lpkf.com...
Page 2 LPKF AG. Product and Product and brand names are trademarks of LPKF Laser & brand names Electronics AG, registered among others at the US Patent and Trademark Office: LPKF and the company logo, # 2,385,062 ®...
Page 3: General Information
Any technical data, facts or special context will be organized in tables. Every table is characterized with a continuously numbered title, for example “Tab. 1: Scope of delivery“. The table will be created with a highlighted headline and labelled columns. © 2011 LPKF AG...
Page 4 ProtoMat S Genral information Procedure descriptions Registered trademark For this manual step by step procedures or The LPKF logo and the LPKF product names workflows are compiled to operation sequen- are registered trademarks of LPKF Laser & ces. individual operation sequence Electronics AG.
Page 5: Table Of Contents
3.4.2 ProtoMat S63 ....................39 3.4.3 ProtoMat S103 ....................40 Emissions ........................ 41 3.5.1 Acoustic emission ..................41 3.5.2 Material emission ..................41 Protection of persons ....................41 Disposal of waste material ..................41 © 2011 LPKF AG HB V2.0/Dez-11...
Page 6 Loading the CBF file ..................84 6.8.2.1 Production of the printed circuit board............. 85 Dispense ......................... 87 6.9.1 Mount dispense set ..................88 6.9.2 Dispense process ..................90 6.10 Shutdown the System ..................... 93 © 2011 LPKF AG HB V2.0/Dez-11...
Page 7 10.1.2.1 Base material ..................103 10.1.2.2 Multilayer material ................. 104 10.1.2.3 Dispense material .................. 104 10.2 Glossary ........................ 105 10.3 List of figures ......................106 10.4 List of tables ......................108 10.5 Index ........................109 © 2011 LPKF AG HB V2.0/Dez-11...
Page 9: Product Description
The extensive equipment and the high grade of automation as e.g. automatical exchange of tools, head illumination and a camera for detection of fiducials make the ProtoMat S extremely comfortable in its operation. The modern and ergonomically shaped soundproof housing facilitates easy handling. The safe and comfortable employment of the circuit board plotter is thus possible in any working environment without any additional effort.
Page 10: Type Label
/1/ Type label If any questions occur concerning the identification of your machine and the corresponsing equipment always inform the LPKF service about serial number of your machine according to the type label item. Fig. 3: Typen label information...
Page 11: Scope Of Delivery
Pos : 3 /ED_Tec hnische_Dokumentation/2_Bedi enungsanleitung/Masc hi ne/RP_Fräs bohr plotter /Pr otoM at_S_Seri e/ProtoMat_S_Serie_IIG/Kapitel_1_Produktbeschr eibung/1_3_Liefer umfang @ 1 \mod_1317980233075_2058.doc x @ 37148 @ 23344 @ 1 1.3 Scope of delivery The scope of delivery for the ProtoMat S Series includes: Tab. 1: Scope of...
Page 12: Provided Components By The Operator
20,000 Pa Connecting adapter Ø 50 mm Sound level 62 dB (A) Collection efficiency > 98 % Power consumption 1.1 kW We recommend using a dust extraction unit type LPKF Air Management System. Note © 2011 LPKF AG HB V2.0/Dez-11...
Page 13: Manufacturer
Product description Pos : 4 /ED_Tec hnische_Dokumentation/2_Bedi enungsanleitung/Masc hi ne/RP_Fräs bohr plotter /Pr otoM at_S_Seri e/ProtoMat_S_Serie_IIG/Kapitel_1_Produktbeschr eibung/1_4_H ersteller @ 0\mod_1255007908120_2058.doc x @ 3741 @ 2 @ 1 1.4 Manufacturer LPKF LPKF Laser & Electronics AG Osteriede 7 D-30827 Garbsen Germany +49 (0)5131 - 70 95 –...
Page 14: Ec Declaration Of Conformity
1.5 EC declaration of conformity 1.5.1 ProtoMat S43 EC declaration of conformity in accordance with machinery directive 2006/42/EG, Appendix II A The manufacturer/seller LPKF Laser & Electronics AG Osteriede 7 30827 Garbsen Germany hereby declares that the following product Product name...
Page 15 Address of the person: see manufacturer address The following EC guidelines are applied: EMC guideline 2004/108/EG Directive 2006/95/EC relating to electrical equipment designed for use within certain voltage limits Location: Garbsen Date: 13. Dezember 2011 Bernd Lange (CTO) © 2011 LPKF AG HB V2.0/Dez-11...
Page 16: Protomat S63
ProtoMat S 1.5.2 ProtoMat S63 EC declaration of conformity in accordance with machinery directive 2006/42/EG, Appendix II A The manufacturer/seller LPKF Laser & Electronics AG Osteriede 7 30827 Garbsen Germany hereby declares that the following product Product name LPKF ProtoMat S63...
Page 17 Address of the person: see manufacturer address The following EC guidelines are applied: EMC guideline 2004/108/EG Directive 2006/95/EC relating to electrical equipment designed for use within certain voltage limits Location: Garbsen Date: 13. Dezember 2011 Bernd Lange (CTO) © 2011 LPKF AG HB V2.0/Dez-11...
Page 18: Protomat S103
ProtoMat S 1.5.3 ProtoMat S103 EC declaration of conformity in accordance with machinery directive 2006/42/EG, Appendix II A The manufacturer/seller LPKF Laser & Electronics AG Osteriede 7 30827 Garbsen Germany hereby declares that the following product Product name LPKF ProtoMat S103...
Page 19 Address of the person: see manufacturer address The following EC guidelines are applied: EMC guideline 2004/108/EG Directive 2006/95/EC relating to electrical equipment designed for use within certain voltage limits Location: Garbsen Date: 13. Dezember 2011 Bernd Lange (CTO) © 2011 LPKF AG HB V2.0/Dez-11...
Page 21: Safety Notes
Any accidental starting of the motor and moving of the mill/drill head during repairs and servicing may cause considerable injuries. ATTENTION Make sure that only one person operates the machine. Secure the machine during servicing and repair activities appropriate. © 2011 LPKF AG HB V2.0/Dez-11...
Page 22 Risk of injury by instable underground! An instable surface level can collapse and hurt the operator during machining of a work piece due to vibrations and the machine powers. ATTENTION The machine must be placed on a solid surface. © 2011 LPKF AG HB V2.0/Dez-11...
Page 23: General Safety Notes
Read the operation manual before start up the machine and any usage of the machine. Contact the LPKF service if any problems occur! The machine must exclusively be operated, repaired and serviced by qualified and authorised staff.
Page 25: Functional Description
The circuit board plotter ProtoMat S is employed for processing of electrical printed circuit boards. Printed circuit boards can consist of several layers (multilayer) and may have up to six layers. In addition the ProtoMat S can be employed for processing of signs or housing components (front plate).
Page 26: Permitted Machining Materials
3.1.1 Permitted machining materials For reliable and safe operation of the circuit board plotter ProtoMat S we recommend to use original LPKF consumables. These articles are available with good value as multilayer sets or they are sold as single material for the different applications.
Page 27: Machine Design
Pos : 9 /ED_Tec hnische_Dokumentation/2_Bedi enungsanleitung/Masc hi ne/RP_Fräs bohr plotter /Pr otoM at_S_Seri e/ProtoMat_S_Serie_IIG/Kapitel_3_Funkti onsbesc hrei bung/3_2_Geräteaufbau @ 1\mod_1318347934997_2058.doc x @ 37647 @ 23434444344 @ 1 3.2 Machine design ProtoMat S series circuit board plotters are constructed equally in principle to facilitate upgrades as simple as possible.
Page 28 Fig. 5: Rear view /1/ Compressed air connection for /2/ Interfaces vacuum table /3/ Suction tube to connect the dust extraction unit Fig. 6: Interfaces /1/ USB port /2/ LPKF ports (4 x SUB-D, 25 pin.) © 2011 LPKF AG HB V2.0/Dez-11...
Page 29: Side Views
ProtoMat S Functional description 3.2.1.1 Side views Machine without soundproof housing: Fig. 7: Right side /1/ Power switch /2/ Mains power connection Fig. 8: Left side © 2011 LPKF AG HB V2.0/Dez-11...
Page 30: Working Area
Functional description ProtoMat S 3.2.2 Working area 3.2.2.1 Worktable ProtoMat S43 Fig. 9: Worktable ProtoMat S43 /1/ Worktable /2/ Power switch /3/ Fixing pin /4/ Mill/Drill head © 2011 LPKF AG HB V2.0/Dez-11...
Page 31: Worktable Protomat S63
ProtoMat S Functional description 3.2.2.2 Worktable ProtoMat S63 Fig. 10: Worktable ProtoMat S43 /1/ Worktable /2/ Power switch /3/ Fixing pin /4/ Tool magazine /5/ Mill/Drill head © 2011 LPKF AG HB V2.0/Dez-11...
Page 32: Vacuum Table Protomat S103
The work or vacuum table of machines with automatically tool change function are equipped with a tool magazine. Fig. 12: Tool magazine /1/ Tool number 1 … 15 /4/ Tool clamp 1 … 15 © 2011 LPKF AG HB V2.0/Dez-11...
Page 33: Mill/Drill Head
/5/ Open/close cullet chuck (manual) Tab. 5: LED Signal signalling The circuit board plotter is ready for operation. ProtoMat S43 Flashing The flashing LED indicates a machine failure. Fig. 14: Tool holder ProtoMat /1/ Tool /2/ Tool holder © 2011 LPKF AG HB V2.0/Dez-11...
Page 34: Mill/Drill Head Protomat S63/103
/3/ Dispenser /4/ Camera Tab. 2: LED Signal signalling The circuit board plotter is ready for operation. ProtoMat S63/ S103 Flashing The flashing LED indicates the movement of the mill/drill head or a machine failure. © 2011 LPKF AG HB V2.0/Dez-11...
Page 35 Pos : 10 /ED _T ec hnisc he_D okumentati on/2_Bedienungs anl eitung/M asc hine/R P_Fr äs bohrpl otter/ProtoM at_S_Serie/Pr otoMat_S_Seri e_IIG/Kapitel _3_F unktions besc hreibung/3_3_Besti mmungsgemäßer _Gebr auch @ 1\mod_1317979346988_2058.doc x @ 37114 @ 23 @ 1 © 2011 LPKF AG...
Page 36: Conditions Of Use
The circuit board plotter may only be operated using the delivered control software CircuitPro. Please contact the LPKF service at once if you wish to use an other control software as the delivered item! Note The circuit board plotter may only be start up with a sufficient dust extraction and a fine particle filtering.
Page 37: Disclaimer
Any processing of bodily parts (e.g. fingernails) is not allowed. Always contact the LPKF service first if you are not sure if the used materials can be processed with the circuit board plotter.
Page 38: Technical Data
305 x 229 x 17 mm (X x Y x Z) Resolution (X/Y) +/- 0.8 µm (0.04 Mil) Repeat accuracy +/- 5 µm (0.2 Mil) Exactness reference hole system +/- 20 µm (0.8 Mil) Minimal drill diameter 0.2 mm © 2011 LPKF AG HB V2.0/Dez-11...
Page 39: Protomat S63
305 x 229 x 23 mm (X x Y x Z) Resolution (X/Y) +/- 0.5 µm (0.02 Mil) Repeat accuracy +/- 5 µm (0.2 Mil) Exactness reference hole system +/- 20 µm (0.8 Mil) Minimal drill diameter 0.2 mm © 2011 LPKF AG HB V2.0/Dez-11...
Page 40: Protomat S103
305 x 229 x 23 mm (X x Y x Z) Resolution (X/Y) +/- 0.25 µm (0.01 Mil) Repeat accuracy +/- 5 µm (0.2 Mil) Exactness reference hole system +/- 20 µm (0.8 Mil) Minimal drill diameter 0.2 mm © 2011 LPKF AG HB V2.0/Dez-11...
Page 41: Emissions
Local laws, directions and regulations as well as company directions concerning waste of material (fine particles and rest materials) have to be obeyed. Check disposal with the responsible employee of your company e.g. your environmental protection representative. © 2011 LPKF AG HB V2.0/Dez-11...
Page 43: Transport And Storage
Store the circuit board plotter in a cool and dry location. Use a protective cover to protect it from dust and humidity. © 2011 LPKF AG HB V2.0/Dez-11...
Page 45: Installation
Pos : 17 /ED _T ec hnisc he_D okumentati on/2_Bedienungs anl eitung/M asc hine/R P_Fr äs bohrpl otter/ProtoM at_S_Serie/Pr otoMat_S_Seri e_IIG/Kapitel _5_Ins tall ation_Inbetriebnahme/5_2_Gerät_aus pac ken @ 1\mod_1317981941046_2058.doc x @ 37184 @ 2 @ 1 © 2011 LPKF AG HB V2.0/Dez-11...
Page 46: Unpacking The Device
Prerequisite for installation and start of operation is that the PC and the dust extraction are available at the work place. PC and dust extraction must be ready for operation. Note The control software CircuitPro has to be installed on the PC. Note © 2011 LPKF AG HB V2.0/Dez-11...
Page 47: Installation
Open the carabiner lock /1/ and remove the safety strap /3/. Remove the foam plastic pad /2/. Put the safety strap and the foam plastic pad into the transport box. ♦ The transport locks are removed. © 2011 LPKF AG HB V2.0/Dez-11...
Page 48: Connecting The Circuit Board Plotter
Connect the monitor with the mains power supply. Connect the dust extraction with the mains power supply. Plug the tube of the dust extraction into the suction pipe of circuit board plotter (rear side). © 2011 LPKF AG HB V2.0/Dez-11...
Page 49 ♦ Now the circuit board plotter is connected. Do not connect any UBB hub to the USB interfaces of the machine. The USB interface does not support this configuration at all. Note © 2011 LPKF AG HB V2.0/Dez-11...
Page 50: Commissioning
Activate the circuit board plotter by setting the main switch to position I (ON). Close the cover. Start CircuitPro. ➨ The CircuitPro start-up logo is displayed: Fig. 21: Start-up Logo ♦ The circuit board plotter is ready. © 2011 LPKF AG HB V2.0/Dez-11...
Page 51: Remove The Dummy Tool
- The software open the collet chuck automatically. ➨ The collet chuck release the dummy tool. Remove the dummy tool from the collet chuck. ♦ Now the circuit board plotter is ready for operation. © 2011 LPKF AG HB V2.0/Dez-11...
Page 53: Operation
Phase III System shut down The control software CircuitPro has to be terminated and the circuit board plotter, the PC and the dust extraction must be switched off. © 2011 LPKF AG HB V2.0/Dez-11...
Page 54: Start System
Switch on the circuit board plotter by setting the main switch to position 1 (ON). Start the PC. Start CircuitPro. ➨ The CircuitPro start-up logo is shown: Fig. 23: Startup image ♦ CircuitPro starts and establish the connection to the circuit board plotter. © 2011 LPKF AG HB V2.0/Dez-11...
Page 55: Tool Status Monitoring
Pos : 21 /ED _T ec hnisc he_D okumentati on/2_Bedienungs anl eitung/M asc hine/R P_Fr äs bohrpl otter/ProtoM at_S_Serie/Pr otoMat_S_Seri e_IIG/Kapitel _6_Bedienung/6_02_02_Bedi enoberfl äc he_Circui tPro @ 1 \mod_1318239523154_2058.doc x @ 37322 @ 344 @ 1 © 2011 LPKF AG...
Page 56: Graphical User Interface
The window “Navigation“ displays the actual Window working area. Navigation and Camera The window “CAM View“ shows the object data of Window CAM and the current project. All individual objects are Machining View highlighted in user defined colours. © 2011 LPKF AG HB V2.0/Dez-11...
Page 57: Menu Bar
Use the functions of the menu “Operate“ to control the Machining machining process. The menu “Camera” offers program functions to set the installed Camera camera. The menu “Extras” offers functions to customize CircuitPro. Extras The menu “Help“ gives information about this program. Help © 2011 LPKF AG HB V2.0/Dez-11...
Page 58: Function Bar
Object processing General object editing and processing functions. Toolpath functions General functions to edit or process a tool or processing path. File operating General operating functions like Undo, Redo, Cut, Copy an functions Insert. © 2011 LPKF AG HB V2.0/Dez-11...
Page 59: Window Processing
/1/ Mill/drill head manual control functions /4/ Moving the mill/drill head to determined positions /2/ Select head (mill/drill head, camera or /5/ Mill/drill head control (for example dispenser) Motor on/off) /3/ Processing functions (for example Start, Stop or Step/Repeat) © 2011 LPKF AG HB V2.0/Dez-11...
Page 60: Manual Control Of The Mill/Drill Head
[+Z] to lift up the mill/drill head. The output field \rpm:\ displays the current spindle rotation speed of the mill/drill head. The output fields \X:\, \Y:\ and \Z:\ show the current position of the mill/drill head. © 2011 LPKF AG HB V2.0/Dez-11...
Page 61: Select Head
Click on [Dispenser] to move the reticle (positioning indicator) oft he machining view onto the dispenser position. The mill/drill head will be repositioned accordingly. The icons for camera and dispenser are deactivated when the components are not installed (for example ProtoMat S43). Note © 2011 LPKF AG HB V2.0/Dez-11...
Page 62: Operate
The individual buttons have the following functions: Description Click [Start processing] to start the complete machining process. Click [Stop processing] to stop the current machining process. Click [Step and repeat] to continue the machining process. © 2011 LPKF AG HB V2.0/Dez-11...
Page 63: Move To Position
Click [Move by mouse position] and the mill/drill head follows the current mouse position. Click [Pause Position] to move the mill/drill head to the pause position. Click [Zero Position] to move the mill/drill head to the zero position (reference point). © 2011 LPKF AG HB V2.0/Dez-11...
Page 64: Head Actions
The symbol changes correspondingly from a green triangle (90° position) to a red rectangle. Click [Exhaust unit on/off] to activate/deactivate the dust extraction unit by the operator. The symbol changes correspondingly from a green triangle (90° position) to a red rectangle. © 2011 LPKF AG HB V2.0/Dez-11...
Page 65: Establish A Connection
Fig. 35: Connect Click on the selection box \Machine type\ and select the type of the connected machine. Click [Connect]. ➨ The connection to the circuit board plotter is established and the following message appears: © 2011 LPKF AG HB V2.0/Dez-11...
Page 66 Pos : 24 /ED _T ec hnisc he_D okumentati on/2_Bedienungs anl eitung/M asc hine/R P_Fr äs bohrpl otter/ProtoM at_S_Serie/Pr otoMat_S_Seri e_IIG/Kapitel _6_Bedienung/6_04_M aterial _aufl egen @ 2\mod_1319461132294_2058.doc x @ 41092 @ 233 @ 1 © 2011 LPKF AG HB V2.0/Dez-11...
Page 67: Place Material
Fix the production material with a tape on the underlay. The tape has to be removable without remains. The tape must be guided alongside the edges of the production material. ♦ The production material is fixed. © 2011 LPKF AG HB V2.0/Dez-11...
Page 68: Vacuum Table
Place the underlay on the working table so that the pivots fit into the reference holes. Place the production material on the vacuum table. ♦ The production material is placed on the vacuum table and will be fixed when the production process starts. © 2011 LPKF AG HB V2.0/Dez-11...
Page 69: Tool Setup
Close the collet chuck by turning the rotary knob of the mill/drill head and place the tool gripper aside. Click into the field \Select tool\ and edit the new tool. Click on [Continue]. ♦ The tool is configured. © 2011 LPKF AG HB V2.0/Dez-11...
Page 70: Automatically Tool Change Process
/1/ Tool gripper /2/ Tool /3/ Tool magazine /4/ Tool clamp Take the tool gripper /1/ and insert a tool /2/. Place the tool into a free position of the tool magazine /3/. Click [Change tool]. © 2011 LPKF AG HB V2.0/Dez-11...
Page 71 Select a free position of the entry field \Tools\ and specify the tool. A selection of required tools for the current project can be found in the list “Required Tools“. Note Click [OK]. ♦ Now the tool is configured. © 2011 LPKF AG HB V2.0/Dez-11...
Page 72: Tool Colour Code
Operation ProtoMat S 6.5.3 Tool colour code All LPKF tools are equipped with a distance ring, colour coded accordingly to the tool applications: Tab. 12: Tool Colour Tool application colour coding MicroCutter Orange UniversalCutter Blue EndMill (RF) Purple EndMill Olive-green...
Page 73: Manual Drilling
Risk of injury by sharp edges! The used tools are sharp-edged and cause cut or stab wounds when used improperly. ATTENTION Store the tools always in the toolbox and secure the toolbox against unauthorised utilisation. © 2011 LPKF AG HB V2.0/Dez-11...
Page 74 Type a value into the input filed \X/Y step size\ and click[+X], [-X], [+Y] or [-Y] until the drilling position is reached. The exact position is displayed in the output fields \X:\ and \Y:\. Fig. 49: Control milling/drilling head © 2011 LPKF AG HB V2.0/Dez-11...
Page 75 Click on [Motor on/off]. ➨ The drilling spindle stops and the dust extraction is deactivated. Repeat steps 3 to 6 if you wish to create further drilling holes. ♦ The drilling hole is created. © 2011 LPKF AG HB V2.0/Dez-11...
Page 76: Manual Milling
Risk of injury by burning! During the machining process the used tools and the collet chuck heat up, direct contact may cause burnings. ATTENTION Wear protective gloves and tweezers for manual change of tools during operation. © 2011 LPKF AG HB V2.0/Dez-11...
Page 77 Risk of injury by sharp edges! The used tools are sharp-edged and cause cut or stab wounds when used improperly. ATTENTION Store the tools always in the toolbox and secure the toolbox against unauthorised utilisation. © 2011 LPKF AG HB V2.0/Dez-11...
Page 78 Produce a test track. Check the result using a measuring microscope. Fig. 51: Optimal milling depth Repeat the process in necessary until a sufficient amount of material has been removed. ♦ The milling depth is now adjusted. © 2011 LPKF AG HB V2.0/Dez-11...
Page 79 Move the mill/drill head to start position: Fig. 53: Set position Click [+X], [-X], [+Y] or [-Y] until the start position is reached. The exact position is displayed in the output field \X:\ and \Y:\. Fig. 54: Milling/drilling head control © 2011 LPKF AG HB V2.0/Dez-11...
Page 80 Click on [Motor on/off]. ➨ The drilling spindle stops and the dust extraction will be deactivated. For further milling tracks you have to repeat the steps 3 to 8. ♦ Now the milling path is produced. © 2011 LPKF AG HB V2.0/Dez-11...
Page 81: Automatic Mode
Risk of injury by sharp edges! The used tools are sharp-edged and cause cut or stab wounds when used improperly. ATTENTION Store the tools always in the toolbox and secure the toolbox against unauthorised utilisation. © 2011 LPKF AG HB V2.0/Dez-11...
Page 82: Specify Production Type
Fig. 56: Process planning wizard Edit the required setting for the production process and click [Next]. Follow the instructions of the assistant. ➨ If all settings have been made the following window is shown: © 2011 LPKF AG HB V2.0/Dez-11...
Page 83 ProtoMat S Operation Fig. 57: Summary Click [Done] and the window will be closed. ♦ Now the production process is configured. © 2011 LPKF AG HB V2.0/Dez-11...
Page 84: Loading The Cbf File
➨ The CBF file is loaded and the projects contained are placed on the working area. Fig. 59: Working area /1/ Working area /2/ Printed circuit board ♦ Now the CBF file is loaded. © 2011 LPKF AG HB V2.0/Dez-11...
Page 85: Production Of The Printed Circuit Board
Click Wizard>Board Production Wizard. ➨ The following window is shown: Fig. 61: Process planning wizard Follow the instructions and click [Start]. ➨ The next production step is shown. Follow the instructions and click [Next]. © 2011 LPKF AG HB V2.0/Dez-11...
Page 86 Fig. 62: Process planning wizard Click [Finish] to stop the board production process. Demount the board. Clean the board and make a visual check. ♦ The board production is finished. © 2011 LPKF AG HB V2.0/Dez-11...
Page 87: Dispense
Fig. 63: Complete dispense set /1/ Dispense adapter /3/ Dispensing tip /2/ Empty cartridge /4/ Solder Paste cartridge The solder paste is not included in the scope of delivery and must be odered separately. Note © 2011 LPKF AG HB V2.0/Dez-11...
Page 88: Mount Dispense Set
Take the solder paste cartridge and unscrew the lower end cap. Screw the dispensing tip on the outlet opening of the solder paste cartridge. Insert the solder paste cartridge into the dispense adapter and tighten the upper fastening nut carefully. © 2011 LPKF AG HB V2.0/Dez-11...
Page 89 Loosen the lower fastening nut and plug the dispense adapter into the fixing device on the right side of the mill/drill head. Plug the dispense adapter connection cable into the jack on the camera lighting system /1/. ♦ The dispense device is ready to operate. © 2011 LPKF AG HB V2.0/Dez-11...
Page 90: Dispense Process
➨ The program is assigning the solder paste points. Click on Wizards>Dispense preparation wizard. ➨ The wizard is starting and the following window is shown: Fig. 67: Start Dispense preparation wizard Follow the instructions and click [Next]. © 2011 LPKF AG HB V2.0/Dez-11...
Page 91 ➨ The wizard is starting and the following window is shown: Fig. 69: Start Dispensing wizard Follow the instructions and click [Next]. ➨ After all processing steps have been carried out the following window is shown: © 2011 LPKF AG HB V2.0/Dez-11...
Page 92 Operation ProtoMat S Fig. 70: Dispensing wizard finished Click [Finish]. ♦ The dispensing process is finished. © 2011 LPKF AG HB V2.0/Dez-11...
Page 93: Shutdown The System
Click File>Save. ♦ The production data was saved by using the current file name. ■ Saving a new CBF file Click File>Save as…. ➨ The window “Save as…” is shown: Fig. 71: Save as… © 2011 LPKF AG HB V2.0/Dez-11...
Page 94: Exit Circuitpro
In automatic mode the dust extraction is switched on/off via the Note circuit board plotter. ■ Switch off the dust extraction Turn the main switch of the dust extraction to position OFF (0). ♦ The dust extraction is switched off. © 2011 LPKF AG HB V2.0/Dez-11...
Page 95: Trouble Shooting
This chapter gives some information concerning correction of small faults that may occur during operation of the circuit board plotter. Please contact the LPKF service if the measures described in this chapter do not provide the desired success. LPKF is not liable for improper repairs! Note Tab.
Page 97: Maintenance/Servicing
Open the hood and check the mill/drill head and the working table for visible damages. ➨ Contact the LPKF service immediately whenever you find a damaged part and make sure that the circuit board plotter is not used until the damaged part is removed.
Page 98: Maintenance
Milling depth limiter After 100 operating cleaning service plan hours Chucks After 100 operating cleaning hours Tool position Tool is not correctly Configure tool position inserted Dust extraction Extraction power Exchange fine particle filter decreases perceptible © 2011 LPKF AG HB V2.0/Dez-11...
Page 99: Storage
The PC and the dust extraction have to be disassembled accordingly. The systems can be used for other machines or they can be stored as well. The appropriate information concerning Note disassembly and storage can be found in the respective operation manuals. © 2011 LPKF AG HB V2.0/Dez-11...
Page 100: Storage
Now the circuit board plotter is stored. 9.2.1 Disposal Legal regulations and directives concerning disposal of electric devices and machines have to be observed. Note Dispose of the circuit board plotter must be done according to legal directives. © 2011 LPKF AG HB V2.0/Dez-11...
Page 101: Appendix
Spiral Drill, cylindrical, 1/8“ 1,00 115 855 Spiral Drill, cylindrical, 1/8“ 1,10 115 856 Spiral Drill, cylindrical, 1/8“ 1,20 115 857 Spiral Drill, cylindrical h, 1/8“ 1,30 115 858 Spiral Drill, cylindrical, 1/8“ 1,40 115 859 © 2011 LPKF AG HB V2.0/Dez-11...
Page 102: Tool Set 1/8
2,40 115 869 Spiral Drill, cylindrical, 1/8“ 2,95 115 870 Spiral Drill, cylindrical, 1/8“ 3,00 115 871 Furthermore LPKF offers tool sets. 10.1.1.1 Tool set 1/8“ Order code: 129 103 Tab. 17: Tool set Tool specification Length Ø Quan- 1/8“...
Page 103: Hf And Micro Wave Tool Set 1/8
3 mm Base material FR4 229 x 305 x 1,5 35/35 115 970 reference holes 3 mm Base material FR4 229 x 305 x 1,5 115 971 reference holes 3 mm and protective foil © 2011 LPKF AG HB V2.0/Dez-11...
Page 104: Multilayer Material
Press cushion with 229 x 305 x 1,7 120 999 reference holes 10.1.2.3 Dispense material Tab. 21: Dispense Material Quantity Order material code Dispense needle 129 130 SolderPaste with cartridge 129 096 © 2011 LPKF AG HB V2.0/Dez-11...
Page 105: Glossary
Coatings which mask off and surface insulate those areas mask of a circuit where soldering is not desired. Throughplating An electrical connection between conductive patterns on opposite sides of an insulating base, e.g. plated-through hole or clinched jumper wire. © 2011 LPKF AG HB V2.0/Dez-11...
Page 106: List Of Figures
Pos : 37 /ED _T ec hnisc he_D okumentati on/2_Bedienungs anl eitung/M asc hine/R P_Fr äs bohrpl otter/ProtoM at_S_Serie/Pr otoMat_S_Seri e_IIG/Kapitel _10_Anhang/10_3_Abbildungs verz eichnis @ 0\mod_1255680605341_2058.doc x @ 3972 @ 2 @ 1 10.3 List of figures Fig. 1: ProtoMat S Series..................9 Fig. 2: Position type label................... 10 Fig.
Page 107 Fig. 67: Start Dispense preparation wizard ............90 Fig. 68: Dispense preparation wizard finished ..........91 Fig. 69: Start Dispensing wizard ................ 91 Fig. 70: Dispensing wizard finished ..............92 Fig. 71: Save as… ..................... 93 © 2011 LPKF AG HB V2.0/Dez-11...
Page 108: List Of Tables
Tab. 16: Tools ....................101 Tab. 17: Tool set 1/8“ ..................102 Tab. 18: HF-Tool set 1/8“................. 103 Tab. 19: Base material ..................103 Tab. 20: Multilayer material ................104 Tab. 21: Dispense material ................104 © 2011 LPKF AG HB V2.0/Dez-11...
Page 109: Index
9 CPU 12 HF tool set 11 depth of penetration 76 home-position 63 Dielectric 105 humidity 43 Dispense 105 import work file 57 dispense adapter 88, 89 installation 37, 45, 46 Dispense adapter 87 © 2011 LPKF AG HB V2.0/Dez-11...
Page 110 Lamination 105 PCB material 74, 79 lift truck 46, 100 permanent acoustic noise level 41 LPKF port 28 polyoxymethylen 36 LPKF service 23, 36, 37, 97 Power cable 11 LPKF-Service 95 power supply 95 machine 21, 23, 45 Prepreg 105...
Page 111 69 Working table 30, 31, 32 tool holder 35, 95 zero position 94 Tool holder 33, 34, 95 tool magazine 70 === Ende der Liste für T extmar ke Inhalt === © 2011 LPKF AG HB V2.0/Dez-11...
