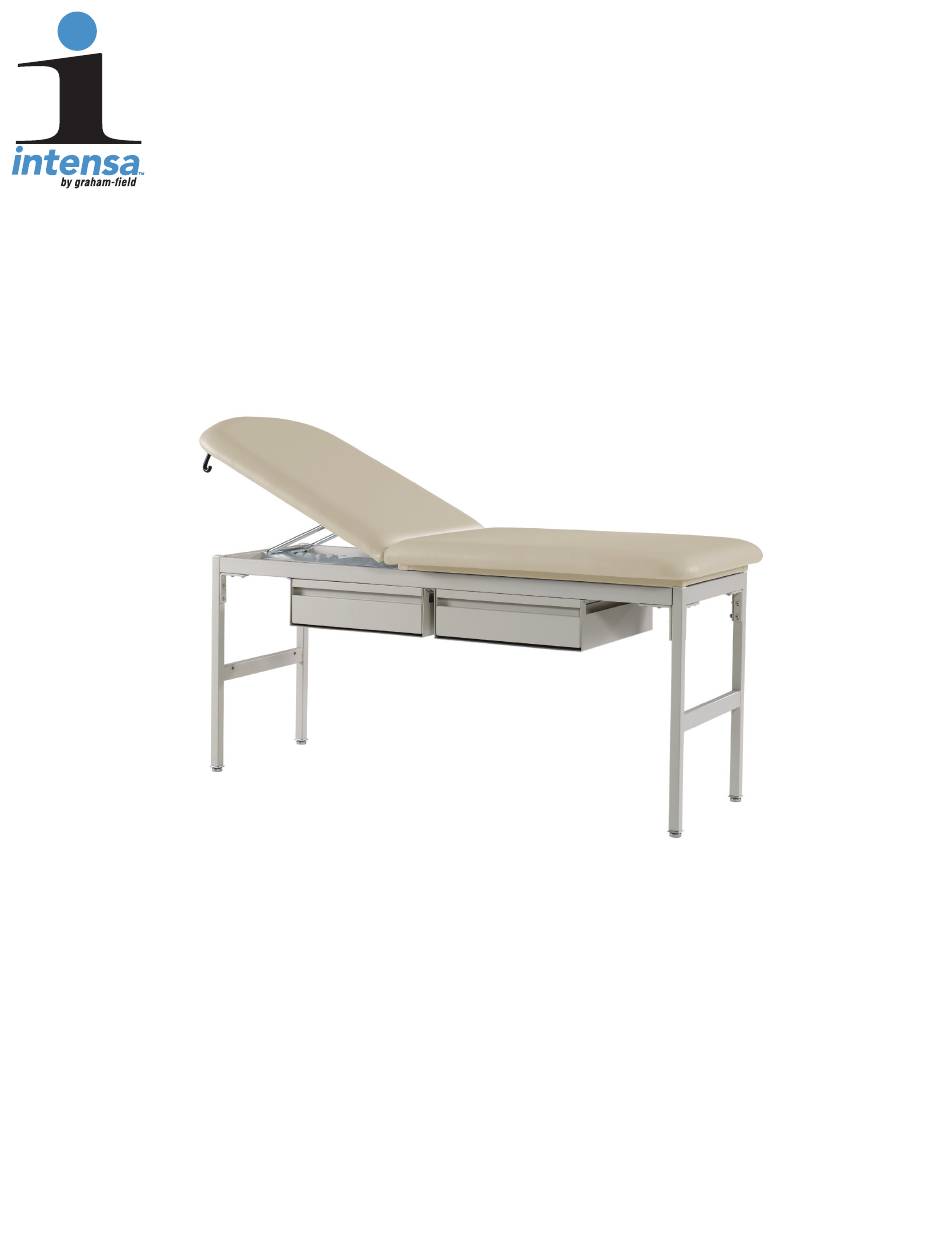

- Page 1 4 1 0 SERIES T R EAT M E NT TA B LE INSTALLATION AND OPERATION MANUAL SAVE THIS MANUAL FOR FUTURE USE. IN_410-INS-LAB-RevB24...
- Page 2 CONTENTS 1 INTRODUCTION ..........................3 INTENDED USE ......................... 3 EQUIPMENT SYMBOL KEY ..................... 4 2 SAFETY PRECAUTIONS ........................ 4 WARNINGS ..........................5 3 FEATURES ............................6 TREATMENT TABLE COMPONENT IDENTIFICATION ............6 TREATMENT TABLE MODEL NUMBER OPTIONS ..............6 4 UNPACKING ........................... 7 UNPACKING THE TREATMENT TABLE...................
- Page 3 Treatment Table. This guide covers the use of the Intensa 410 Series Treatment Tables. Keep in mind that the basic safety procedures included in this manual are to be used as a guide only. You may find it necessary to develop your own unique methods for safely utilizing the Treatment Table.
- Page 4 EQUIPMENT SYMBOL KEY Symbol Meaning Refer to Manual Shipping Orientation Maximum Weight Capacity 500 lb (317 Kg) Evenly Distributed 2 SAFETY PRECAUTIONS IMPORTANT: Before installing or using Treatment Table, read and then follow the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to your Treatment Table.
- Page 5 WARNINGS WARNING: Important! Read and understand these instructions before assembling or using the Intensa 415, 414, 413, 412, 411 and 410 Series Treatment Tables. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product.

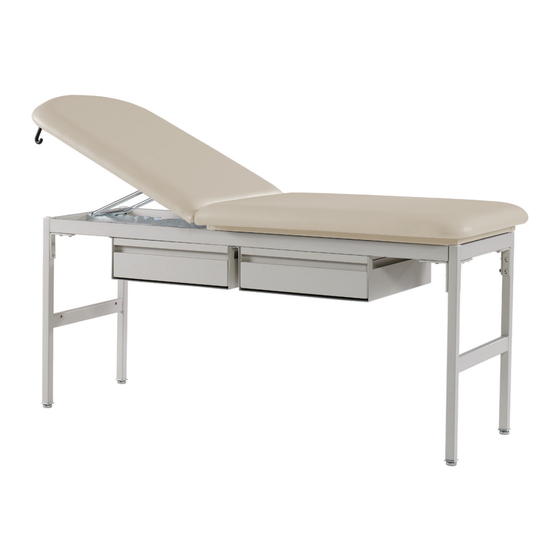

- Page 6 FEATURES TREATMENT TABLE COMPONENT IDENTIFICATION Paper Cutter 6-Position Adjustable Back Paper Roll Holder Back Angle Adjustment Bar Leveling Glides Optional Drawers Leveling Glides Optional Shelf TREATMENT TABLE MODEL NUMBER OPTIONS www.intensa.net IN_410-INS-LAB-RevB24...
- Page 7 UNPACKING Lift Area Lift Area UNPACKING THE TREATMENT TABLE WARNING: This treatment table, as shipped, is too heavy for one person to lift — use sufficient personnel to lift and remove the treatment table from the shipping pallet for placement into final location. DO NOT attempt to remove the treatment table from the shipping pallet or move it without assistance.
- Page 8 ASSEMBLY Tools required: #2 Phillips Screwdriver (preferably electric), 3/16 in. hex key s NOTICE: Tabletop will be upside down during assembly. To prevent damage to upholstery, ensure you have a protective surface to place it on. 1. While being careful to prevent damage to upholstery, position the tabletop with upholstery down and metal frame up for access to underside.
- Page 9 Shelf Mounting Holes H-leg (Two per Exam Table) Mounting the Shelf (Tabletop and Drawer(s) not Shown) 6. Mount shelf (series 415, 414 and 413 only). Mount the shelf to the inside of each H-Leg through mounting holes, shown above, with the shelf top facing the same direction as the tabletop, using the enclosed four 1/4-20 x 1 in.
- Page 10 INSTALLATION Level the treatment table as described below before use. LEVELING THE TREATMENT TABLE Leveling Glides Leveling the Exam Table 1. Locate Leveling Glides on Bottom of treatment table base, shown above (four total). 2. To raise: Turn Leveling Glide counterclockwise. 3.
- Page 11 OPERATION TREATMENT TABLE BACK ANGLE RANGE WARNING: This treatment table is manually operated. Once the back reaches its maximum angle or a horizontal position, the back will stop moving. When the back is lowered, ensure hands or other objects are clear from the downward motion area. Back Angle Range The treatment table features a limited back angle of 65°±5°...
- Page 12 MAINTENANCE s NOTICE — POSSIBLE EQUIPMENT DAMAGE HAZARD: Steam cleaning and pressure washing of treatment table is not recommended and may void warranty. WARNING: Service and repair of the Treatment Table MUST be performed by qualified personnel ONLY. WARNING: Unauthorized modification of the Treatment Table or the use of non-Intensa replacement parts may change the structure of the table and could create a hazardous condition, which may result in serious injury and void the warranty.
- Page 13 MAINTENANCE Have a qualified service technician perform the following maintenance as scheduled: Maintenance Procedure Materials / Action Required Schedule Inspect all mechanical functions for good If replacement is needed, contact operation Intensa, Inc. at 1.336.884.4096 Inspect all fasteners to ensure proper fit, position Proper size wrench and Every 3 and tightness (including nuts, bolts, etc.)
- Page 14 STORAGE Store the repackaged Treatment Table in a dry area. DISPOSAL WARNING: During normal use of this product, it could become contaminated and may present a biohazard to waste sites. This product may contain substances that could be harmful to the environment if disposed of in places (landfills) that are not appropriate according to local legislation.
- Page 15 9 TEST PARAMETERS California Technical Bulletin CA TB117-2013 Flammability Test ANSI / BIFMA X5.4-2013 Sections 11, 12, 14, and 18 www.intensa.net IN_410-INS-LAB-RevB24...
- Page 16 10 SPECIFICATIONS Load Rating, All Models (Evenly Distributed) 500 lb (227 kg) Shipping Weight Model 86.2 415D 90.72 415DD 95.25 86.2 414D 90.72 414DD 95.25 86.2 413D 90.72 413DD 86.2 86.2 412D 90.72 412DD 95.25 86.2 411D 81.65 411DD 86.2 77.11 410D 81.65...
- Page 17 11 LIMITED WARRANTY SCOPE OF WARRANTY Intensa, Inc. (“Intensa”) warrants to the original purchaser only that it will replace or repair components, at Intensa’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable Intensa instructions and manuals, including proper use and maintenance.
- Page 18 ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER THIS WARRANTY IS INTENSA’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. INTENSA MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT WOULD NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN ALL RESPECTS.
- Page 19 12 INDEX Safety precautions 4 Assembly 8 Safety statements, significance of 4 Specifications 16 Back angle adjustment 10 Storage 14 Back angle range 10 Symbol key, equipment 3 CAUTION statement, significance 4 Test Parameters 15 Cleaning 11 Components, treatment table 7 Unpacking 7 DANGER statement, significance 4 Warnings 4...
- Page 20 Manufactured By: Intensa, Inc. | 1801 S. Elm Street High Point, NC 27260 | USA Manufactured in the USA +1 770.368.4700 Intensa, Inc. is a wholly owned subsidiary of GF Health Products, Inc. © 2020, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice.
