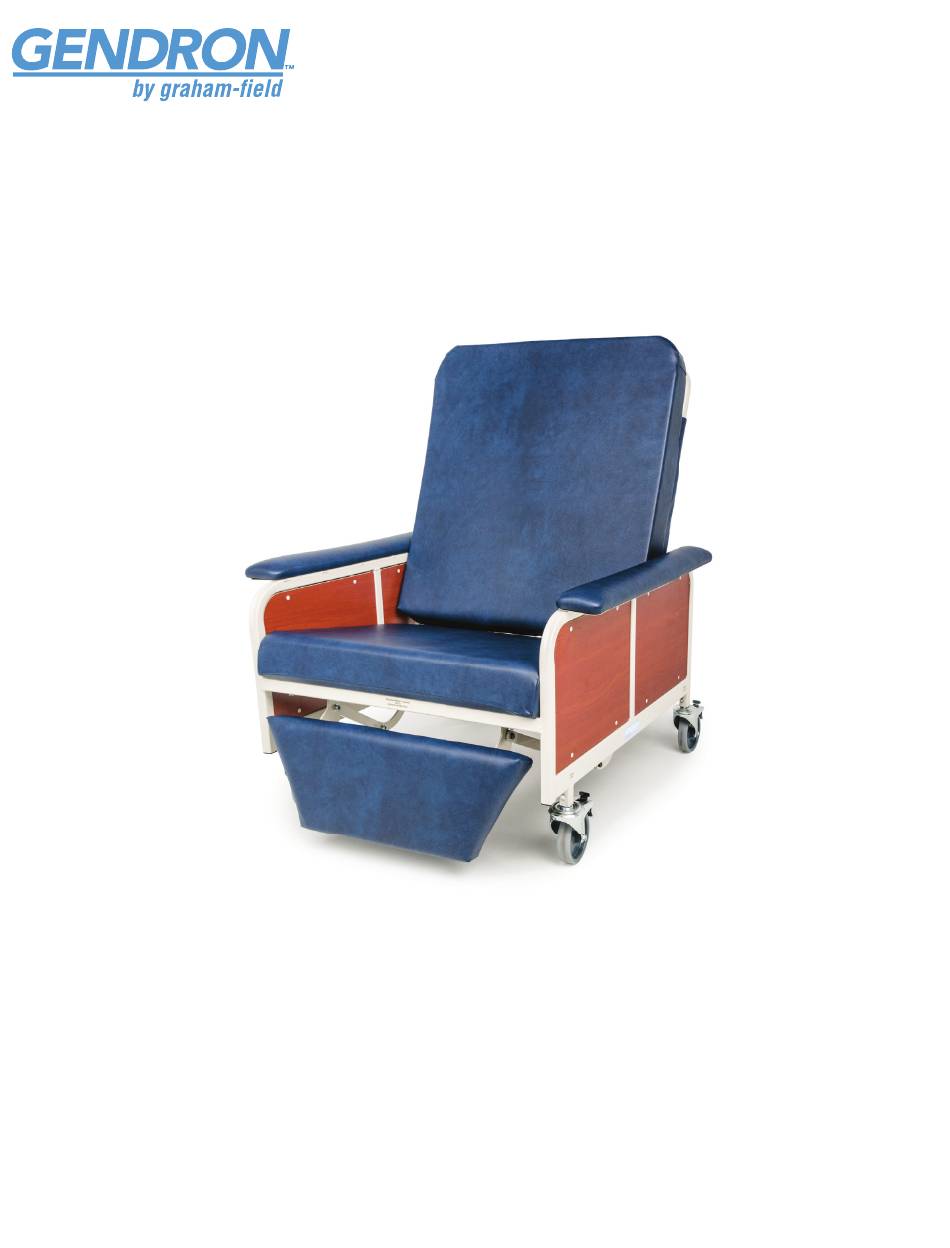

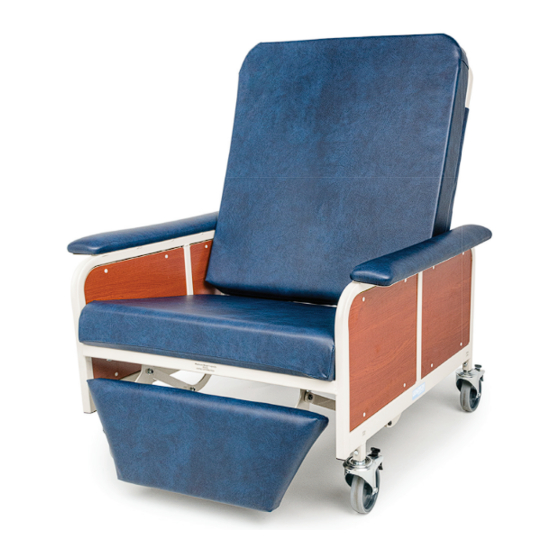

- Page 1 Series 7150 Bariatric Recliner Series 7155 Bariatric Recliner ASS EM BLY A ND O P E RATI NG INSTR UCTI O NS SAVE THIS MANUAL FOR FUTURE USE. GD_7150-7155-INS-LAB-RevA23...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ...................................3 INTENDED USE ................................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ..............3 WARNINGS ................................3 ASSEMBLY ....................................4 UNPACKING ...................................4 PRODUCT DESCRIPTION .............................4 OPERATION ..................................5 LOCKING CASTERS ..............................5 RECLINER OPERATION ..............................5 GAS SPRING TROUBLESHOOTING GUIDE .........................6 ADJUSTING CABLE TENSION ..........................6 CARE AND MAINTENANCE ..............................7 EVERY THREE MONTHS ...............................7 UPHOLSTERY MAINTENANCE AND STAIN REMOVAL ....................7 UPHOLSTERY CARE AND CLEANING GUIDE —... -
Page 3: Introduction
INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the Gendron Bariatric Recliners Series. Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, please call GF Products, Inc. ("Graham-Field") / Gendron Technical Support at 1.770.368.4700. -
Page 4: Assembly
WARNING: Casters must be locked at all times to prevent unwanted movements. WARNING: Unauthorized modifi cation of your recliner or the use of non-Gendron replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty. WARNING: GF Health Products, Inc. -
Page 5: Operation
OPERATION CASTERS WARNING: Casters must be locked at all times to prevent unwanted movements. Locking casters: Each Gendron Bariatric Recliner features four total locking casters. To activate the lock, simply press down on the actuator tab until it locks. To release the lock, press on the raised portion of the actuator tab until the lever is back in the normal operating position. -
Page 6: Gas Spring Troubleshooting Guide
GAS SPRING TROUBLESHOOTING GUIDE Info: The gas spring has been pre-adjusted at the factory. The gas spring on your recliner provides counterbalancing forces, and is self-locking for infi nite, precise positioning. Unlocking the gas spring is controlled by actuating the lever located on the push handle on the back of the recliner, shown on page fi ve. -
Page 7: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure casters into frame. • Check brakes on casters. • Check and clean lock recline mechanism. •... -
Page 8: Cdc Recommendations
This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents. The use of certain agents can be harmful to the surface appearance and lifespan of vinyl. Spradling, its agents, and assigns assume no responsibility resulting from the use of such cleaning agents to the vinyl. -
Page 9: Disposal And Key To Symbols
• Change the mop head at the beginning of each day and also as required by facility policy, or after cleaning up large spills of blood or other body substances. • Clean mops and cloths after use and allow to dry before reuse; or use single-use, disposable mop heads and cloths. -
Page 10: Key To Symbols
KEY TO SYMBOLS The following symbols are used on Gendron Recliner product labels. GENERAL WARNING SIGN MANUFACTURER KEEP DRY FRAGILE, HANDLE WITH CARE ELECTRICAL AND ELECTRONIC CE MARK EQUIPMENT CAUTION CONSULT INSTRUCTIONS FOR USE EUROPEAN AUTHORIZED MEDICAL DEVICE REPRESENTATIVE UNIQUE DEVICE IDENTIFIER TECHNICAL SPECIFICATIONS 7150 7155... -
Page 11: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. ("GF") warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 12 Manufactured By: GF Health Products, Inc. One Graham-Field Way, Atlanta, GA 30340 Made in U.S.A. +1 770.368.4700 © 2023, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice. Gendron is a trademark of GF Health Products, Inc. The most current and complete product information can be found on our website.
