- Page 1 SELECT SERIES LS300 ALTERNATING PRESSURE / LOW AIR LOSS MATTRESS SYSTEM USER MANUAL LS300-INS-LAB-RevD19 Read this manual before operating your Mattress System. Save this manual for future use.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ................................3 INTENDED USE ................................3 CONTRAINDICATIONS FOR USE ...........................3 SYMBOL DEFINITION ..............................3 SAFETY PRECAUTIONS ..............................4 SIGNIFICANCE OF SAFETY STATEMENTS ......................4 DANGER — TO REDUCE THE RISK OF ELECTROCUTION ................4 WARNING — TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR PERSONAL INJURY ...4 FEATURES ..................................7 PUMP AND MATTRESS SYSTEM ...........................7 DESCRIPTION..............................7... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of the Lumex LS300 Alternating Pressure / Low Air Loss Mattress System. This guide covers its use. The following pages will provide you with important safety, setup and operating instructions as well as maintenance and warranty information. Read this manual carefully before operating your Mattress System and refer to it as often as needed. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING: IMPORTANT: Before using this device, read and adhere to the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to your Mattress System. Always consult your healthcare professional to determine safe methods most suitable for your individual abilities. - Page 5 WARNING: If components are damaged or missing, contact your GF authorized distributor immediately. DO NOT use substitute parts. Use only Lumex replacement parts. The use of non-Lumex replacement parts could cause personal injury, property damage, and void the warranty. WARNING: Do not modify this product. Unauthorized modification of your Mattress System could cause personal injury, property damage, and void the warranty.
- Page 6 WARNING: Side Rails / Patient Restraints – Whether and how to use side rails or restraints is a decision that should be based on each patient’s needs and should be made by the patient and the patient’s family, physician and caregivers, with facility protocols in mind. Caregivers should assess risks and benefits of side rail / restraint use (including entrapment and patient falls from bed) in conjunction with individual patient needs and should discuss use or non-use with patient and / or family. Consider not only the clinical and other needs of the patient but also risks of fatal or serious injury from falling out of bed and from patient entrapment in or around the side rails, restraints or other accessories.
-
Page 7: Features

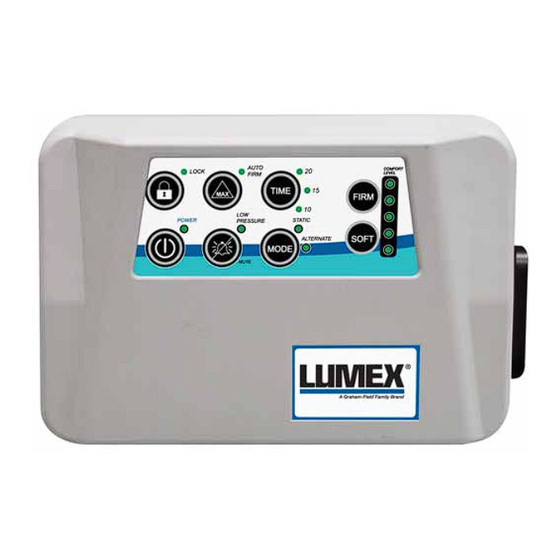

FEATURES PUMP AND MATTRESS SYSTEM Description The Lumex LS300 Alternating Pressure / Low Air Loss Mattress System is a specialized mattress replacement unit that utilizes low air loss technology with specialized mattress design that provides pressure management for the treatment of pressure ulcers. The 2:1 alternating function also provides active prevention for pressure relief, especially for those in acute care and long term care settings (the cells inflate and deflate in a 2:1 cycle, meaning of the body is always... -
Page 8: Handling Procedures: Unpacking, Storage, And Waste Disposal
HANDLING PROCEDURES: UNPACKING, STORAGE, AND WASTE DISPOSAL UNPACKING 1. Check for any obvious damage to the carton or its contents. If damage is evident, notify the carrier or your GF authorized distributor. 2. Open shipping container. s NOTICE: Do not use sharp instruments to open boxes. Damage to mattress could result. 3. -
Page 9: Setup
SETUP WARNING: Always use a standard healthcare bed frame with appropriate safeguards and protocols. Frame and side rails must be properly sized relative to the mattress to help minimize any gaps that might entrap a patient’s head or body. MATTRESS INSTALLATION 1. Ensure bed is level and brakes are locked. 2. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS OPERATION Skin Care • Remove excess moisture and keep skin dry and clean. • Check patient’s skin regularly, particularly in areas where incontinence and drainage occur. • Ensure linens under patient are not wrinkled. • Early intervention may be essential to preventing serious skin breakdown. Incontinence / Drainage •... -
Page 11: Static Function
STATIC function Press the front panel MODE button, shown at above left, to select STATIC mode. Adjust the Comfort Control by pressing the front panel SOFT / FIRM button to achieve the optimum patient comfort. Perform a pressure hand check by placing your hand under the patient buttocks between cells and bottom of mattress. -
Page 12: Cpr Deflation
Low pressure alarm The pump is equipped with an audible LOW PRESSURE alarm which enables the pump to audibly alert the caregiver to a low pressure issue with the mattress system. The low pressure alarm can be muted for twenty minutes by pressing the pump front panel ALARM RESET button shown above. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE Proper care and maintenance are essential to keeping your Select Mattress System in a safe operating condition. In addition to inspecting the unit before each use, periodic maintenance checks should be done. It is very important to have a strict cross infection, cleaning and disinfection policy in line with current infection control guidelines. -
Page 14: Cleaning And Disinfection Of The Pump
Cleaning and Disinfection of the Pump WARNING: Ensure pump power is off and unplug the power cord from the wall outlet before cleaning the pump. s NOTICE: Do not flood any part of the pump with cleaning solution. Do not immerse the pump in liquid. s NOTICE: Avoid spilling any liquid on pump. If spills do occur, clean fluid from pump wearing rubber gloves or while unit is unplugged to avoid any possibility of shock. Once liquid is removed, check operation of components in area of spill. -
Page 15: Maintenance
MAINTENANCE Replace Air Filter WARNING: Switch off the electrical supply to the pump and disconnect the power cable from the wall before replacing the air filter. Air Filter Cover Pump Rear View 1. Remove air filter cover (shown above). 2. Replace air filter cover. 3. Replace air filter cover. STORAGE See section 4: HANDLING PROCEDURES: UNPACKING, STORAGE, AND WASTE DISPOSAL. -
Page 16: Troubleshooting
TROUBLESHOOTING The following list of problems, their causes and solutions will assist you in determining what may be causing your Select Air Mattress not to function as designed. If a problem occurs which is not listed below, contact GF Tech Support at 1.770.368.4700 for further information. Do not attempt to repair components or parts, as this may invalidate your warranty or cause further problems that may result in patient injury. -
Page 17: Specifications
SPECIFICATIONS MATTRESS OVERLAY (Applied Part) Model Description Specification LS300M Dimensions (L x W x H) 80 in. x 36 in. x 8 in. (203.2 cm x 91.4 cm x 20.3 cm) Weight 16.3 lb (7.4 kg) Top Cover Material Navy Nylon coated with PU + Single Quilting Base Cover Material Black polyester laminated with PVC, 4 corner elastic strap PUMP (UL Listed) -
Page 18: 10 Limited Warranty
10 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the Original Purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 19: 11 Emc Related Notification
11 EMC RELATED NOTIFICATION WARNING: Medical electrical equipment needs special precautions regarding EMC and needs to be installed according to the EMC information provided. Careful consideration of this information is essential when stacking or collocating equipment and when routing cables and accessories. WARNING: RF mobile communications equipment can affect medical electrical equipment. - Page 20 Manufacturer’s declaration-electromagnetic immunity The LS300 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS300 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic...
- Page 21 Manufacturer’s declaration-electromagnetic immunity The LS300 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS300 should assure that it is used in such and environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance...
- Page 22 Manufacturer’s declaration-electromagnetic immunity Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment The LS300 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS300 should assure that it is used in such an environment. Compliance LEVEL Test...
-
Page 23: 12 Index
12 INDEX Air filter, replace 15 Pump 7 ALARM RESET button 12 Pump and mattress system 7 ALTERNATE function 11 Pump cleaning and disinfection 14 Assembly instructions 9 Pump front panel 7 Pump installation 9 Pump rear view 7 Care and maintenance 13 CAUTION statement, significance 4 Cleaning 13 Safety precautions 4... - Page 24 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2017, GF Health Products, Inc. All Rights Reserved. Graham-Field and Lumex are trademarks of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc.
