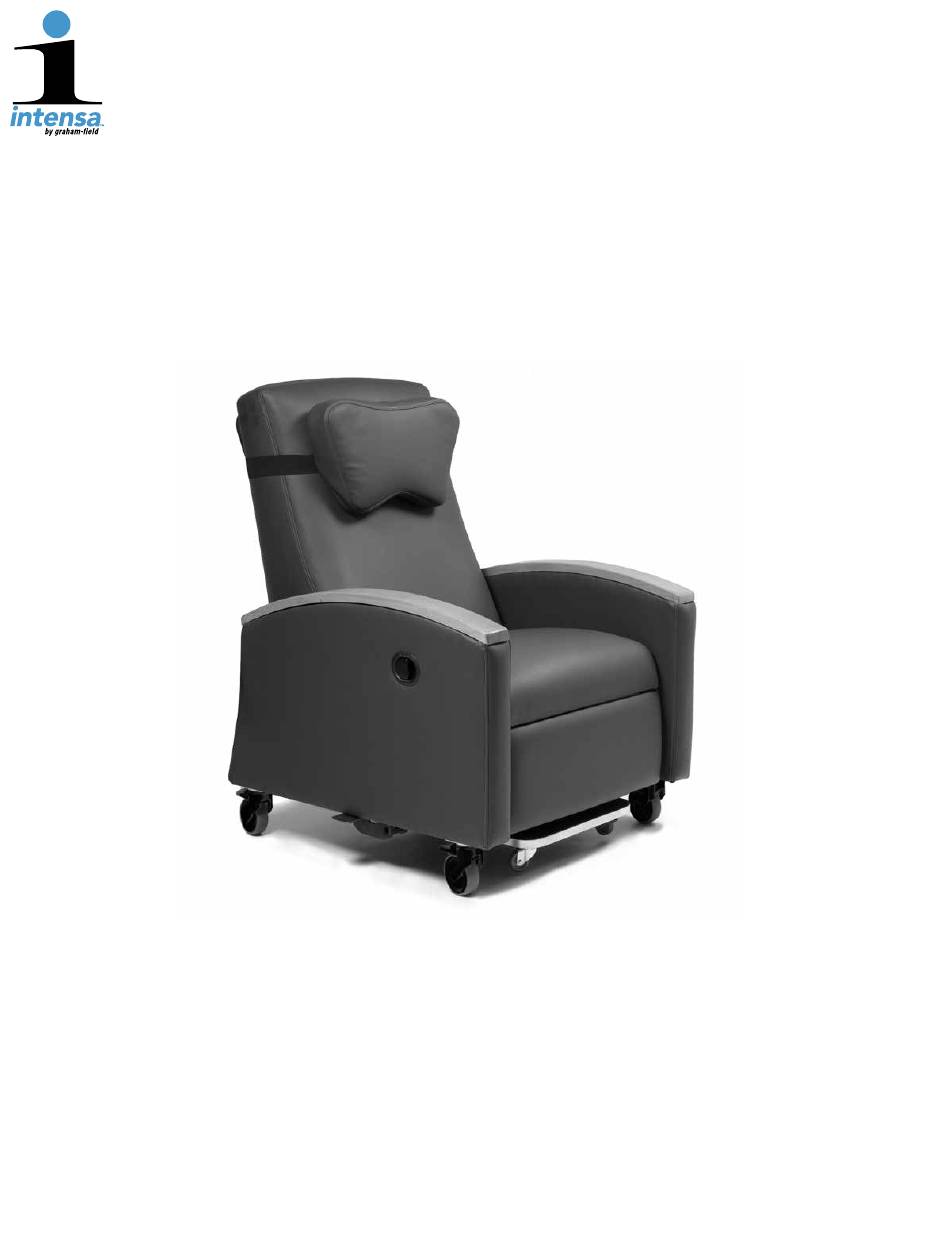

IN597G Model Shown
ASS EM BLY A ND O P E RATI NG
INSTR UCTI O NS
SAVE THIS MANUAL FOR FUTURE USE.
IN_IN597-INS-LAB-RevB22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the intensa Ortho-Biotic II IN597G and is the answer not in the manual?

Questions and answers

Summary of Contents for Graham Field intensa Ortho-Biotic II IN597G

  • Page 1 IN597G Ortho-Biotic II Recliner ™ with Wooden Arm Caps IN597P Ortho-Biotic II Recliner ™ with Fully Upholstered Arms IN597G Model Shown ASS EM BLY A ND O P E RATI NG INSTR UCTI O NS SAVE THIS MANUAL FOR FUTURE USE. IN_IN597-INS-LAB-RevB22...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ...............................3 INTENDED USE ..............................3 IMPORTANT SAFETY PRECAUTIONS—READ BEFORE USE ..............3 WARNINGS ..............................3 UNPACKING AND ASSEMBLY ..........................5 PACKAGING ..............................5 UNPACKING THE RECLINER ...........................5 INTENSA IN597 ORTHO-BIOTIC II RECLINER DESCRIPTION AND FEATURES ..........6 OPERATION ................................7 TENTE CASTERS............................. 7 ®...
  • Page 3: Introduction

    INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the following Intensa Recliner models: a) IN597G(COLOR) Ortho-Biotic II Recliner with Wooden Arm Caps b) IN597P(COLOR) Ortho-Biotic II Recliner with Fully Upholstered Arms Read the entire manual carefully before using your recliner, and refer to it during use if you have questions.
  • Page 4 WARNING: This product has a maximum weight capacity of 350 lb (159 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times, except during transport. WARNING: Unauthorized modification of your recliner or the use of non-Intensa replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.
  • Page 5: Unpacking And Assembly

    UNPACKING AND ASSEMBLY 1. The Intensa Ortho-Biotic II Recliner is delivered in a three-piece single shipping carton strapped to a pallet. Upon delivery, ensure all cartons are present. Note any shortages on the delivery receipt. 2. Check for any obvious damage to the carton or contents. If damage is evident, immediately notify the carrier, your GF authorized distributor, and / or GF Health Products, Inc.
  • Page 6: Intensa In597 Ortho-Biotic Ii Recliner Description And Features

    INTENSA IN597 ORTHO-BIOTIC II RECLINER DESCRIPTION AND FEATURES Adjustable Padded Universal Headrest Push Handle Legrest-Recline Adjustment Lever Total Locking Directional Locking Caster (3) Caster (1) Pull-Out Footplate Trendelenburg Foot Pedal (RIGHT SIDE ONLY) IN597G Model Shown IN_IN597-INS-LAB-RevB22 www.intensa.net...
  • Page 7: Operation

    OPERATION TENTE CASTERS ® WARNING: Casters must be locked at all times, except during transport. The Intensa Ortho-Biotic II Recliner features the black actuator tab green actuator tab latest design, all-plastic casters from TENTE. Specifically designed for use in healthcare environments, these casters are easier to clean, easier to move, and tolerate a wide array of cleaners and chemicals.
  • Page 8: Legrest Operation

    LEGREST OPERATION Legrest (Shown Extended) Extending Legrest To activate the legrest, pull the Legrest-Recline Adjustment Lever (located on the right side of the recliner) rearward — the legrest will extend out from the recliner. Returning Legrest to Stored Position To return the legrest to the stored position, press downward Legrest-Recline Adjustment Lever on the legrest until the legrest locks into place and is flush...
  • Page 9: Footplate Operation

    FOOTPLATE OPERATION The Intensa Ortho-Biotic II Recliner features a self-storing footplate for patient comfort and convenience during patient transport. Optional IV Pole and Optional The footplate is easily extended when needed IV Attachment and can be stored safely out of the way when not in use.
  • Page 10: Optional Accessories

    OPTIONAL ACCESSORIES The Intensa Ortho-Biotic II Recliner is available with several Factory Installed Optional Accessories. Optional Side Table An Optional Side Table is available for storage of prep materials or patient items. Order Item IN597GTBLMNT, Optional Side Table. Optional Side Table Operation Optional Side Table Raising Side Table: Raise the side...
  • Page 11: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Inspect all components every three months and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each caster plate to ensure casters are secured tightly to frame. • Check caster brakes. •...
  • Page 12: Cdc (Centers For Disease Control) Recommendations

    Info: For cleaning that requires step 4 or 5, use a soft cotton cloth saturated with the cleaning material and rub the stain in circles 10 times. Pat dry with another soft cotton cloth and check the results. The information published in this care guide refers to the performance of PERMABLOK3 products in specific tests conducted under laboratory conditions.
  • Page 13: Ce Certification

    • Detergent and water are adequate for cleaning surfaces in nonpatient-care areas (e.g., administrative offices). Clean and disinfect high-touch surfaces on a more frequent schedule than minimal-touch housekeeping surfaces. Clean walls, blinds, and window curtains in patient-care areas when they are visibly dusty or soiled. •...
  • Page 14: Test Parameters

    TEST PARAMETERS California Technical Bulletin CA TB133 Flammability Test ANSI / BIFMA X5.4-2013 Sections 11, 12, 14, and 18 TECHNICAL SPECIFICATIONS Specification Model IN597 Overall Height 45.5" 115.6 cm Overall Width 33" 83.8 cm Width Between Arms 24" 61 cm Arm Height from Floor 26.75"...
  • Page 15: Limited Warranty

    LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (GF) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
  • Page 16 Manufactured By: GF Health Products, Inc. One Graham-Field Way, Atlanta, GA 30340 GF Health Products, Inc. is an ISO 13485:2016  MDSAP Certified Company +1 770.368.4700 Information contained herein is subject to change without notice. The most current and complete product information can be found on our website. www.intensa.net | www.grahamfield.com ©...
