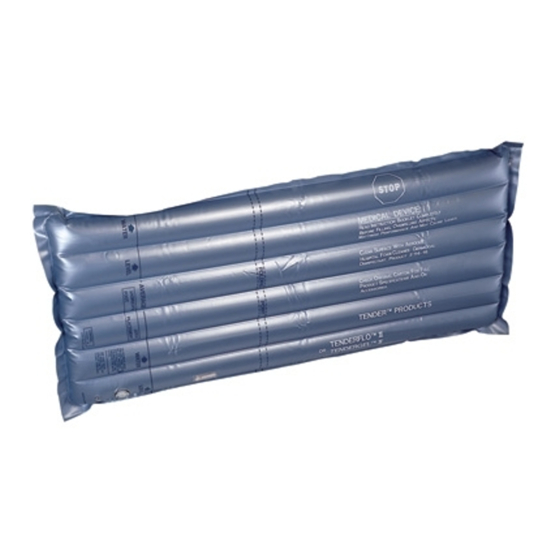

Graham Field LUMEX TENDERFLO AQTF-2035 Installation Instructions

Info: The most current version of these instructions can be found online at
WARNING: Important! Read and understand these instructions before installing or using the
Lumex Tenderflo Water Overlay. These instructions contain information that will aid you in achiev-
ing maximum therapeutic results. If you do not understand any part of these warnings, cautions
or instructions, contact a healthcare professional for direction in the use of this product. If the
overlay is not properly installed, personal injury and damage to the overlay could result.
WARNING: If components are damaged or missing, contact your dealer immediately. DO NOT use
substitute parts. Use only Lumex replacement parts. The use of non-Lumex replacement parts
could cause personal injury, property damage, and void the warranty.
WARNING: This product has a maximum weight capacity of 225 lb.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused
by improper assembly or use of this product.
INTENDED USE
The intended use of the AQTF-2035 is as a support and pressure reduction surface.

INSTALLATION

Setup

Unfold the overlay and place it on either a conventional or hospital mattress, with the fill valve facing up
and visible at the foot of the bed.

Filling

1. See picture at right: Unscrew and remove
the fill valve cap. Holding the base of the fill
valve, carefully insert your finger into the
opening and gently pull the valve to its raised
position.
2. Locate a nearby faucet to obtain warm water, approximately 98°F - 99°F (36°C - 37°C).
3. Connect one end of a standard garden hose to the faucet. Screw the female end of the garden hose onto
the overlay's male fill valve.
4. Gently turn on the warm water. Do not leave the overlay unattended. Hold the fill valve upright until the
water level reaches the filling line.
5. Turn off the water when the desired level has been reached. Do not overfill.
s NOTICE: If you accidentally overfill the overlay, drain out the excess water immediately.
6. Close the fill valve cap.
s NOTICE: Ensure fill valve cap is securely closed. Crossed threads could result in leakage.
7. Gently push the cap downward to the recessed position.
8. Mark date filled.
Checking for Proper Fill Level
1. Fill the overlay with as little water as possible, as previously described. After all the caps are tightly in
place, check for proper fill level:
2. Position the patient on the overlay with heels at end of mattress and head on pillow. Place your hand
(palm up) under the overlay beneath the patient's buttocks. There should be approximately one to two
inches between these two surfaces. The overlay should contour to the patient's body and not appear hard
from overfilling. If too soft, add more water, and if too hard, remove water, until appropriate fill is achieved.
AQTF-2035-INS-LAB-RevC11
AQTF-2035 TENDERFLO
INSTALLATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
WATER OVERLAY:
®
www.grahamfield.com
1
