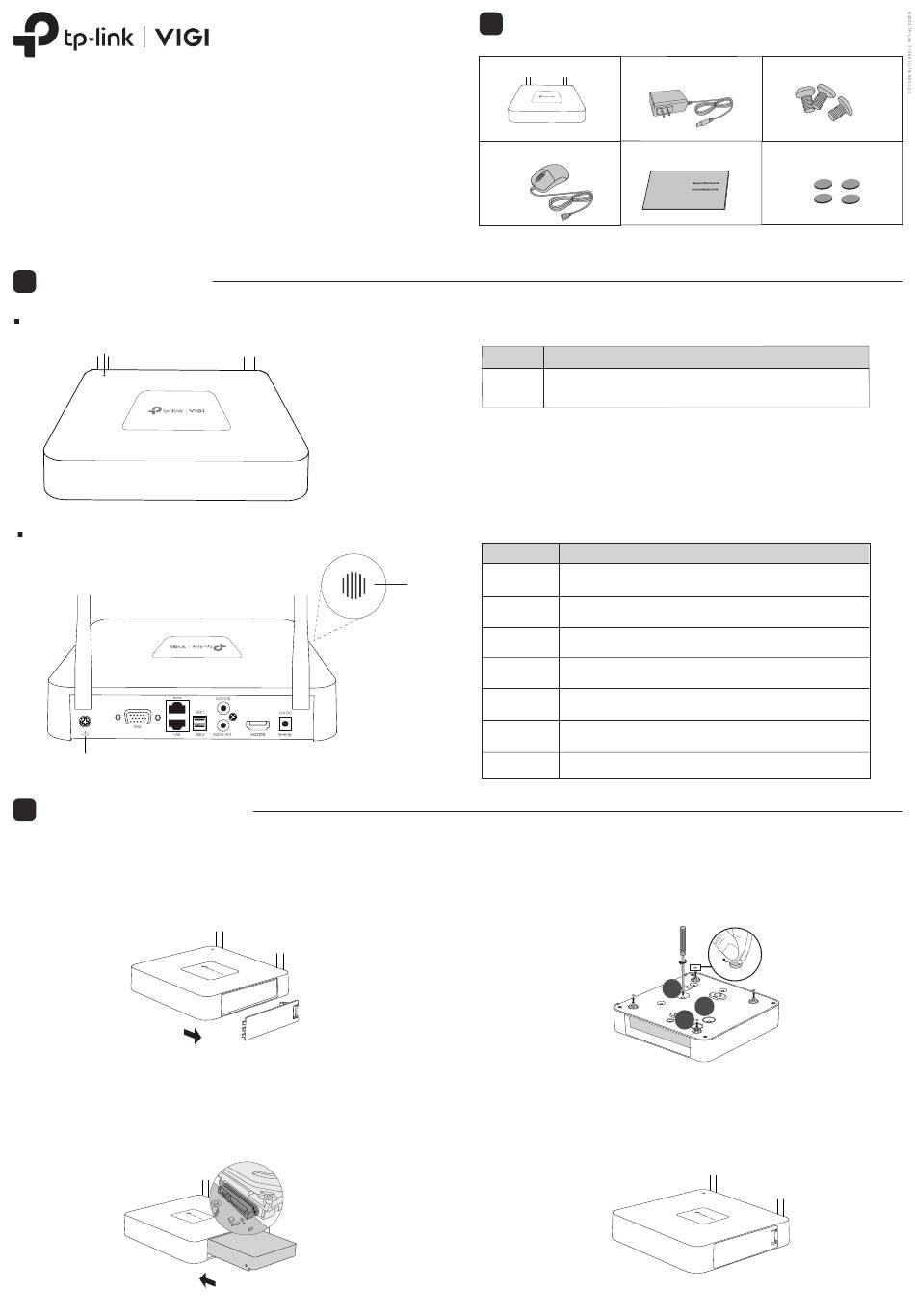

TP-Link VIGI NVR1108H-W Quick Installation Manual

Quick Installation Guide
Network Video Recorder
*Images may differ from actual products.
2
Product Overview
Front Panel
System LED
Back Panel
Grounding Terminal
3
Hard Drive Installation
When installing for the first time, please prepare a 3.5-inch hard disk drive (HDD). It is recommended to use the HDD of surveillance or enterprise
level. Before installation, please disconnect the power from the network video recorder (NVR).
1. Press and hold the side cover button to remove the side cover.
2. Push the HDD and insert it into the hard disk slot.
1
Package Contents
Network Video Recorder
Mouse
LED Indication
On: System is running normally.
System
Off: System is running abnormally.
Interface Description
RJ45 10/100Mbps self-adaptive Ethernet port.
Speaker
WAN
For connecting to internet.
RJ45 10/100Mbps self-adaptive Ethernet port.
LAN
For connecting PC or other wired devices.
2 USB ports for additional devices such as USB mouse,
USB
USB storage device, and USB keyboard.
AUDIO IN /
Connector for audio input and output.
AUDIO OUT
Note: Audio input only supports microphones with power supply.
Output port for high-definition audio and video signals. Connect
HDMI
your monitor to this port if it uses HDMI connection.
Output port for analog video signals.
VGA
Connect your monitor to this port if it uses VGA connection.
POWER Connector for power input.
3. Fasten the screws to secure the HDD according to the actual HDD
screw holes. Stick the rubber feet.
4. Install back the side cover.
Power Adapter HDD Screws
Quick Installation Guide Rubber Feet (for some models)
1
2
3
