IS32L3183A DEMO KIT USER GUIDE
2.4 Diagram of Hardware Connection

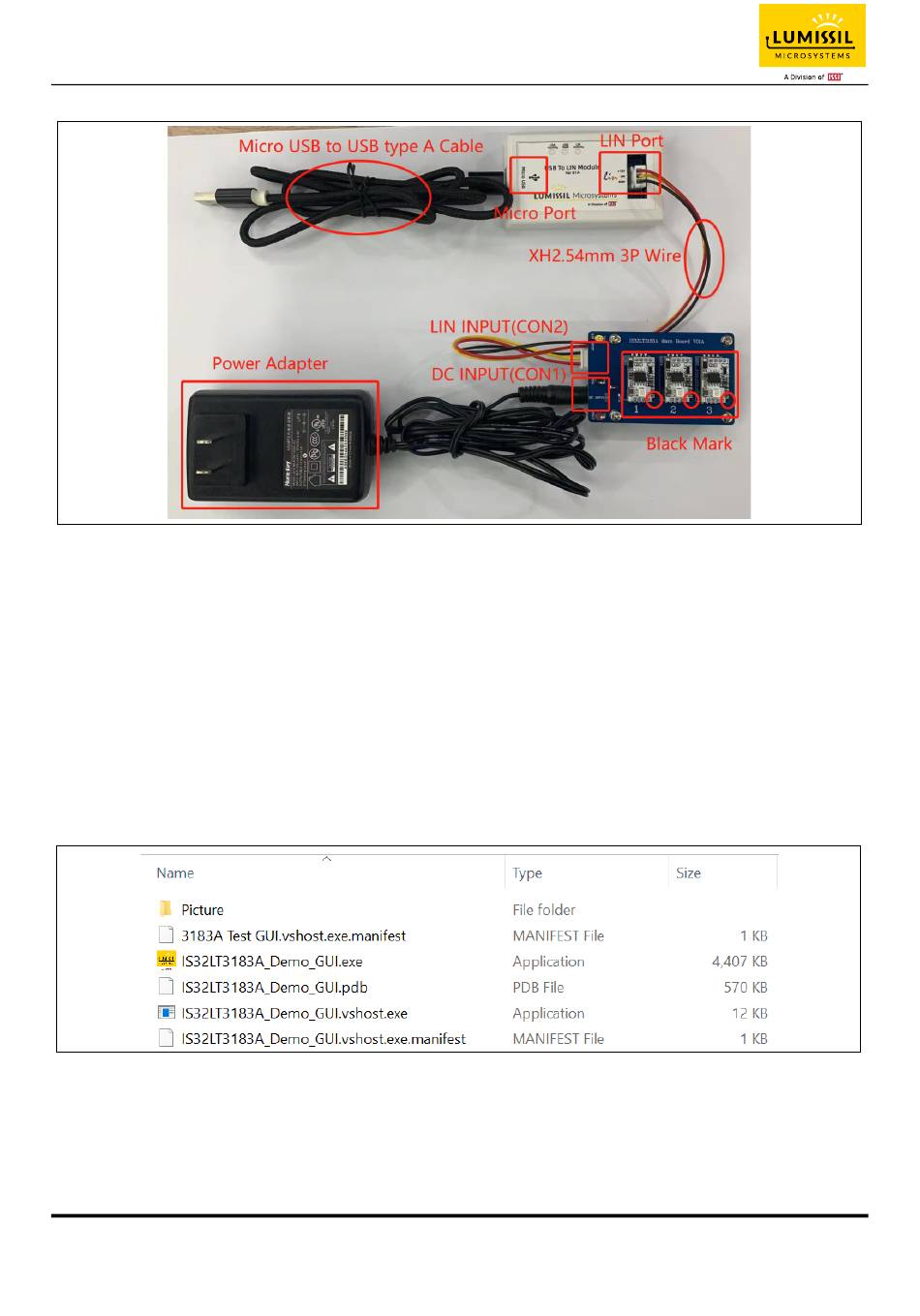

Figure 11 Diagram of Hardware Connection
Hardware connection mark and name Main and Eval Boards:
Place the IS32LT3183A-GRLA3-EBGUI demo board on CON1-CON3 female socket of the IS32LT3183A Main
Board. The black mark of demo board faces to bottom right and pins of demo board should be aligned with female
socket. Hot swap is allowed.
Connect LIN port of USB To LIN Module to LIN INPUT (CON5) port of IS32LT3183A Main Board with the XH2.54mm
3Pin wire. Pins should be aligned with the gap of socket.
Micro USB port connects PC USB port with Micro USB to USB type A cable.
DC INPUT (CON1) port is powered by a 12V power adapter.
3. GUI SOFTWARE INSTALLATION
Extract the files from "IS32LT3183A_Demo_GUI.rar" that will create the directory, "IS32LT3183A_Demo_GUI" with
the following contents:
Figure 12 IS32LT3183A_Demo_GUI folder
Double click the "IS32LT3183A_Demo_GUI.exe" to open the GUI interface.
