ISSI IS32LT3120 Demo Manual

IS32LT3120 Dual Channel Linear LED Driver With Fade In/Fade Out
DESCRIPTION
The IS32LT3120 is a linear programmable current
regulator consisting of 2 output channels capable of up
to 200mA each. Each channel features an ON/OFF
input pin to toggle the channel between the OFF
condition and the source condition.
The device integrates 63 steps fade in and fade out
algorithm (Gamma correction) which causes the output
LED current to gradually ramp up to the full source
value after the channel's control pin is pulsed. The
same controller causes the LED current to gradually
ramp down to zero if the channel's input control pin is
pulsed while the output channel is on.
FEATURES

Dual output channels source up to 200mA each

Independent debounced ON/OFF control for each
channel

Programmable current via a single external
resistor

Programmable fade in, fade out via external
resistor
- Pull down resistor value sets fade speed
- Gamma corrected fade in/out algorithm

Fault Protection:
- LED string shorted to GND
- Over temperature

SOP-8-EP packages

Automotive Grade - AEC-Q100 (pending)

Operating temperature range from -40°C ~ +125°C
QUICK START

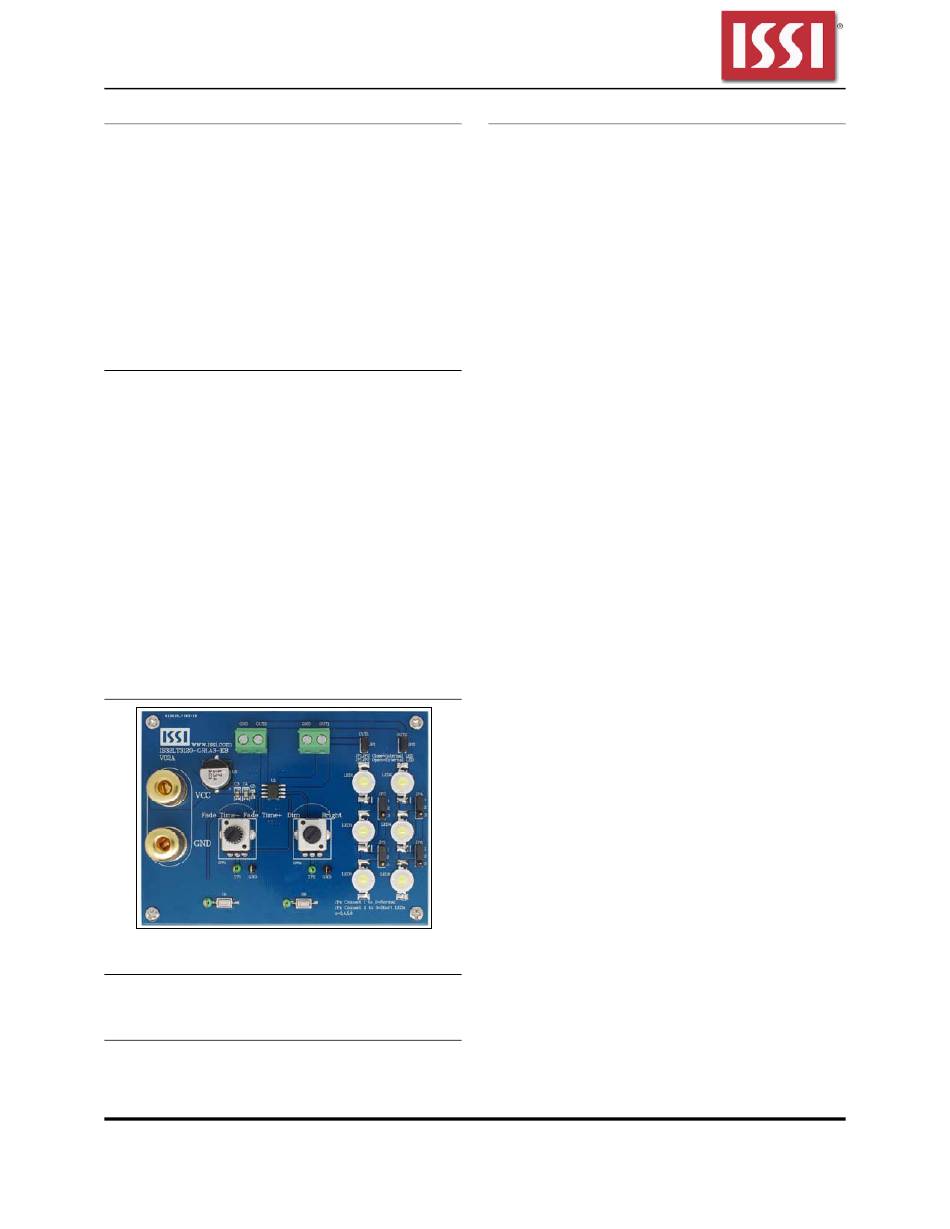

Figure 1: Photo of IS32LT3120 Evaluation Board
RECOMMENDED EQUIPMENT

12V,1A DC power supply
ABSOLUTE MAXIMUM RATINGS

≤ 45V power supply
Caution: Do not exceed the conditions listed above, otherwise
the board will be damaged.
Integrated Silicon Solution, Inc. – www.issi.com
Rev.A, 08/11/2014
PROCEDURE
The IS32LT3120 evaluation board is fully assembled
and tested. Follow the steps listed below to verify
board operation.
Caution: Do not turn on the power supply until all connections
are completed.
1) Connect the ground terminal of the power supply
to the GND and the positive terminal to the VCC.
NOTE: The VCC supply should be set close to the
IS32LT3120 minimal headroom voltage of 0.5V
(Vcc – Voutx) for best thermal performance. The
board can be operated with a larger headroom
voltage as long as the increase in package
temperature is monitored. Exceeding the device
package temperature specification will cause the
device to enter thermal protection mode.
2) The fade time of both channels is adjusted by the
variable resistor (RW1).Turn
clockwise to decrease fade time, and clockwise to
increase fade time. Once the desired fade time is
set, measure the resistor value across TP1 and
GND. Use this measured resistor value to replace
the variable resistor RW1 and R3 (see schematic
Figure 2).
3) The output current of both channels (OUT1 and
OUT2) is adjusted by the variable resistor (RW2).
Turn RW2 counter clockwise to decrease the
output current of both channels, and clockwise to
increase the output current of both channels. The
test point TP2 can be used to detect the resistor
value at the ISET pin. The final resistance can be
measured with an ohm meter across TP2 and
GND pins. Use this measured resistor value to
replace the variable resistor RW2 and R4 (see
schematic Figure 2).
4) Momentary contact buttons (K1, K2) are used to
individually enable/disable the Outx LED channels.
Press K1 to enable the onboard LED string for
channel 1. Press K2 to enable the onboard LED
string for channel 2. In both cases wait for the
LED string to be fully ON (fade time completed)
before pressing the button (K1 or K2) to turn OFF
the corresponding LED string. Always wait for
completion of fade time before pressing either K1
or K2.
5) JP1is used to connect the IS32LT3120 Out 1 (pin
4) to the onboard LED string (LED1, LED3 and
LED5). JP2 connects the device Out2 (pin 5) to
the onboard LED string (LED2, LED4, LED6). Use
one of the green terminal blocks to connect an
external LED string. Remove the corresponding
jumper header (JP1 or JP2) to disable the
onboard LED string. Note: Connecting an
external LED string without removing the onboard
string jumper header will drive both onboard and
external LED strings in parallel resulting in lower
current drive to both strings.
RW1 counter
