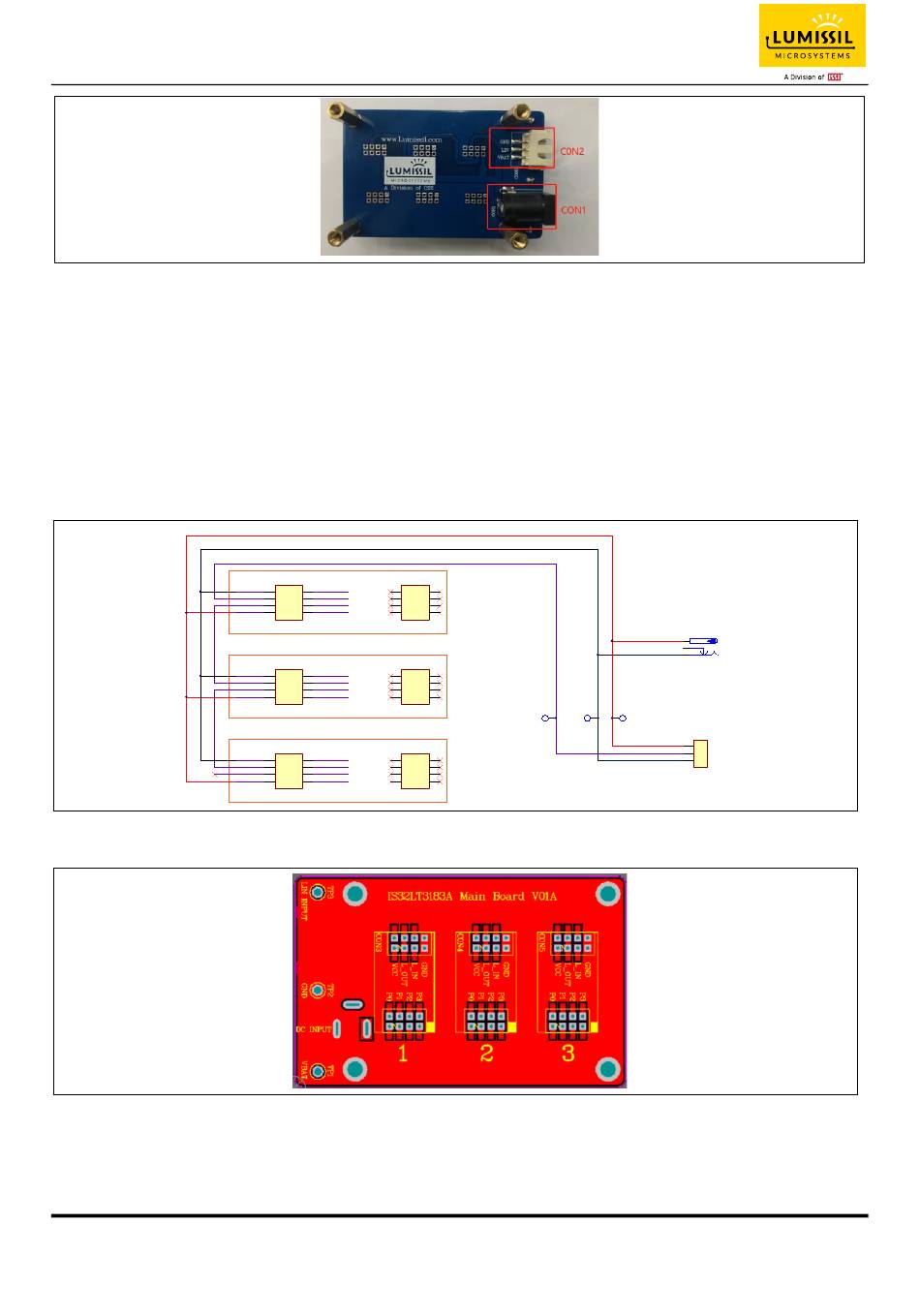

ISSI IS32L3183A User Manual page 4

IS32L3183A DEMO KIT USER GUIDE
TP1: VBAT test point
TP2: GND test point
TP3: LIN INPUT test point
CON3~CON5: Place the IS32LT3183-GRLA3-EBGUI Evaluation Boards. Up to 3 IS32LT3183-GRLA3-EBGUI
Evaluation Boards can be placed. It must be placed from CON3 to CON5. Just place IS32LT3183-GRLA3-EBGUI
Evaluation Board on CON3 if there is only one.
CON1: DC 12V connector (Barrel 5.5/2.1mm)
CON2: LIN port, XH2.54mm-3P connector, connecting to the USB To LIN Module port of LIN.
Schematic
PCB Top View
Lumissil Microsystems – www.lumissil.com
Rev. C, 10/09/2023
